Esp32-Stick(16MB Version) + EspEasy

Hello everyone! In this tutorial I'm going to demonstrate how to use ESP Easy to upload and establish an Ethernet connection, giving you access to the internet.

What you're going to need:

1x ESP32 stick – can be bought in Czech Republic or Internationally

1x USB-C cabel

1x Ethernet cabel

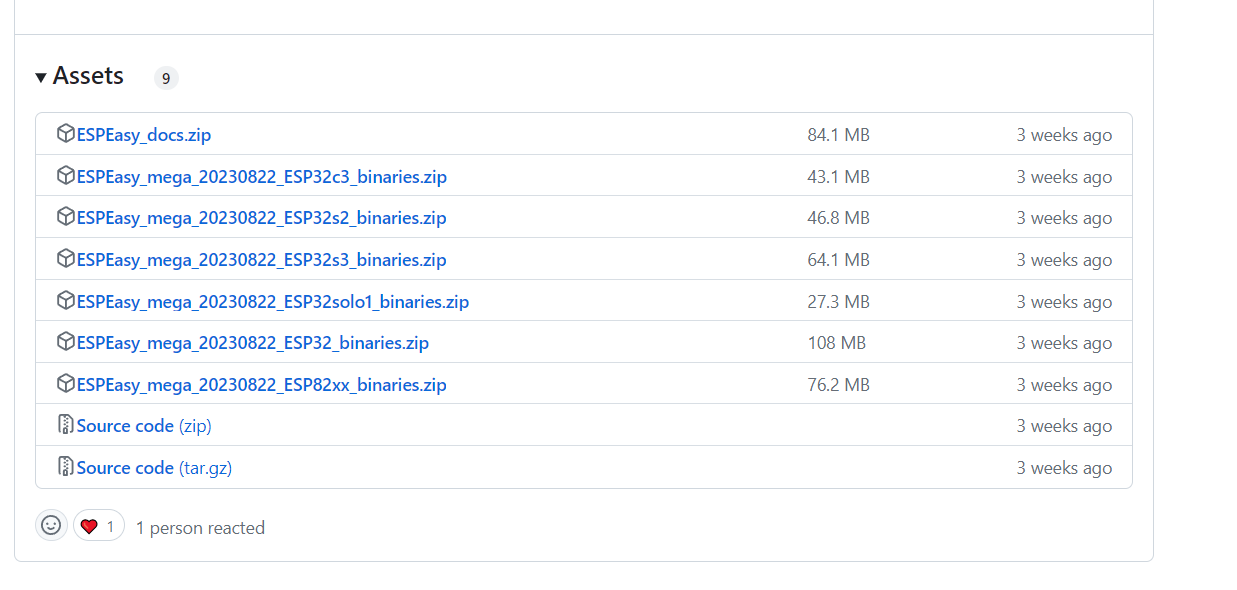

Visit this website to download latest version of ESP Easy and download ESPEasy_mega_..._ESP32_binaries.zip, afterwards create a folder on Windows screen where you can put files from .zip

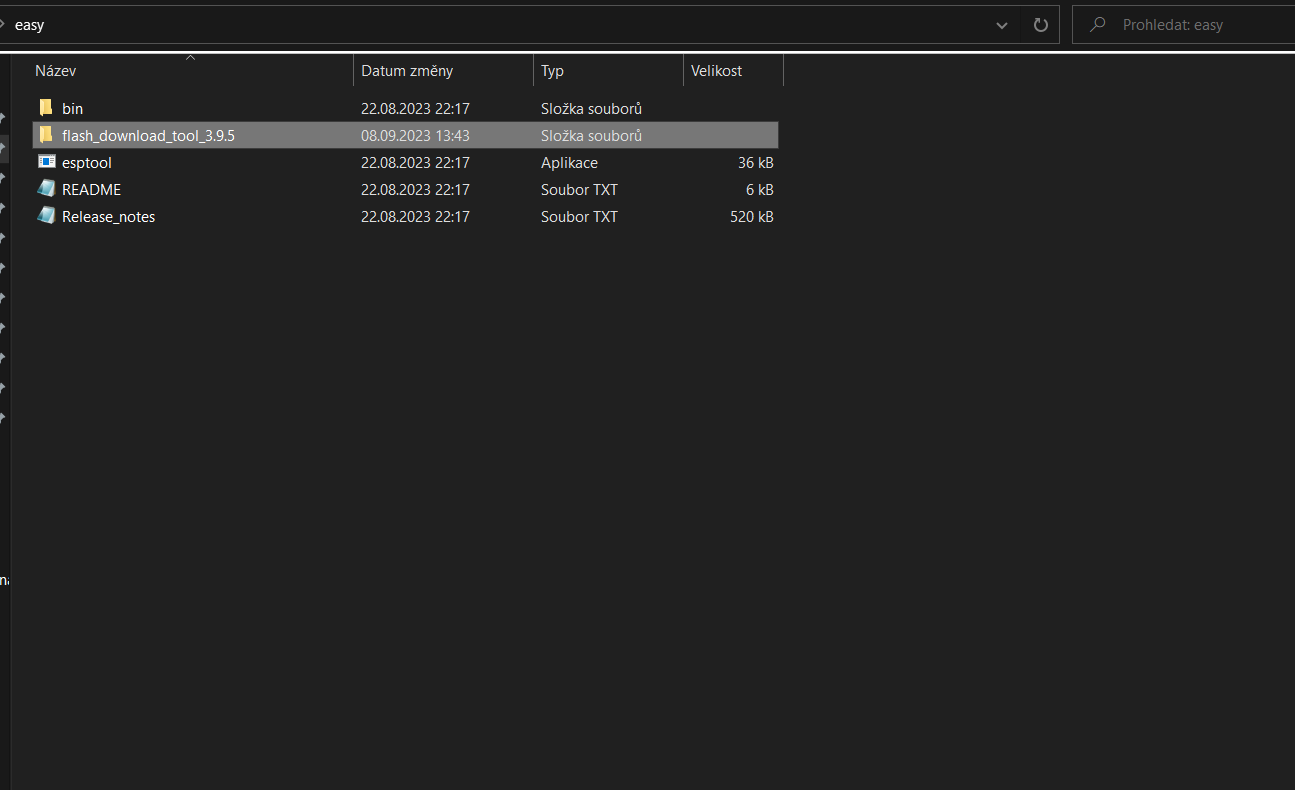

After extracting .zip file go to flash_download_tool.[ver] and launch flash_download_tool.[ver]

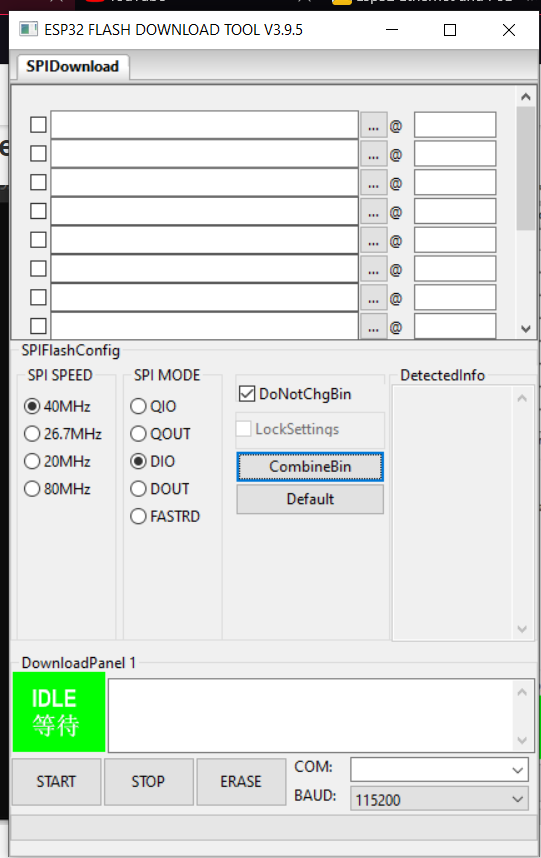

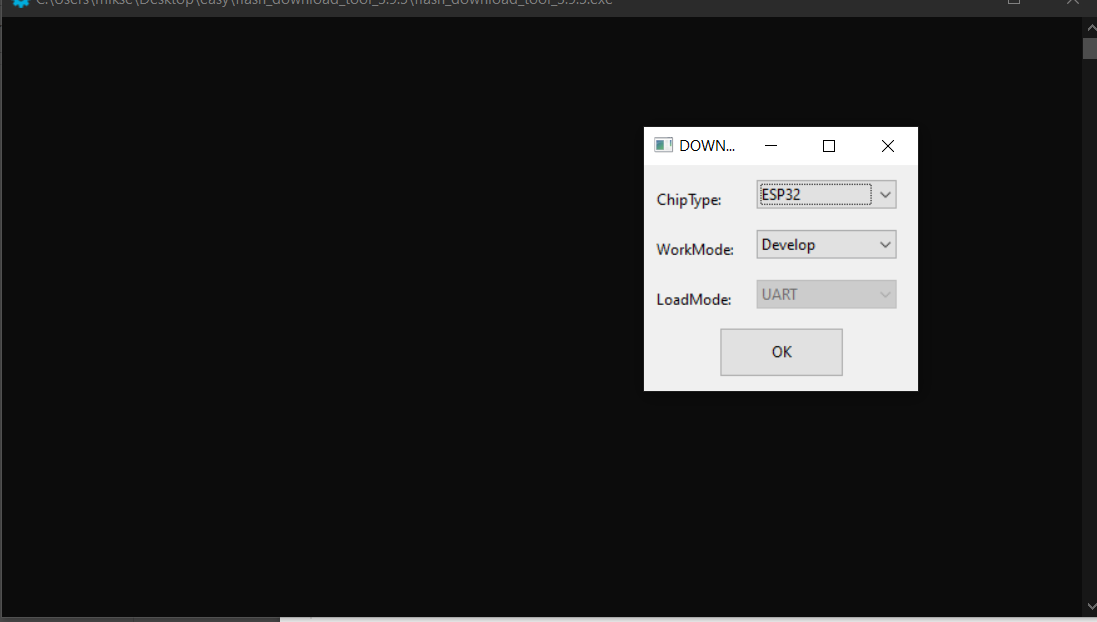

Choose ESP32, WorkMode: develop and continue, you should see this window on the right

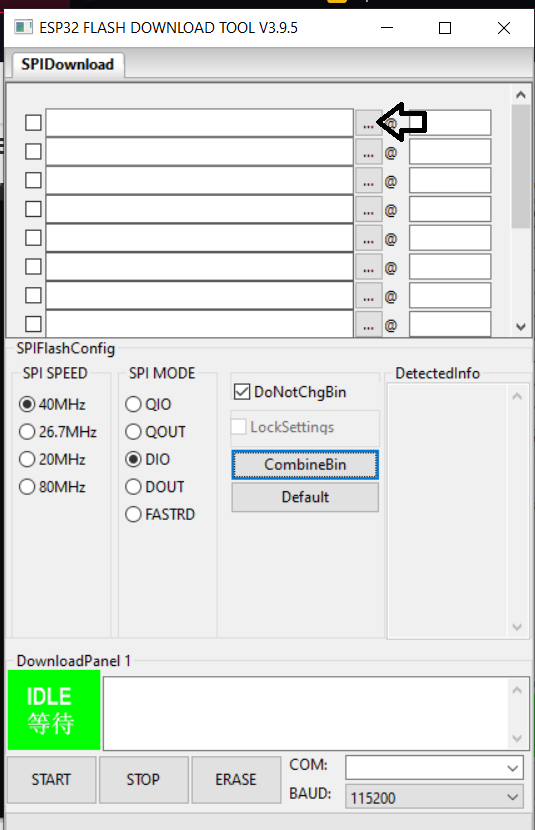

Now, it's time to select the file to upload to your ESP32 device.

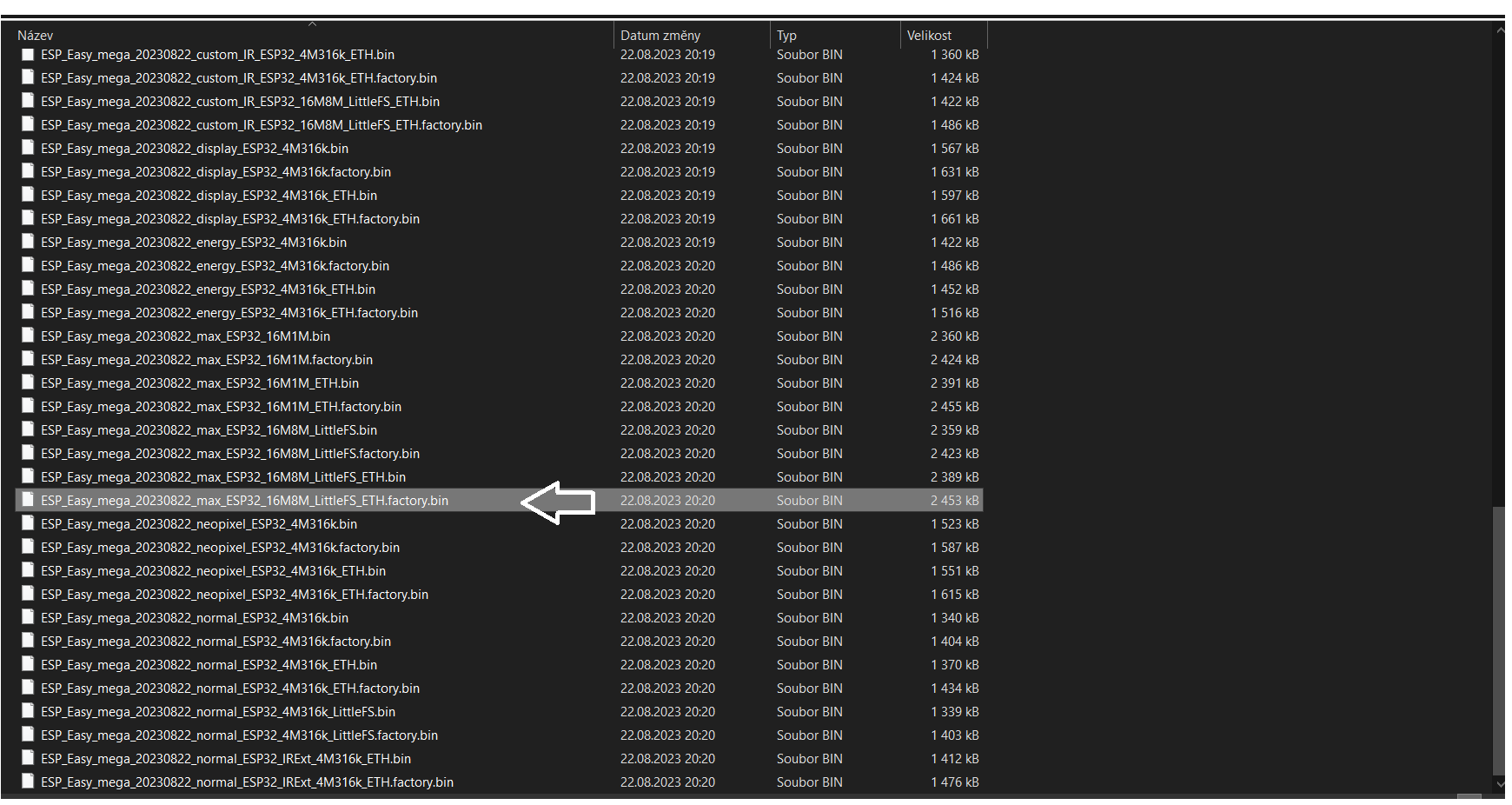

Navigate to the [File name]/bin directory and choose the file named ESP_Easy_mega_20230822_max_ESP32_16M8M_LittleFS_ETH.factory.bin.

Connect ESP stick to pc with usb-c and select port

You'll notice that there are two types of files in this documentation: those with 'factory' in their names and those without. To simplify, if a file has the word ".factory" in its name, it must be uploaded to the new device. This upload process should start at address 0, which is a specific location in the device's memory. Files without 'factory' in their names are intended for OTA updates. You can find more details in the 'ESP32 builds' section.

here's the link: https://espeasy.readthedocs.io/en/latest/Participate/ProjectStructure.html#espeasy-nightly-builds

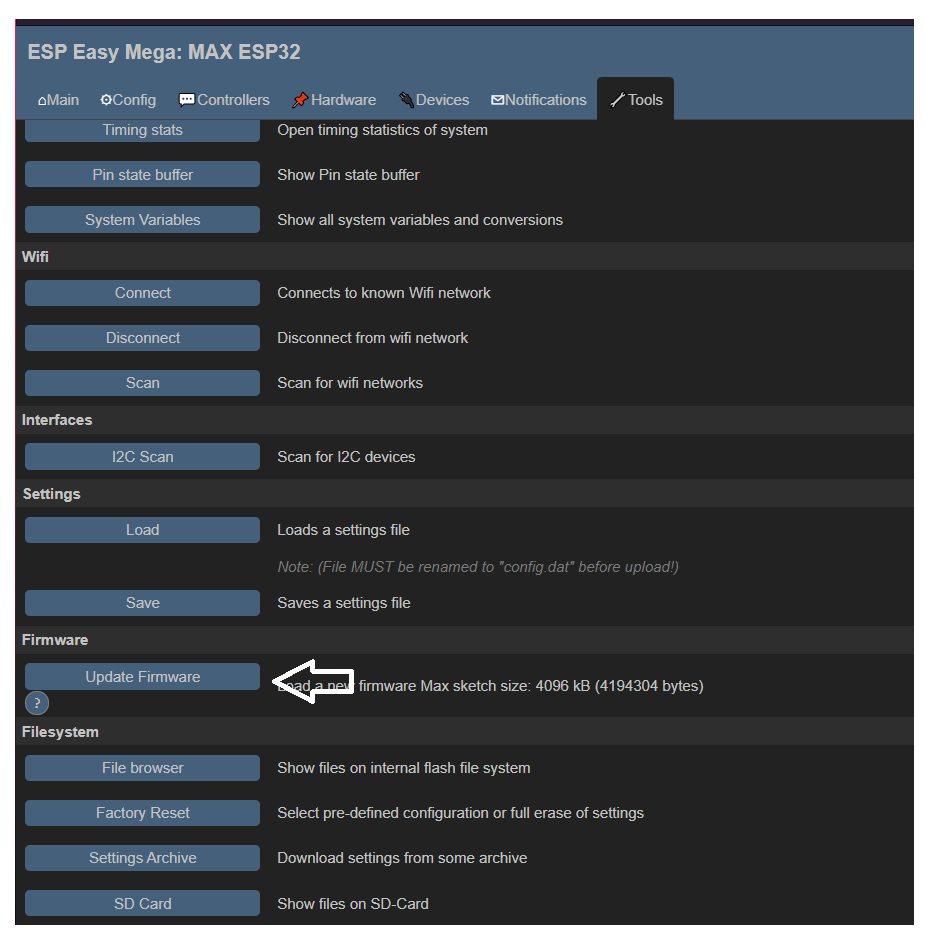

If you want to, you can upload a file without the 'factory' bin file by going to Tools > Update Firmware and uploading the same file but without the 'factory'.

After successfully uploading binary file you need to get IP.

There are 2 ways how get IP for web:

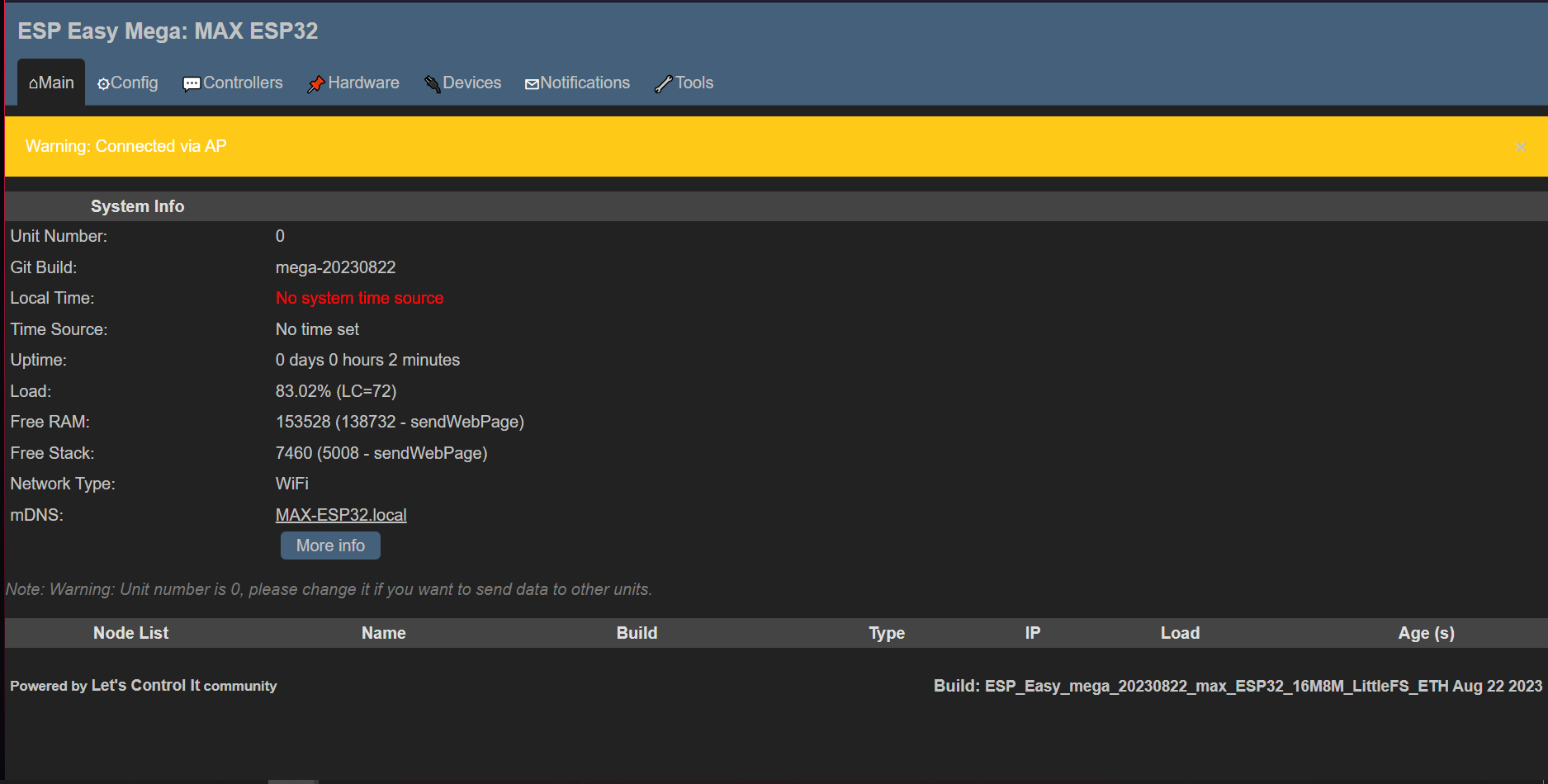

1)Connect to the ESP stick via WI-FI, go to properties of WI-FI(default password is "configesp"), scroll down and copy IPv4 paste into browser

2)Arduino or VScode(platformIO), open serial monitor and copy IP

I want to mention that after establishing an Ethernet connection, you won't be able to connect to the ESP with your PC. In the future, you'll need to use the serial monitor for communication.

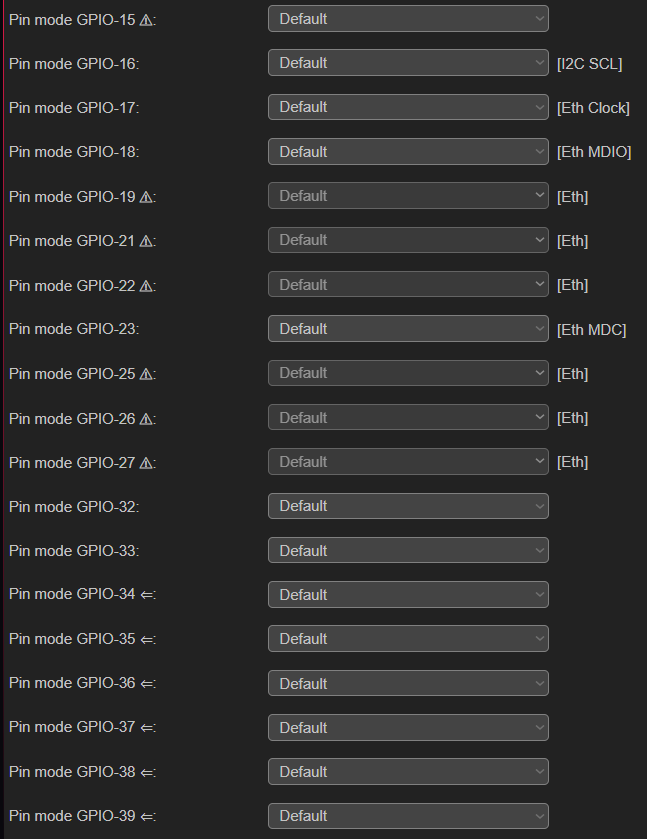

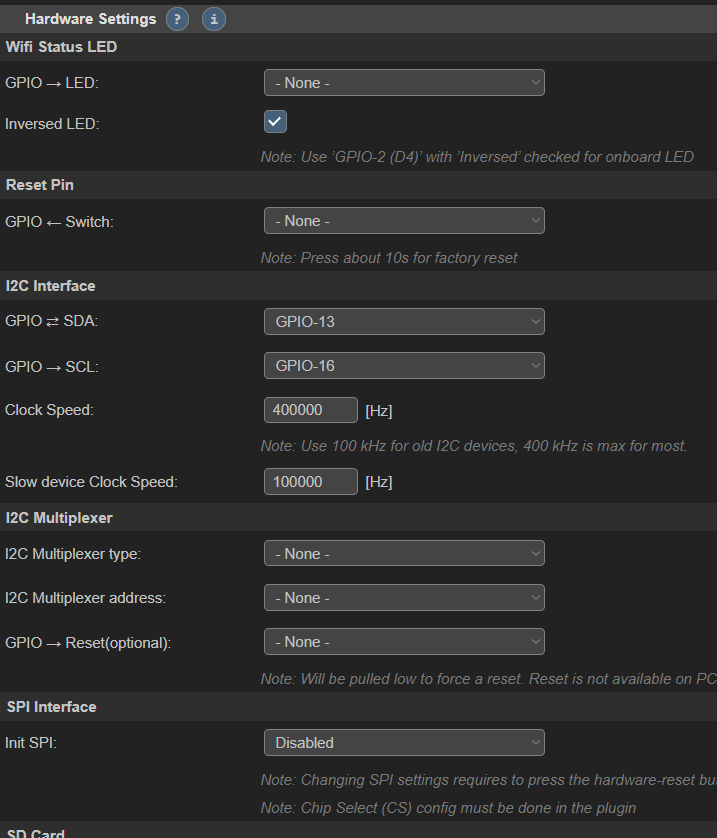

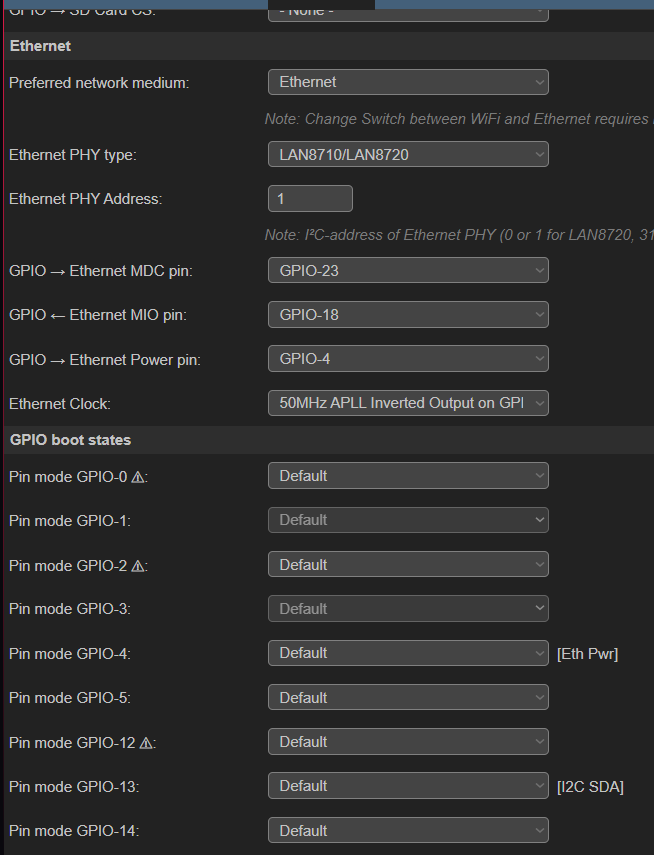

You need to configurate ethernet pins, you can see on screenshot how it should be configurate

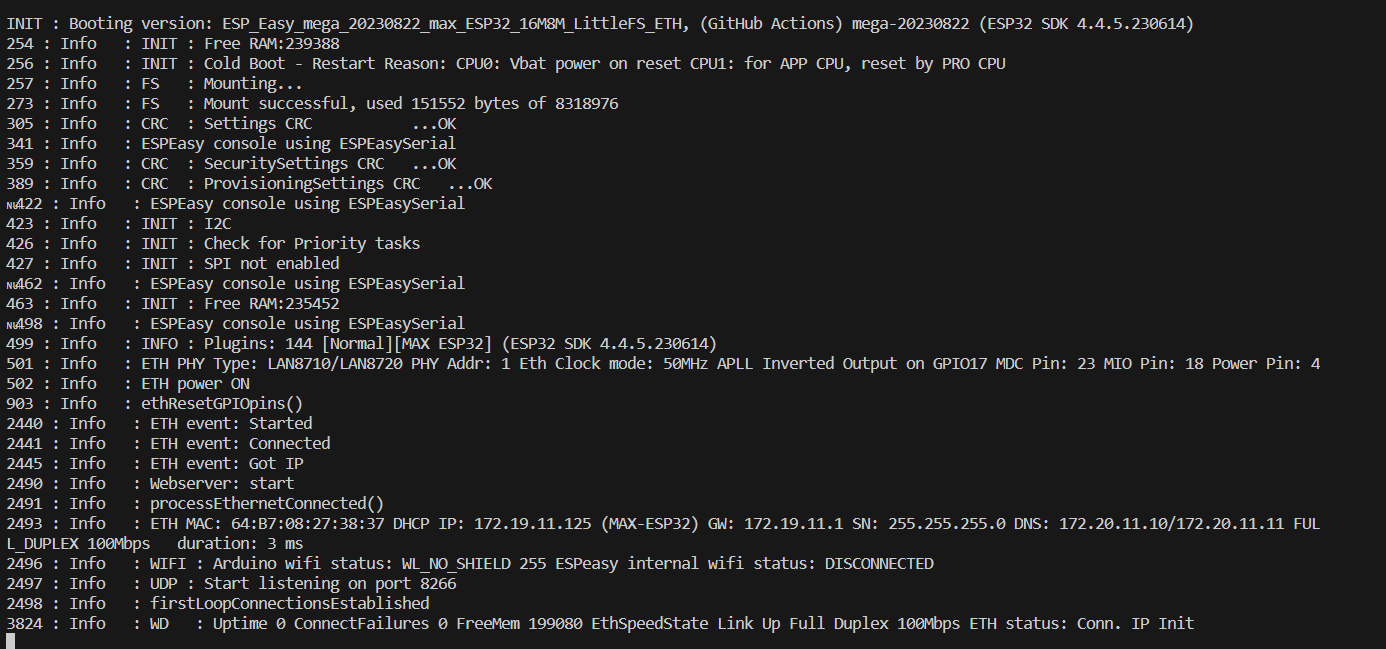

As you can observe in the serial monitor (VSCode), we have successfully established an Ethernet connection. You can simply copy the 'DHCP IP' and paste it into your web browser, eliminating the need to edit the configuration locally.

Documentation of ESP Easy: https://espeasy.readthedocs.io/en/latest/
