Epoxy & Turquoise Stone River Style Board

by darbinorvar in Workshop > Woodworking

15589 Views, 145 Favorites, 0 Comments

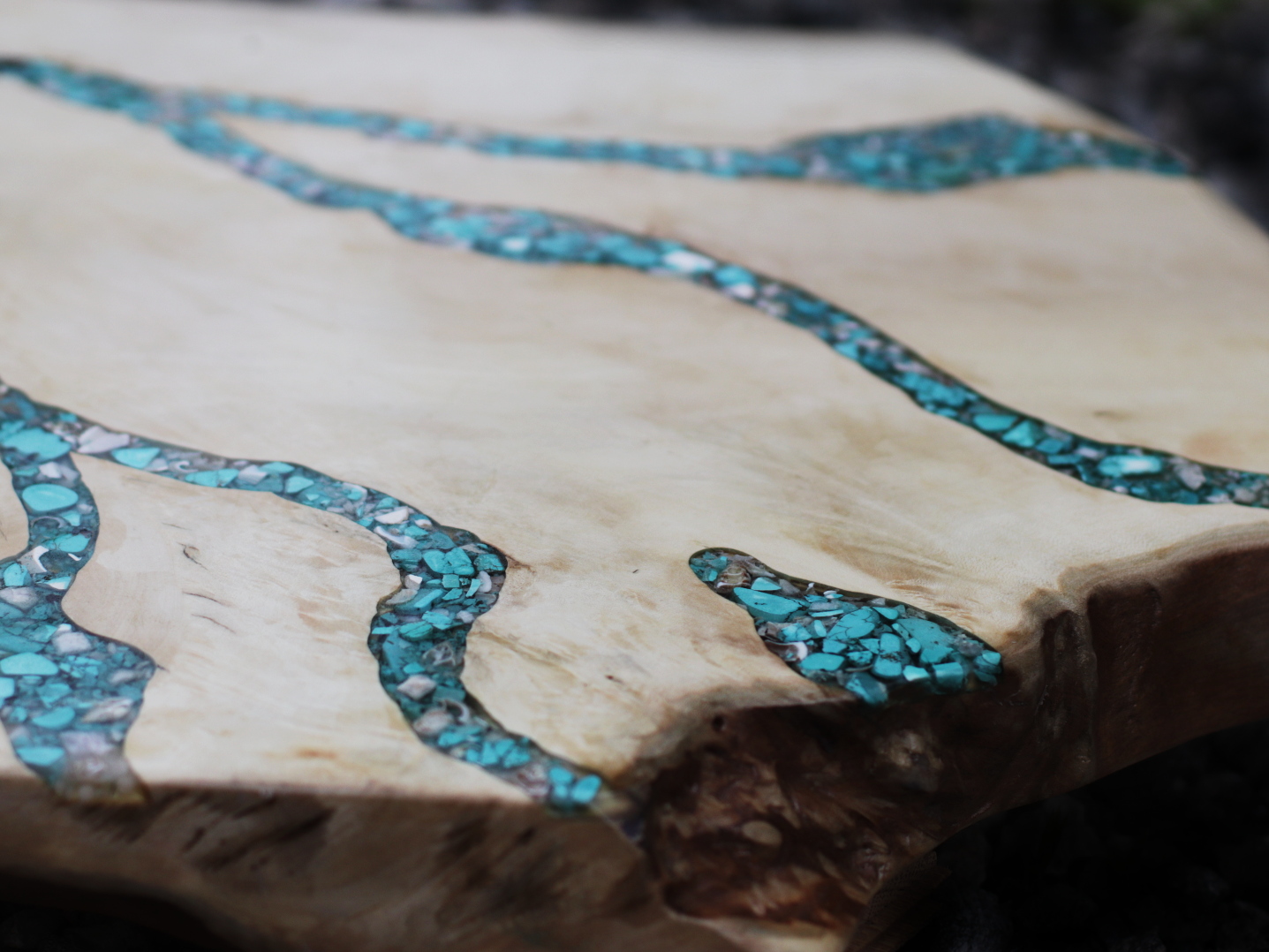

Epoxy & Turquoise Stone River Style Board

Epoxy Resin Turquoise Stone River Style Board

This river inspired board is made with wood, turquoise stones and epoxy resins. I got this idea because I recently picked up a piece of holly wood, which is very light in color which made me think of sand. To contrast the wood, I figured turquoise stones would be beautiful, and then I also got some seashells to go all out. Let's make the board! Also, make sure to watch the complete build video with all the steps and the final result.

Cutting to Size

Screenshot (1487).png
Screenshot (1488).png
Screenshot (1489).png
Screenshot (1490).png

I began with marking out where on the board I wanted to create this piece. The wood had a few knots and some movement and I thought it would be nice to plan out the rivers where the patterns naturally occurred. I cut the board into a rough shape using the jigsaw.

Planing

Screenshot (1492).png
Screenshot (1493).png
Screenshot (1496).png

The board was not quite even, so to make it level I used my number 5 hand plane on both sides of the wood.

Routing Rivers

Screenshot (1504).png
Screenshot (1505).png
Screenshot (1508).png
Screenshot (1513).png

After I marked out where my "rivers" were going to go, I used my handheld router and took several passes with the router, making some sections of the rivers wider and others more narrow.

Crushing Stones

Screenshot (1514).png
Screenshot (1516).png
Screenshot (1517).png
Screenshot (1519).png

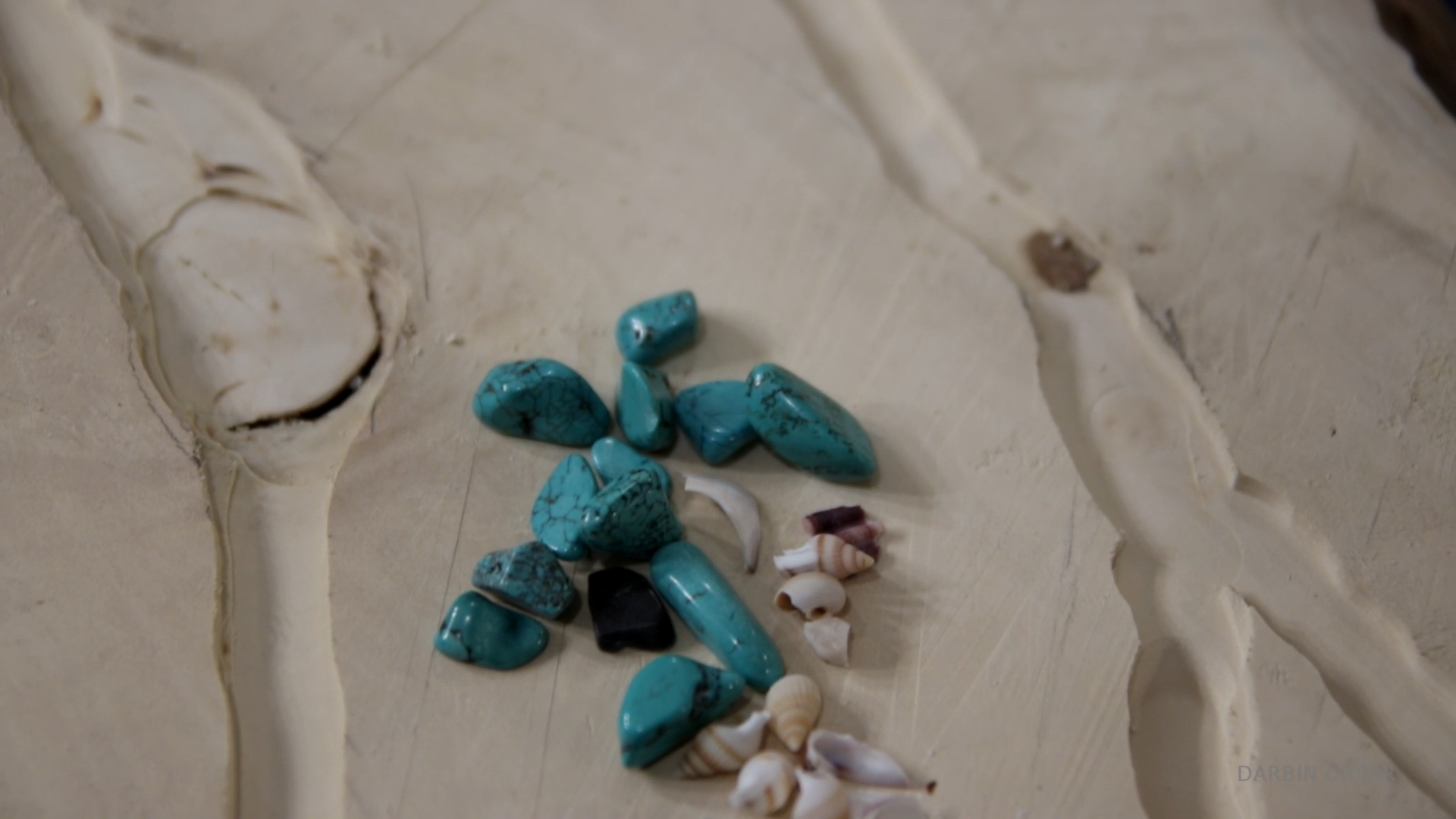

Once I had routed the rivers, I decided to crush some of my stones. I wanted to use a combination of whole stones, and some finer pieces to create variation. I also decided to get some white stones to combine with the turquoise. To crush the stones I used a mortle and pestle.

Epoxy Pour

Screenshot (1520).png
Screenshot (1523).png
Screenshot (1526).png
Screenshot (1530).png
Screenshot (1534).png

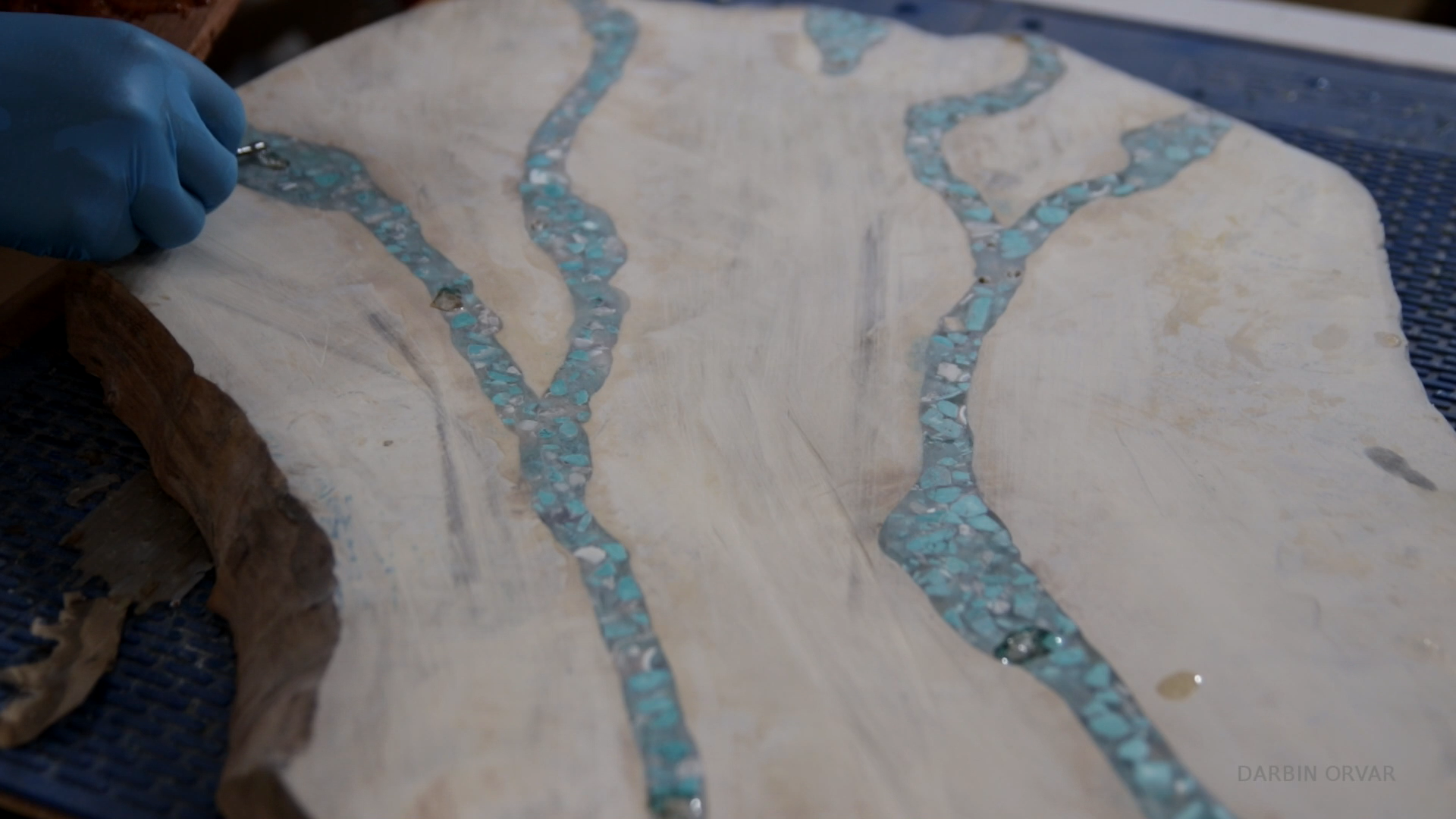

To begin with I closed off the ends of the rivers using cardstock and hot glue. Then I mixed some epoxy resin together and combined the stones and the epoxy in the rivers.

Sanding

Screenshot (1537).png
Screenshot (1538).png
Screenshot (1539).png

I let the epoxy set over night and the next day I first used a file to file down any sharp bumbs, so they wouldn't tear the sandpaper right away. I then used a belt sander and moved up the grits. It took quite a bit of sanding to get the board smooth.

Sea Shells

Screenshot (1540).png
Screenshot (1541).png
Screenshot (1542).png

I added a couple of sea shells in the rivers, and while they look really cool, they also are empty and hollow so when you sand and one break, it leaves a void. This means I had to re-apply epoxy in those areas a couple of times in between sanding.

Finish

Screenshot (1545).png
Screenshot (1548).png
Screenshot (1549).png

I wanted to keep the wood as light as possible, so after doing some testing I settled on shellac for a finish.

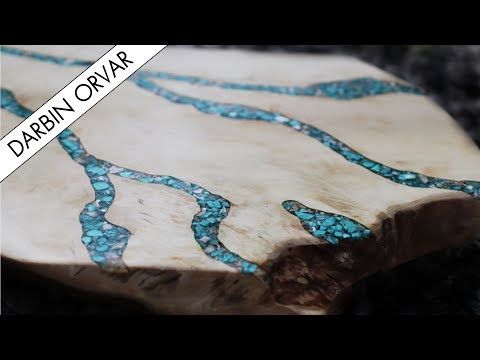

Conclusion - Watch the Video

Epoxy Resin Turquoise Stone River Style Board

For a much better perspective, and to view the final result, make sure to watch the video!
