Environment Air Quality Monitor

by rjkorn in Circuits > Sensors

14429 Views, 252 Favorites, 0 Comments

Environment Air Quality Monitor


I wanted to build an environmental monitor. Partly to see what happens from day to day and also because I wanted to compare all the different MQ Sensors and see how they respond to different things. Using a Linkit one allowed me to add GPS logging to make this a mobile platform.

External Antennas

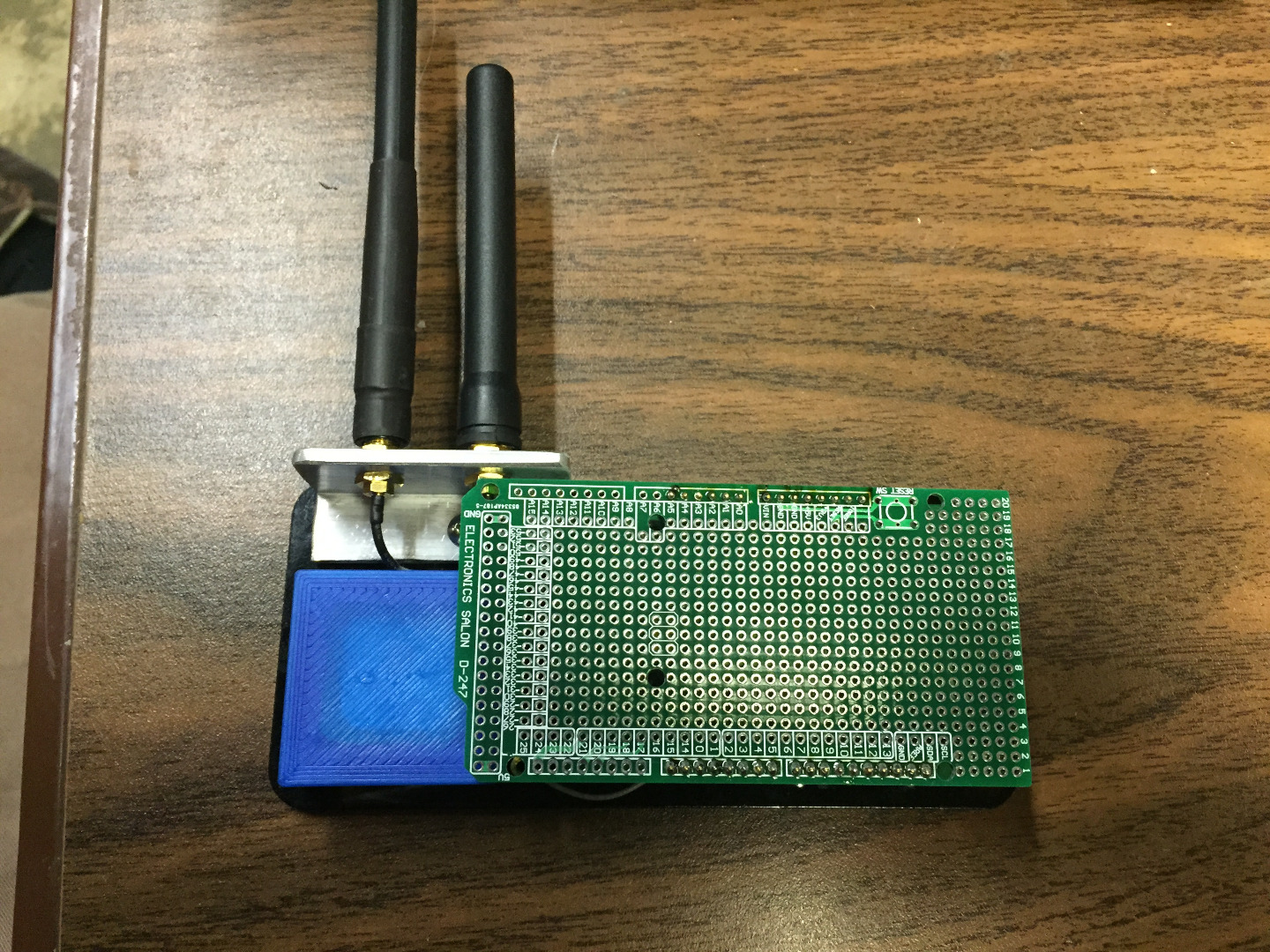

I happened to have some leftover U.fl to RP-SMA adapters from Zigbee boards and a couple of U.fl to SMA cables from my SDR radio boards. These seemed like the perfect antennas to replace the stripboard ones that came in the kit. The GPS antenna was good the way it is. I just needed a case to protect it so I printed one....

I've included the SCAD source and STL files if you want to make one for yourself.

Making an ADC Expander Sheild

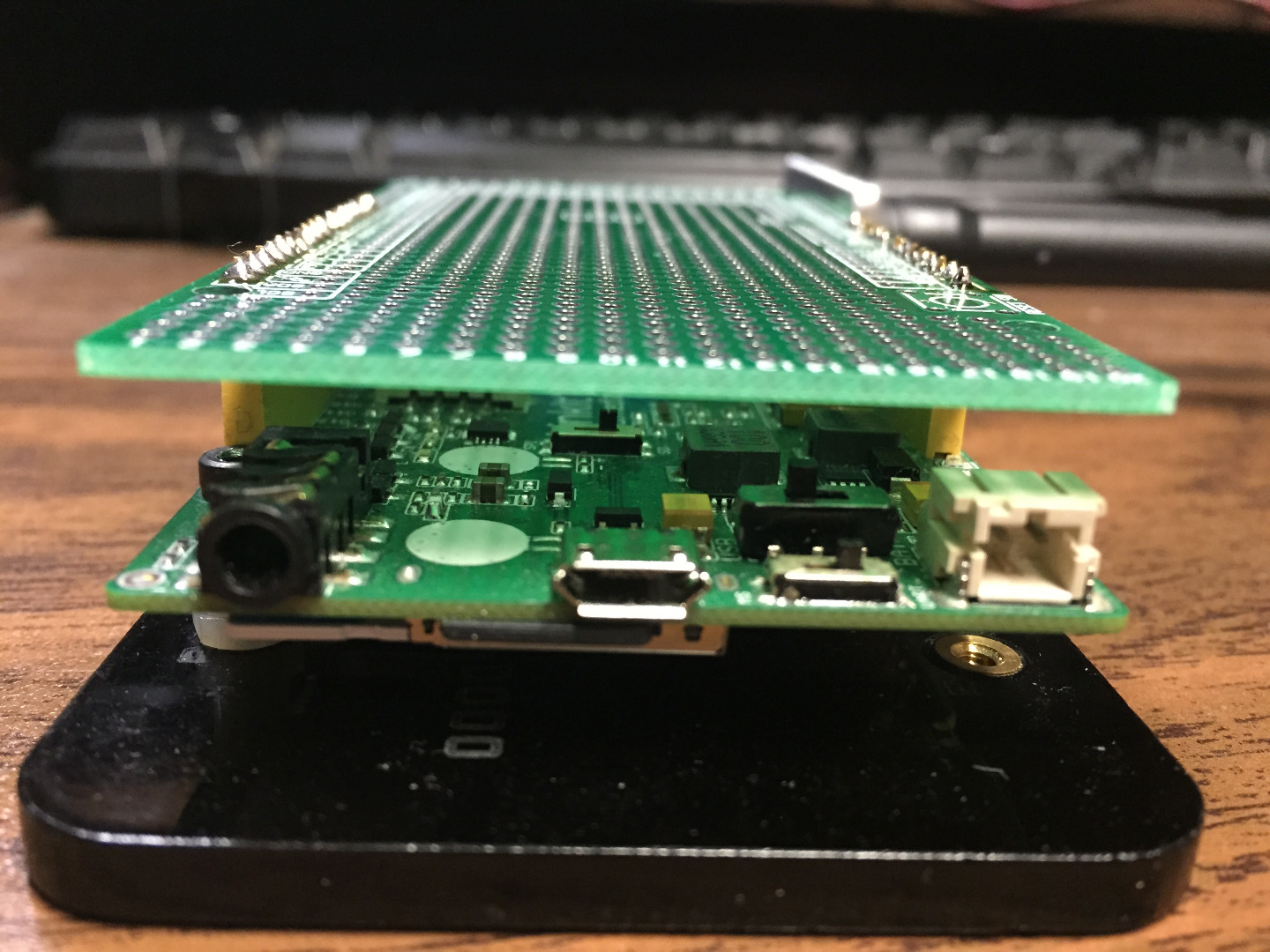

The Linkit only has 3 Analog Inputs. I needed 9! I added a TLC1540CN 11 Channel ADC Chip from TI. I used an Arduino Mega Prototype Shield. I only populated the pins that matched the Linkit One. I used the other pins for I/O from the chip. I also added an extra I2C connector on the front edge in case I want to add an LCD Later.

How to Make It Pretty


To make it look nice I decided to mount it to a plaque and make everything visible, well almost. I bussed all the power wires behind the board. I cut a second board to the exact same size so I can sandwich some 1/2 square wood strips to make a box.

To make it look nice I decided to engrave all the legends for the plaque on a CNC Mill. A quick shot of black paint to highlight it and a swipe with some WD-40 to remove the excess paint really makes it look nice.

Schematic and Code

Screen Shot 2015-12-22 at 4.13.58 AM.png

The code for the TLC1540 is a little rough. I do a little brute force bit twiddling but it does work.

I have to draw a nice schematic but for now here my hand drawn one and one I tried in Fritzing...

I send all 11 channels from the ADC out to the CSV file. The last two channels are not connected to anything so you get random noise there. I will use them soon.

The code logs a file to the SD card with the current date for a name. Everyday its running you get a new file. I may change that to drop the day and just use Month-Year. That way I only get a new file every month.

Its a CSV file so I can use Office to manipulate it.

Wiring It Up


I used some Telco cross connect wire and Dupont Crimp connectors. A little hot glue to keep the connectors in place and that's it......

this way each sensor is removable for testing or replacement. That's my other concern is how well they hold to to constant use. I guess I'll find out in 2016....

Future Enhancements


A Geiger Counter, Well why not. I have to make a PIC micro-controller I2C slave to keep track of the CPM. I might have to cover this part with a Plexiglas shield to keep fingers away from the High Voltage. Somewhere I have a Mica windowed tube too. I might even have a pancake tube in my fathers Army survey meters. I have to go check his footlocker. That way I can compare tube types.

There are a few MQ sensors I don't have yet so they're on the list. I picked 5V sensors to make it easy to wire up. I have plenty of area left on that shield for any support circuitry I might need to switch the supply level for the really odd sensors.

I also order an ML8511 UVB sensor about 8 weeks ago. If I don't get it by Jan 10th I'll have to open a claim and order from another supplier....
