Enraging Mico Zen Garden With Arduino
![1.jpg](/proxy/?url=https://content.instructables.com/FRZ/5Q9V/IL6VF957/FRZ5Q9VIL6VF957.jpg&filename=1.jpg)
![Enraging micro zen garden with arduino](/proxy/?url=https://content.instructables.com/F8I/CVXA/IL6VFKIY/F8ICVXAIL6VFKIY.jpg&filename=Enraging micro zen garden with arduino)

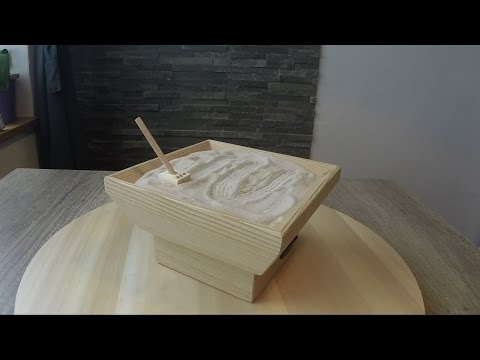

If you want to find your inner peace... over and over again, this might be an interesting project for you :-). Of course it is more a fun project than really useful. I just had the idea of making something like this and the execution is a little bit crude, but it works.
Things I needed to get this done:
- Arduino (nano)
- Servo
- Breadboard and some wires
- Soldering iron
- Wooden bowl, box... etc.
- Thin Plywood
- Fine sand
- and some household tools, nothing special
Making the Lid
![20160221_111239.jpg](/proxy/?url=https://content.instructables.com/FZQ/2I2D/IKWXK9GX/FZQ2I2DIKWXK9GX.jpg&filename=20160221_111239.jpg)
![20160221_111235.jpg](/proxy/?url=https://content.instructables.com/FR6/362O/IKWXK9HU/FR6362OIKWXK9HU.jpg&filename=20160221_111235.jpg)
![20160221_112146.jpg](/proxy/?url=https://content.instructables.com/FTB/BZ0I/IKWXK9FI/FTBBZ0IIKWXK9FI.jpg&filename=20160221_112146.jpg)
![20160221_112552.jpg](/proxy/?url=https://content.instructables.com/F46/AKH8/IKWXK9EM/F46AKH8IKWXK9EM.jpg&filename=20160221_112552.jpg)
![20160221_115735.jpg](/proxy/?url=https://content.instructables.com/F8Q/V2PY/IKWXK9E7/F8QV2PYIKWXK9E7.jpg&filename=20160221_115735.jpg)

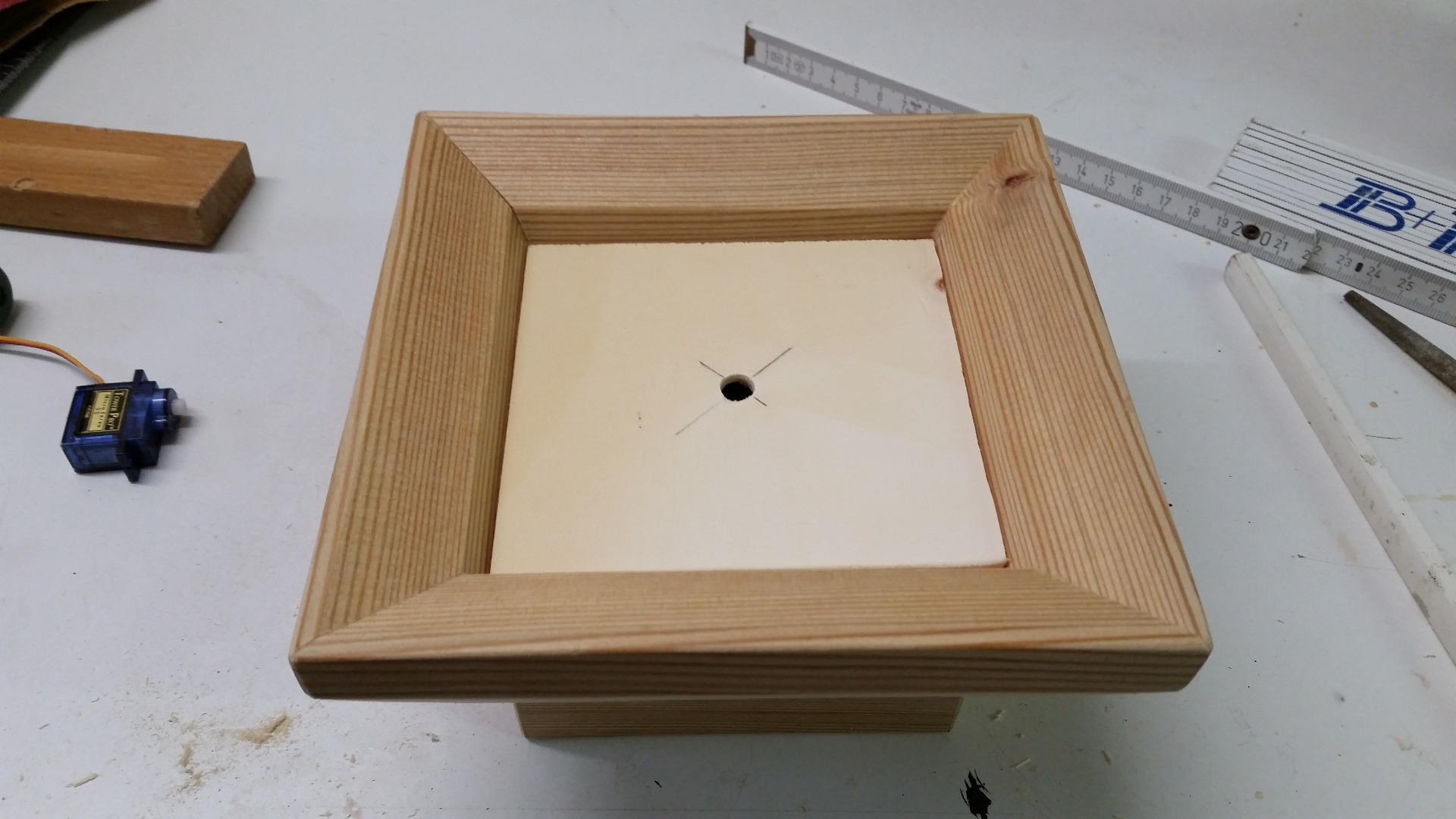

The box was flying around in our basement, so I just had to saw a lid from thin plywood. After I marked the center I drilled a hole and thinned the plywood a little bit to make more room for the servo. To complete this step, I just glued two pieces of scrap wood to the lid and screwed the servo onto the lid.
Adding the Electronics
![20160227_121029.jpg](/proxy/?url=https://content.instructables.com/FIN/S0J9/IL6VDPJX/FINS0J9IL6VDPJX.jpg&filename=20160227_121029.jpg)
![20160227_121011.jpg](/proxy/?url=https://content.instructables.com/FY2/8MIO/IL6VDPJZ/FY28MIOIL6VDPJZ.jpg&filename=20160227_121011.jpg)
As for the arduino code I just took the example sweep code and added a delay at the beginning of the loop so that you have time to gain inner peace ;-).

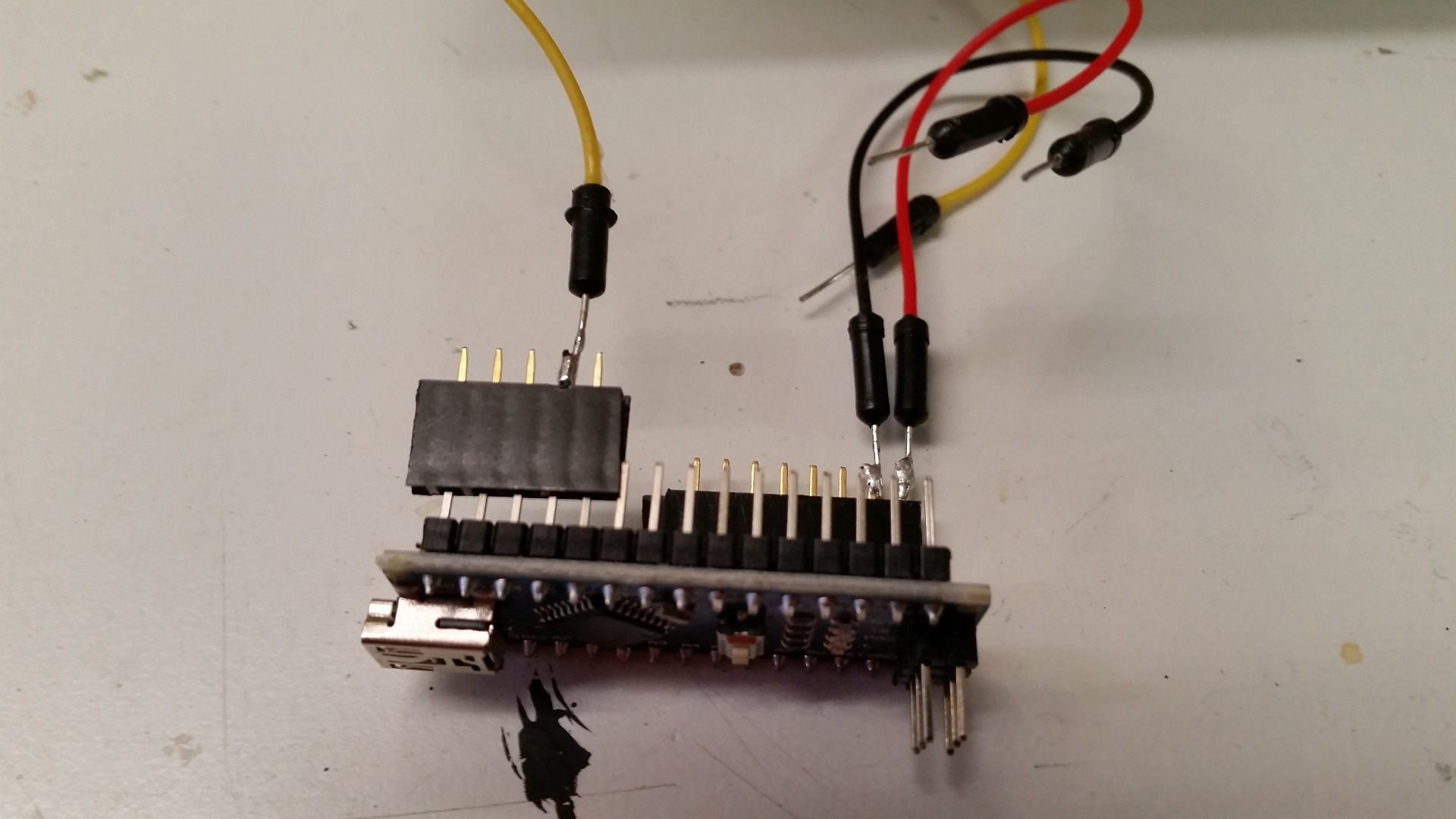

For the power supply I took a 9v block and added it to a usb plug with a power switch in between, so that you can power up the "destruction feature" as you wish. For the cables to the servo I used some header terminals and soldered jumper wires to them so that the arduino can be easily taken out of the box. After everything was soldered I used some electrical tape to isolate everything.
Making the Fork and Assembling the Box
![20160227_132656.jpg](/proxy/?url=https://content.instructables.com/FBR/KB0D/IL6VDPJS/FBRKB0DIL6VDPJS.jpg&filename=20160227_132656.jpg)

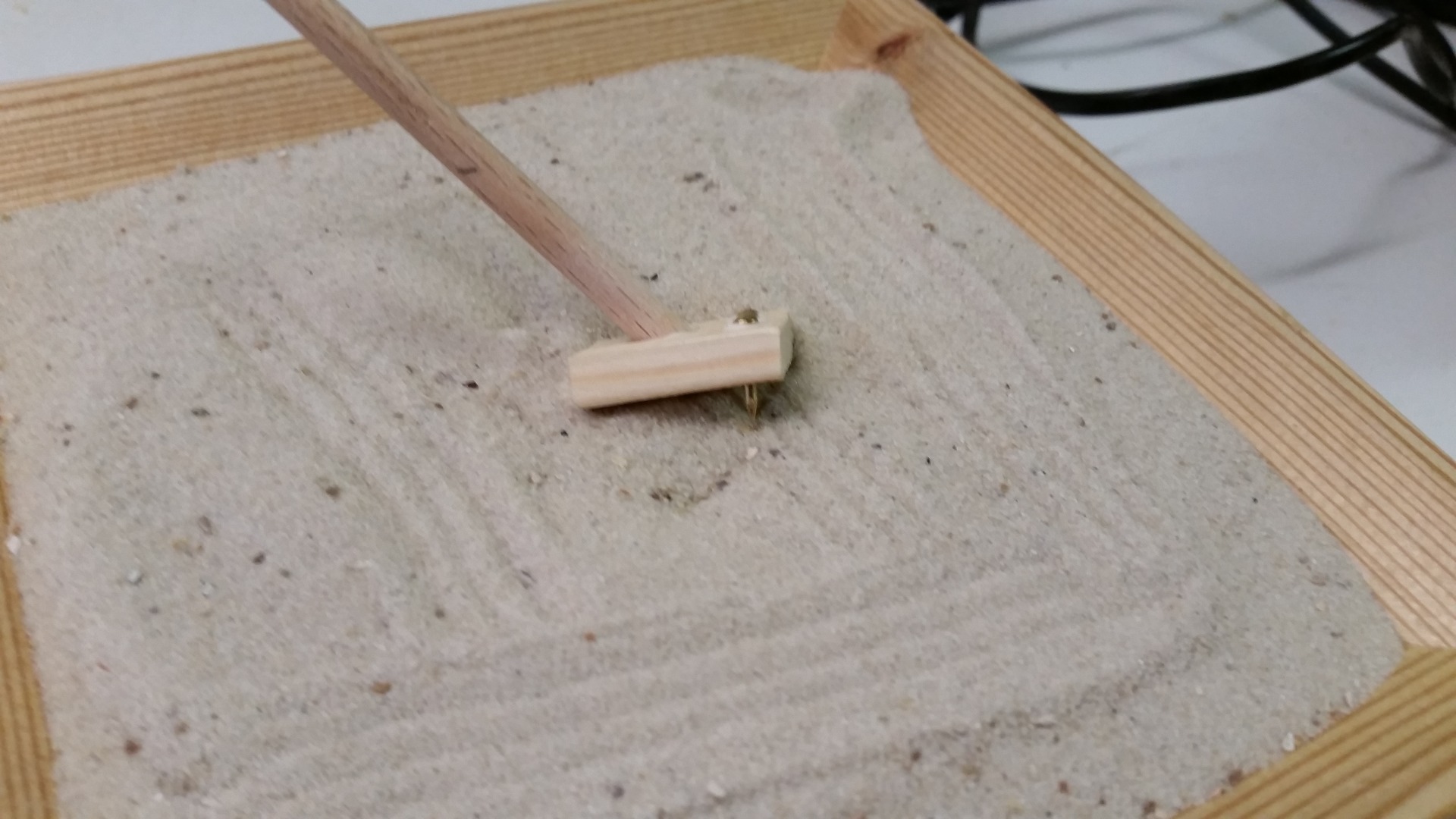

As a tool for the micro zen garden you need some kind of fork. I made this out of scrap wood and three small nails. At first I just hammered the nails in but that made the wood split. So a pre-drilled the holes with my Dremel and that worked out fine.
A small piece of wire mesh was mounted onto the servo and so your sculpting will not last very long once the servo starts to turn ;-).
Thank you for reading and if you watch the video, you will see what this useless device does.
