Emergency Solar Eclipse Viewer

It's just a few hours before Total Solar Eclipse 2017. Some people might not prepare but don't want to miss this event. So this instructables is a solution!!!

This is Emergency Solar Eclipse Viewer. It's very easy to make with simple materials and few minutes process. It's quite small and easy to use so you can make it for your children and let them enjoy viewing eclipse by themselves (Don't forget to remind them that looking direct to The Sun is forbidden!!!!!)

Don't forget to check NASA Website for the time that it occurred in your location and This Website for more information about Solar Eclipse.

I hope everyone have nice experience with this event.

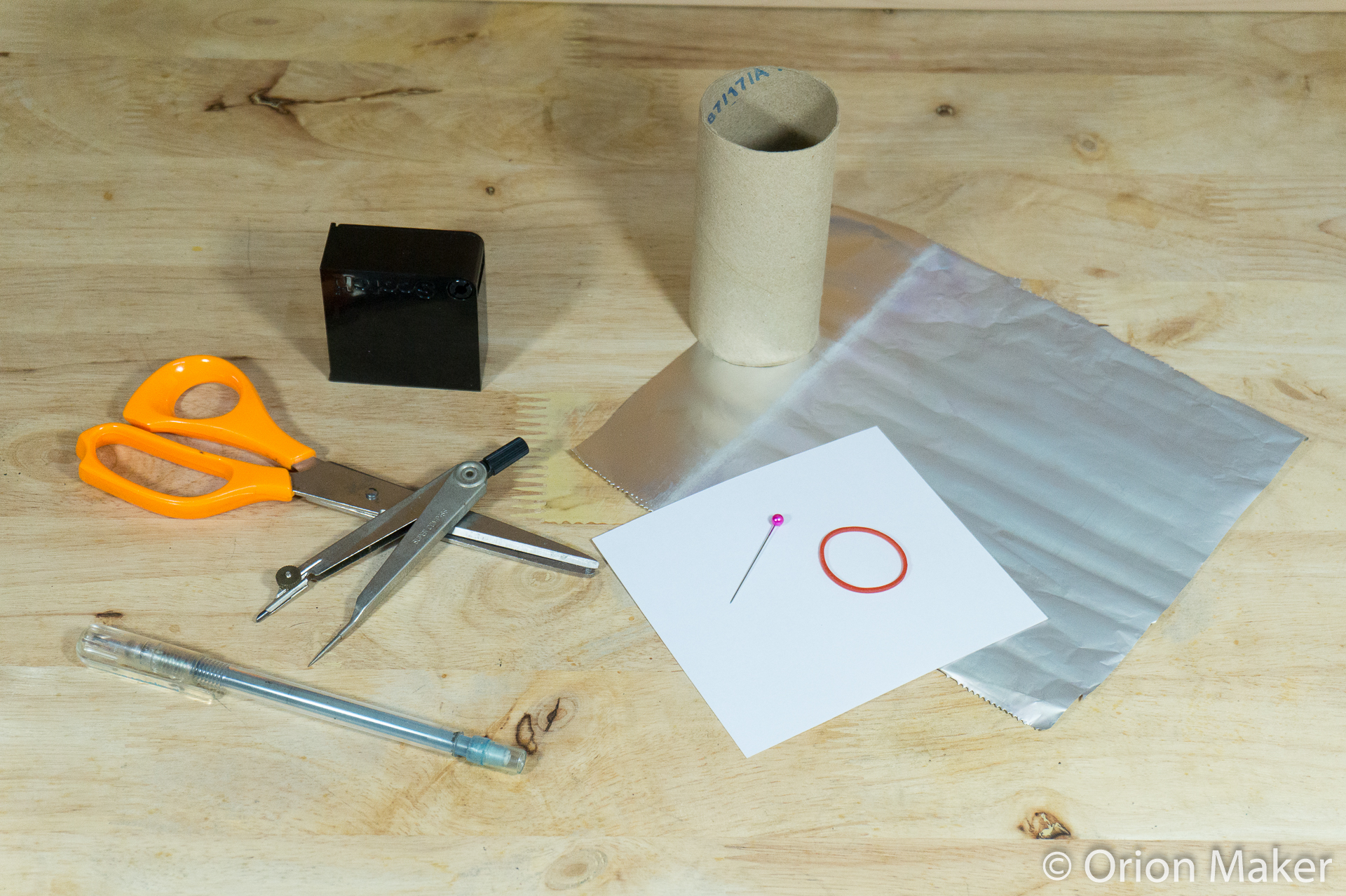

1. Toilet paper tube
2. Small needle
3. Elastic band
4. Sheet of white paper
5. Aluminum foil
6. Pencil
7. Tape
8. Compass
9. Scissors

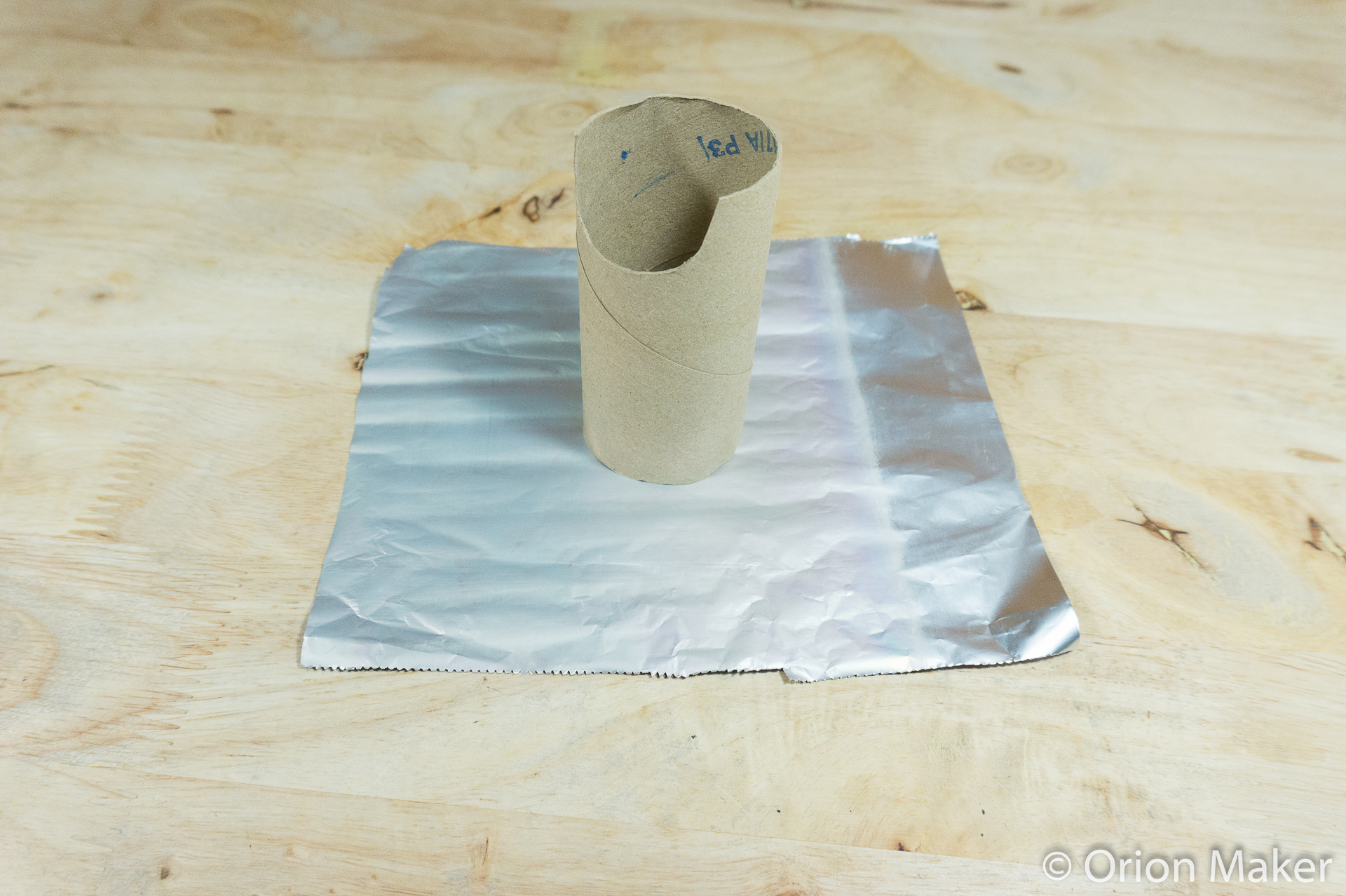

Cut one end of the toilet paper tube.

1. Wrap aluminium foil at the other end of the toilet paper tube.
2. Make it as tight as possible.
3. Pull the aluminium foil out.

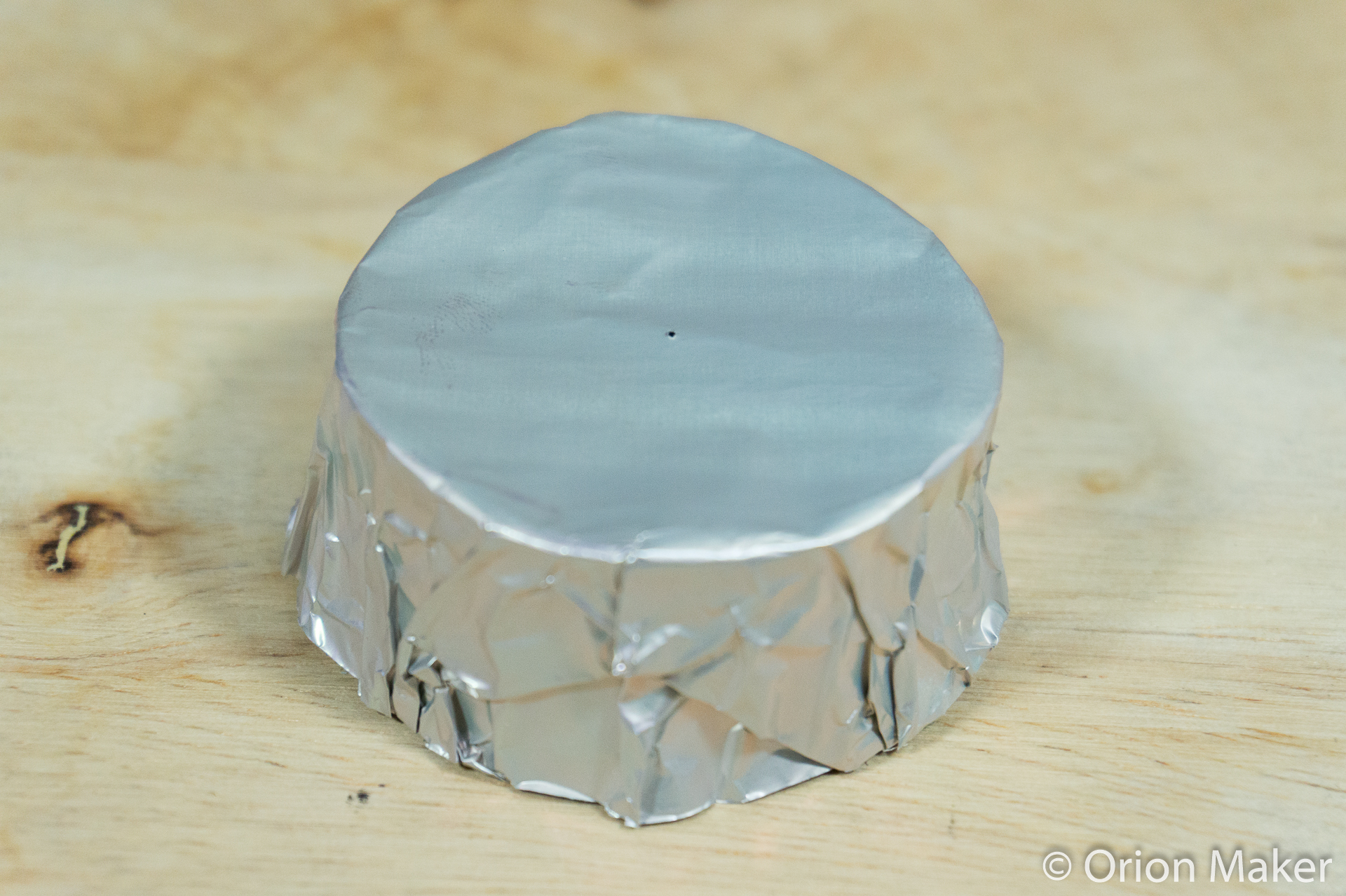

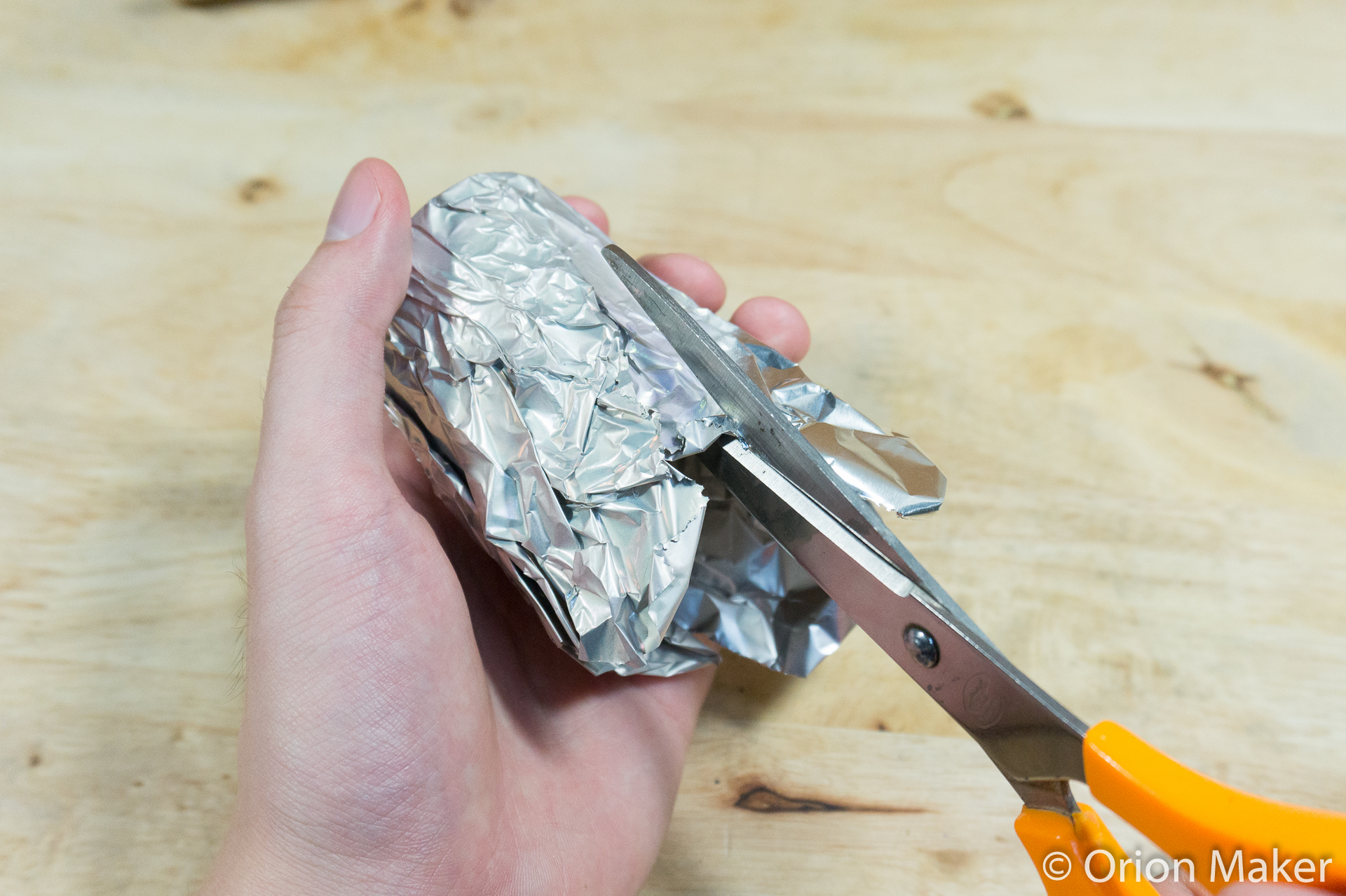

4. Cut the aluminium foil into a cylinder with approximately 2 cm height.

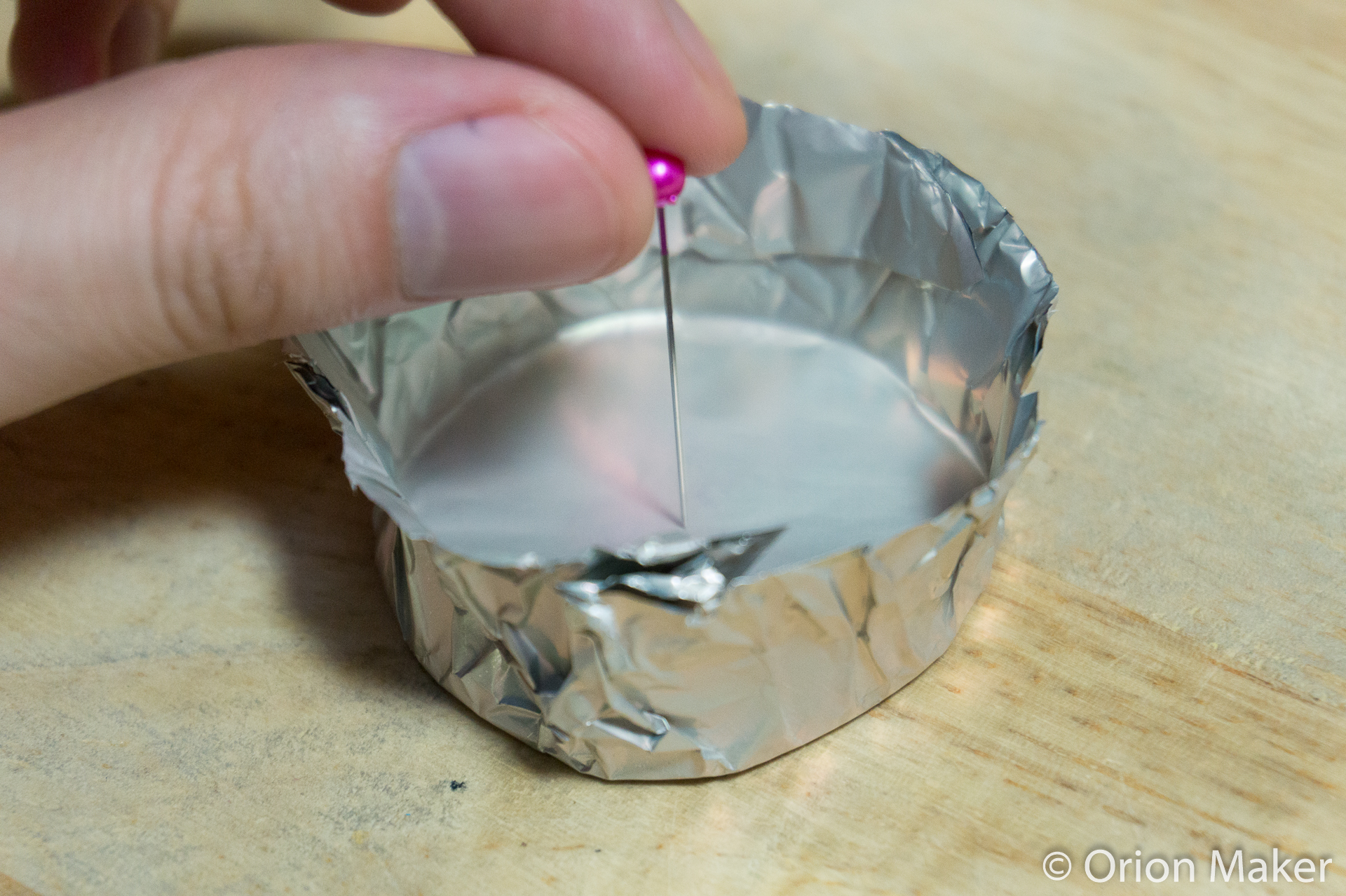

5. Make a tiniest hole as possible in the center. (smaller hole, better image quality)
6. Put it back and secure with an elastic band.

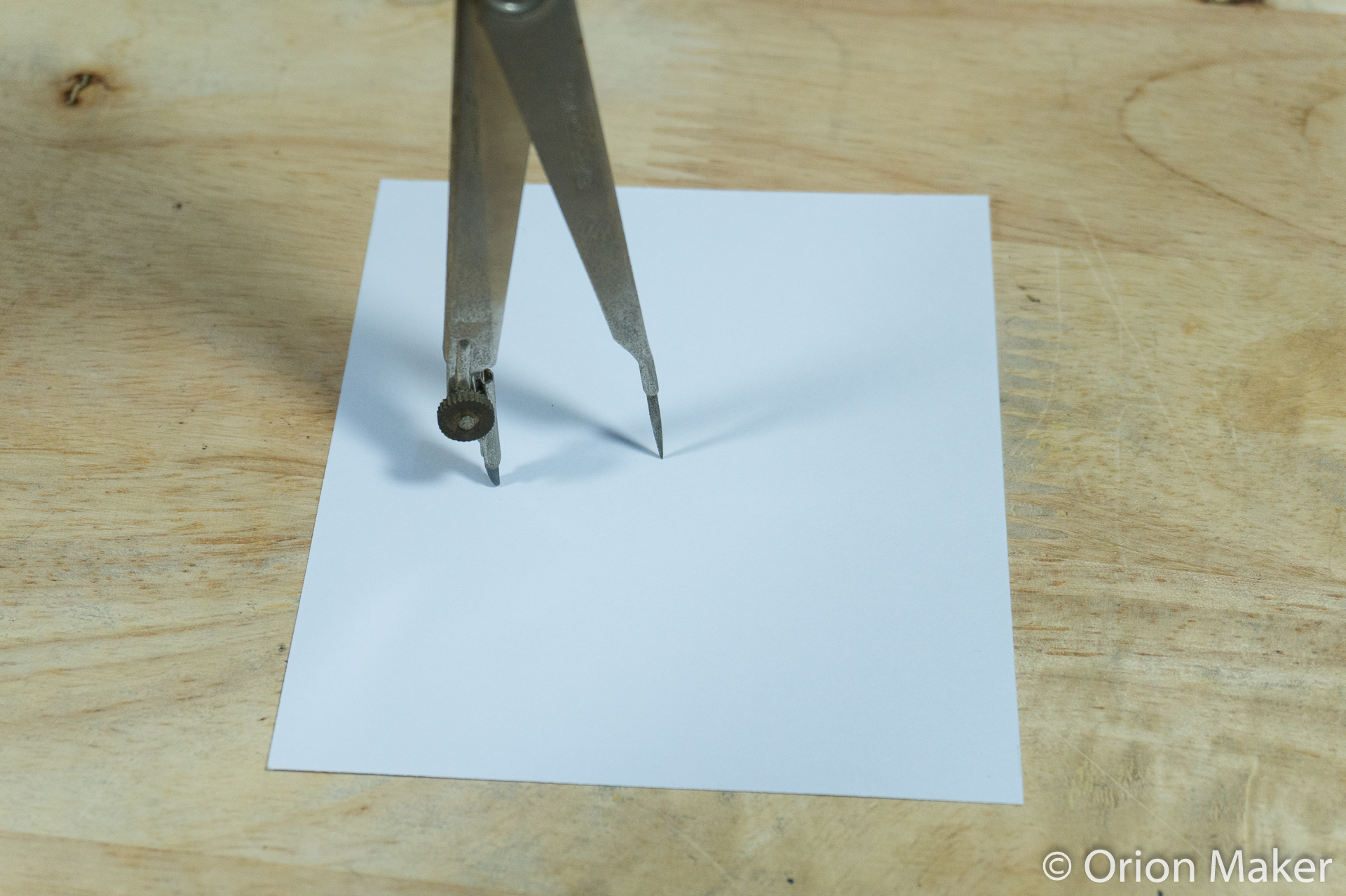

1. Draw a circle as big as the size of the toilet paper tube.

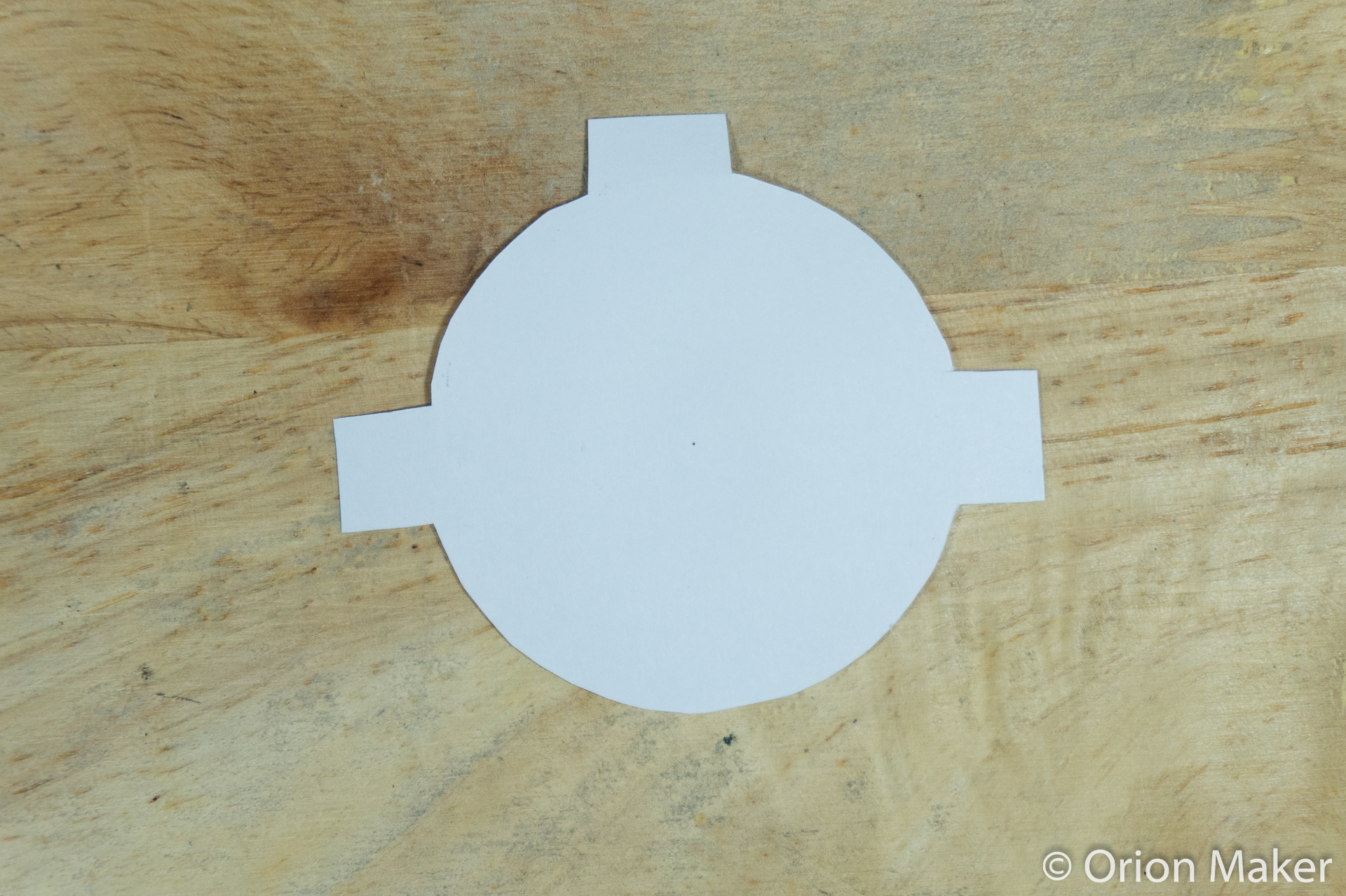

2. Draw 3 tiny squares along the circumference.
3. Cut it out.

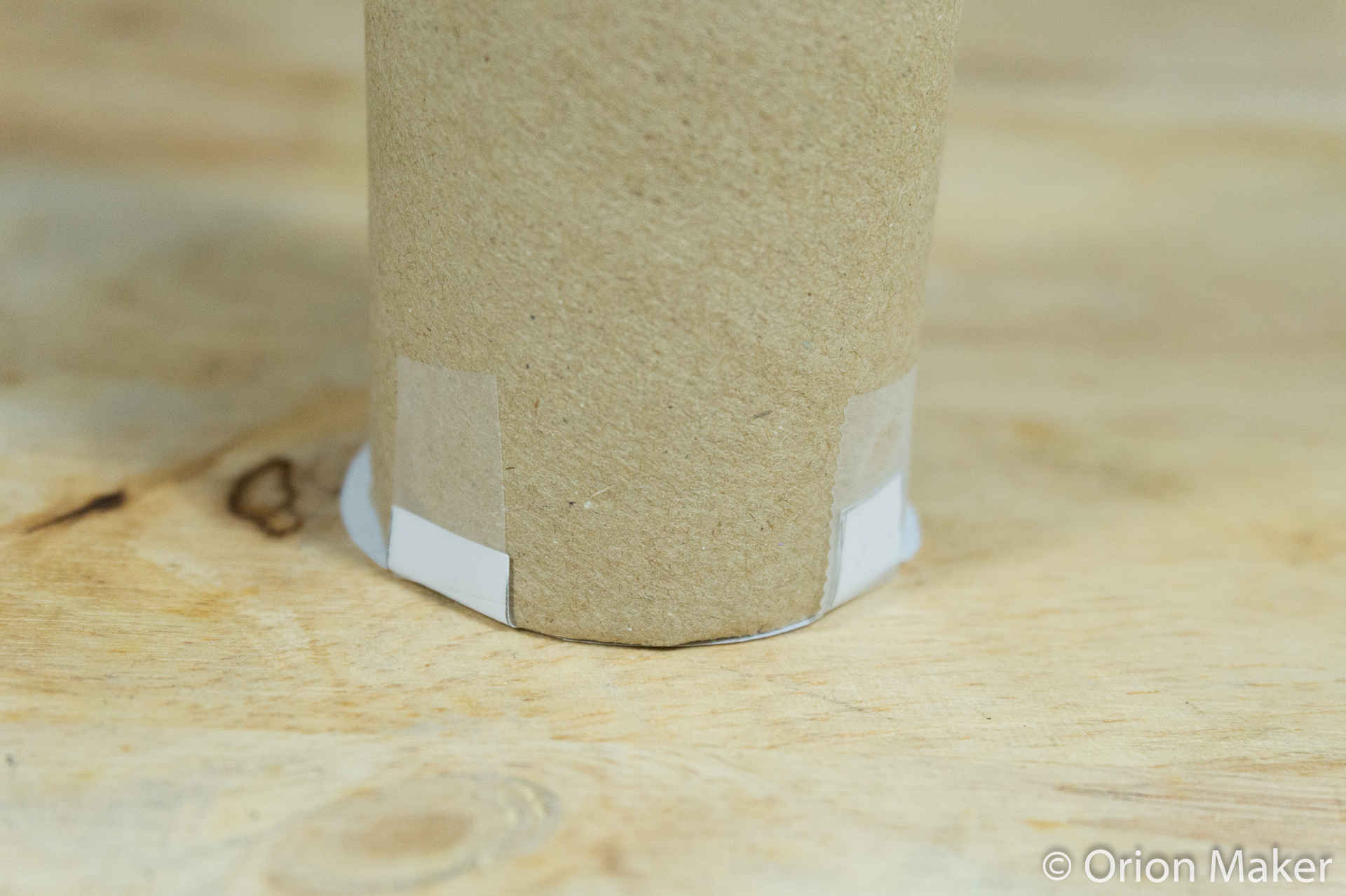

Attach the screen to the other end of the toilet paper tube with tape.

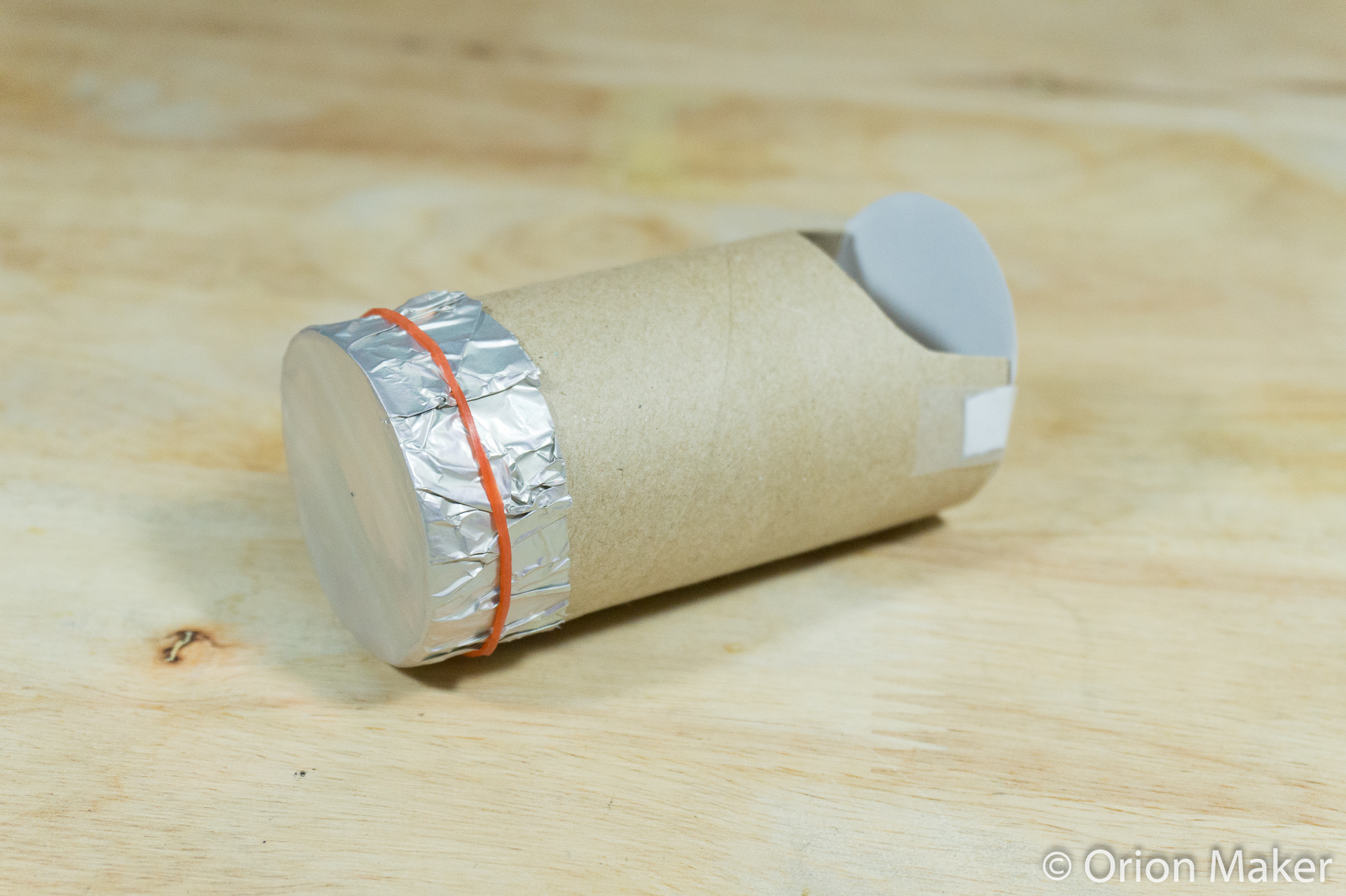

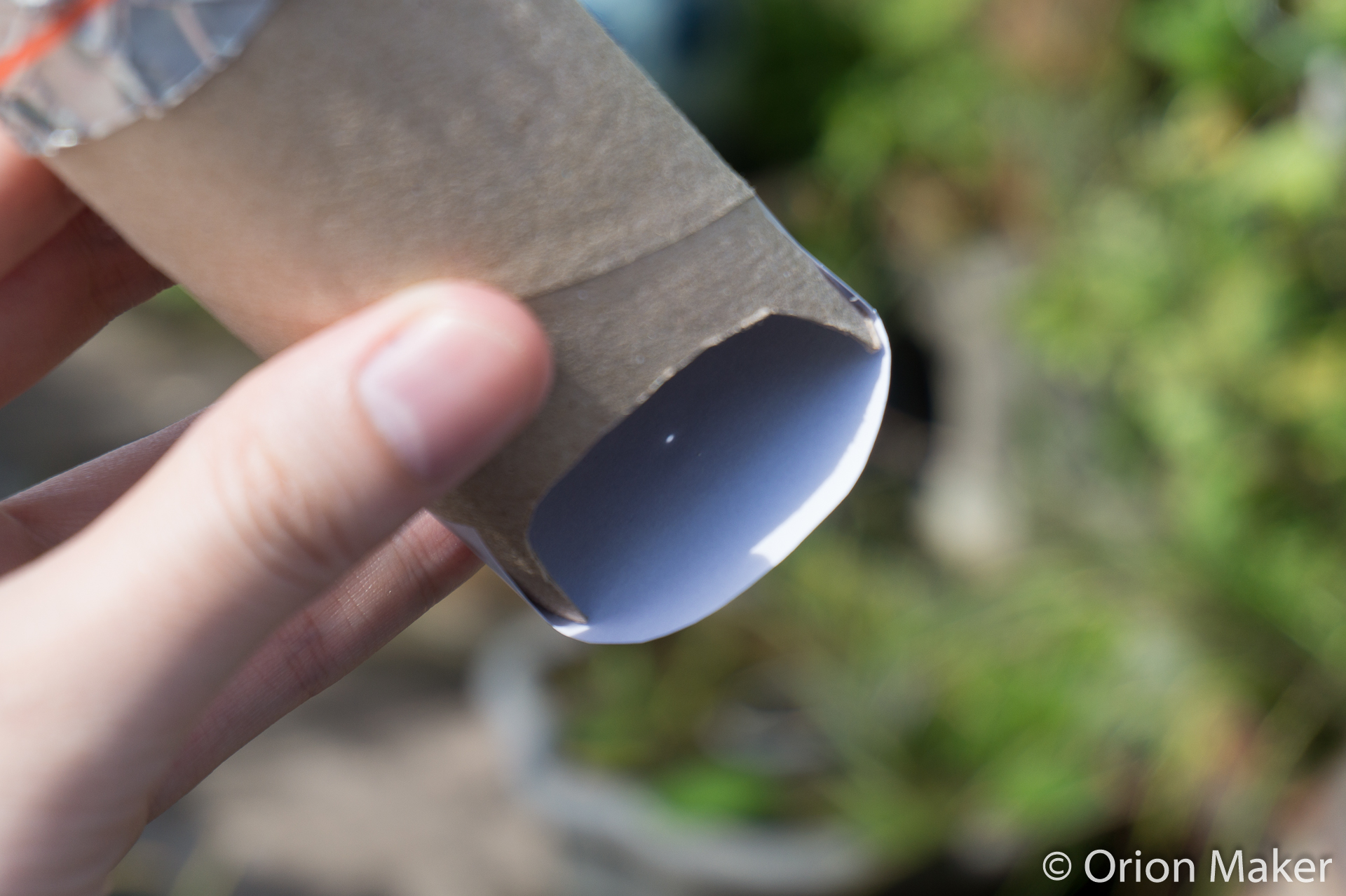

Point the pin hole end towards the sun until you can see the sun on the screen.

I hope you will enjoy viewing Total Solar Eclipse 2017
