Emergency Mobile Charger Using Solar Panel [Complete Guide]

Looking for a way to charge your phone when you are completely out of options? Make yourself a emergency mobile charger with a portable solar panel which could come handy especially while traveling or while outdoor camping. This is a hobby project which can be made by anyone following some very simple instructions. The charger works by using a solar panel as a energy generator converting solar energy to electrical energy. Since the voltage required by a phone is 5V, a voltage regulator IC 7805 is used to get the desired output voltage from the solar panel.

You can the find in detailed tutorial over here also : https://www.engineeringworldchannel.com/mobile-charger-solar-panel/

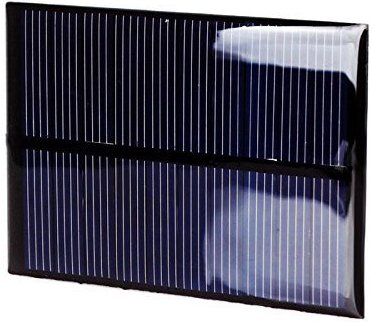

1. 1Watt Solar Panel 9V : The suitable solar panel for this project because of it's rating and size. Available here : https://geni.us/solarpanel

2. Voltage regulator IC7805: This will give you constant output voltage, doesn't matter what the input voltage is. Available here : http://geni.us/IC7805

3. Male - female USB cable: The female end is required to connect the USB cable of the phone to the generator. Available here: http://geni.us/USBCable2

4. Glue Gun : This is required to securely paste everything on a wooden surface. Available here: http://geni.us/gluegun1

Note: The above links are affiliate links, which means that if you buy any items from the above links, I receive a tiny commission which helps me to make more such awesome instructables !

When the solar panel is exposed to the direct sunlight it converts solar energy into electrical energy this inducing DC voltage at the terminals. But since its not possible for a person to maintain a constant 5V which is required by the phone to charge therefore an IC7805 is used to regulate the voltage and makes sure a constant 5V is available.

Step 1 : Cut out the female end of the USB cable clip of the data cables. We require only RED and BLACK wires as shown in the picture.

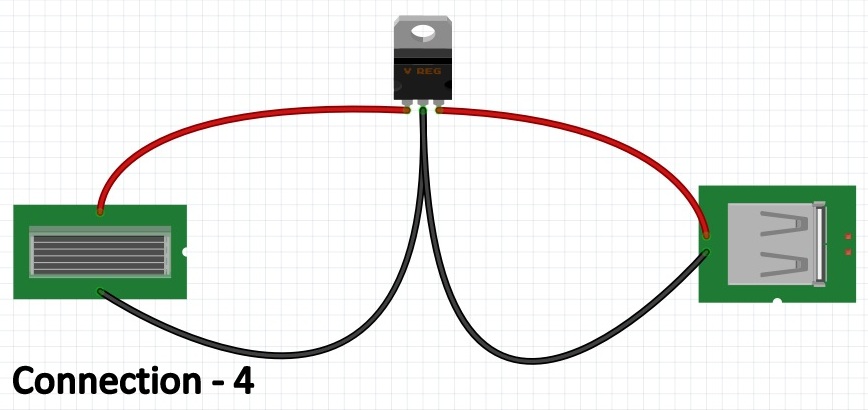

Step 2: Now using a solder iron make the following connections as given in the connection diagrams.

Step 3: Paste the IC 7805 and fmale USB port on the surface of the wooden base with a glue gun so as to secure it on the surface. You can refer the video for more information here.

Step 4: Also it would be preferred to keep the solar panel at a height in an inclined manner.

Bingo ! now you are ready to test your 'Emergency Mobile Charger' !

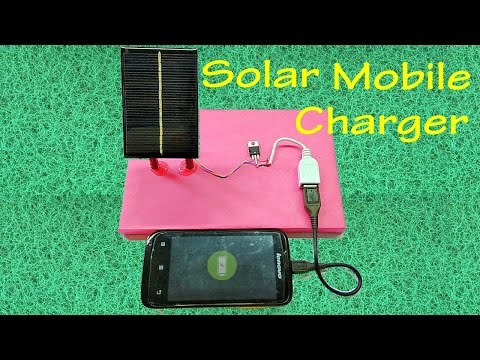

Here is a short video showing step by step procedure
