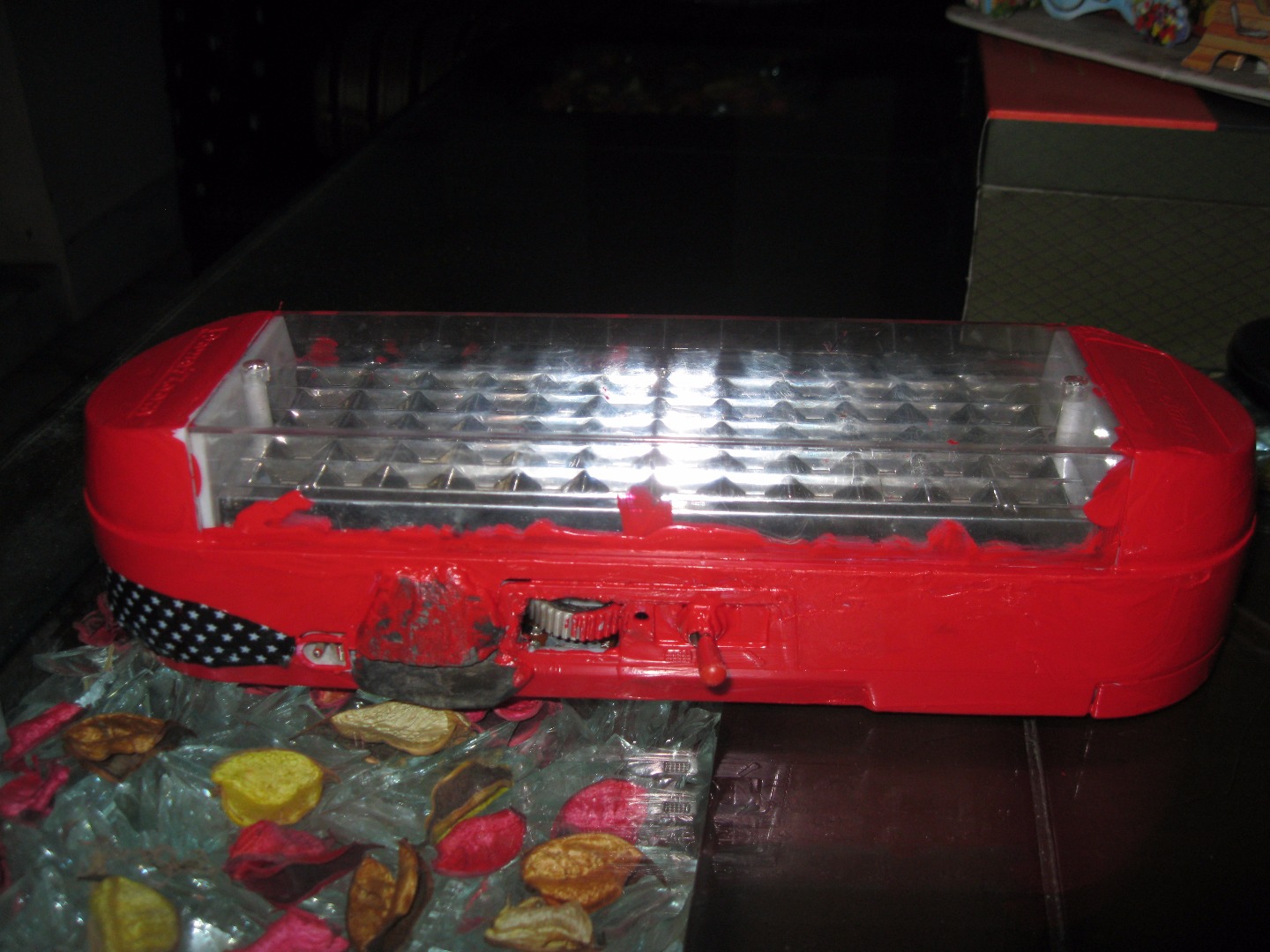

Emergency Light by Junk

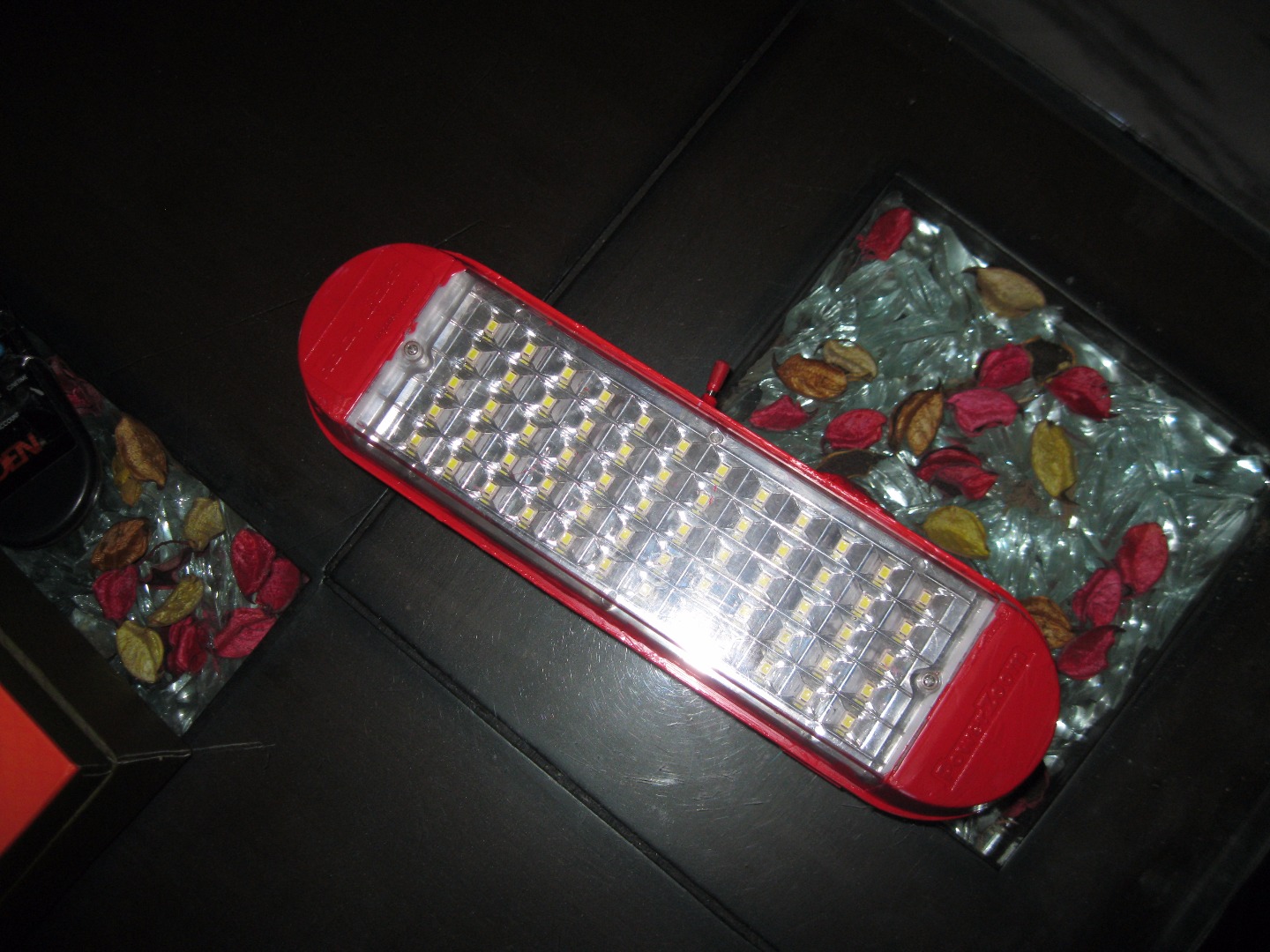

in this INSTRUCTABLES I WILL SHOW YOU HOW I RECREATE THIS EMERGENCY LIGHT
I FOUND THIS IN JUNK OF MY NEIGBHOUR
AND SOMEBODY SAID SOMEONE JUNK IS SOMEONE TREASURE AND FOR US ITS TRASURE
SORRY ABOUT MY ENGLISH BECAUSE I AM ONLY 13 AND STUDY IN 8th CLASS
SO WITHOUT FURTHER LETTTTTTTTTTTTTTTTTTTTTSSSSSSSSSSSSSSSSSSSSS!!!!
DOOOOOOOOOO THISSSSSSSSSSSS!!!!!!!!!!!!!!!!!!!!!!!
PARTS NEEDED
PARTS YOU GONNA NEED ITS UNDER 2$ ONLY FOR ME
ONE BROKEN ON DAMAGE EMERGENCY LIGHT-FREE
ONE 1K RESISTANCE
ONE 606 TRANSFORMER
ONE 10K POT
ONE TOGGLE SWITCH
ONE M-SPEAL
ONE RED LED
THREE 1N4007 DIODES
TOOLS
SCREW DRIVER
WIRE OPENER
CUTTER
SANDER AND SAND PAPER
GLUE
PAINT
HOT GLUE

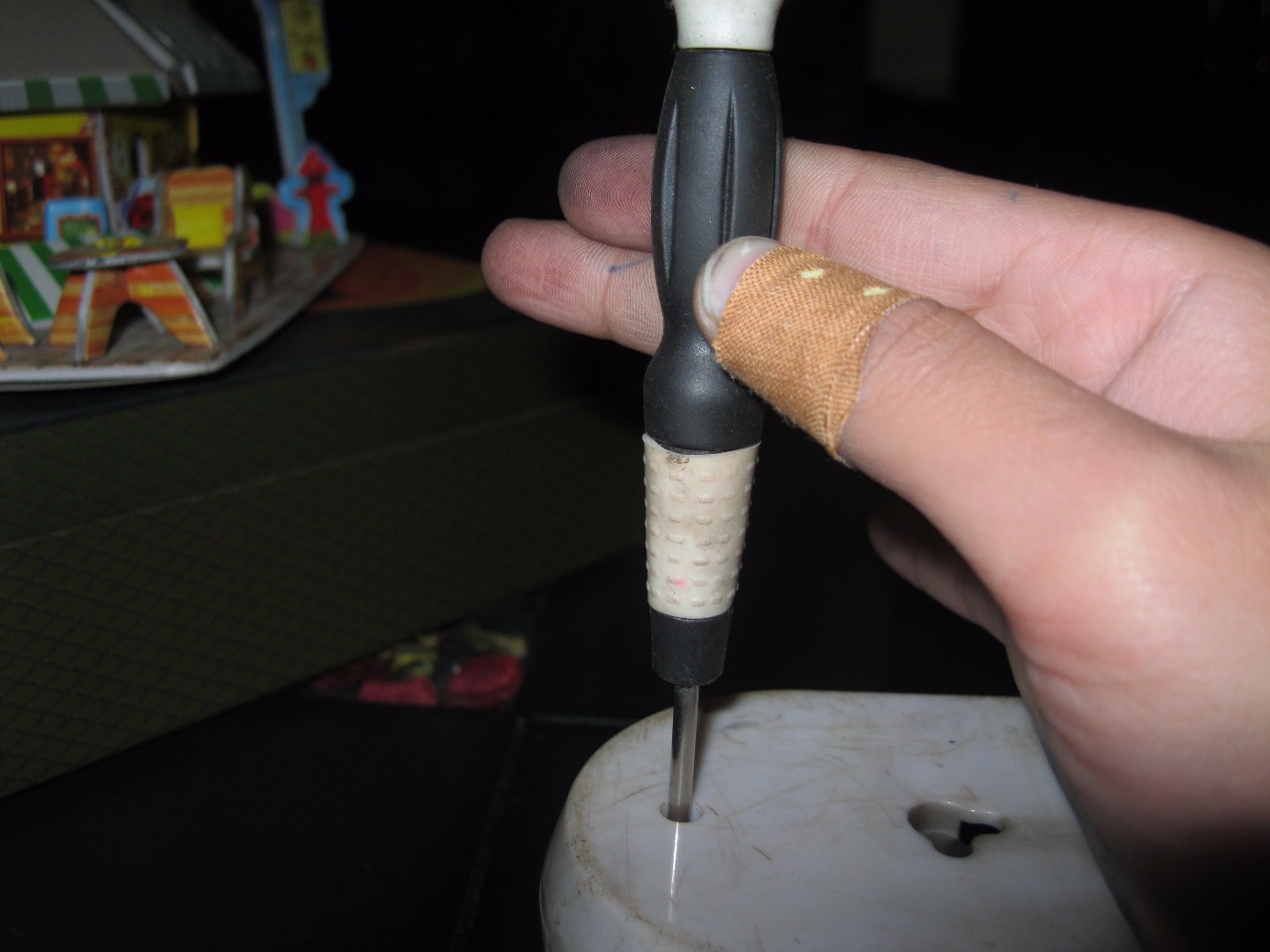

OPENING IT

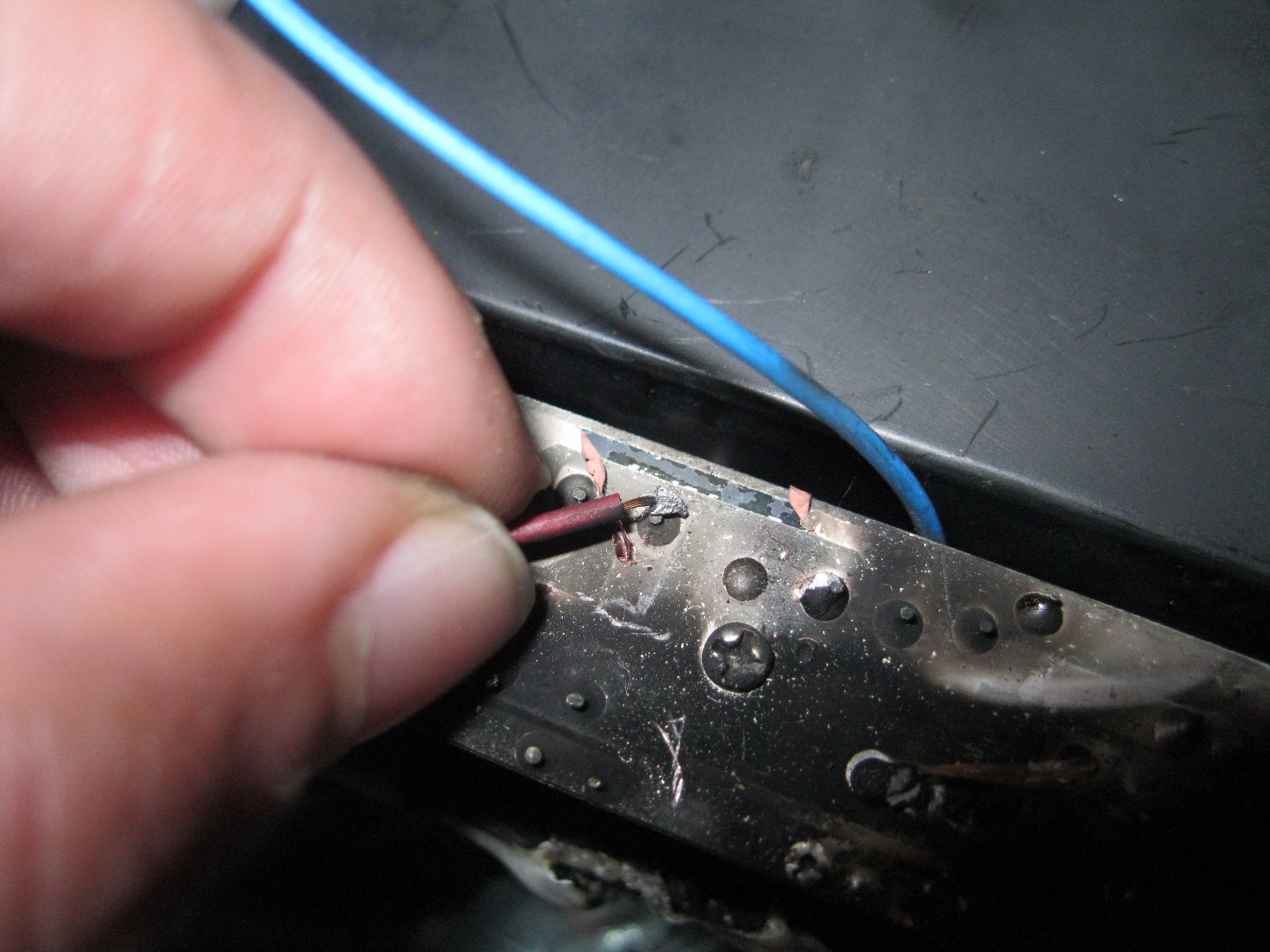

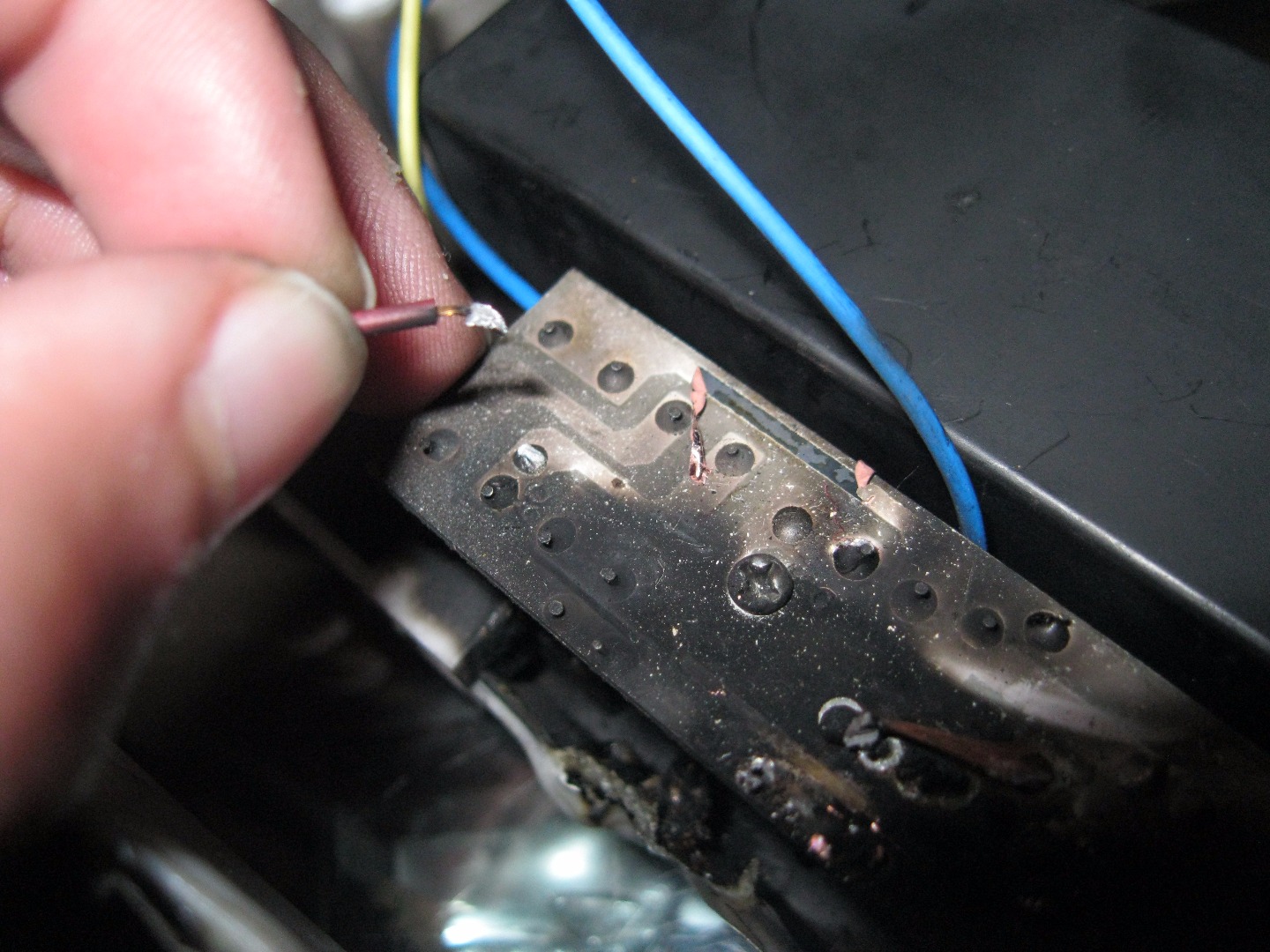

SIMPLY JUST OPEN IT AND CUT OUT THE WIRES

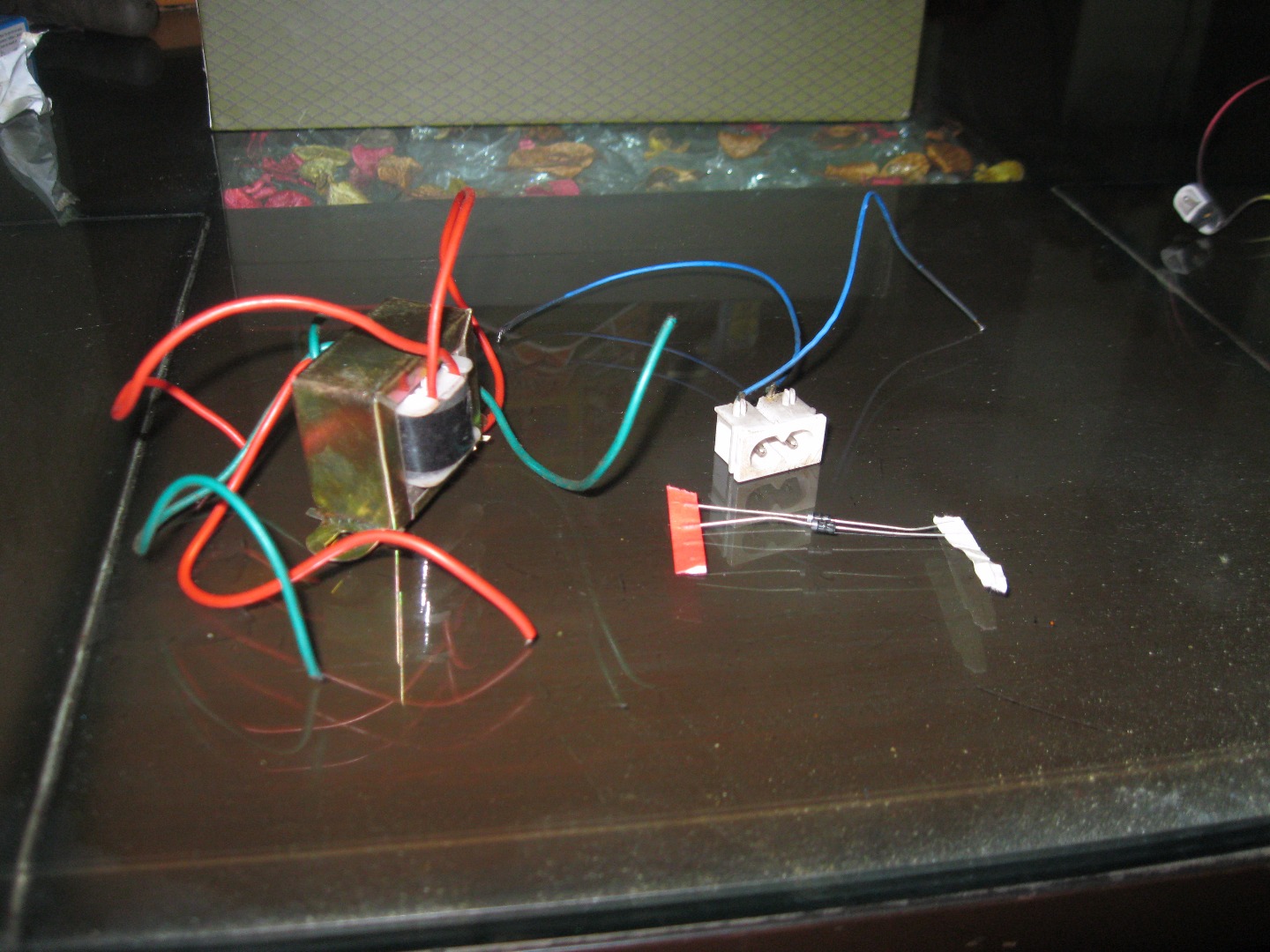

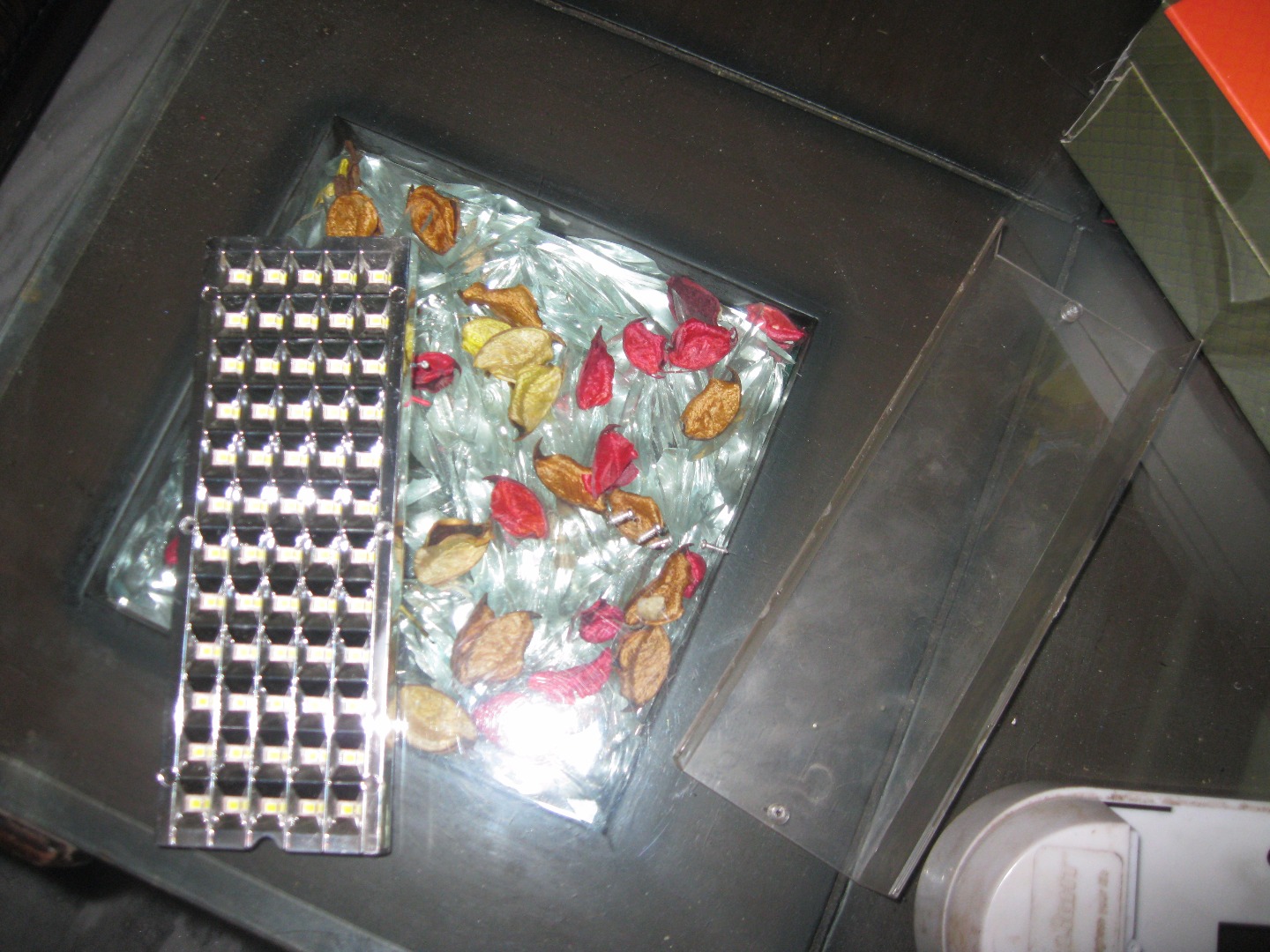

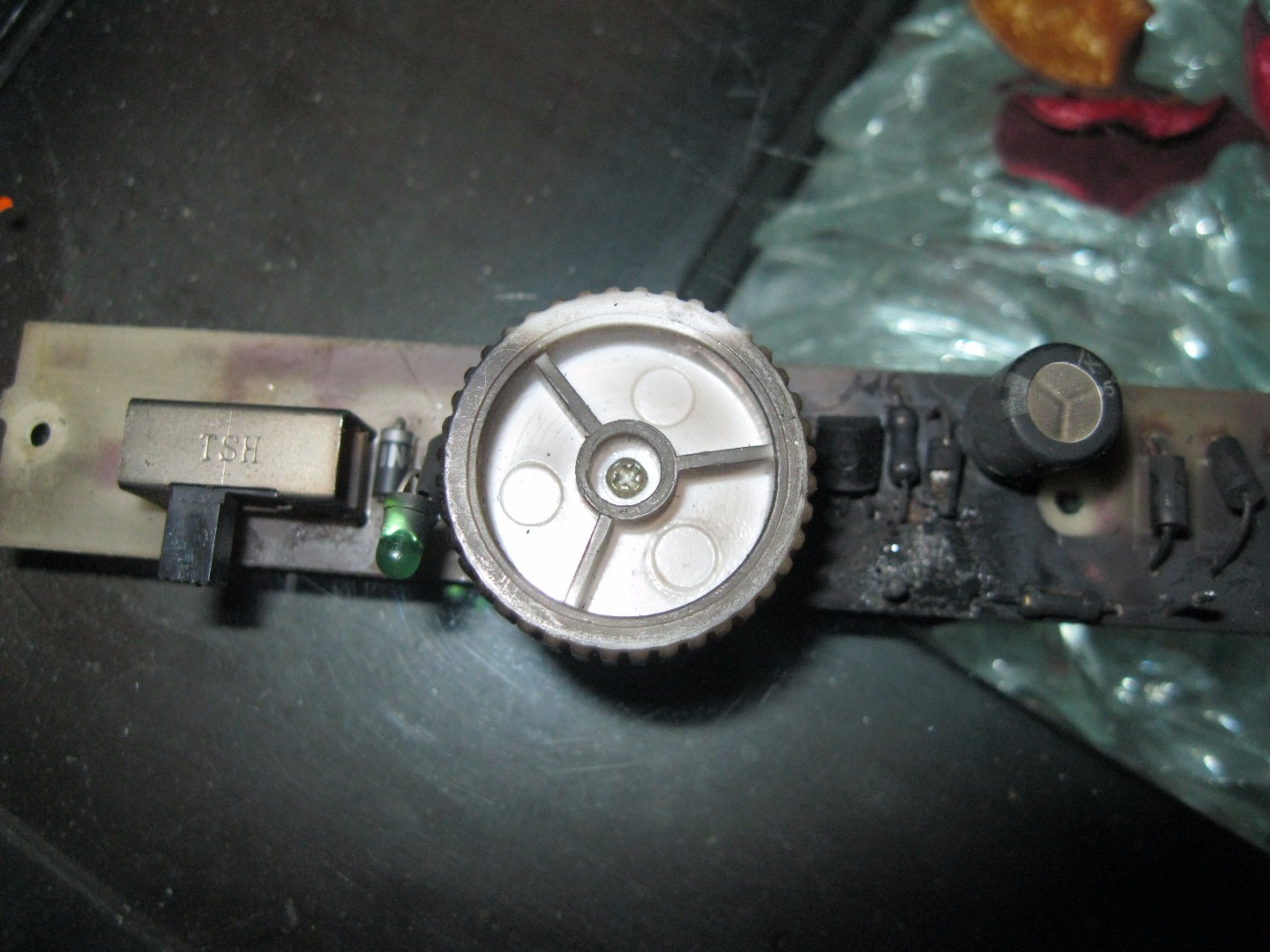

Harvest the Parts
you gonna harvest the parts like i did

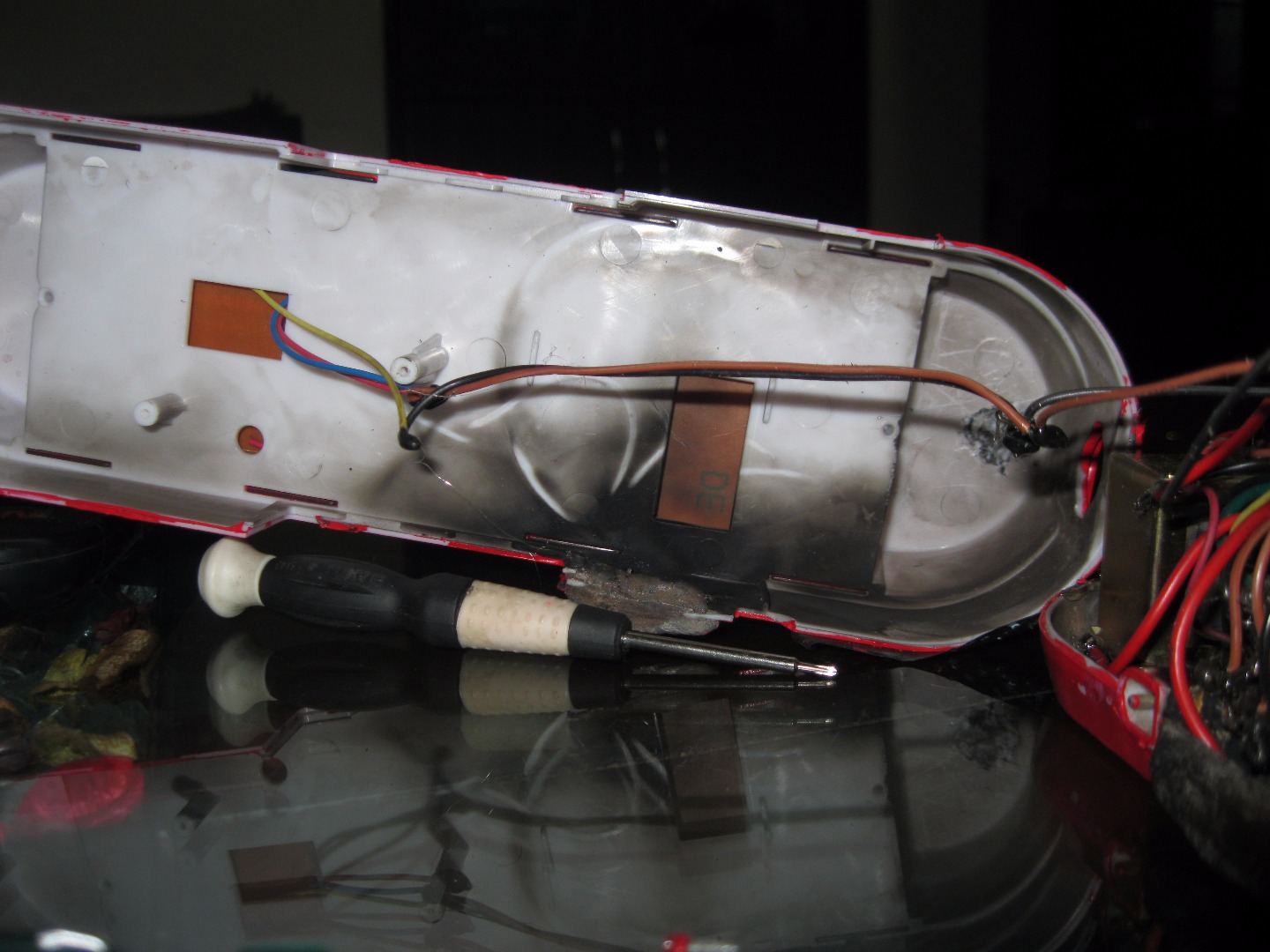

Repair the Body

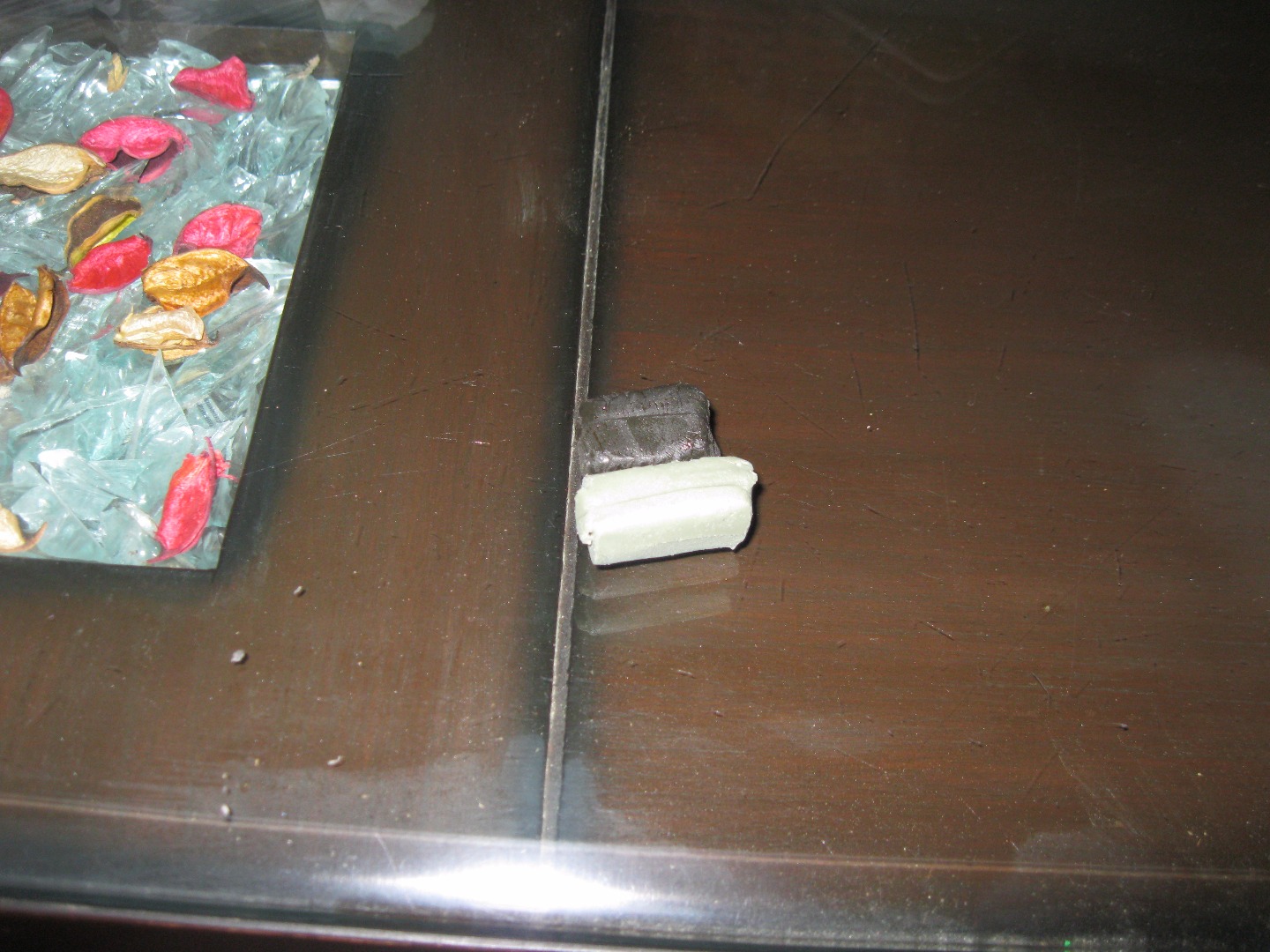

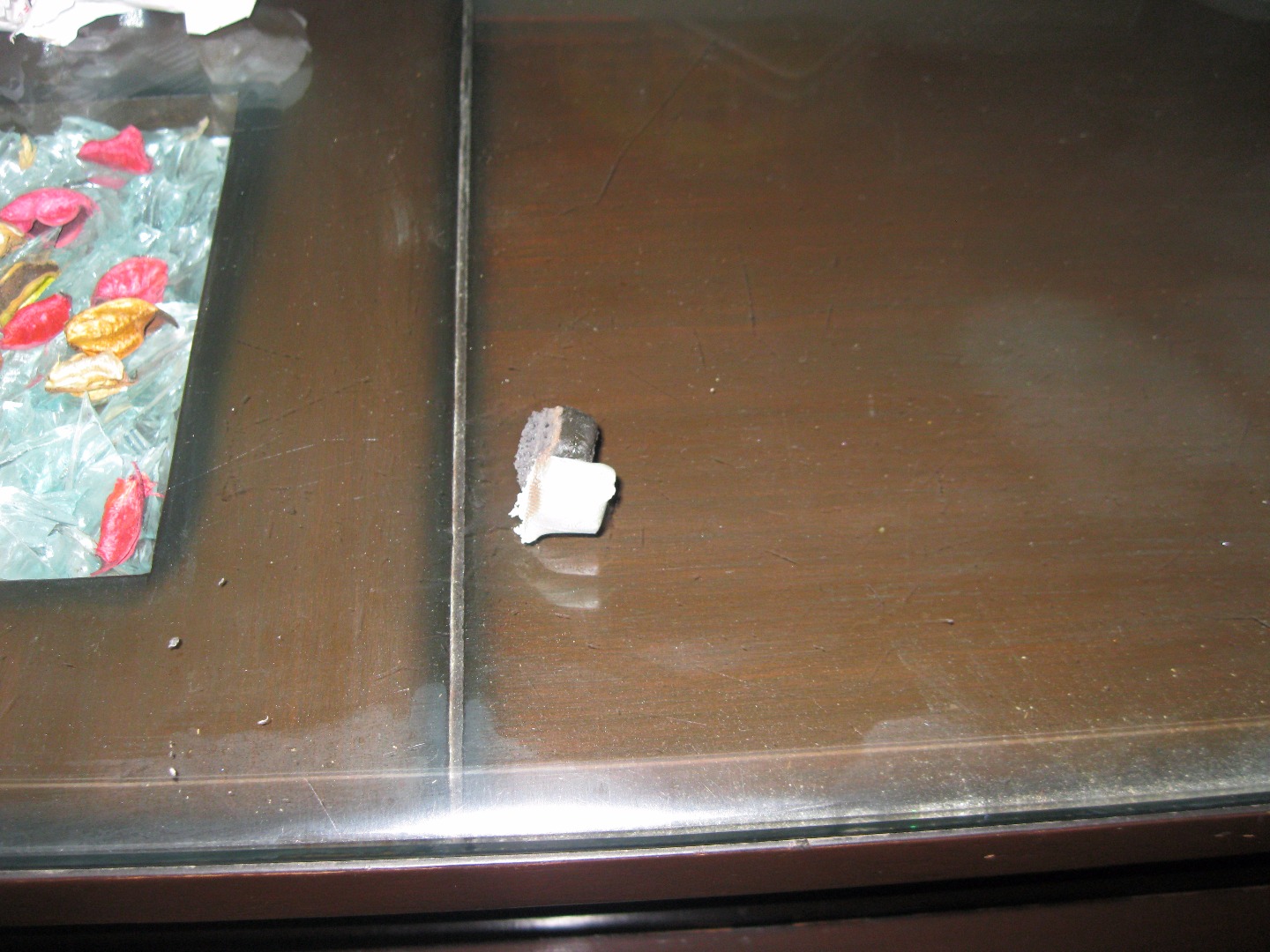

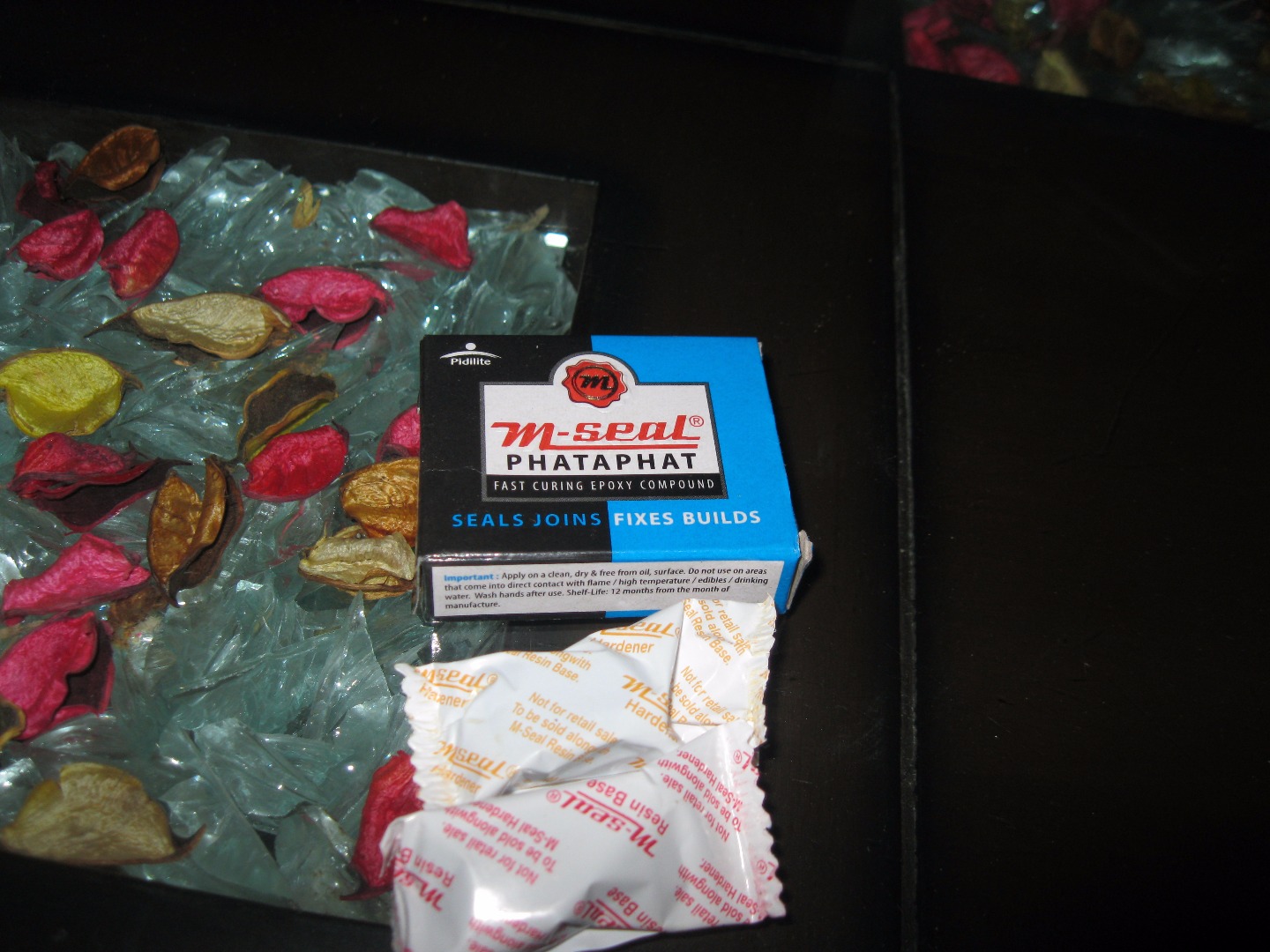

you gonna use mspeal AND APPLY TO THE BURNED BODY
NOTE-AFTER APPLYING IT OPEN IT OTHERWISE IT WILL HARDER AND YOU CAN'T PUT THE PARTS IN

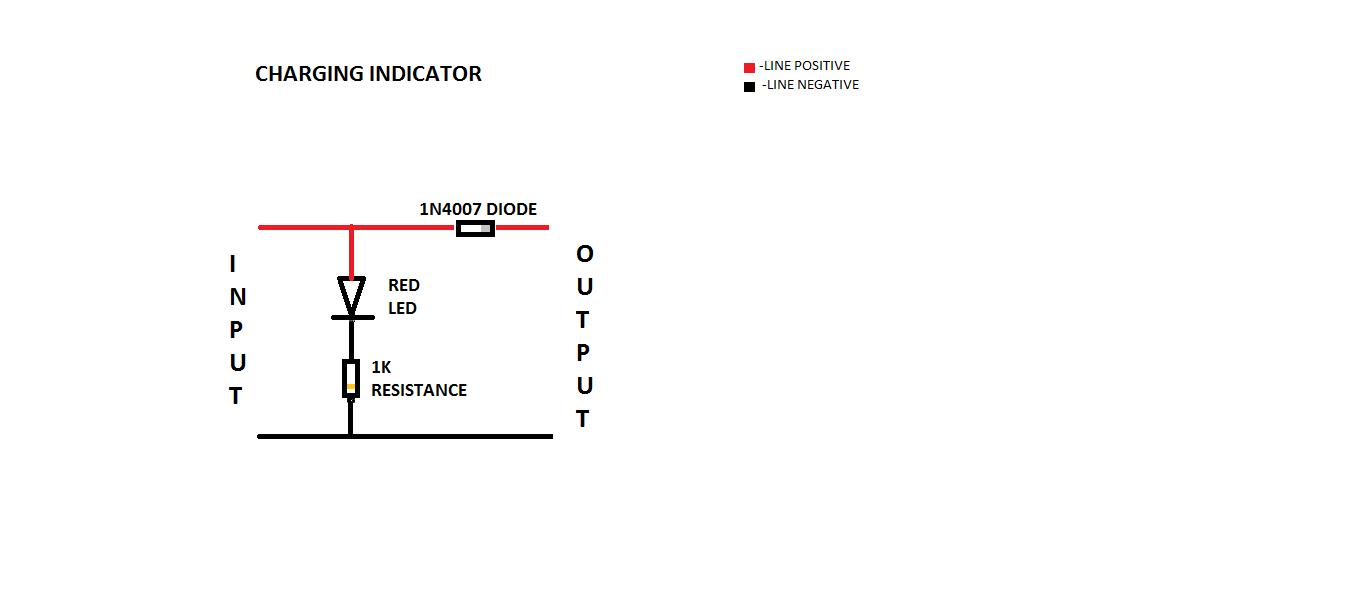

MAKING THE CHARGING INDICATOR
YOU WILL NEED ONE RED LED
ONE 1K RESISTANCE
ONE DIODE 1N4007
AND CONNECT THEM AS SHOWN IN THE SCHEMATIC

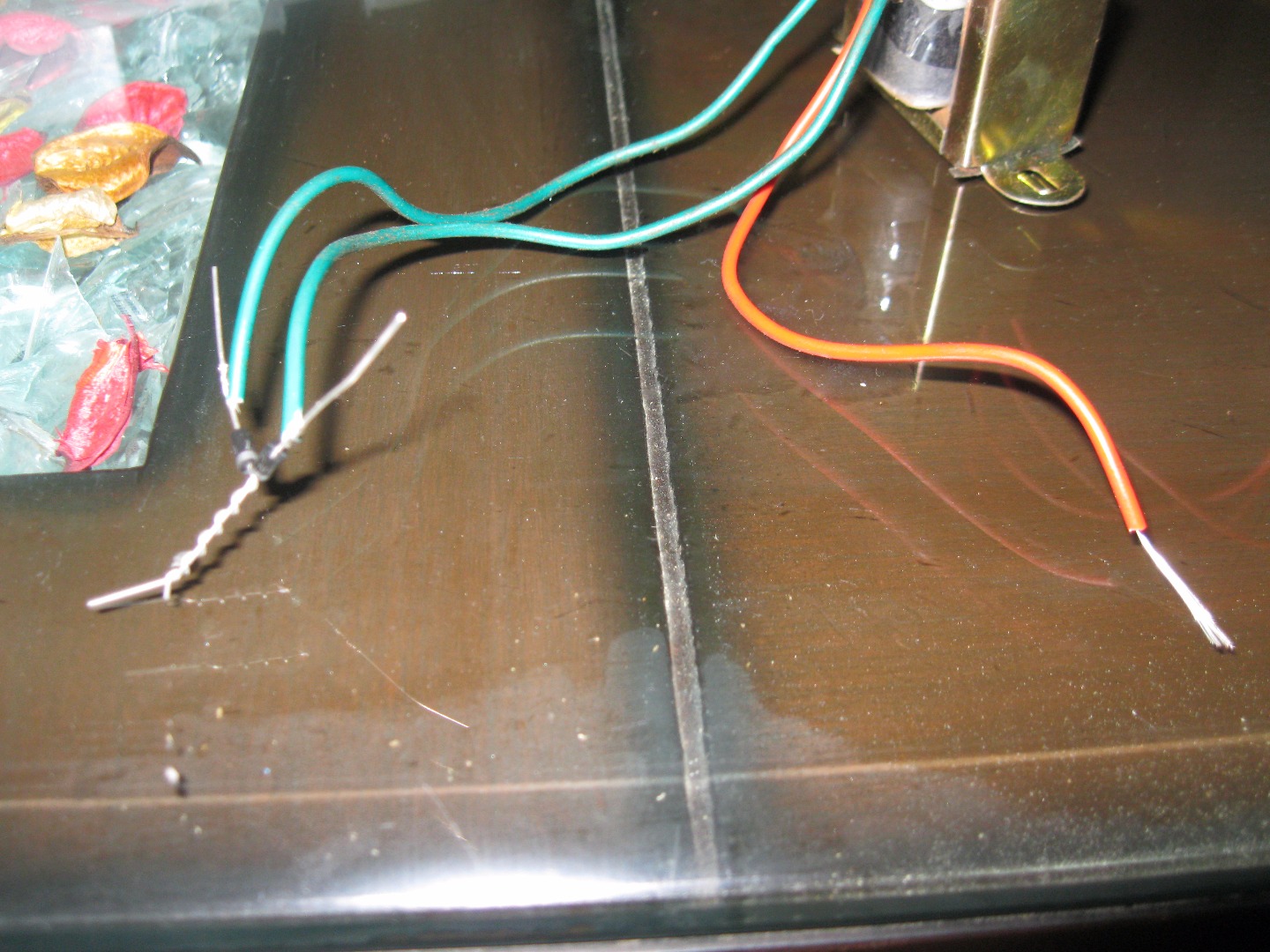

CHARGING CIRCUIT
PARTS YOU WILL NEED
606 TRANSFORMER
2-1N4007 DIODES
1-AC INPUT CIRCUIT
1-CHARGING INDICATOR
CONNECT THEM AS THE SCHEMATIC
WE ARE DONE
PARTS YOU GONNA NEED
1-CHARGING CIRCUIT
1-4V 1.5A BATTERY
1-TOGGLE SWITCH
1-10K POT
1-LED BOARD
AND CONNECT THEM AS THE SCHEMATIC

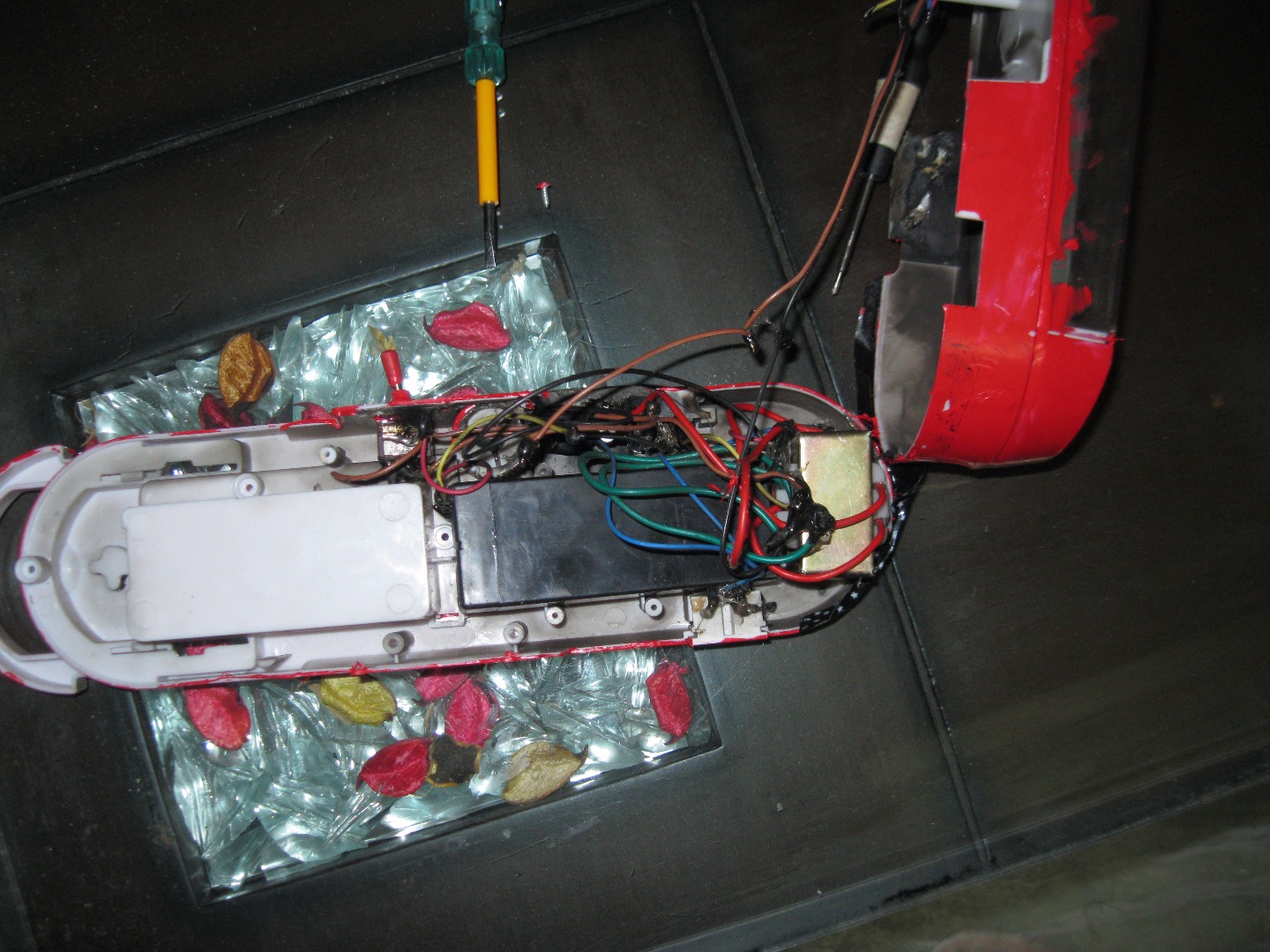

AND PUT IT ALL TOGETHER
