ICStation Electronics Calculator Kits Build
The ICStation Multi-functional Electronic Calculator Kit is designed to help you build a practical desktop calculator and elevate your soldering skills.
It is powered by two CR2032 button batteries, integrates five different computing functions, and uses a traditional LCD1602 display screen to display the calculation process and results in real-time.
Easy to build and the principle is simple. The connection was clearly mapped and labeled on the PCB board. Soldering time 2-3 hours, suitable for DIY electronics enthusiasts and can be used as school or family education practice kits. Now, let's start the building steps by steps!
Install 3pcs 10Kohm Resistor at R1, R2, R3
Install 3pcs 10Kohm Resistor At R1, R2, R3
Install 1pcs 1Kohm Resistor at R4
Install 1pcs 330ohm Resistor at R5
Install 2pcs DO-35 1N4148 Diode at D1,D2
Please pay attention to the installation direction. There is a black mark on 1N4148 and a white mark on PCB which are used to confirm the installation direction.
Install 2pcs CR2032 Battery Socket
Please pay attention to the installation direction.

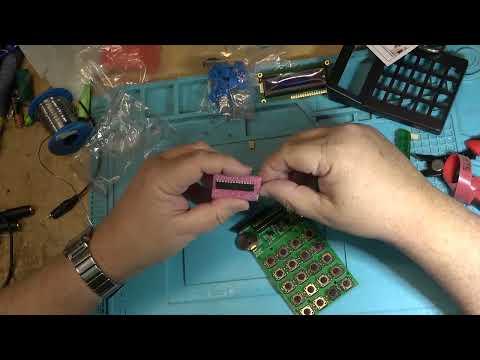

Install 1pcs DIP-28 IC Socket at U2
There is a gap mark on one end of the IC Socket and there is a gap mark on PCB silk screen.
where the IC Socket can place on.These two marks are corresponding to each other and are used to specify the installation direction of the IC Socket.
Install 1pcs 16Pin Female Pin at LCD1
Install 1pcs 0.1uF 104 Ceramic Capacitor at C4
Install 1pcs DIP-28 IC Chip at U2
There is a gap mark on one end of the IC and there is a gap mark on DIP-28 IC Socket where the IC can place on.These two marks are corresponding to each other and are used to specify the installation direction of the IC.
Install 1pcs TO-92 7550A-1 Voltage Regulator at U1
Please pay attention to the installation direction.The arc on the PCB corresponds to the arc of the components.
Install 1pcs TO-92 S8550 Transistor at Q1
Please pay attention to the installation direction.
The arc on the PCB corresponds to the S8550 arc of the components.
Install 1pcs TO-92 S9013 Transistor at Q2
Please pay attention to the installation direction. The arc on the PCB corresponds to the arc of the components.
Install 20pcs 12*12mm Black Button at S1-S20
Install 1pcs 16Pin Male Pin on the Back Side of LCD1602
Bend the Metal Pins Inward As Shown.
Ensure That the Angle of Pin Bending Is Around 30°
Insert LCD1602 Screen Into the 16Pin Female Socket.
Cut Button Icon From Paper Instruction Manual
Place the Button Icon in the Transparent Button Cap
It can be inserted faster and more conveniently with the help of tweezers.
Insert the Blue Button Cap Into the Transparent Button Cap
Insert the blue button cap into the transparent button cap.
Install the blue button cap on Black Button as shown.
Be sure to place buttons with different icons in the specified positions.
Install 2pcs CR2032 Batteries As Shown
Note: The positive electrode of the battery contacts the metal spring of the battery holder.
Place PCB on TOP Case and Adjusting the Position of the Buttons
Note:Please patiently align the installation holes of each button and LCD1602.
Fix PCB by 4pcs 7mm Self Tapping Screw
Fix LCD1602 Display Screen by 4pcs 7mm Self Tapping Screw
It can be inserted faster and more conveniently with the help of tweezers.
Fix Bottom Case by 4pcs 8mm Self Tapping Screw
