Electronic Xmas Tree
![1608919151964.jpg.0d37d23c8f089793eae99140857d48fd.jpg](/proxy/?url=https://content.instructables.com/FG2/13K0/KJ5PSJQK/FG213K0KJ5PSJQK.jpg&filename=1608919151964.jpg.0d37d23c8f089793eae99140857d48fd.jpg)
Hi! I would like to present my electronich xmas tree. I built this as decoration and I think it is very comapct and nice.
Projecting and Routing.
![321.PNG.b69a0b091e78d64fe35fb880f3978f70.png](/proxy/?url=https://content.instructables.com/FU3/4EC2/KJ5PSJQJ/FU34EC2KJ5PSJQJ.png&filename=321.PNG.b69a0b091e78d64fe35fb880f3978f70.png)
![123.PNG.a1c10c24aca7d3da2dbf20147651aad9.png](/proxy/?url=https://content.instructables.com/FOW/1FYH/KJ5PSJQI/FOW1FYHKJ5PSJQI.png&filename=123.PNG.a1c10c24aca7d3da2dbf20147651aad9.png)

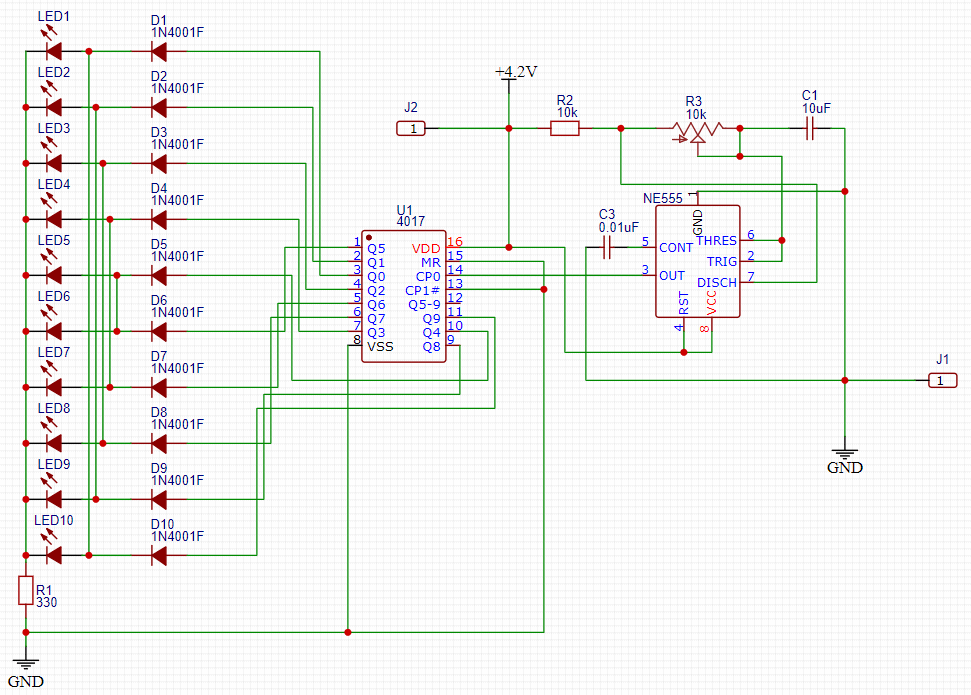

First I have placed all components in EasyEDA and connect in right way as I showed on diagram. Next I converted the schematic to PCB and made board outline as tree. All componets I have placed on the board and routed tracks on PCB board.
FlatCam
Next I saved my circuit board as Gerber and upload to FlatCam. I set up FlatCam and all tracks, holes and board outline. Gcode which generated FlatCam I uploaded to Candle and I started up to making my PCB. Sorry but I don't have movie from milling PCB.
Soldering and Placing Components
![IMG_20201224_134448.jpg.81238dc35ee418768c1c59773679c49f.jpg](/proxy/?url=https://content.instructables.com/FRB/W2KM/KJ5PSJQM/FRBW2KMKJ5PSJQM.jpg&filename=IMG_20201224_134448.jpg.81238dc35ee418768c1c59773679c49f.jpg)
![1608919151972.jpg.41fc432cb2fce9628d3491376c465ab1.jpg](/proxy/?url=https://content.instructables.com/FN9/C3NK/KJ5PSJQL/FN9C3NKKJ5PSJQL.jpg&filename=1608919151972.jpg.41fc432cb2fce9628d3491376c465ab1.jpg)
So I placed all components on PCB and solder. Next I checked all connections betwean components. I was looking for short circutit but I didn't find. It means everything was good.
Testing and Movie
At the end i tested my PCB so I connected power supply, everything were okay so i printed stand for tree. And here it is link for movie how it works.
