Electronic Space Shuttle
by SimonRob in Circuits > Electronics
17366 Views, 142 Favorites, 0 Comments
Electronic Space Shuttle





I made this project that link together two of my favourite fields : electronic and space. This space shuttle is made entirely from scratch.
Plans

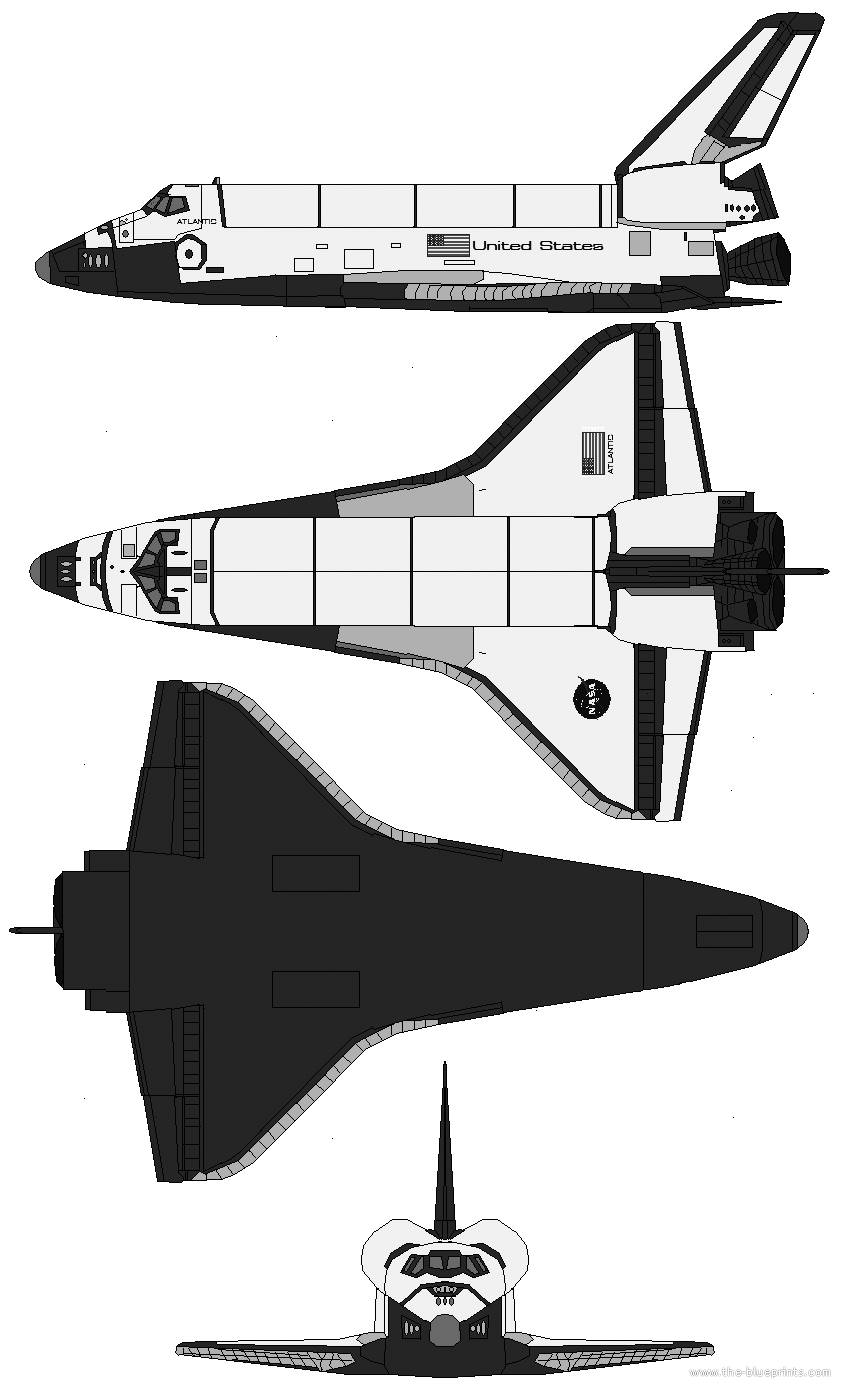

The space shuttle is a very nice looking space-craft. I didn't want my model to be disproportionate, so I recommand you to print this plan and use it as a template during the construction.
Material



For this project you'll need:
-Electronic circuit in which you can take the components (and the epoxy green board)
-A soldering iron and soldier
-The template (step 1)
-Tools like saw, file, sandpaper, pliers ...
The Base





These five pictures show the chronology of the base making :

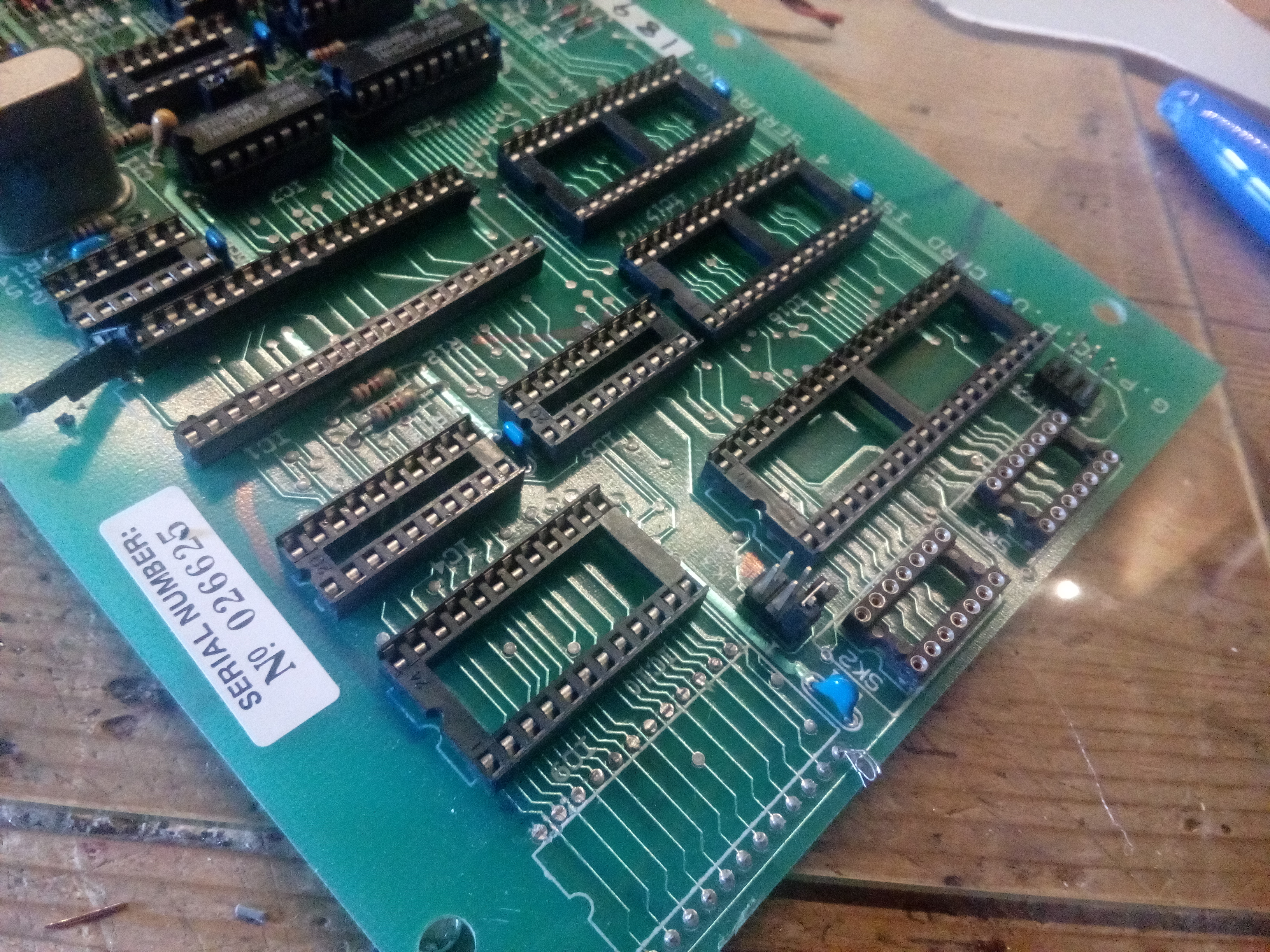

1- Remove all the components of a board
2- Place the template on it and make sure there is enough space
3- Draw the shape with a marker
4- Cut roughly the external shape with a hand saw
5- Sand (sand belt, file or sandpaper) to have a nice shape
⚠️ Take precautions during the sanding (wear a mask)
The Rudder

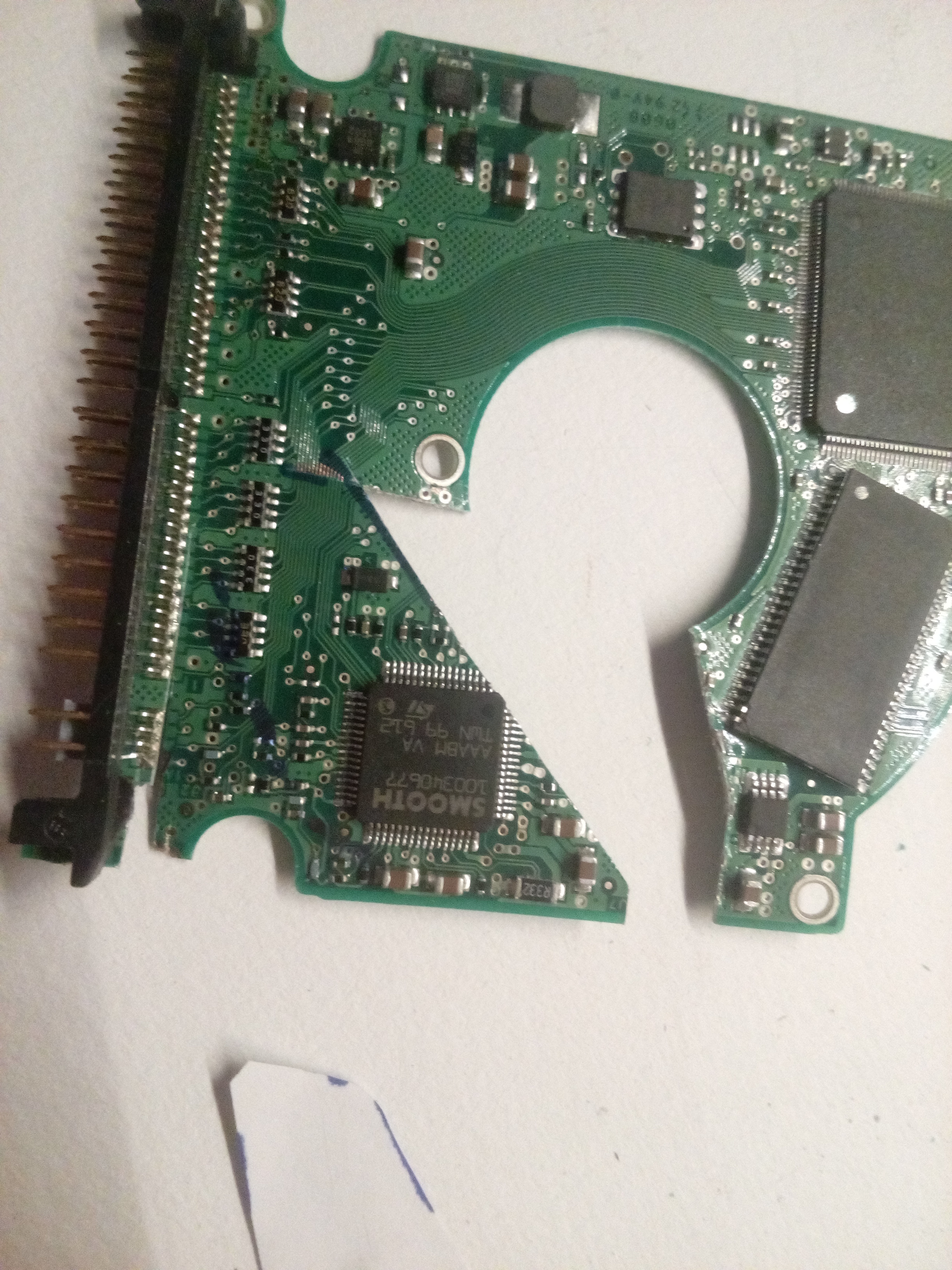

The rudder is a piece that I cut directly with ordinary scissors in a board of an old hard drive disc.
Then sand the edges with a fine sandpaper to make it nice and clean

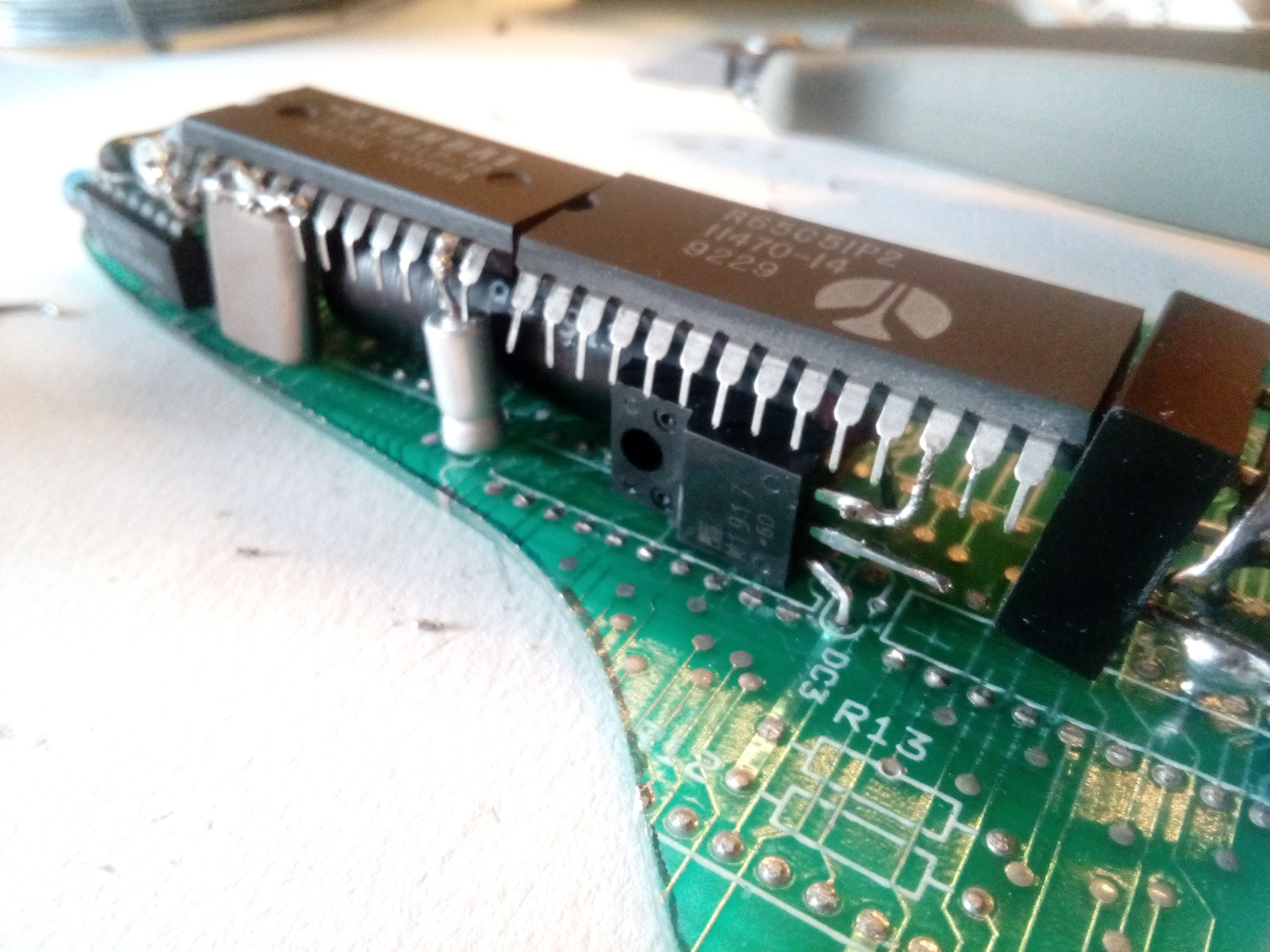

The Main Body




This step is the most creative one you can make the body as you want!

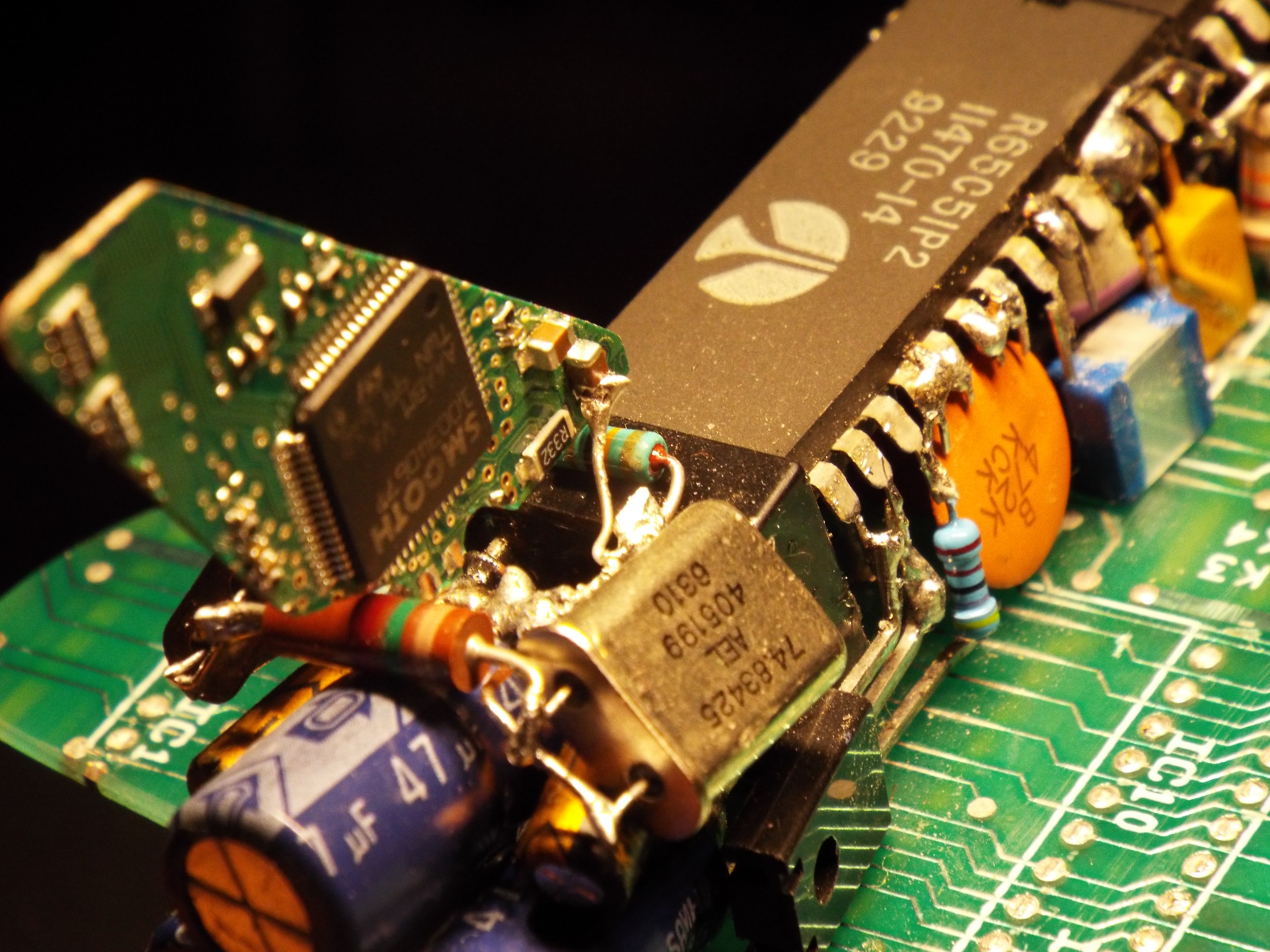

personally I soldered a capacitor in the middle and I placed two integrated circuits above it.
Then I made the sides of the body with all kinds of little components (resistors, ceramic capacitors ...).

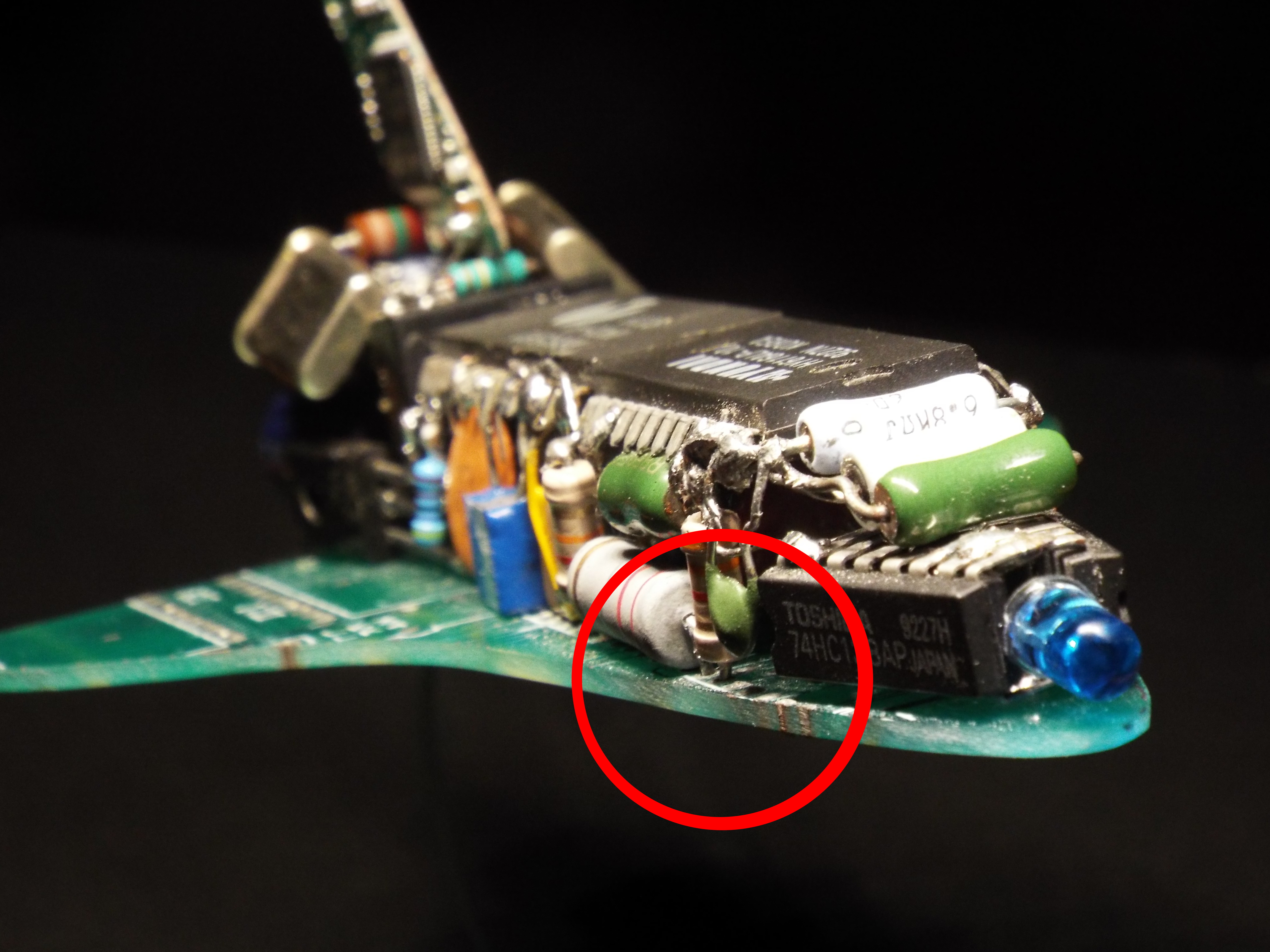

I made the nose of the shuttle out of two IC, one LED and differents kinds of resistors.

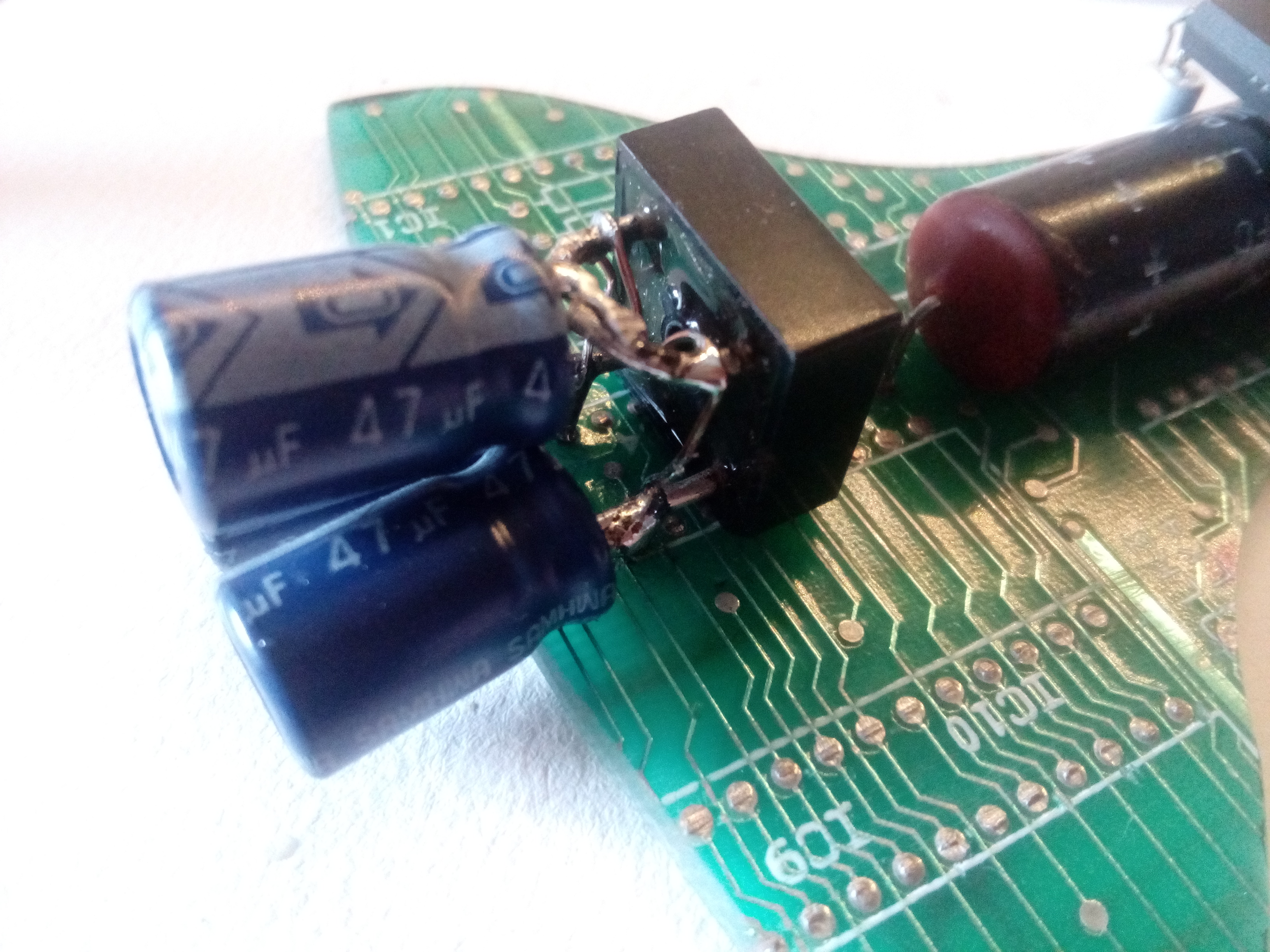

For the engines part I used three capacitors and two quartz.
[tip]

When you have to solder a component to the board you can re-use the pre-existing holes of the board! those are already tinned.
The Base
![IMG_20180403_210033[1].jpg](/proxy/?url=https://content.instructables.com/FZ3/QIFH/JFIIWJB1/FZ3QIFHJFIIWJB1.jpg&filename=IMG_20180403_210033[1].jpg)
![IMG_20180403_210407[1].jpg](/proxy/?url=https://content.instructables.com/FZD/UCS5/JFIIWJB9/FZDUCS5JFIIWJB9.jpg&filename=IMG_20180403_210407[1].jpg)
![miniature[1].JPG](/proxy/?url=https://content.instructables.com/FM4/KP7B/JFIIWJC4/FM4KP7BJFIIWJC4.jpg&filename=miniature[1].JPG)

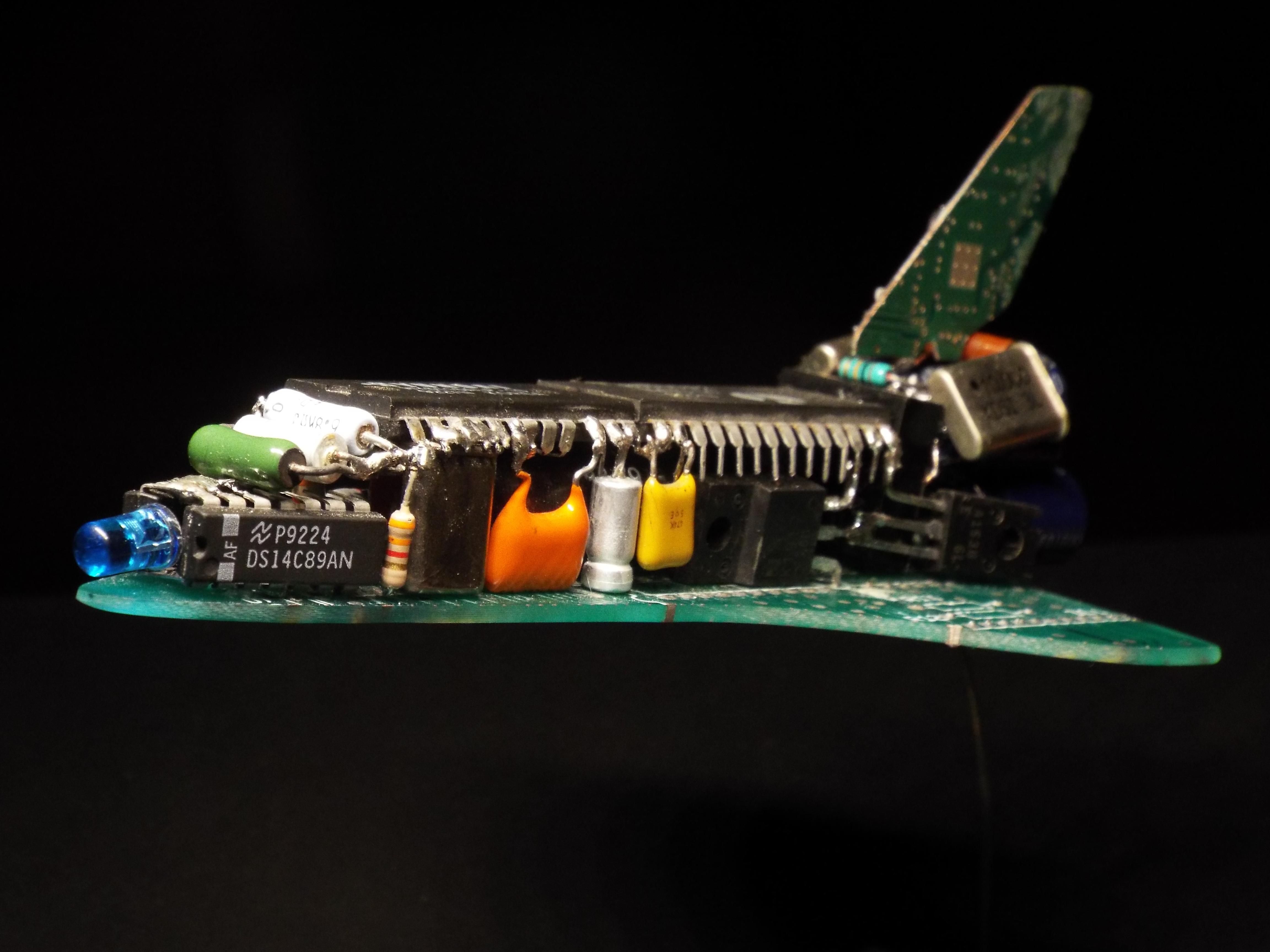

I made a little base from scrap wood, I glued a bended wire on the back and I welded the other extremity to the shuttle. This is very simple and it makes a nice support for the space shuttle !
End

This project is done, I hope you like it! if so, let me know in comments ;)
