Electronic Dice With UTSOURCE

Electronic Dice is a playful electronic project with integrated electronic components involvement. The dice works extremely well in all favorable conditions a user needs when he/she plays a game. Using beautiful schematic and colorful LEDs' dice reflects enjoyment when biasing. So, let’s begin towards the development.

1. Integrated circuit (IC) 4017 (1) get it from here

2. 6 LED’s (same or different colors). Get it from here

3. 9v Battery. Get it from here

4. Connecting or jumper wires. Get it from here

5. Battery clip. Get it from here

6. Breadboard. Get it from here

The pins of the IC are designated from 1-16 from left to right and then right to left sequentially

Connect pin 16 of the IC to the positive rail of the breadboard and pin 8 to the negative rail of the breadboard.

Insert 5 LED’s on the bread board with their cathodes connected to the negative rail and their anode connected to pin 1, pin 2, pin 3, pin 4 and pin 7.

Insert the 6th LED on the breadboard with its anode connected to pin 10 and cathode connected to the negative rail of the breadboard.

Then connect a wire to pin 14 of the breadboard and leave the other end of the wire open (naked).

And insert the power supply on the breadboard

There are 6 LED’s and each LED corresponds to one number on the dice respectively.

So, whenever we touch the open wire the biasing of the number starts and LEDs shuffle.

And when we remove our hand from the wire one number corresponding to the dice will appear, seems nice right.

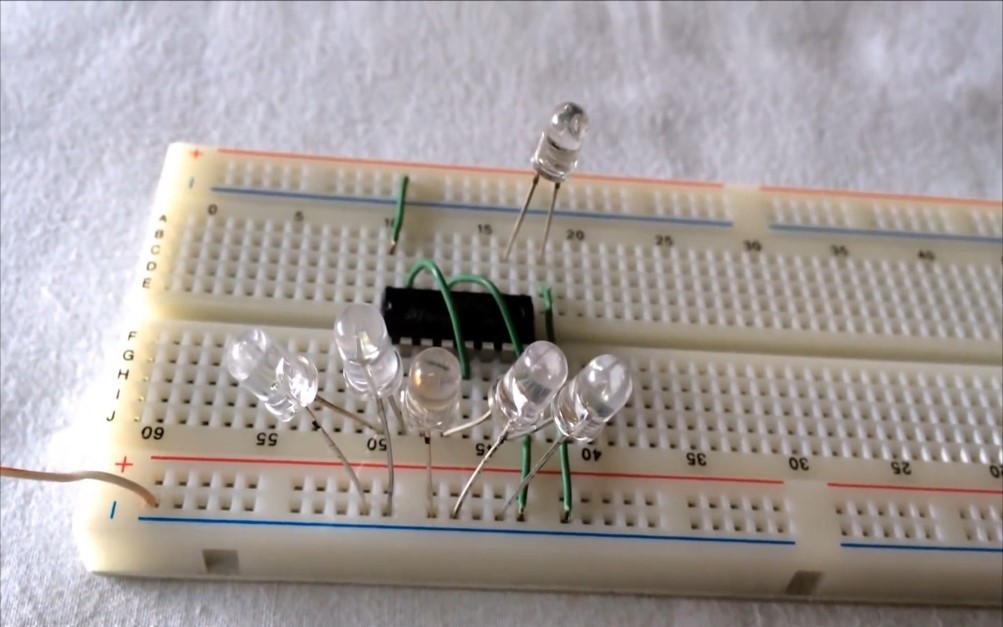

As shown we got the number 6.

The electronic Dice is the best playful automated and technology-oriented circuit, it uses IC 4017 that corresponds to the signal when the user touches it and presents the output to us in the emitting form of LED.
