Electromagnetic Generator

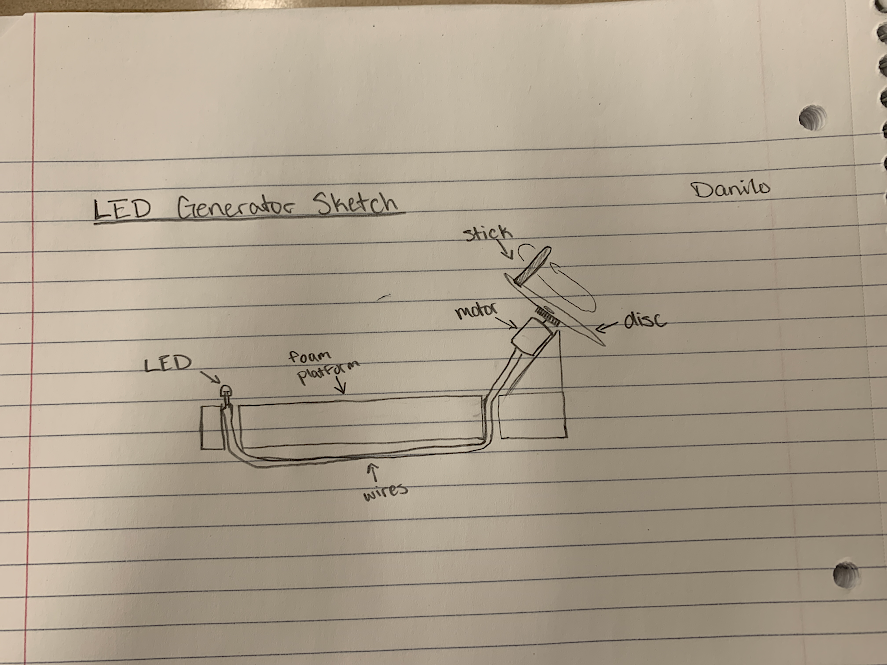

![LED Generator Sketch (May 27, 2021 at 10_22 AM).png](/proxy/?url=https://content.instructables.com/F43/F090/KPGWR4KZ/F43F090KPGWR4KZ.png&filename=LED Generator Sketch (May 27, 2021 at 10_22 AM).png)
Design and construct an electromagnetic generator using the supplies in your kit and/or supplies from home. The generator should convert mechanical energy into electrical energy to power at least one LED.
Step 1
![IMG_1924.jpg](/proxy/?url=https://content.instructables.com/F3R/QWPX/KPEJ07SR/F3RQWPXKPEJ07SR.jpg&filename=IMG_1924.jpg)
![IMG_1926.jpg](/proxy/?url=https://content.instructables.com/F91/2I7N/KPEJ07SQ/F912I7NKPEJ07SQ.jpg&filename=IMG_1926.jpg)
Start the project with a 10"x5" foam platform. Make a ramp piece that can fit the motor and be inserted into a pre-cut hole in the main platform.
Step 2
![IMG-1927.jpg](/proxy/?url=https://content.instructables.com/FQM/KZ40/KPEJ07R3/FQMKZ40KPEJ07R3.jpg&filename=IMG-1927.jpg)

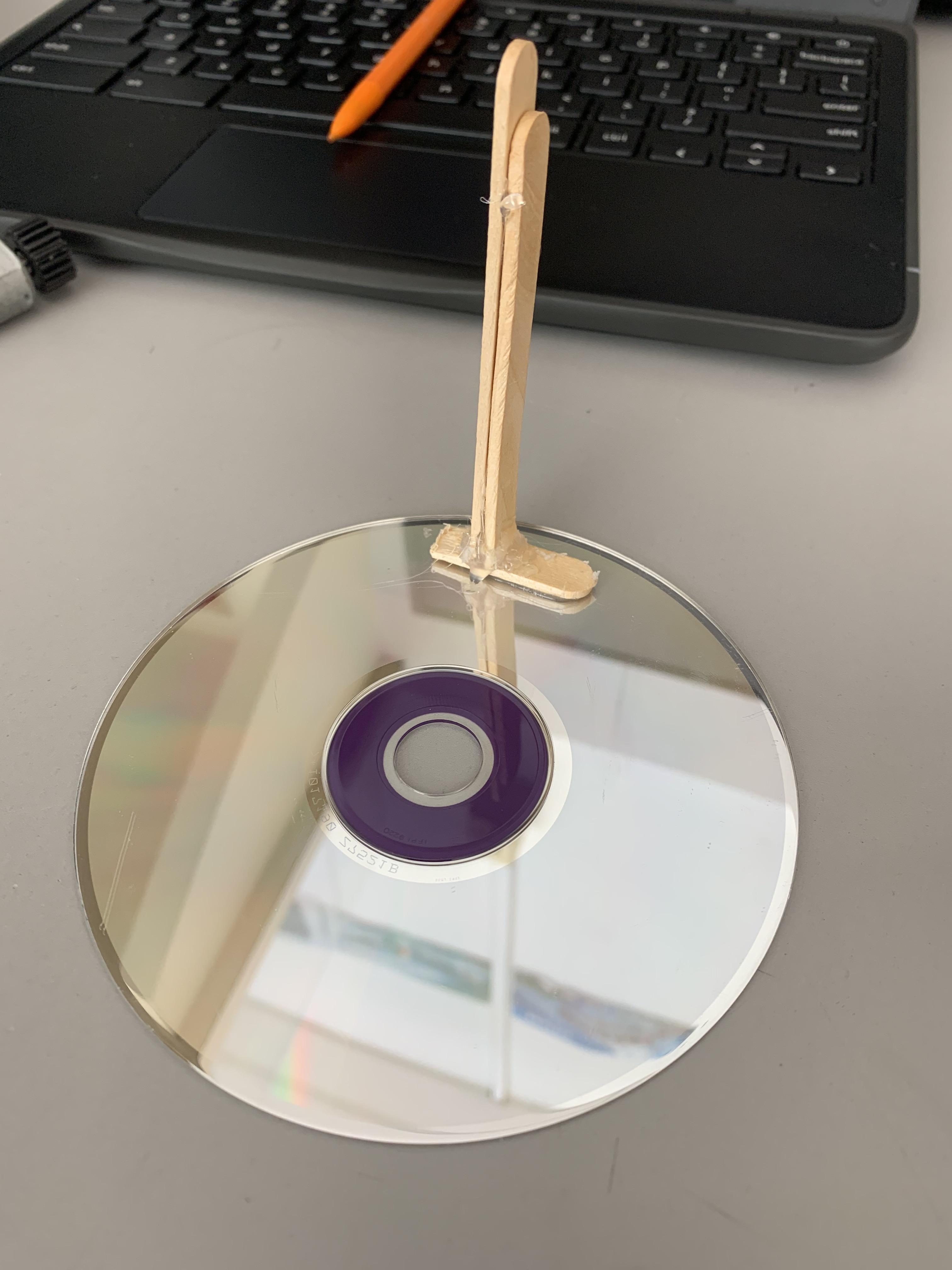

Make a handle from popsicle sticks and hot glue it to disc.
Step 3
![IMG_1928.jpg](/proxy/?url=https://content.instructables.com/FZS/911Z/KPEJ07RY/FZS911ZKPEJ07RY.jpg&filename=IMG_1928.jpg)
![IMG_1929.jpg](/proxy/?url=https://content.instructables.com/FV6/PVOY/KPEJ07RK/FV6PVOYKPEJ07RK.jpg&filename=IMG_1929.jpg)

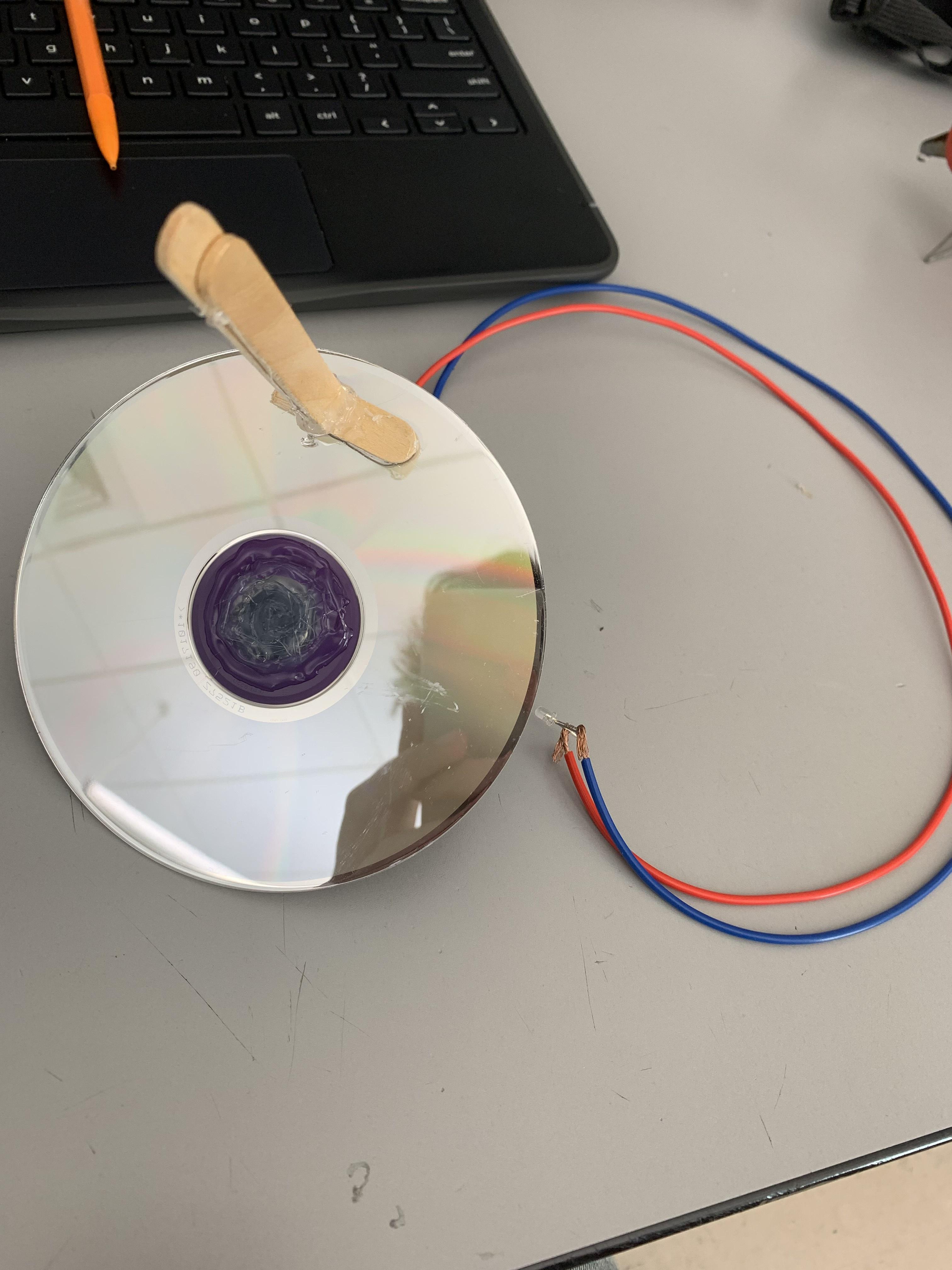

Attach motor to center of disc, and connect LED to the wires of the motor.
Step 4
![IMG-1930.jpg](/proxy/?url=https://content.instructables.com/F2A/OPE4/KPEJ07R0/F2AOPE4KPEJ07R0.jpg&filename=IMG-1930.jpg)
Connect motor to ramp and connect ramp to platform. Route cable through opening that goes under that platform.
Step 5
![IMG_1932.jpg](/proxy/?url=https://content.instructables.com/FJ7/03U3/KPEJ07RI/FJ703U3KPEJ07RI.jpg&filename=IMG_1932.jpg)
Cut out a slit at the end of the platform and wedge the wire and LED in there.
Finished Product
![IMG_1931.jpg](/proxy/?url=https://content.instructables.com/FB3/8ERW/KPEJ07RJ/FB38ERWKPEJ07RJ.jpg&filename=IMG_1931.jpg)
