Electricity From Fire

Watch the Video or follow the instructions

Subscribe my youtube channel: https://www.youtube.com/channel/UCxv6t_Fcq9exHRDejCAO0bg

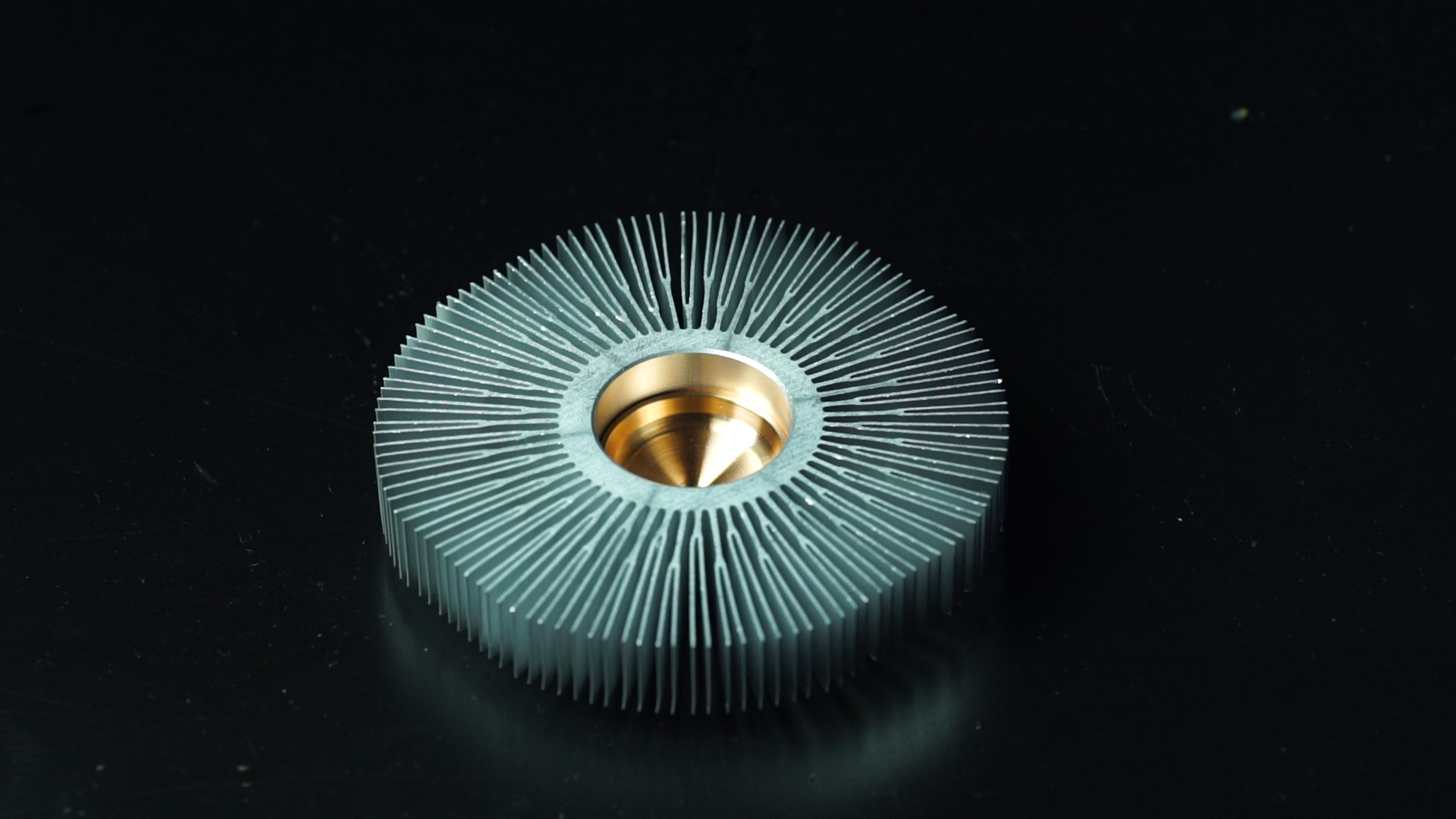

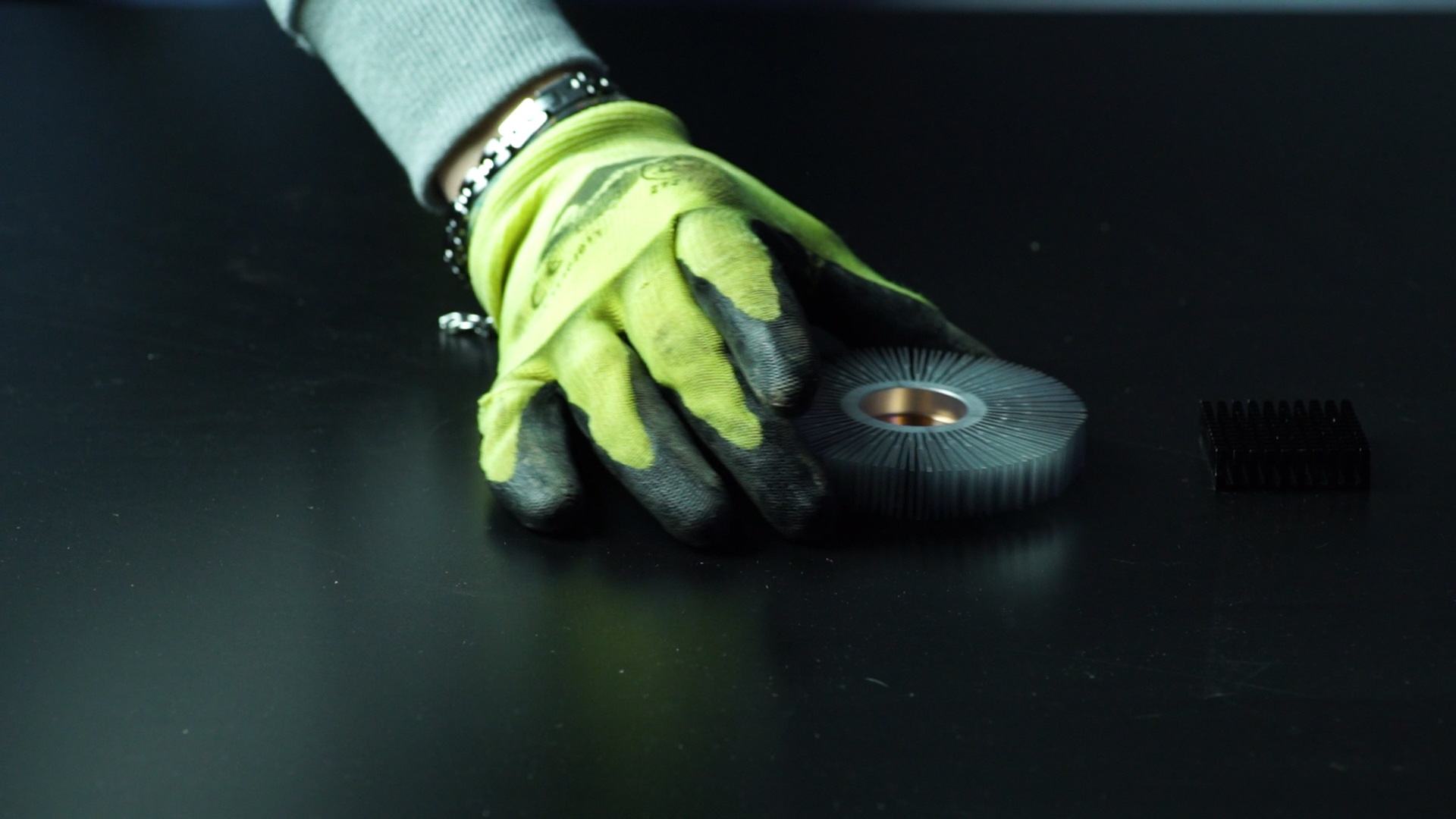

Two heatsinks, one bigger than the other.

One Peltier cell

One Voltage regulator with USB outputs (not really, it won't work with it)

Thermal grease

Take the bigger heatsink and spread evenly the Thermal grease using something flat.

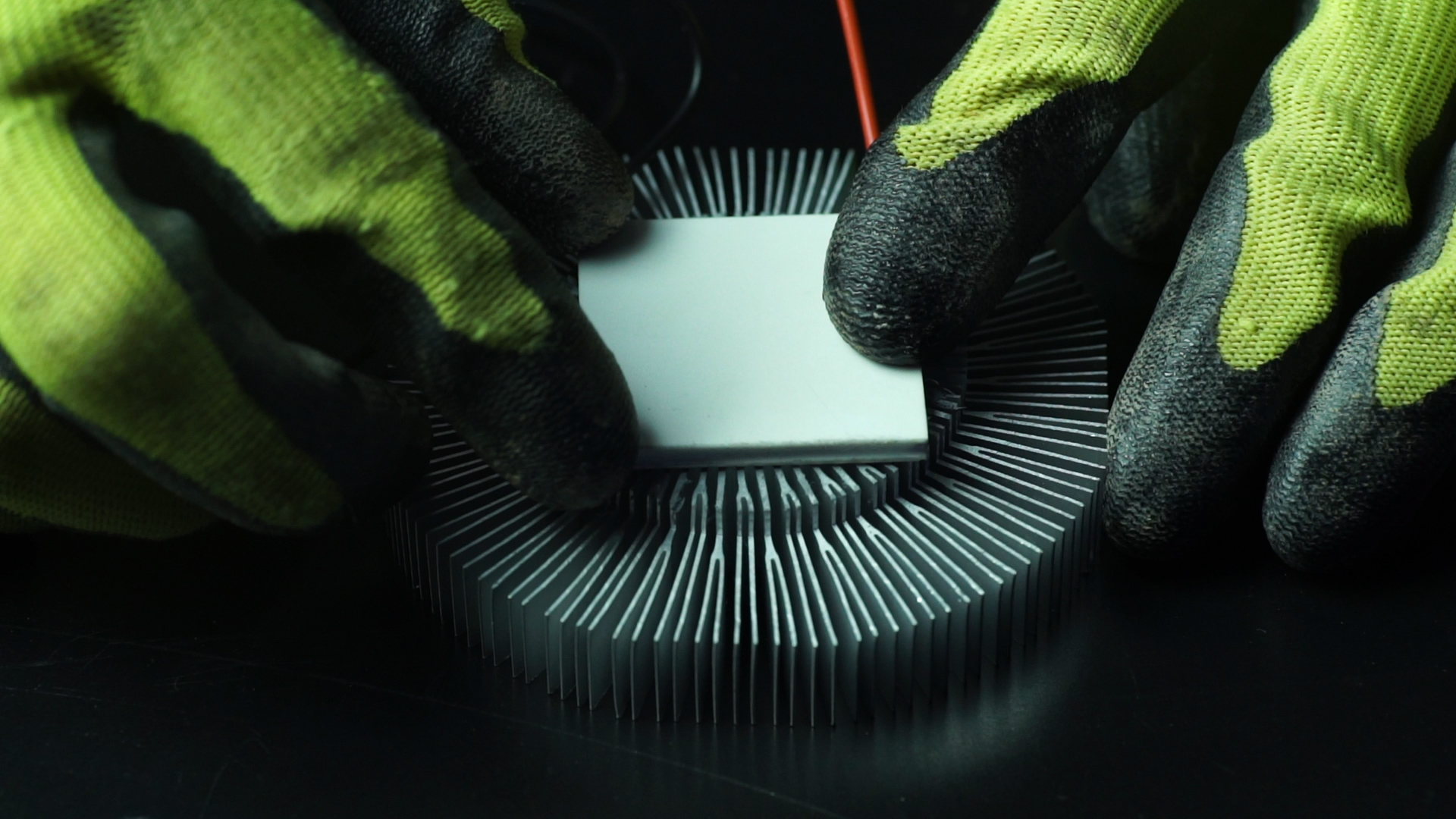

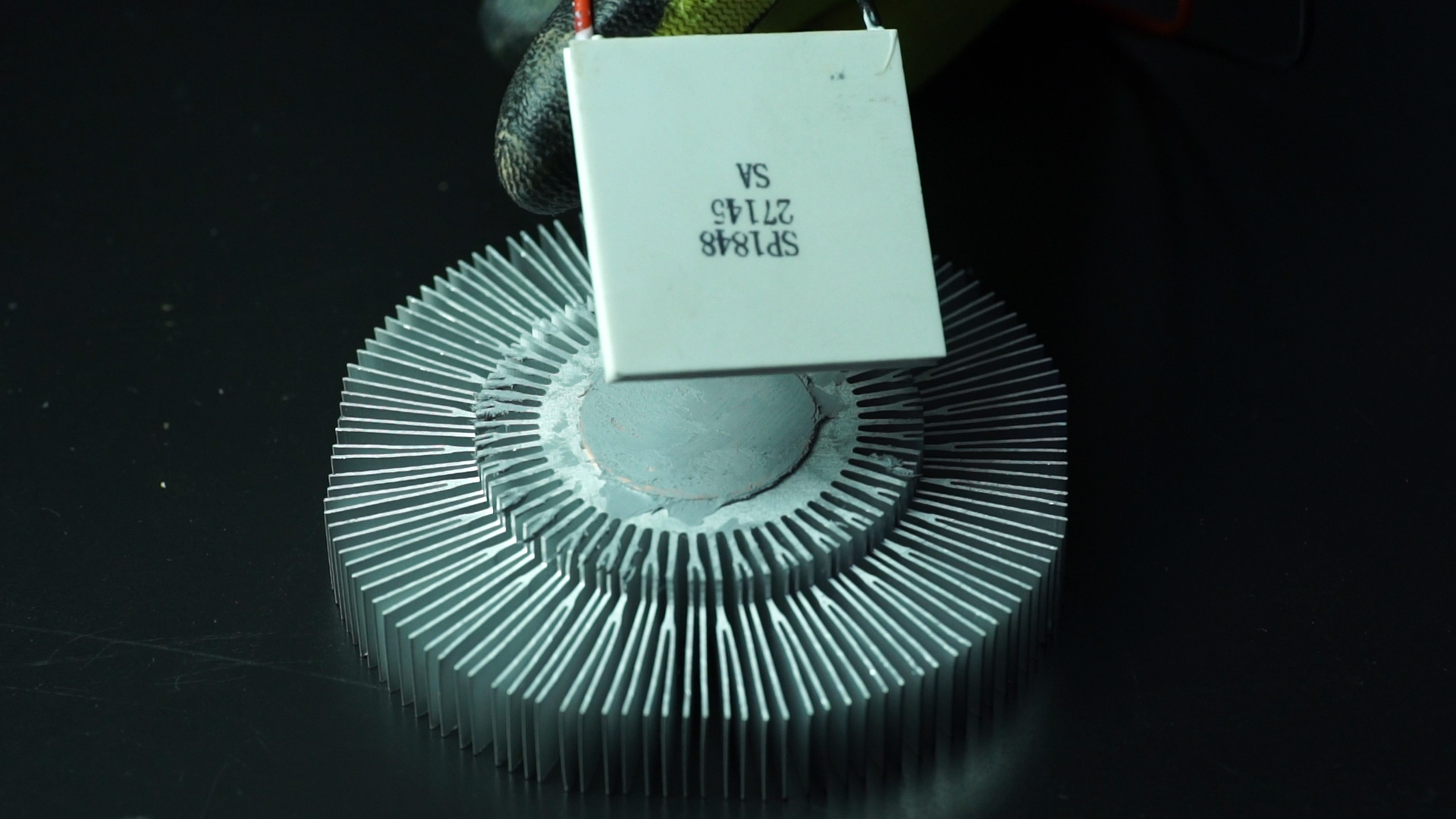

Attach the COLD SIDE of the Peltier Cell to it, the side with the writes on).

Spread more Thermal paste on the HOT SIDE of the cell.

Attach the small heatsink to it.

I used some Heat resistant Tubes to protect the wires from the heat and a couple of M3 40mm bolts to fix everything in place.

I made a quick test with a propane torch to see if The Prototype is working.

With a cylindrical Steel can I made the brazier.

Measure the top heatsink (in my case is 40mm) and cut the shape on the bottom of it using an electrical tool.

If everything fit right move on.

Use a water container to allow the cooling to be more effective than air.

Find one with the right sizes to fit the heatsink.

Pour enough water to cover the sink, but beware of touching the Peltier Cell.

START THE FIRE.

I used Paper, cardboard and Wood.

Unluckily I didn't reach my target Voltage of beyond 5V.

I drilled some Ventilation holes to let the air come from the bottom but I Barely reached 4 Volts.

In conclusion, I succesfully got Eletricity from fire, but I failed the target to make an emergency phone charger.

SO, if you have suggestions to improve my prototype let me know here or on my youtube channel.

(I'd like to make something different from the usual candle-powered peltier generator, i want to make something more useful for camping or apocalyptic's fan that can run wood or other type of fuel.)
