Ac Generator - PWM Controller


Materials Used to Create Electric Generator - PWM Controller :

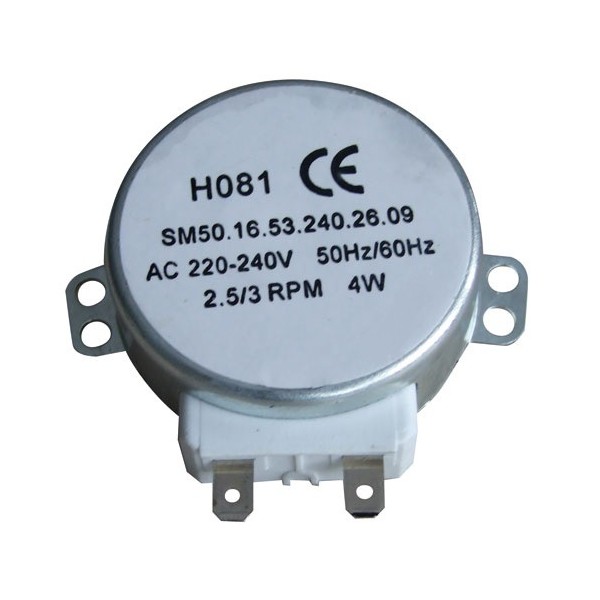

syncronous motor 230 V Ac (inside A4 laminators, microwaves)
neodymium magnet sphere 13 mm diameter, N42 chrome-plated, strenght approx. 2.9 Kg
electric car toy with plastic case, which contain 3 V Dc motor, power switch and plastic connector.
pot neodymium magnet with threaded stem, thread M3, 13 mm diameter, strenght approx 3.5 Kg
wires
metal - plastic mini construction kit
230 V led bulbs 3 w - 9 W E 27 and E 27 sockets ( for this project I used a 7w led bulb 230 V )
12 V battery
rubber band
PWM controller
Operations :

remove the iron-less coil from the stncronous motor Ac 230 V
(inside A4 laminators and microwaves) - just the coil needed
remove the magnet inside the neodymium pot magnet with thread 13 mm, M3 ( just the metal case needed)
remove the 3 V Dc motor, the plastic connector and the power switch from the electric car toy
connect the the metal case ( ex neodymium pot magnet 13 mm ) through the plastic connector to the 3 V dc motor ax
fix the neodymium sphere between magnetic poles to the metal case ( ex neodymium pot magnet 13 mm) - now the rotation system of the generator is complete.
build the holder of the smalll generator using the rubber band and the metal - plastic mini construction kit ( fix the rotation system and the stator like in the image Small generator details)

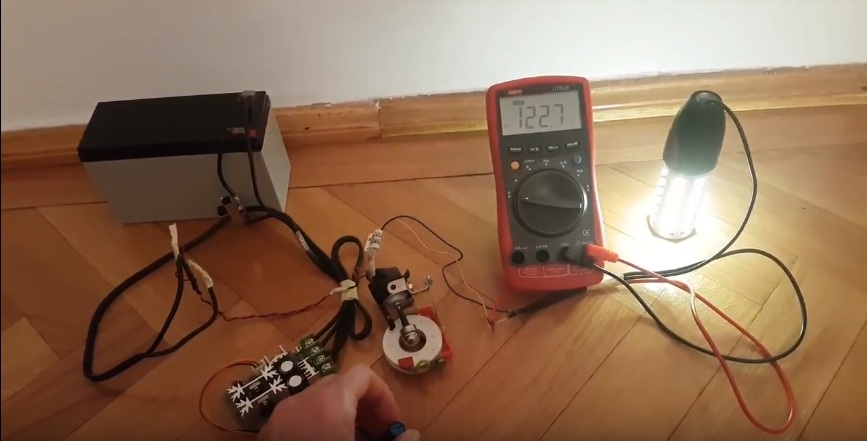

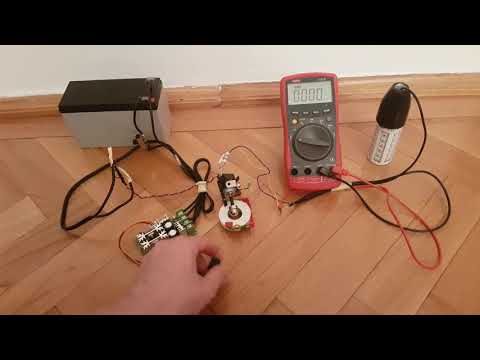

connect the PWM controller to the 12 V battery than connect the wires from the PWM output to the 3 V DC motor
connect the wires from the output coil to the E27 socket/sockets
Important:
Fix the neodymyum sphere 13 mm between the magnetic poles on the pot metal case ( use a small metal to identify the poles)
Do not use metal parts near the neodymium sphere it will act like a brake.
