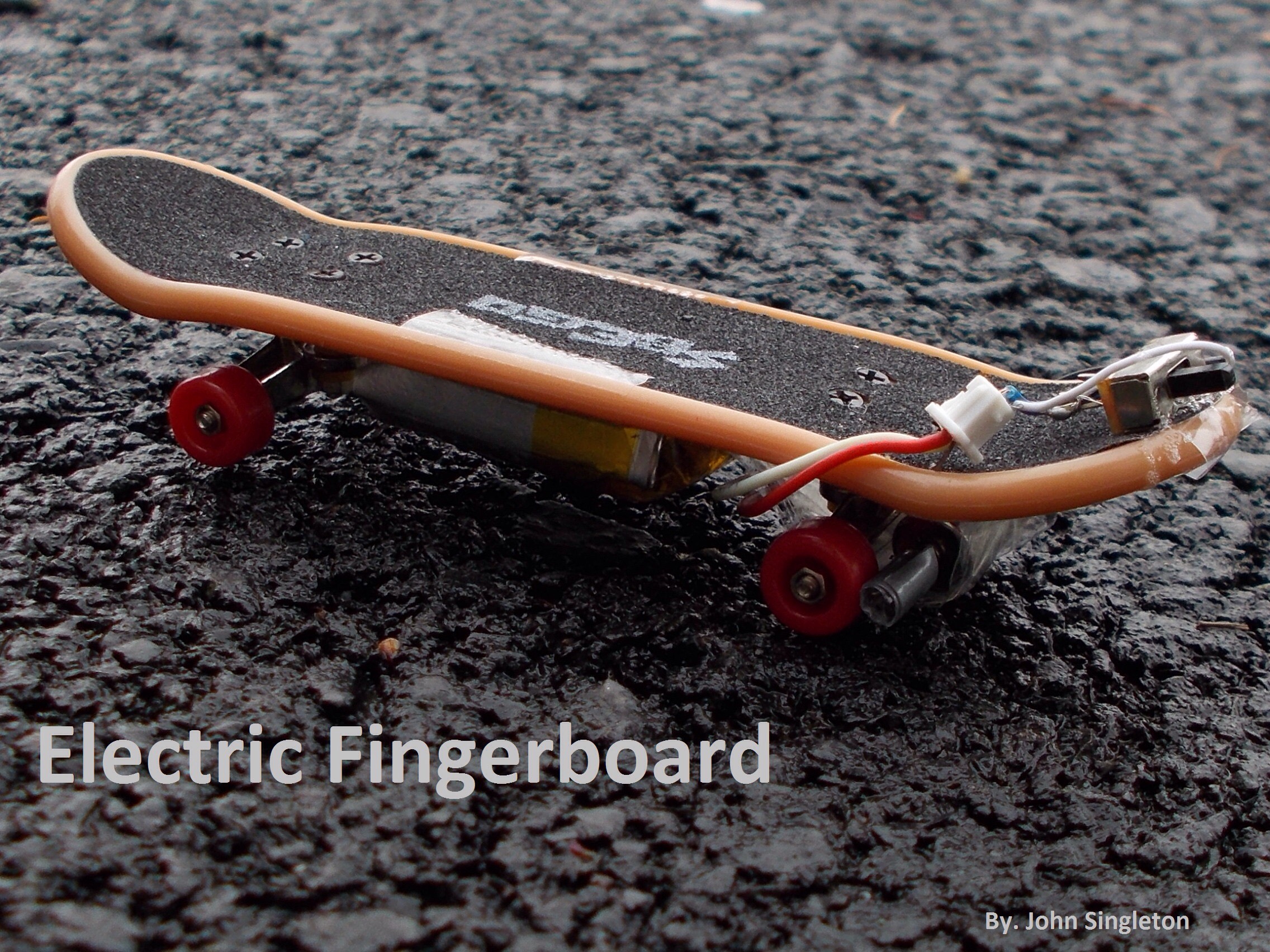

Electric Fingerboard

16, 12:17 PM.jpg
Thank you for viewing my Instructable. I think I'm the first one in the world to make an electric fingerboard. Let's get started

What You Need

16, 11:24 AM.jpg
What you need-

Tape or hot glue
Fingerboard
Lithium ion battery (rechargeable) 3.6 volts
Switch
Motor with tape around the axle for traction.

16, 11:24 AM.jpg
Tape the motor on one of the trucks. Make sure the axle with the tape is touching one of the wheels.

16, 11:24 AM.jpg

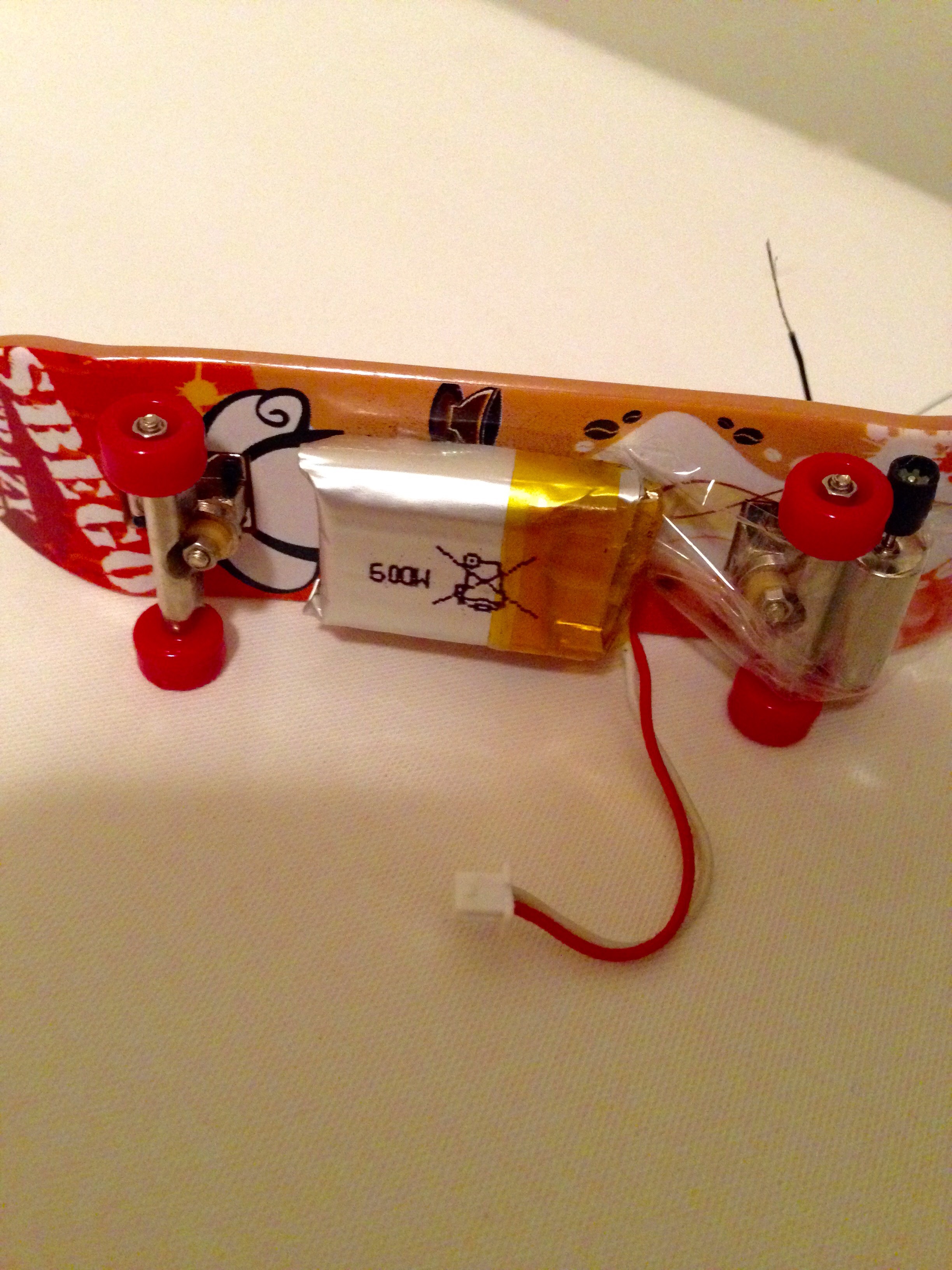

Tape the lithium battery to the bottom of the board. This is the best battery for this because it is small and won't touch the ground when the board is upright.

16, 11:24 AM.jpg
Attach one wire on the motor to one wire on the switch.

16, 11:24 AM.jpg
Now attach the two wires not connected to anything into the lithium battery's white connecter. You can easily take the 2 wires out and recharge the battery.

16, 11:24 AM.jpg
Now glue the switch to the board. I used hot glue.

16, 11:24 AM.jpg

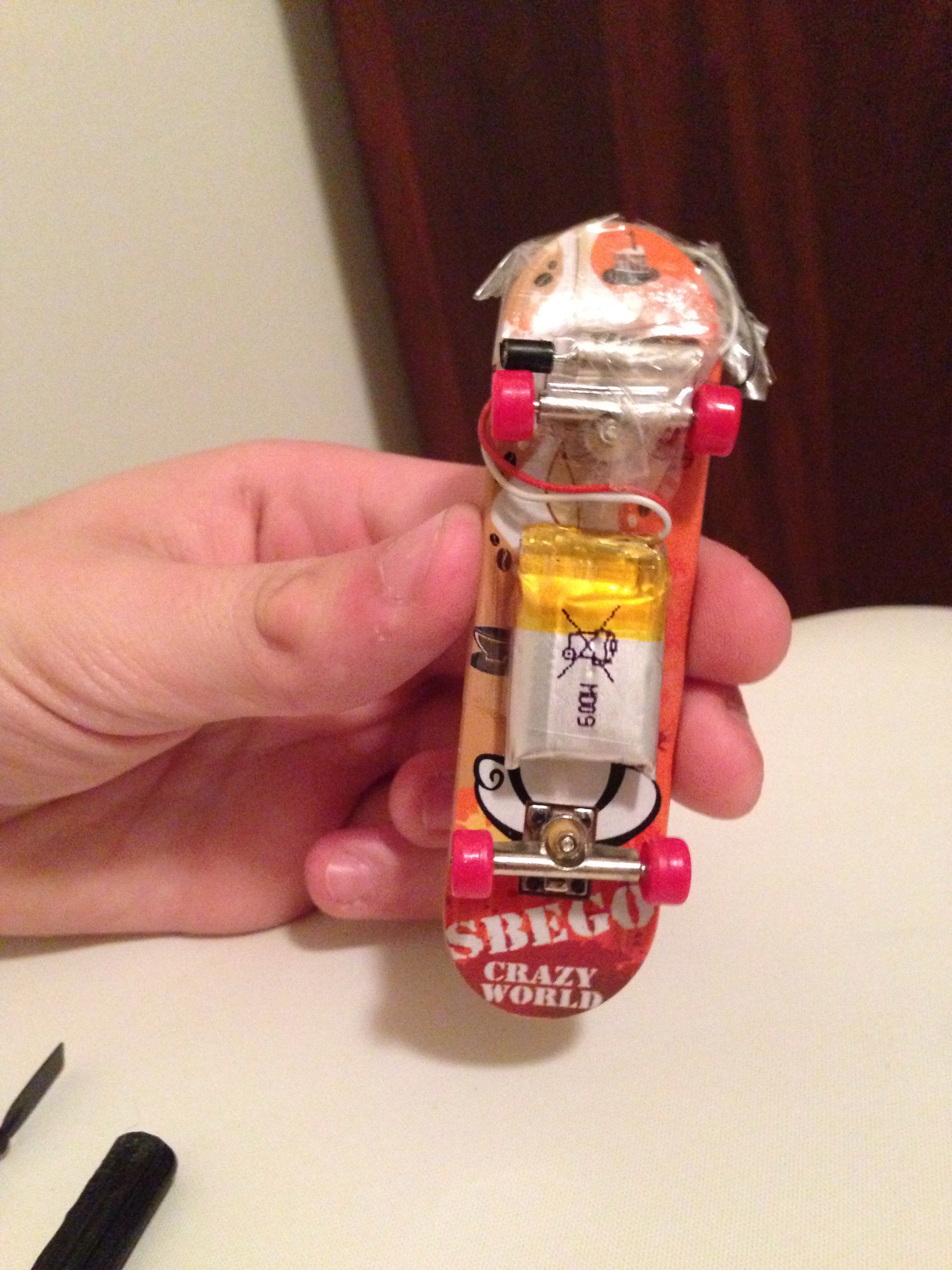

The bottom of the board should look like this.

Finished!

16, 12:17 PM.jpg
Now you have an electric fingerboard. The board should move in a big circle when the switch is turned on. It will move in a big circle because only one wheel is moving.
