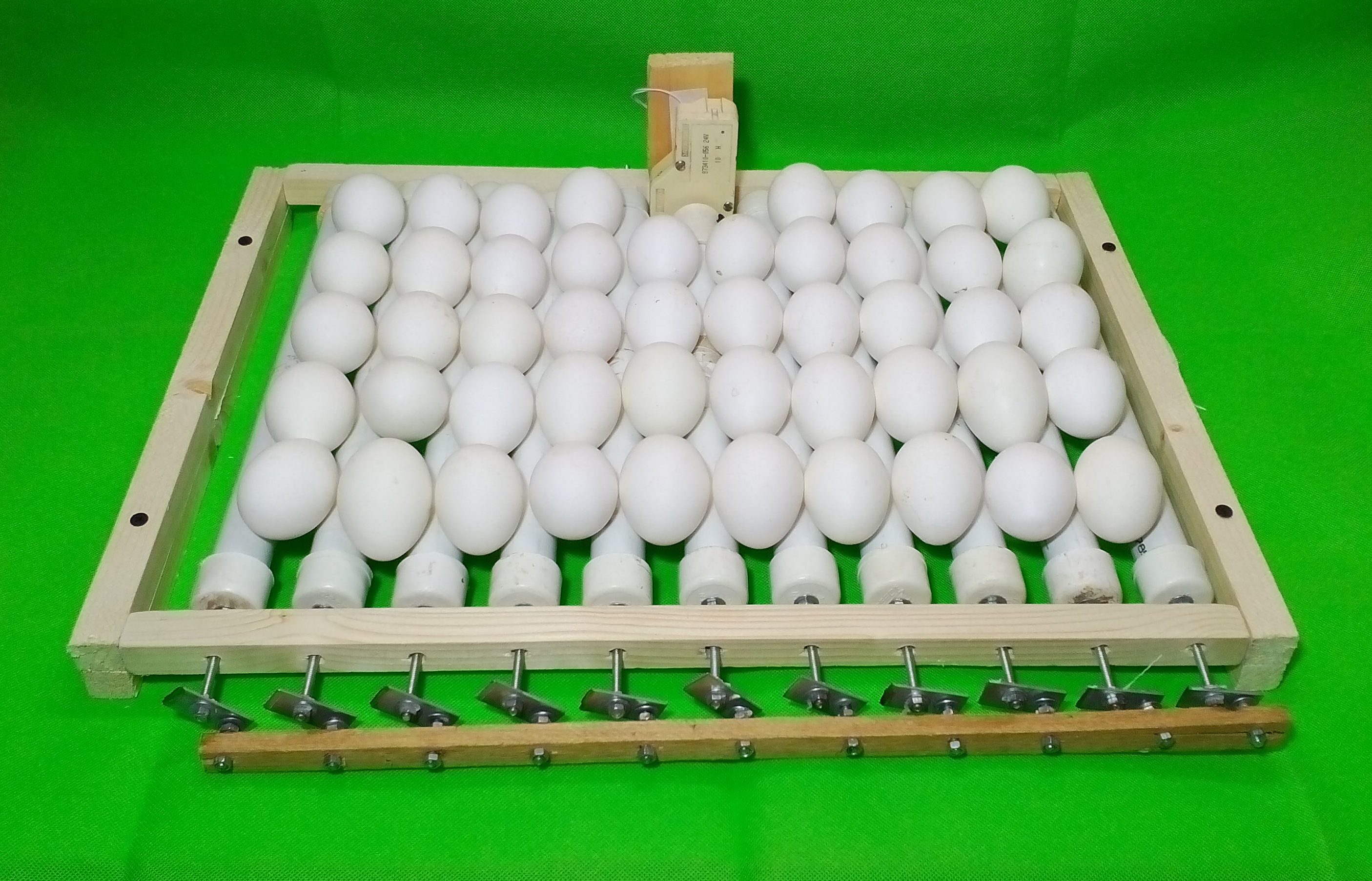

Automatic Egg Turner for Incubator

Hi, Today I am making a egg turner for incubator , Birds need to rotate the egg to distribute the heat evenly and prevent the egg membrane from sticking to the shell which in artificial method by incubating the eggs need to rotate the egg by hand but this method often not suitable because of cracking of eggs sudden move could break the shell or spread bacteria through unhygienic handling and rotating eggs in incubation time,for this problem there is a method of turning the eggs by egg turner which reduced the workload and minimize the bacteria spreading.There are lot of egg turner in shapes in sizes but today I am making a roller egg turner which rotate the eggs evenly and takes small space,These egg turner are great tool in incubator system and easy to make.

if you don't understand something please watch the video and If you like this tutorial please like,share and vote for this instructable. :)

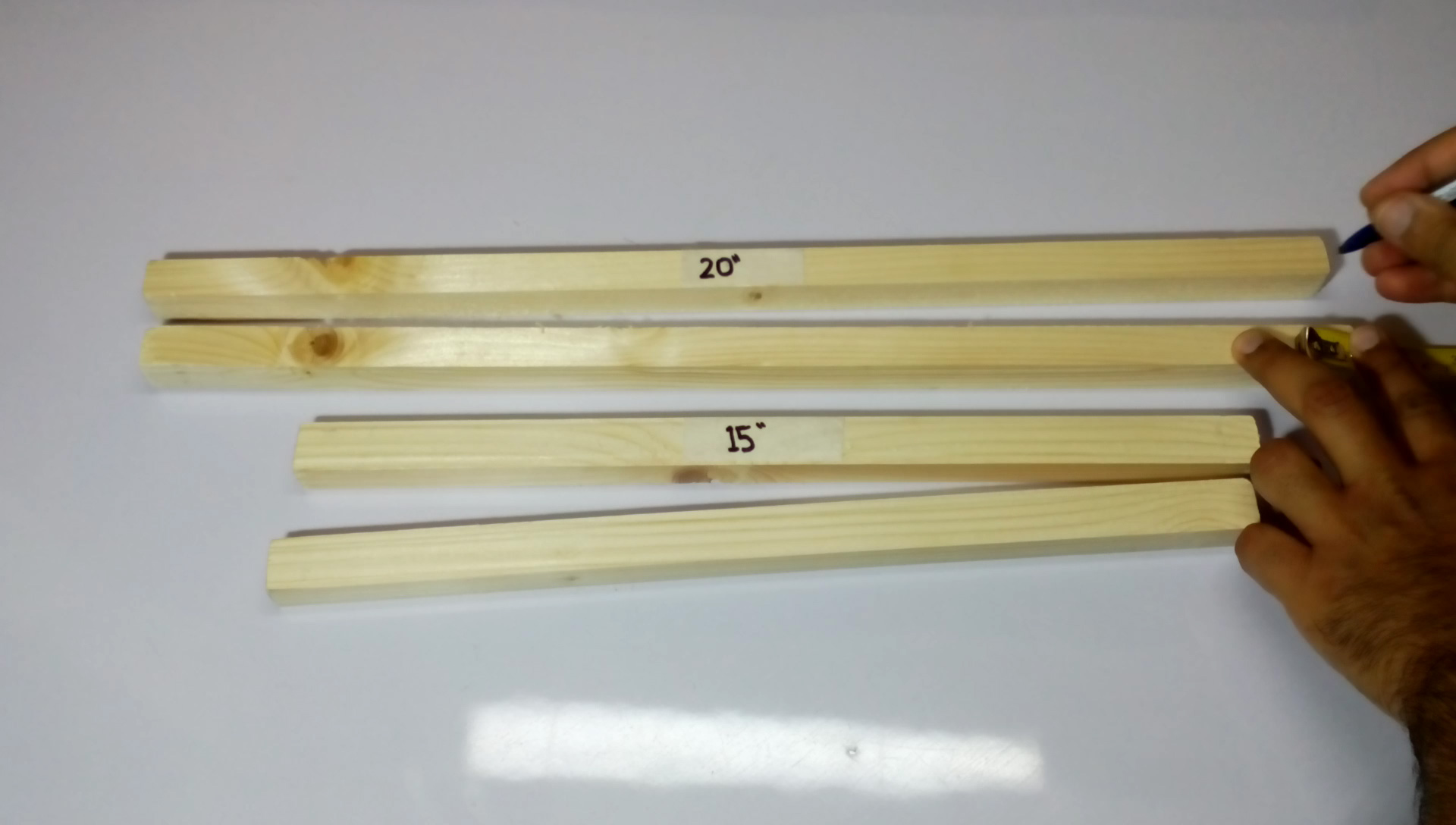

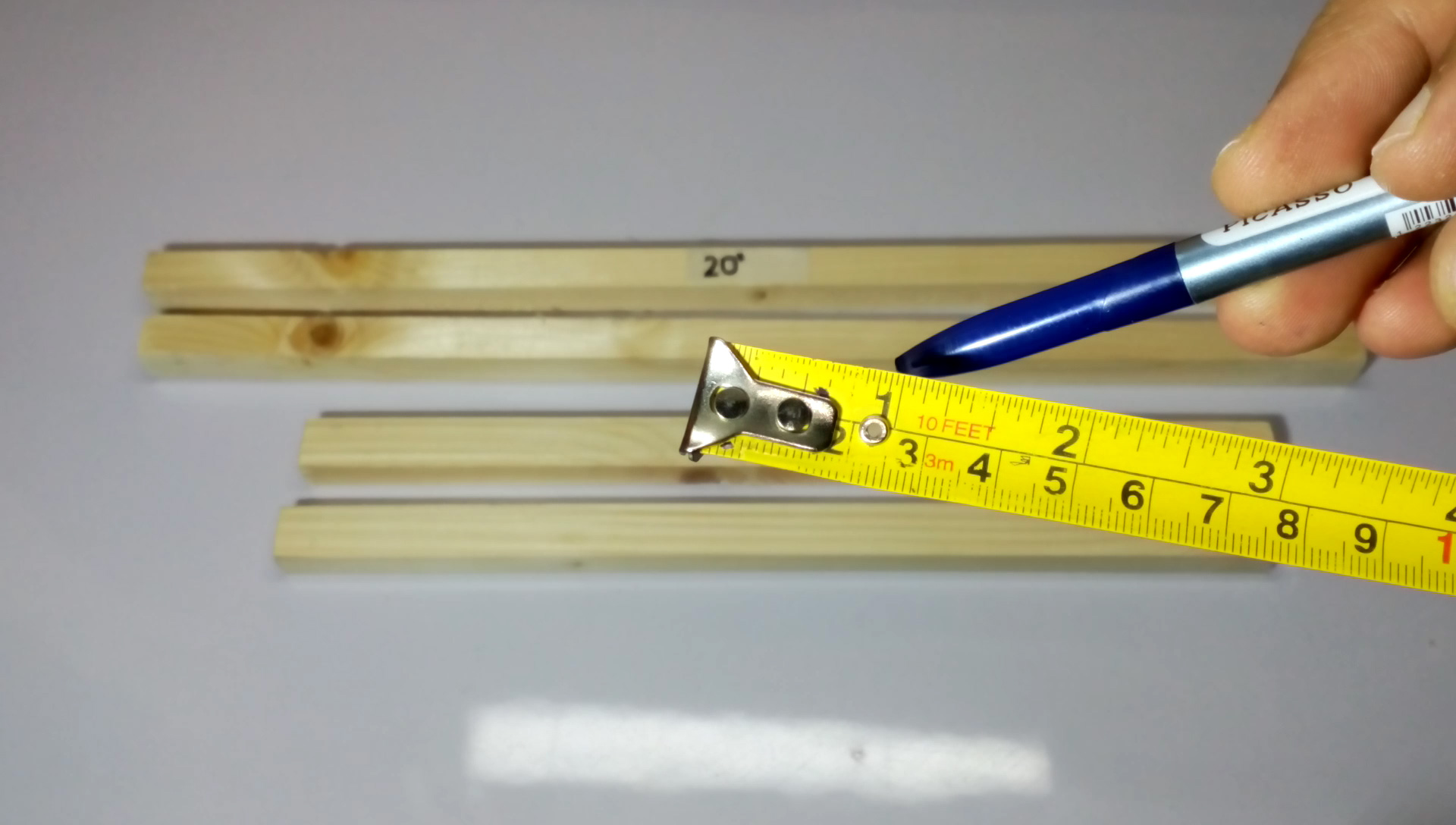

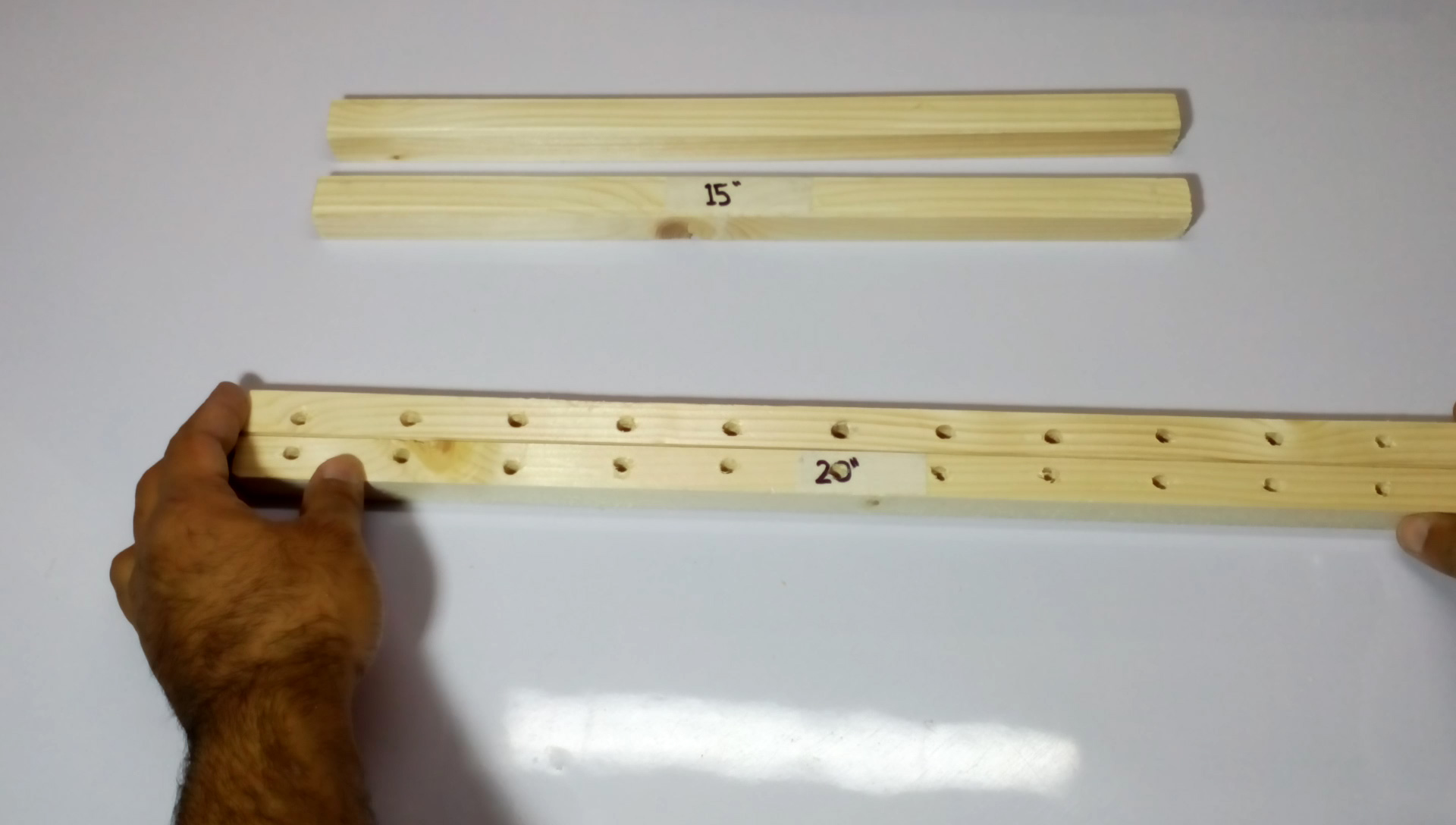

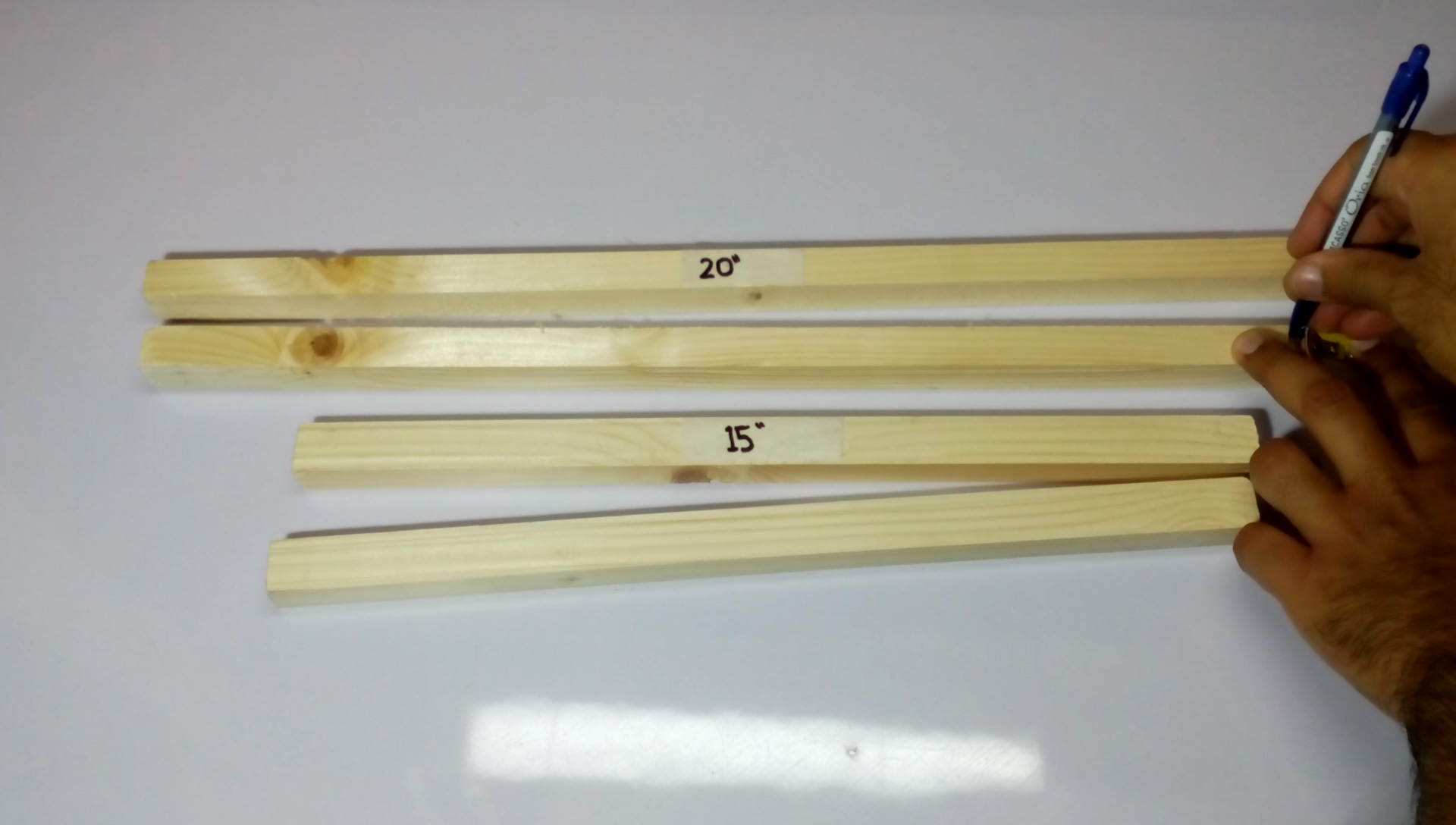

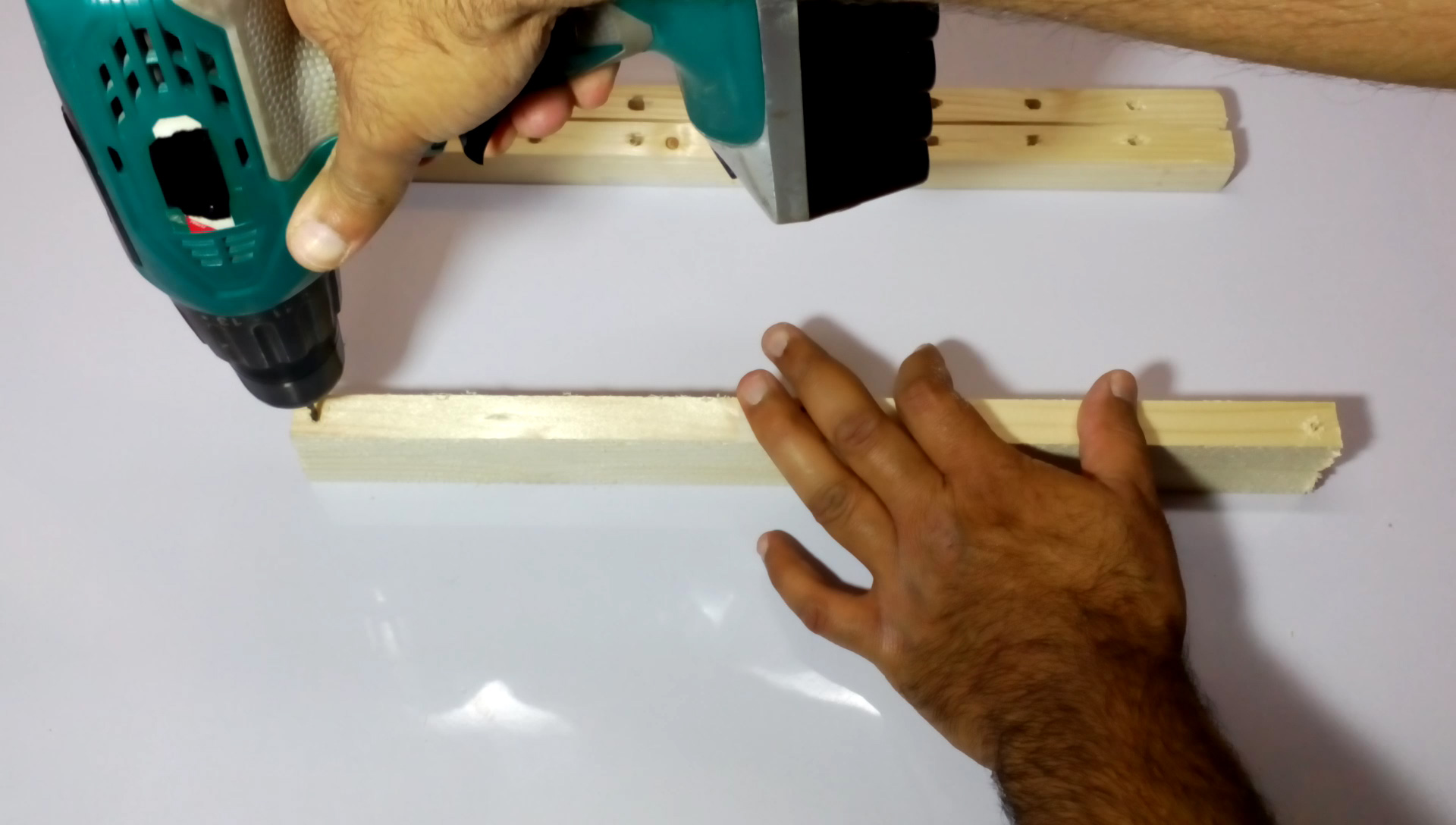

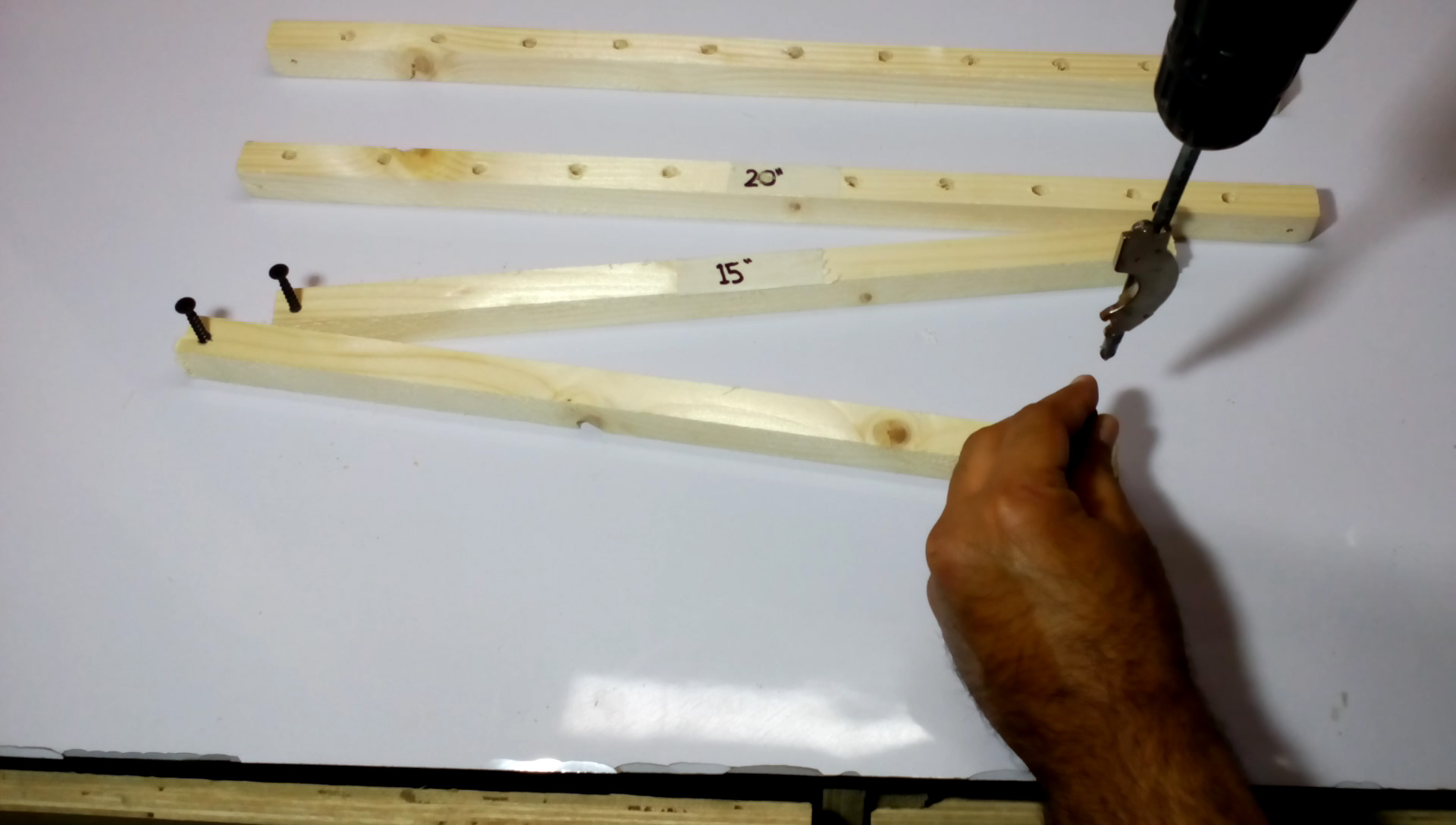

Need 20" of two wooden and two 15" wooden , mark 1 inches from the start on 20" and then start marking 4.5 inches 11 times make a hole in all of them in both 20"

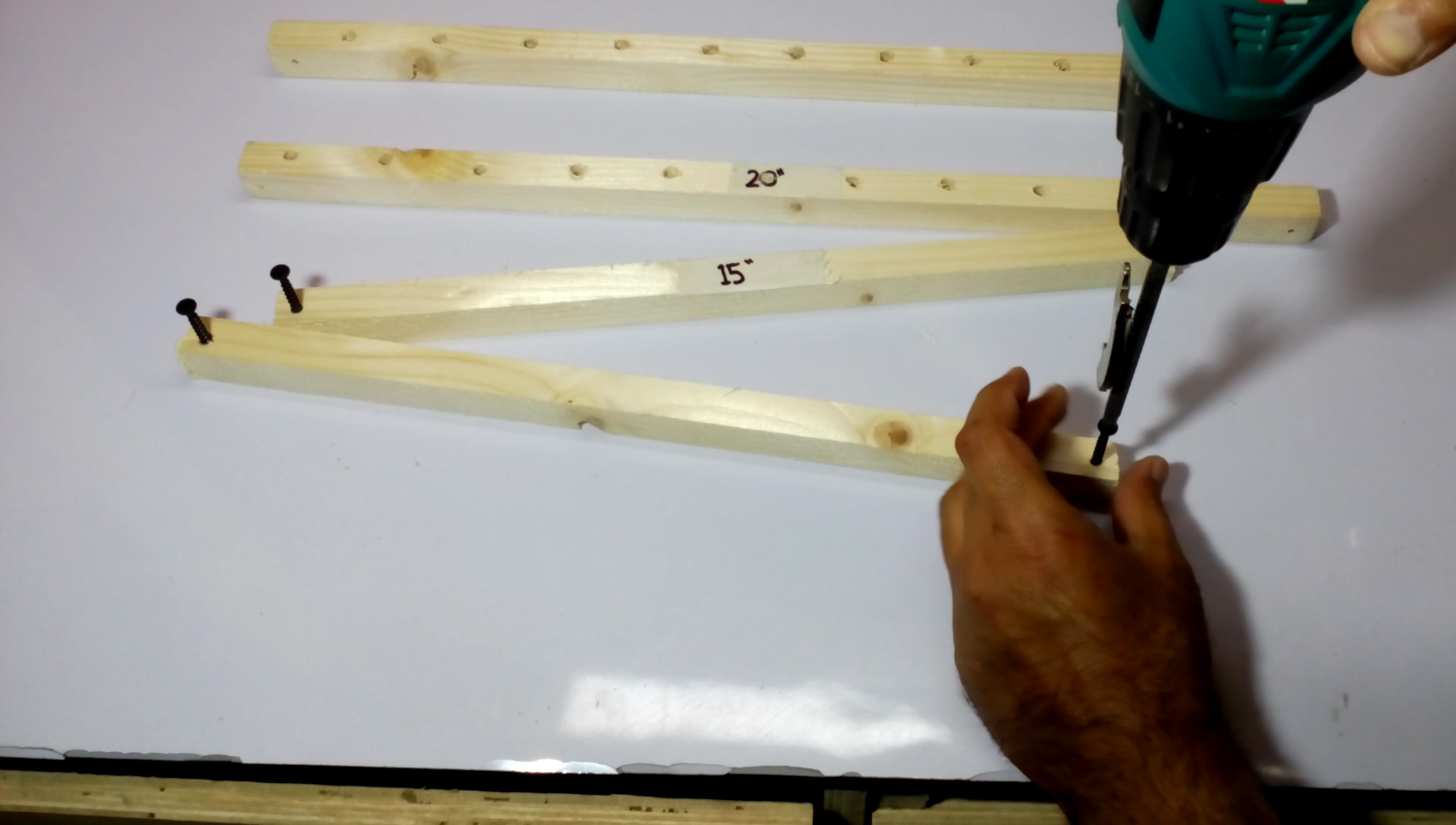

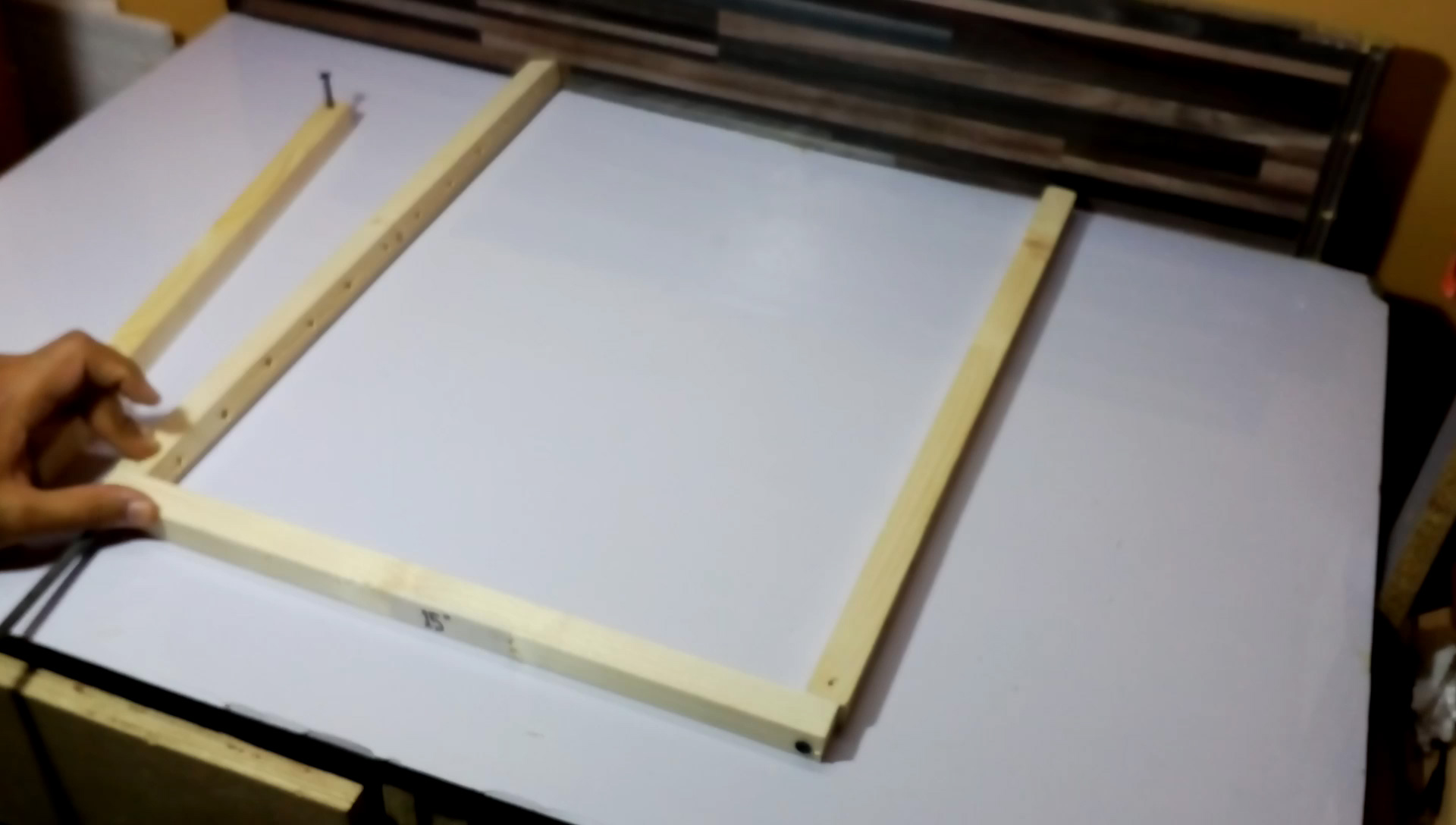

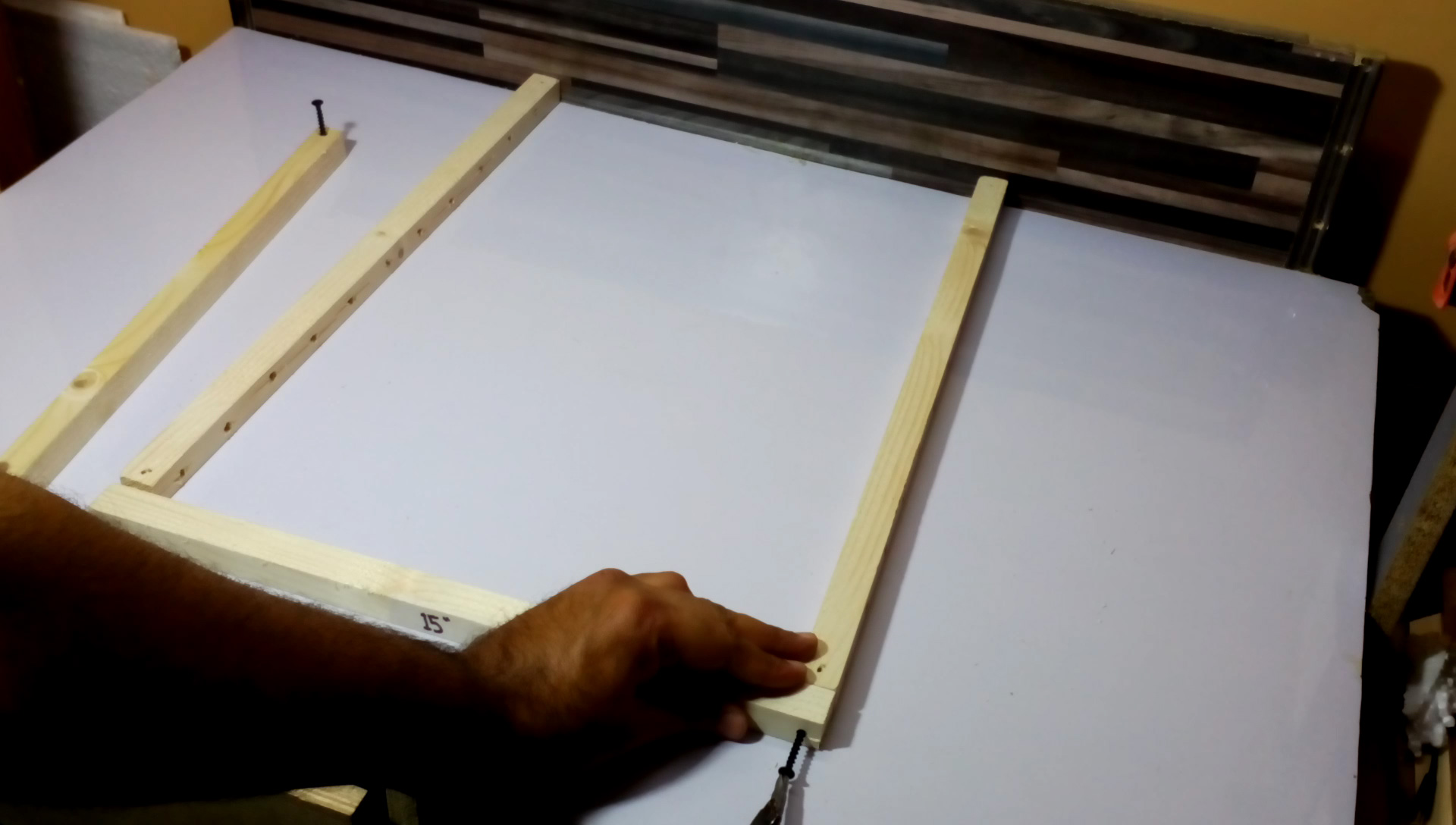

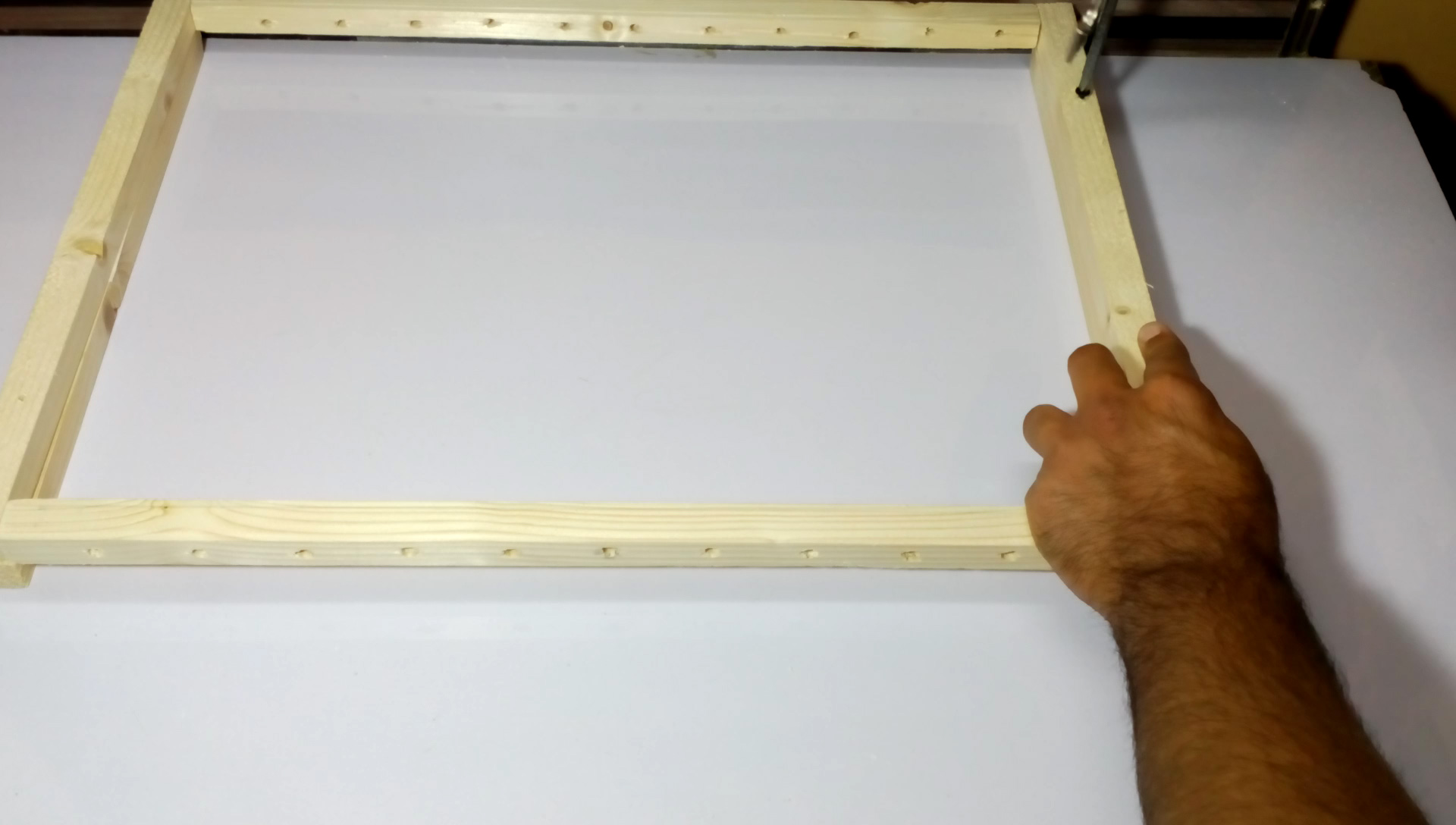

Attach the 15" to the sides of 20" by screws and make a rectangle

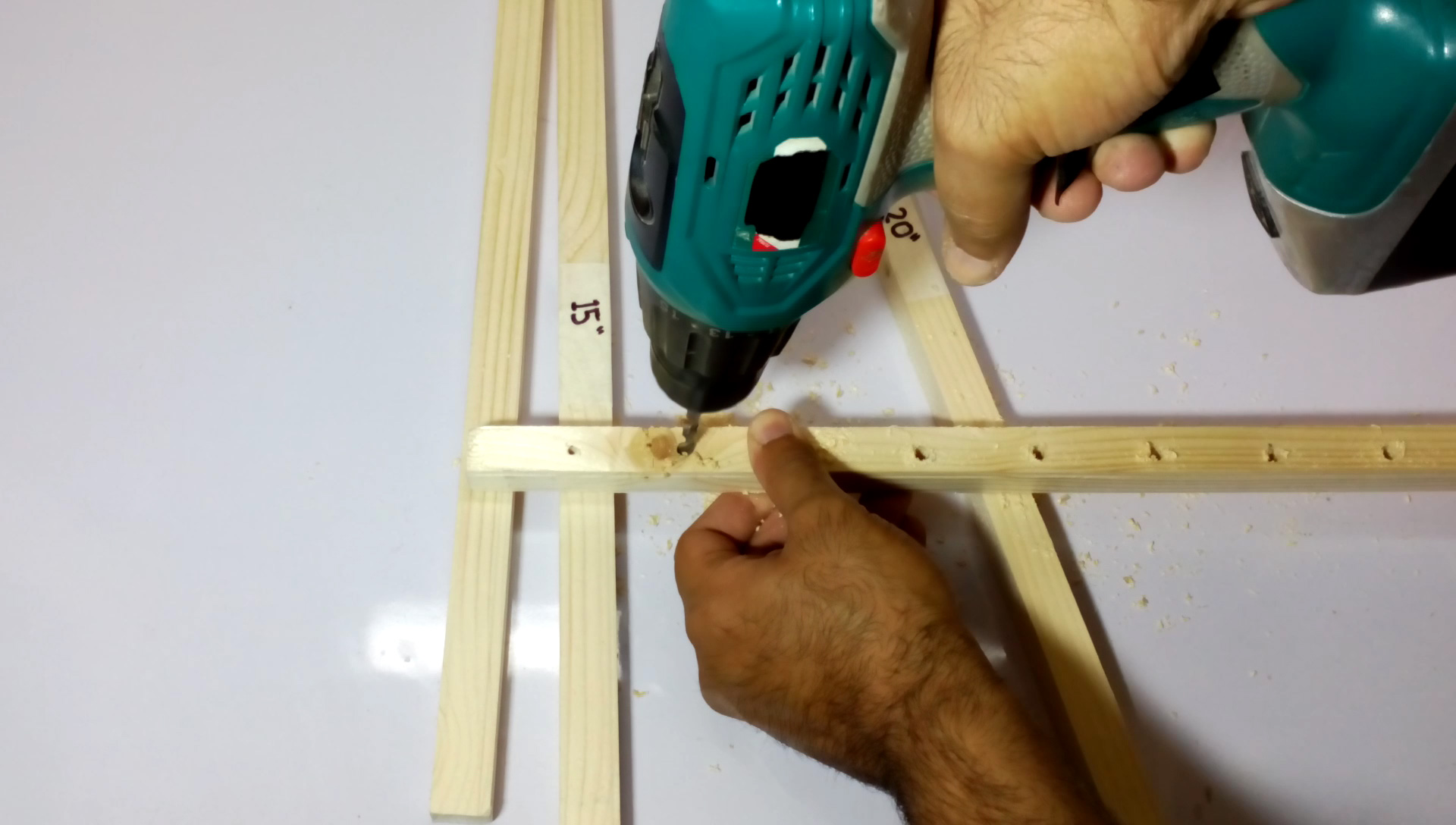

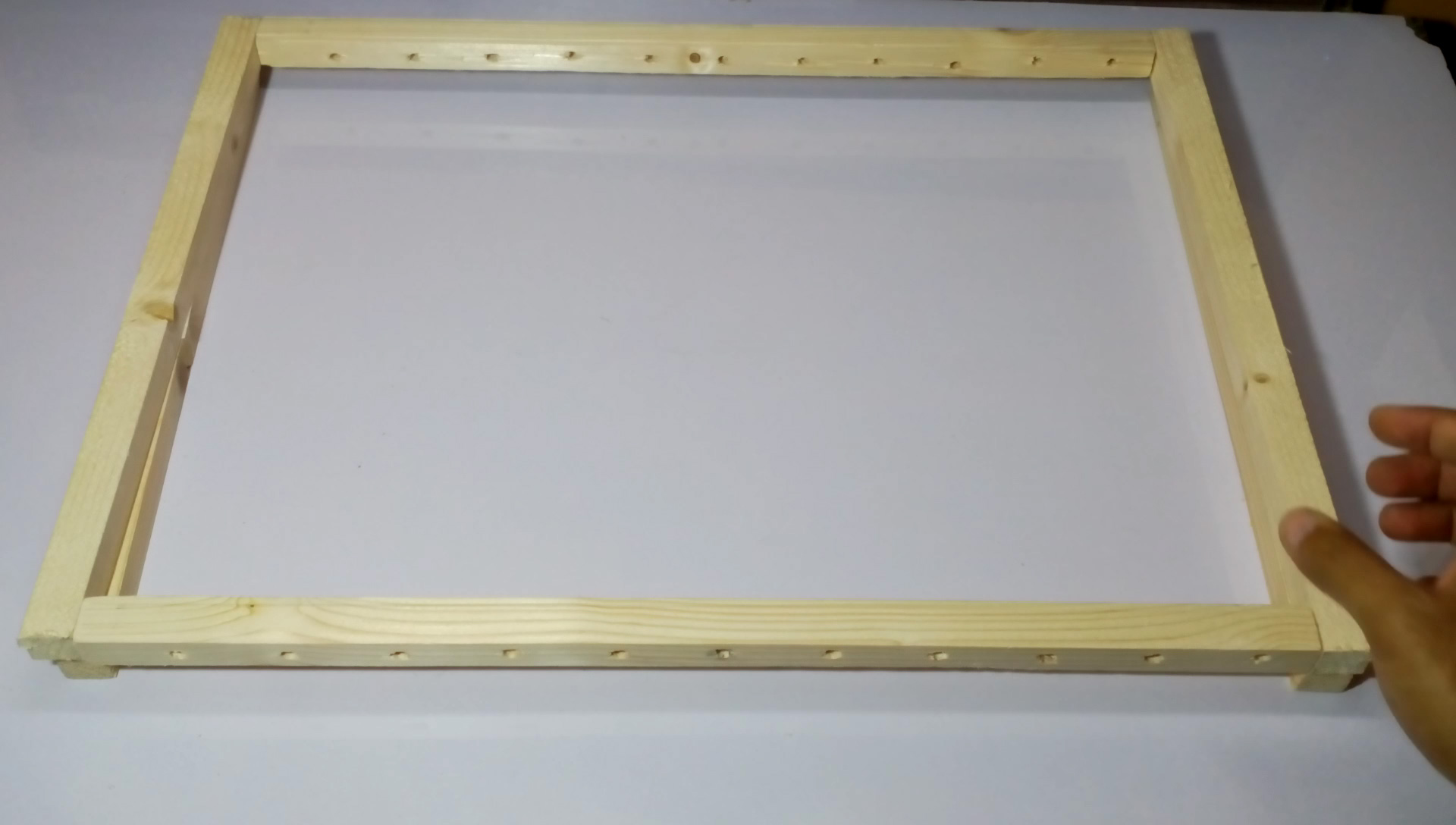

Need another 15" wooden pieces put them under the previous 15" and attach them with screws

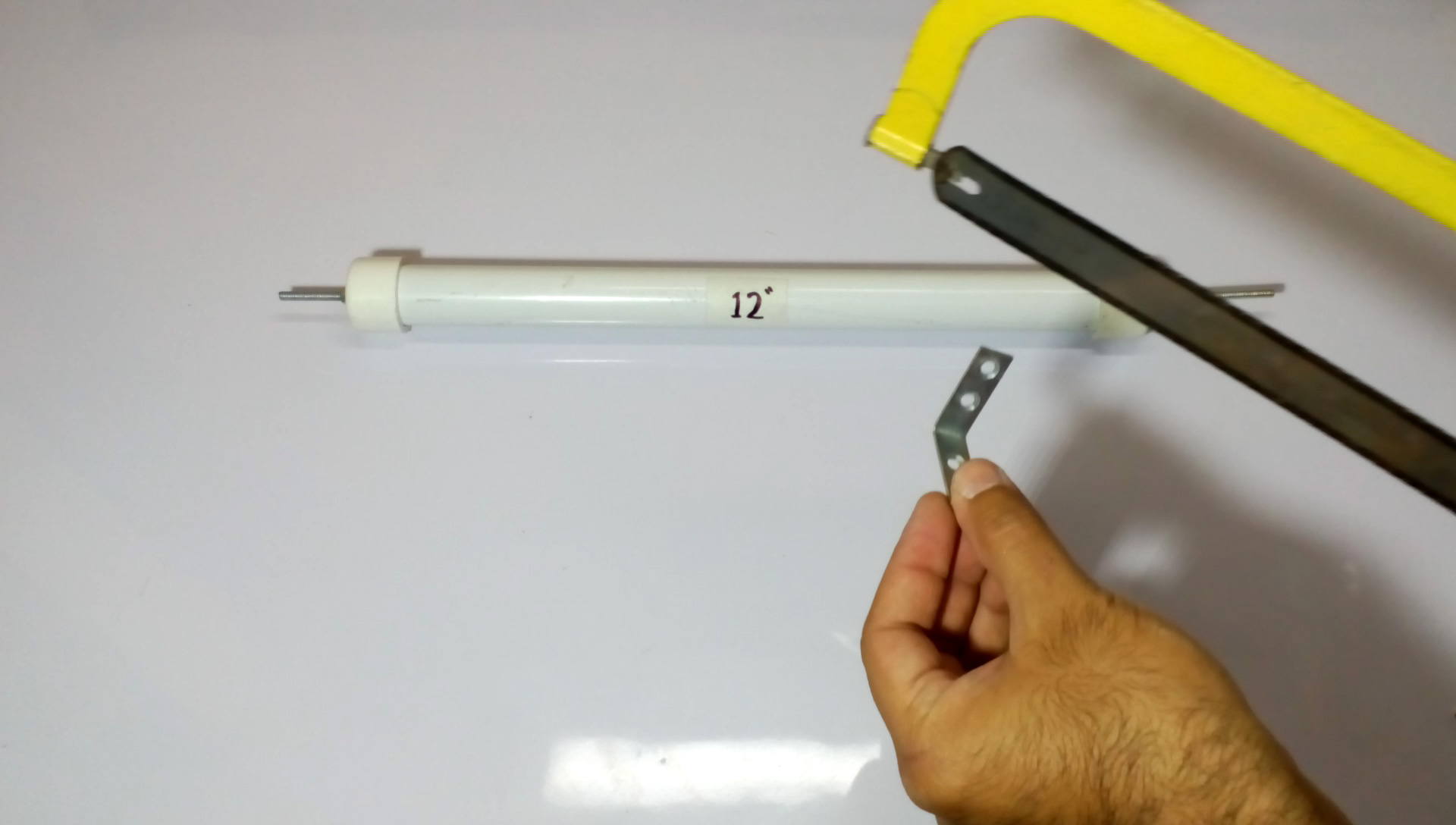

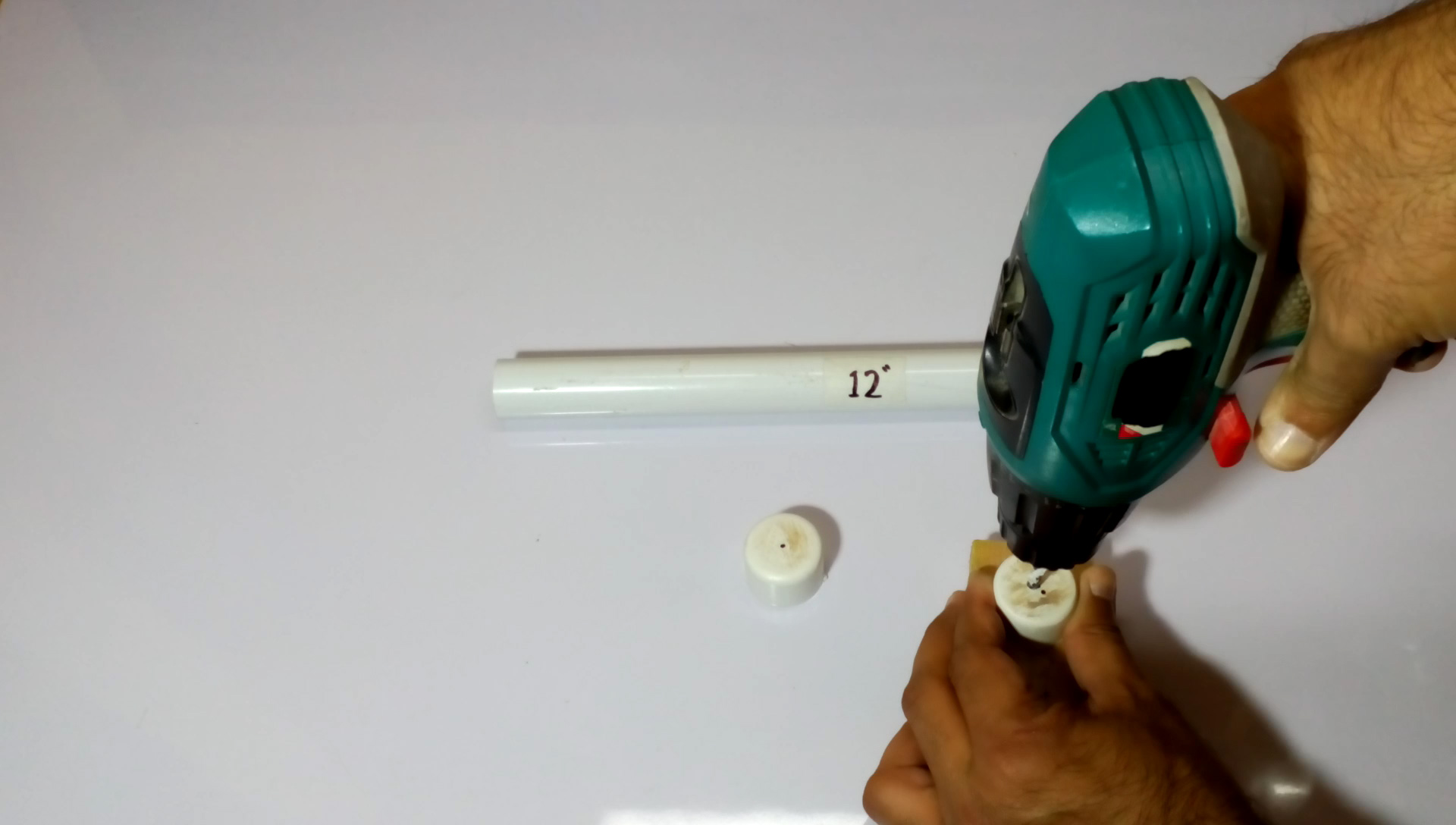

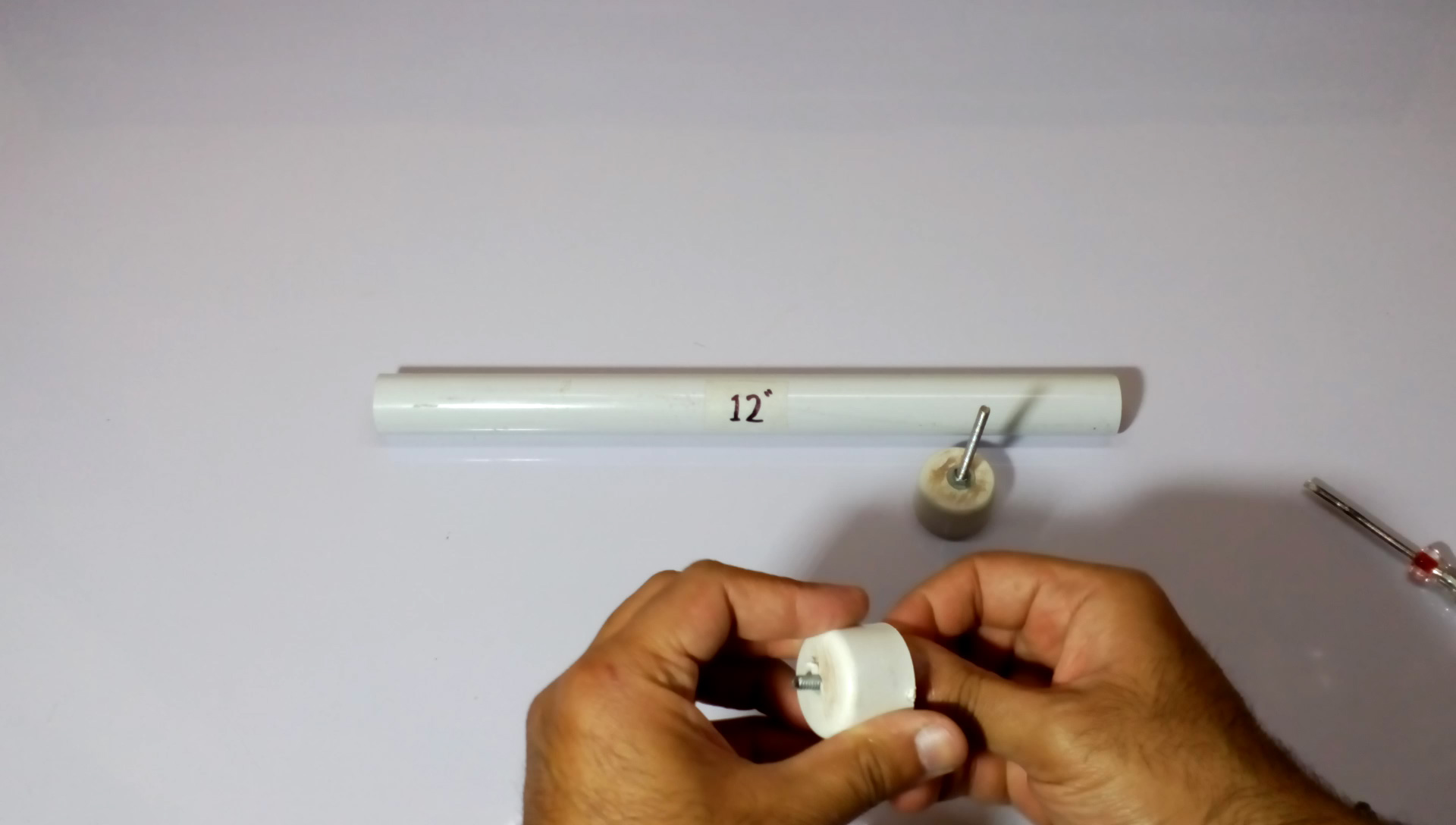

Need 12 inches pvc pipe and it's end caps ,mark the center of cap and drill holes,take 2" bolt and bolt and tighten it from the inside so the bolt comes out cap,do it same with other cap but this time use 1.5" , put the caps on the pvc pipe.

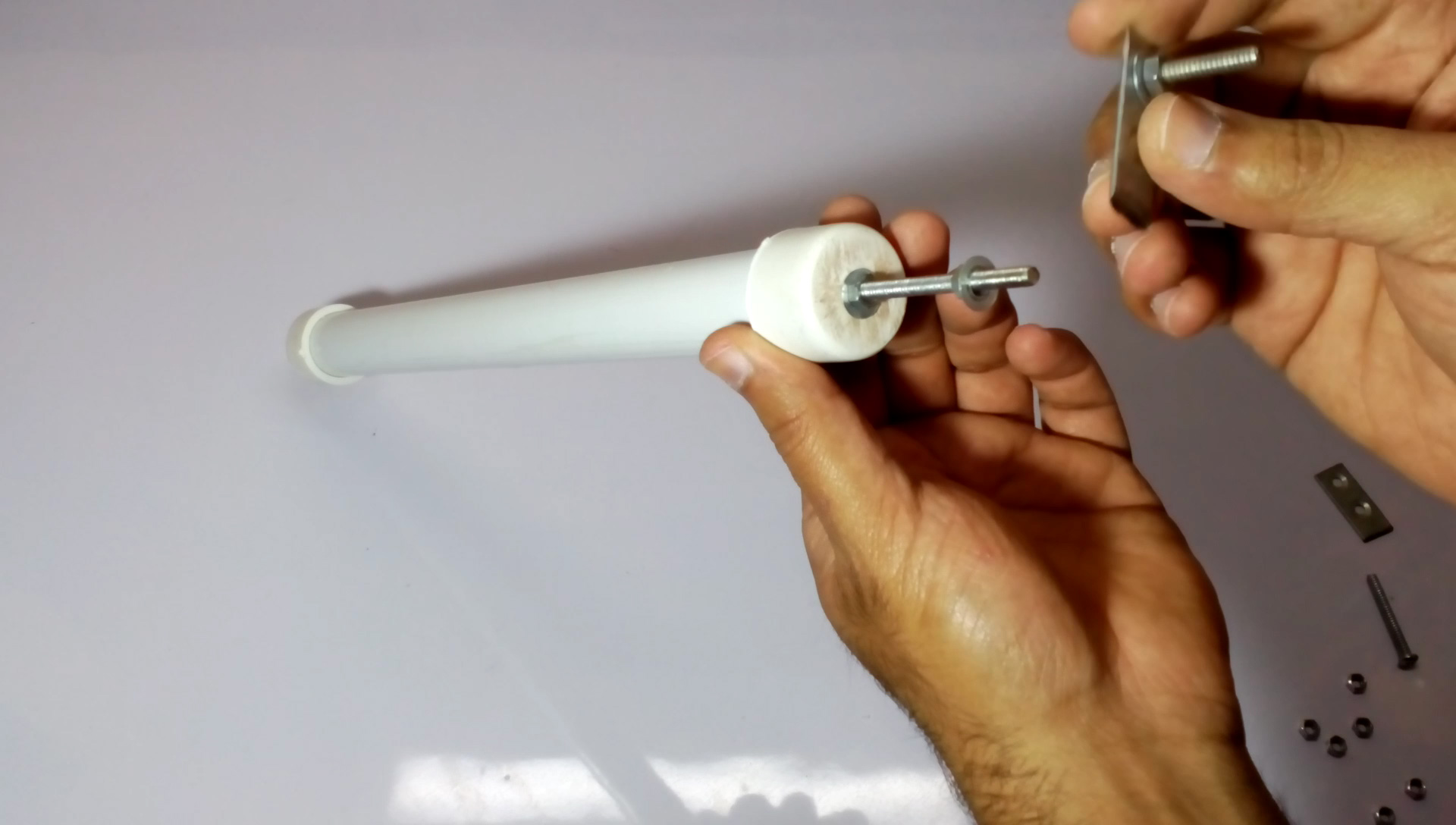

Cut the 1.5 inches lenght of L bracket and cut it in half ,place it over the 2" bolt and tighten it so it stay at the end of bolt.

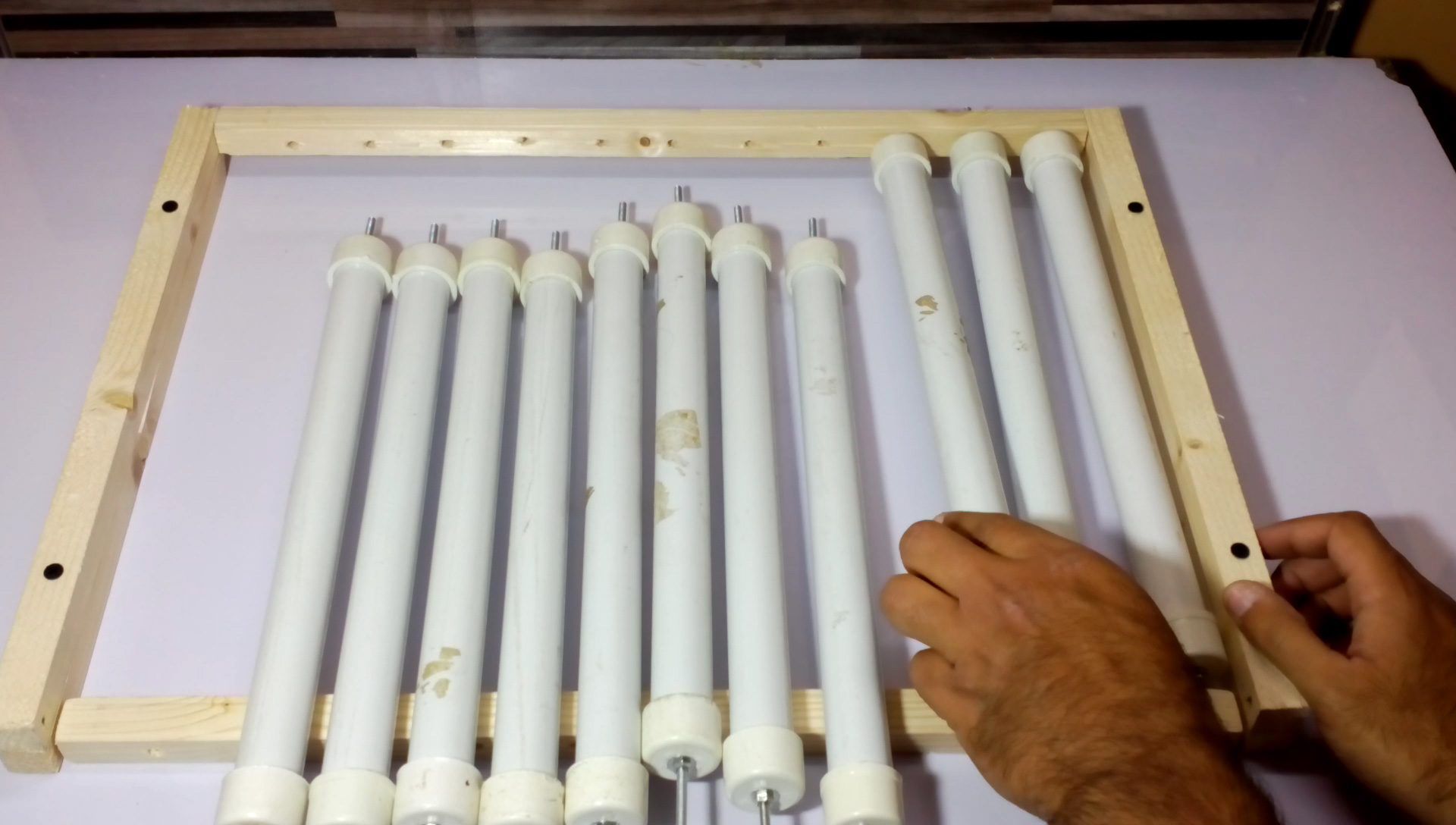

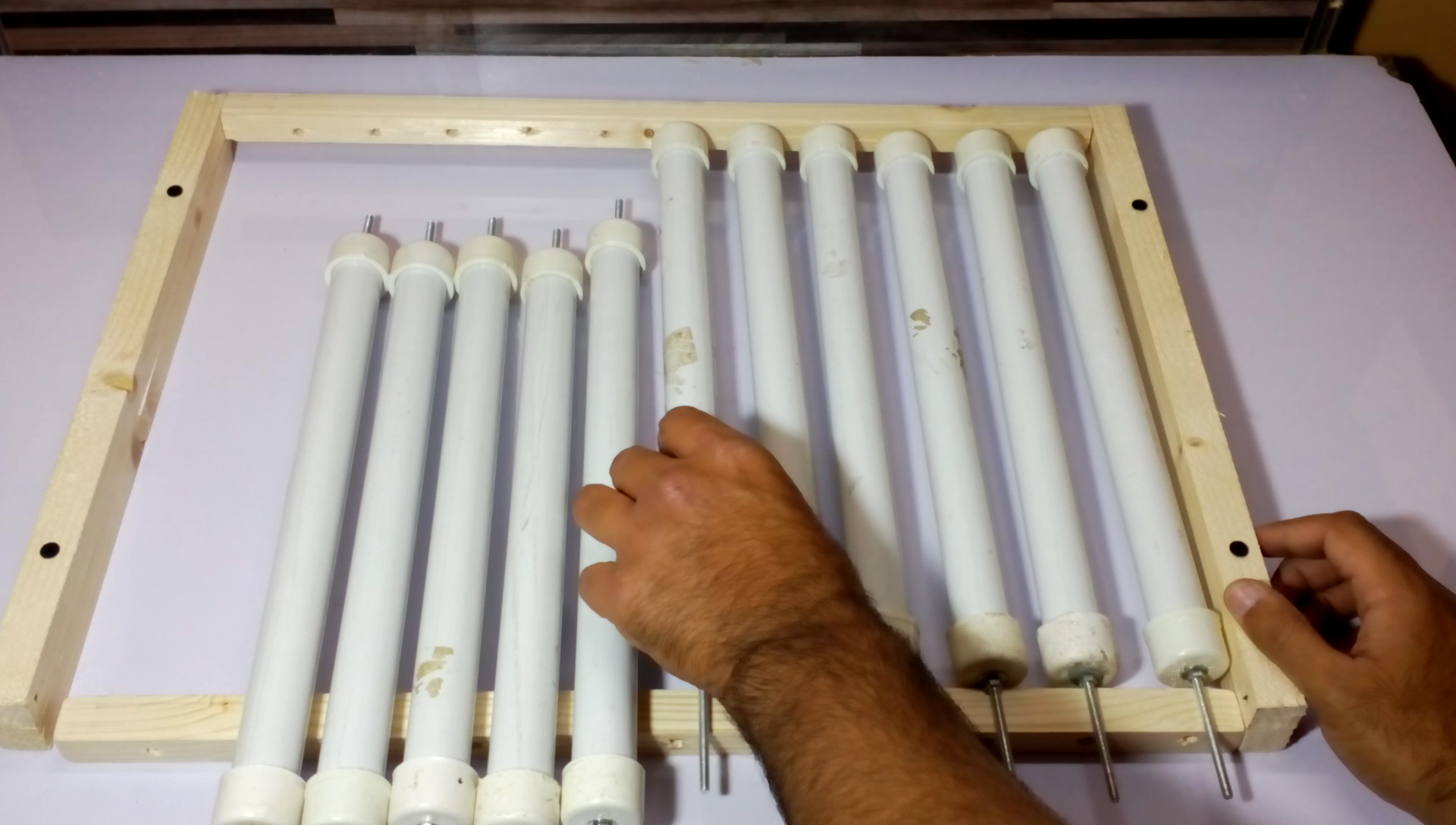

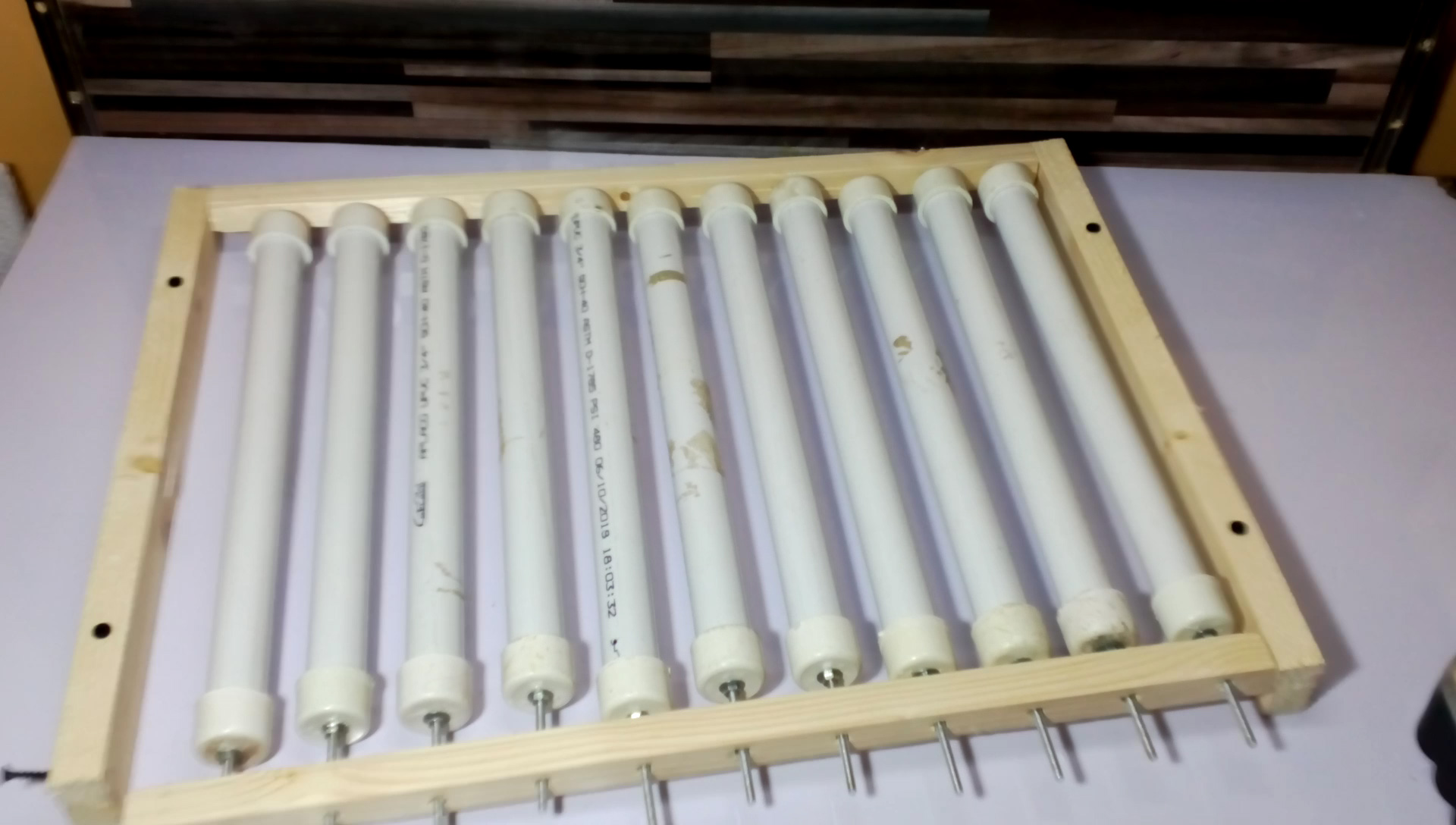

Make 11 pieces of pipes and put them in the holes and tighten them back with screws.

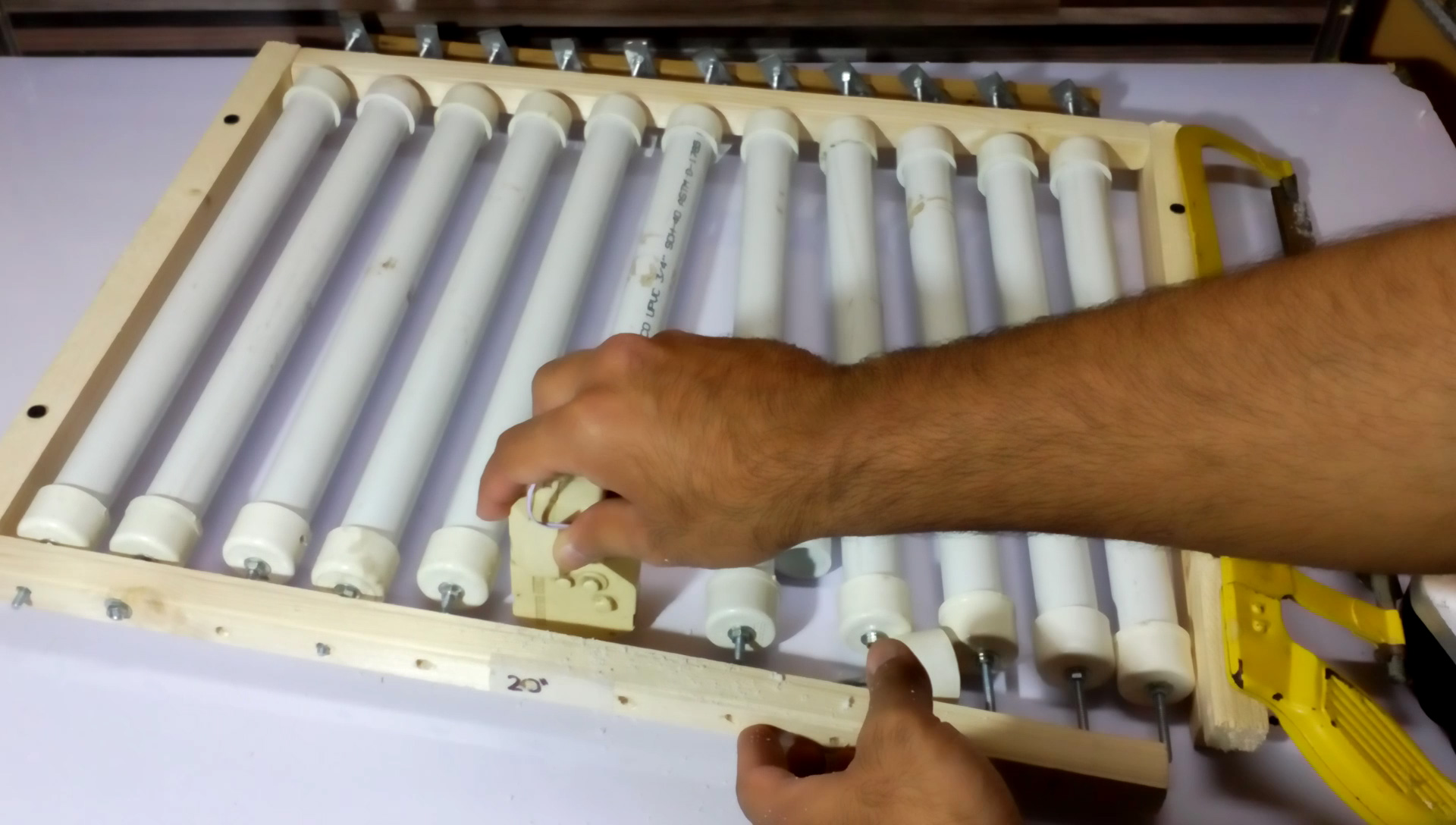

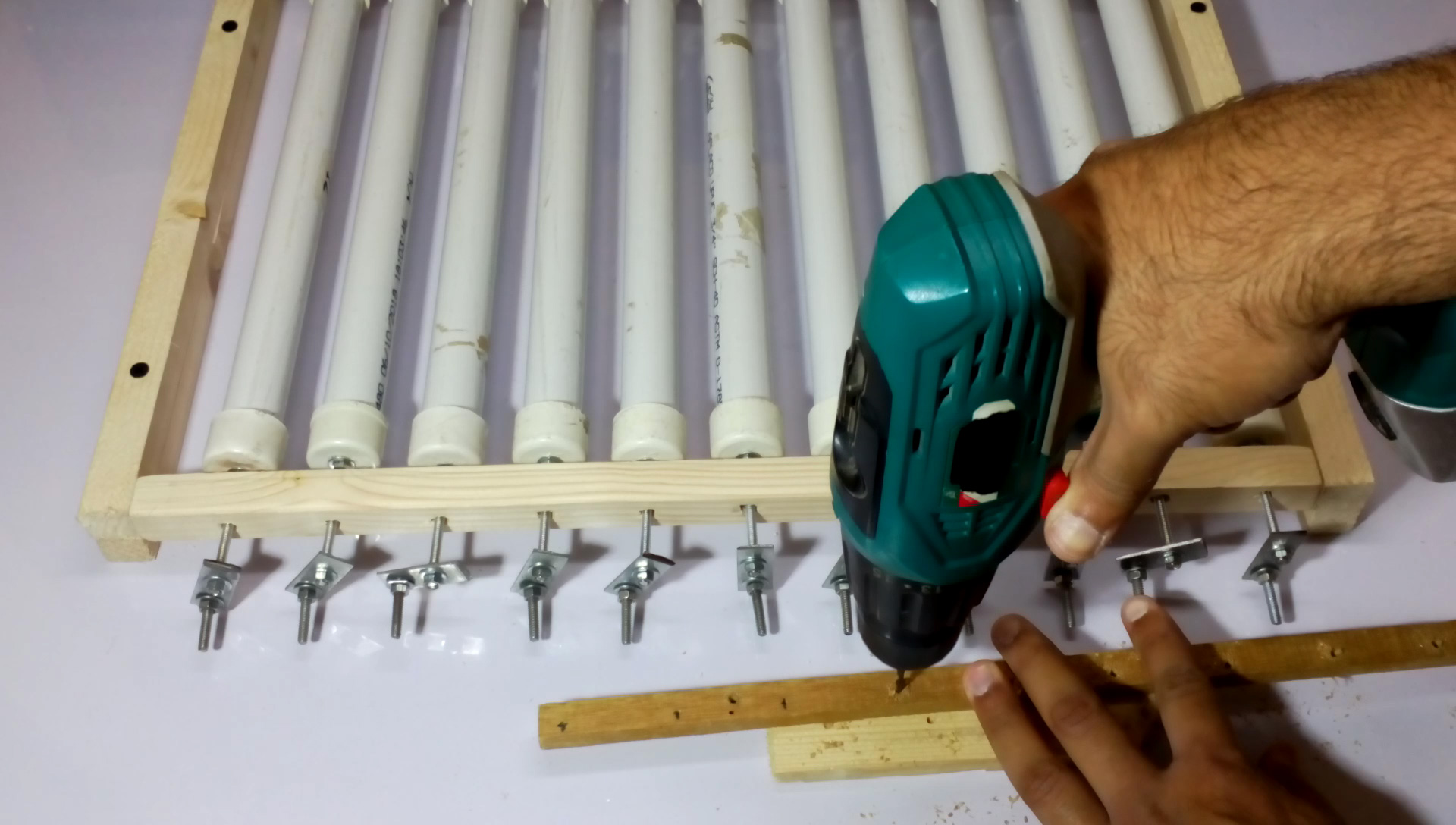

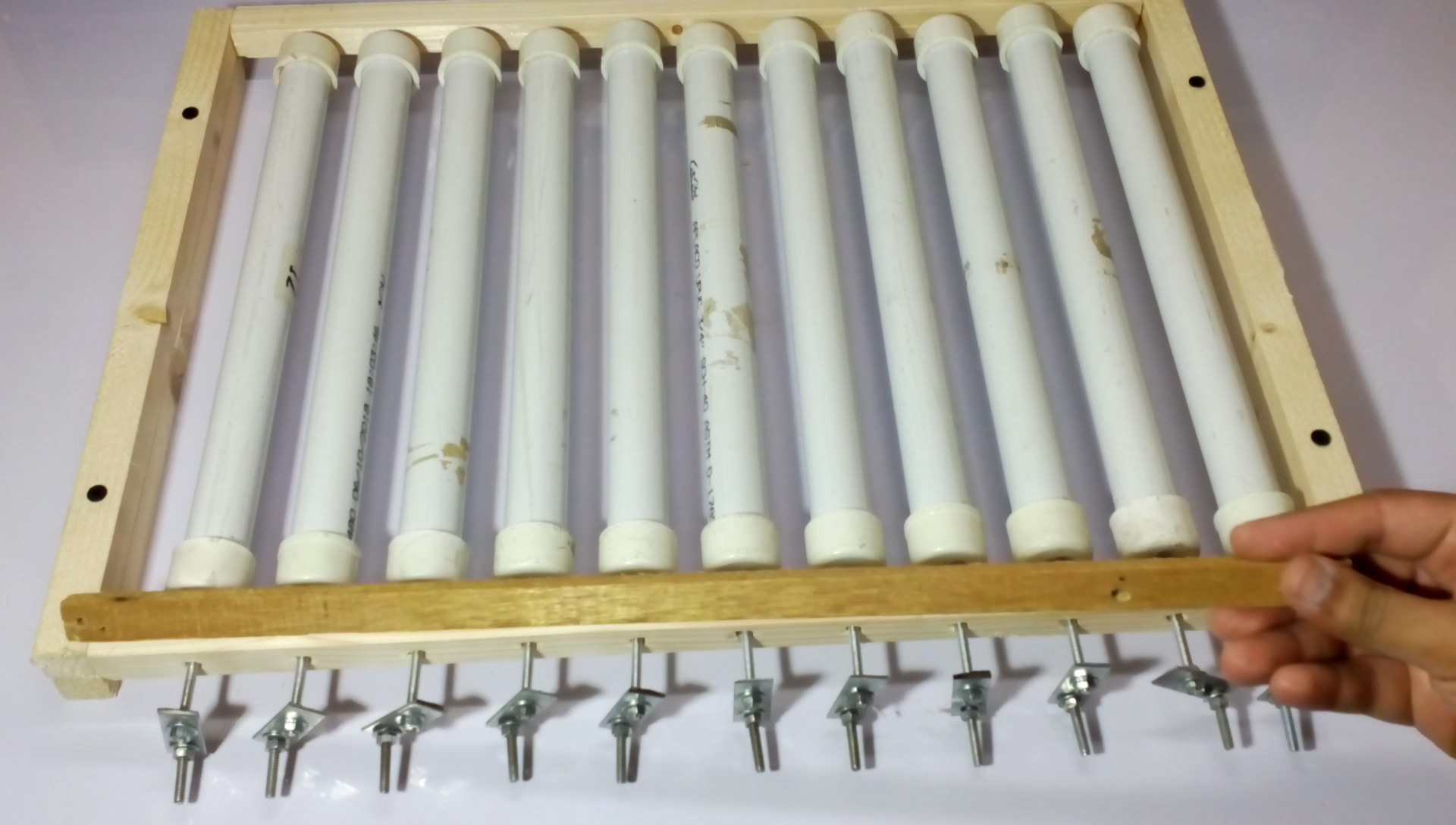

Place Cutted L bracket on the ends and put 14" narrow wooden over the it and mark the points where bolts are going placed ,make holes in them and put the narrow wood in those bolts and tighten it with nuts.

I am using asmo motor because of it's shaft size is attachable with the pvc pipe connector , put 1 inches connector over it and tighten it with the screws put the motor over the center roller pipe and mark it under half inches from connector, take it out and cut from the mark and place it in the connector and put it back in place.

Take 3 inches length wood place it on the back of where motor will attach secure it from the bottom then place motor over it and secure it with screws.

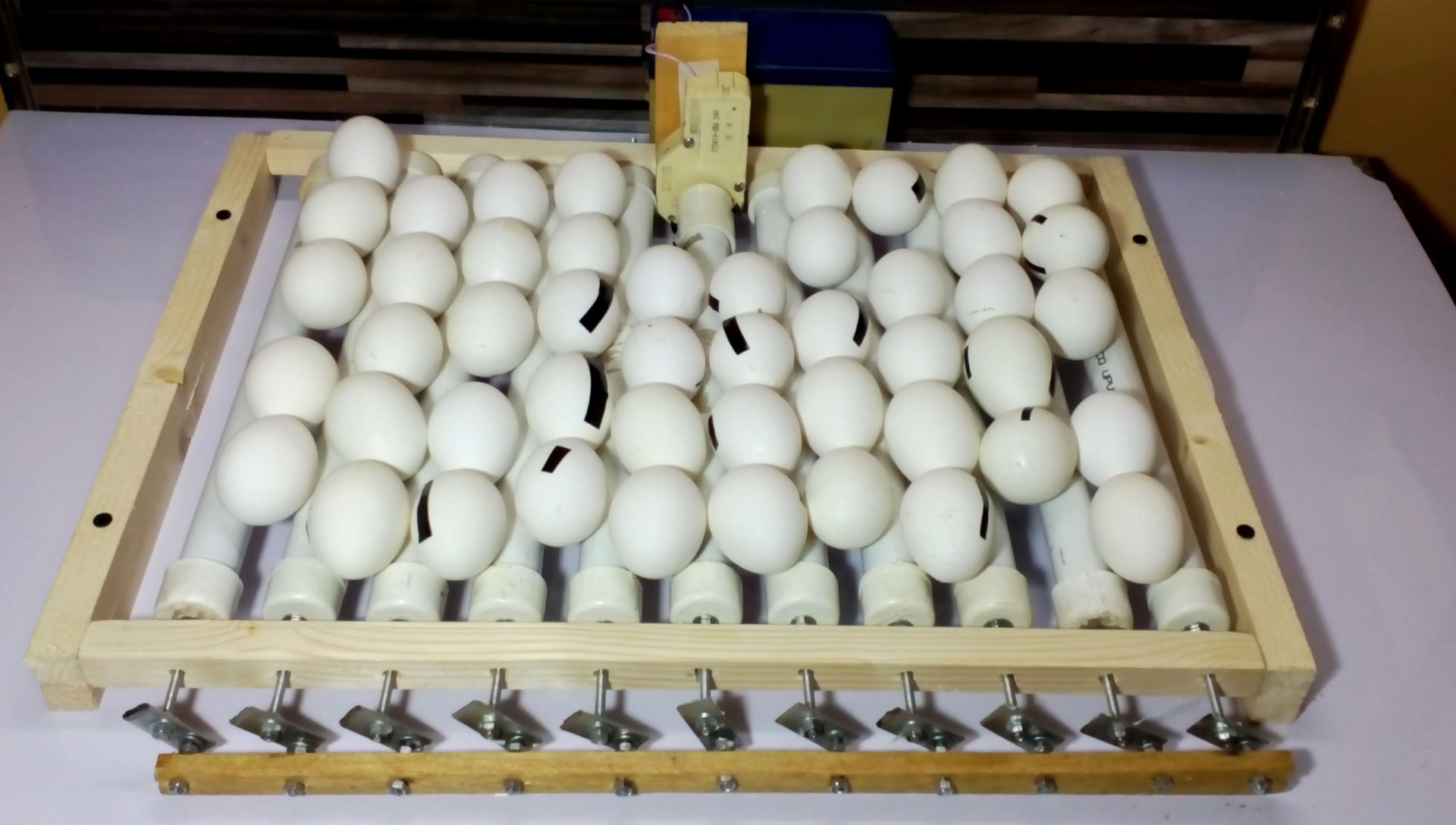

Testing on the objects as they are moving smoothly and then placing eggs as they are rolling smoothly.

If you like this tutorial please vote for it.
