Eduino WiFi


Eduino WiFi is a DIY Arduino UNO compatible WiFi development board based on the ESP8266EX. I have designed it to teach children soldering, electronics, programming and to build IOT enabled devices.

One design goal was to keep the board as simple as possible to solder. For absolute beginners I pre-assemble the SMT parts.

The board is supported by the ESP8266 project on github: https://github.com/esp8266/Arduino

You can download the project files from here: https://github.com/schirmilabs/Eduino-WiFi

If you want to know more about my work: There is an arcticle from our local newspaper

Features

11 digital input / output pins. All pins support interrupt, PWM, I2C one-wire (except for D0)

1 analog input (3.2V max. Input voltage)

USB B connector

Power supply socket, 6-12 V input voltage

Switching of the supply voltage via two Texas Instruments power-distribution switches (TPS2041 / TPS2051)

Current limitation for both supply voltages (USB / VIn)

Overcurrent display via two red LEDs

PIC 16F1455 as USB microcontroller with official sublicense of USB VID/PID (0x04D8/0xECC6) from Microchip

Reverse polarity protection up to 30V for VIn

Compatible with Arduino

Compatible with NodeMcu

Warning:

All of the IO pins run at 3.3V and are not 5V tolerant

Solder U2: TPS 2041


Check orientation!

The gray line on the IC has to be positioned upwards, at the little yellow circle inside of the red enclosed area.

Solder U7: TPS2051


Check orientation!

The gray line on the IC has to be positioned upwards at the little yellow circle inside of the red enclosed area.

Solder U1: AMS 1117 5.0


Solder U6: AMS 1117 3.3


Solder R15: Resistor 220 KOhm


Color code is: red, red, black, orange, brown

Solder R16: Resistor 100 KOhm


Colour code is:brown, black, black, orange, brown

Solder R1, R3, R6, R8, R12, R13, R14, R17, R18: Resistor 10 KOhm


Color code: brown, black, black, red, brown

Solder R2, R4, R5, R7, R9, R10, R11: Resistor 1 KOhm


Color code:brown, black, black, brown, brown

Solder C1, C3, C5, C7, C8, C10, C12: Capacitor 100 NF


Solder D2: Diode 1N5819


Check polarity !

The gray marking has to be positioned upwards.

Solder D1: Z-Diode ZPD 5.1


Check polarity !

The black marking has to be positioned on the left side

Solder D4: Diode 1N4148


Check polarity !

The black marking hast to be positioned on the right side

Solder D3: Z-Diode ZPD 3.3


Check polarity !

The black marking has to be positioned upwards.

Solder L1: Ferrit Bead


Solder U4: IC Socket 14 Pins


Check orientation !

The notch on the socket has to match the notch as stenciled on the board.

Solder LED4 and LED5: LED 3mm Red


Check polarity !

The long leg has to be positioned on the left side (+ sign on the board )

Solder LED1 and LED2: LED 3mm Yellow


Check polarity !

The long leg has to be positioned on the left side (+ sign on the board )

Solder LED3: LED 3mm Green


Check polarity !

The long leg has to be positioned on the left side (+ sign on the board )

Solder SW1: Tact Switch 3x6


Solder T1 and T2: Transistor BC 547


The straight edge of the Transistor should match the straight edge of the stencil.

The middle pin has to be bent backwards before assembly.

Solder C4 and C6: Electrolytic Capacitor 47 UF


Check polarity !

The long leg has to be positioned downwards (+sign on the board)

Solder C2 and C9: Electrolytic Capacitor 10 UF


Check polarity !

The long leg has to be positioned on the left side at C2 (+sign on the board) and downwards at C9 (+sign on the board)

Solder X1: DC Power Jack

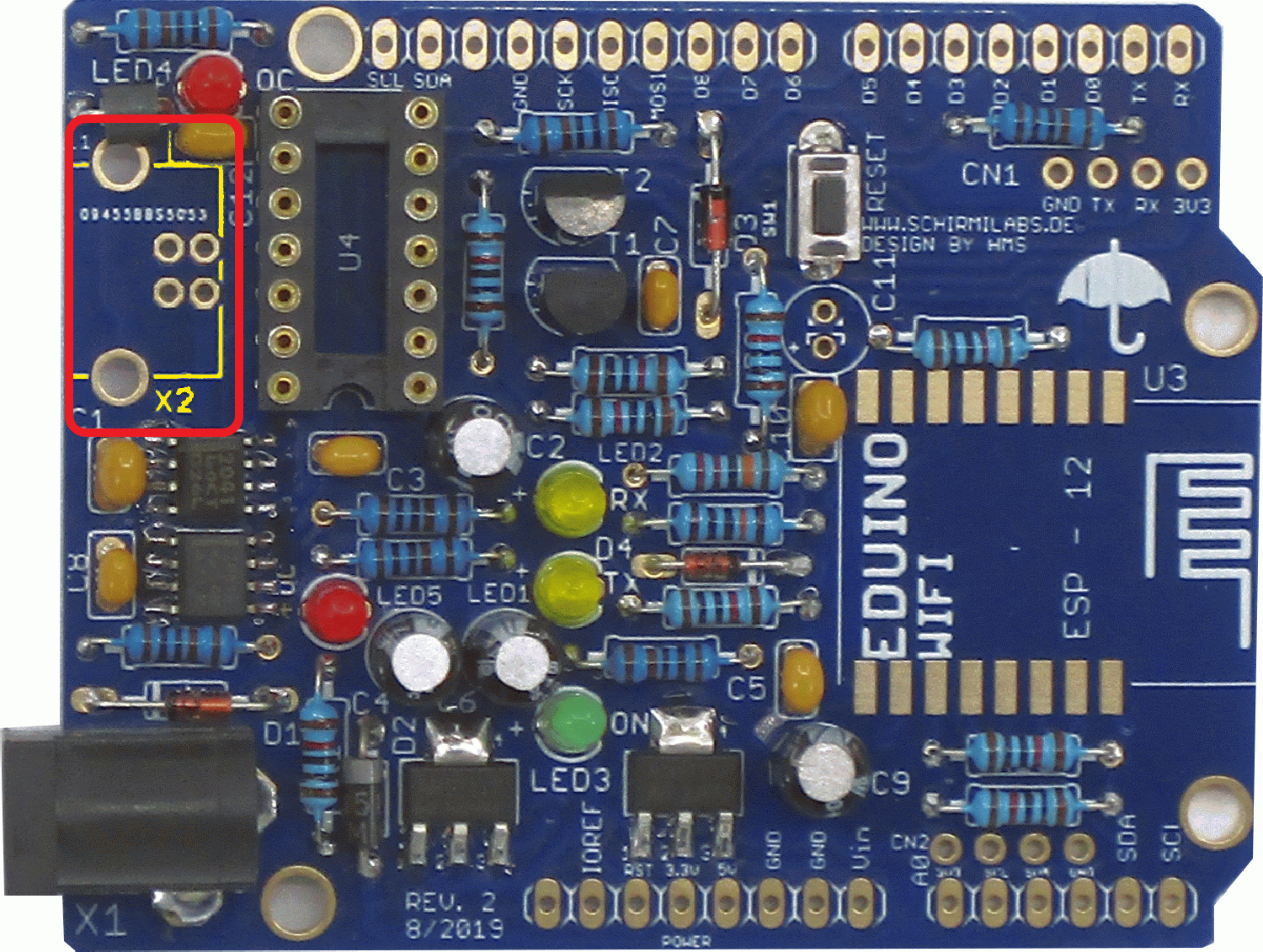

Solder X2: USB Type B Connector


Short Circuit Check


Check the bottom side for possible soldering short circuits

Power Supply Check


Connect the board with a PC or a USB charger via a USB-B cable.

The green LED should light up now.

Solder Power: Female Header 8 Pins


Short Circuit Test


Connect GND and +5V with a jumper wire cable

Then connect the board with a PC or a USB charger via a USB-B cable. The red LED on top should light up now (Overcurrent indicator)

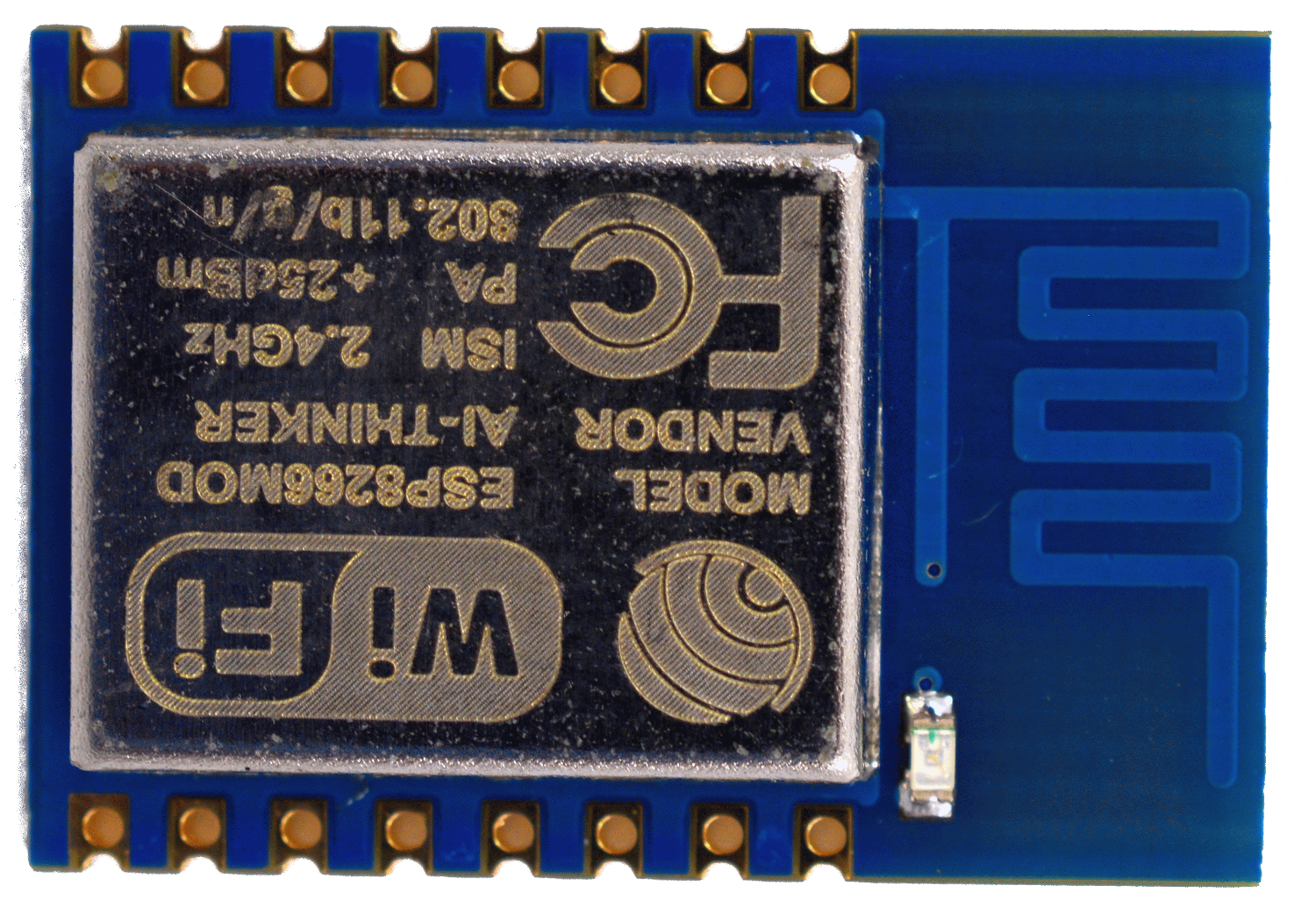

Solder U3: ESP-12 Module


AD: Female Header 6 Pins


Solder IOL: Female Header 8 Pins


Solder IOH: Female Header 10 Pins


Solder C11: Electrolytic Capacitor 100uF


Check polarity !

The long leg has to be positioned downwards (+sign on the board)

Mount PIC 16F1455


The IC has to be mounted carefully, with the notch in the IC matching the notch in the socket.

Boards Availablity


If anyone would like a board, it is already shared on PCBWay:

https://www.pcbway.com/project/shareproject/Eduino...
