Easy to Make - Mini Stun Gun
by lonesoulsurfer in Circuits > Electronics
171675 Views, 117 Favorites, 0 Comments
Easy to Make - Mini Stun Gun
I've been wanting to make this project for some time and I have finallly been able to get my hands on the right type of gas lighter to pull apart!
Now this thing won't knock you down but It will give you a good old shock - especially if you hack it and add a bit more power to it.
This is a really easy project which anyone with a little soldering skills can make. All you really need is a "continuous piezo electric sparker" which takes a battery. These are used to light gas BBQ's, heaters, etc and can be purchased from Amazon or Ebay. (see link in step 1)
Remember to be careful - it is electricity afterall and I don't won't anyone to hurt themselves!
Saying that, there is nothing bettter than to zap your brother on the arse and watch him jump!
Check out the video below
http://youtu.be/fIh5bVoBzvk
Step 1 Parts and Tools
PARTS
You will need the following parts to make your Mini Stun Gun

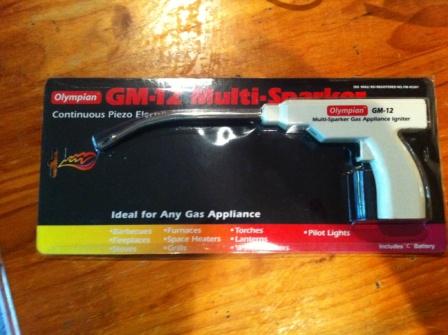

1) Piezo Electric Spark Starter. These can be purchased from Amazon
2) AAA battery holder - it needs to hold 2 batteries
3) Thick electrical wire, as well as some normal, everyday electrical wire.
4) Wire (this is to make the prongs at the end)
TOOLS
I used the following tools but just use whatever you have that will do the job
1) Dremmel
2) Pliers
3) Soldering iron
4) Stanley knife
5) Hot glue gun
6) Phillips Head Screwdriver
7) Heat Shrink Plastic
You will need the following parts to make your Mini Stun Gun
1) Piezo Electric Spark Starter. These can be purchased from Amazon
2) AAA battery holder - it needs to hold 2 batteries
3) Thick electrical wire, as well as some normal, everyday electrical wire.
4) Wire (this is to make the prongs at the end)
TOOLS
I used the following tools but just use whatever you have that will do the job
1) Dremmel
2) Pliers
3) Soldering iron
4) Stanley knife
5) Hot glue gun
6) Phillips Head Screwdriver
7) Heat Shrink Plastic
Step 2 - Pulling the Piezo Sparker Lighter Apart

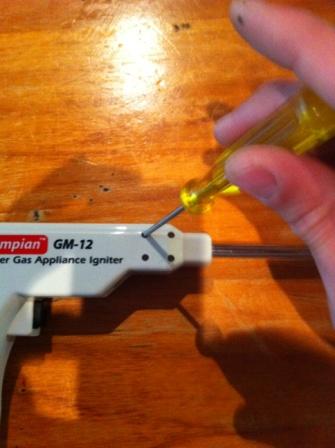

Unscrew the casing around the Lighter. Make sure you keep all of the screws - you'll need these later. Put aside the casing for later as welll.

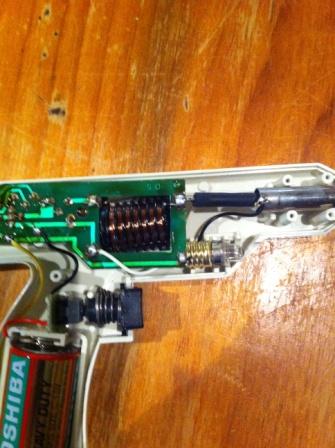

Carefully take out the insides - the wires from the battery terminals to the circuit board are quite weak, these came off on mine after some time so you might need to add a bit more solder to these.
Carefully take out the insides - the wires from the battery terminals to the circuit board are quite weak, these came off on mine after some time so you might need to add a bit more solder to these.
Step 3 - Removing the Bits You Don't Need
This particullar lighter has a light at the end - Its up to you if you want to keep this or not but as I wanted max power (sounds like a Simpsons episode!) I removed the light and also the 2 wires that joined it up to the circuit board.
You also need to remove the wires from the metal neck of the lighter. One of these is wrapped in rubber, you can just cut this off at the base as you will be soldering another wire in its place.
Ther other 2 wires should be cut off from the base of the metal neck.
You also need to remove the wires from the metal neck of the lighter. One of these is wrapped in rubber, you can just cut this off at the base as you will be soldering another wire in its place.
Ther other 2 wires should be cut off from the base of the metal neck.
Step 4 - Adding the Bits You Need

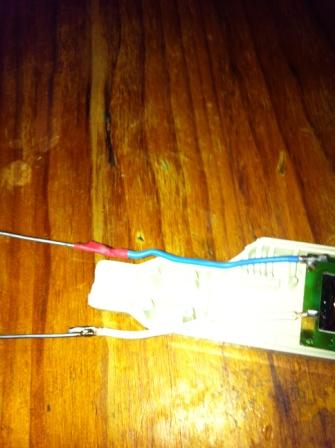

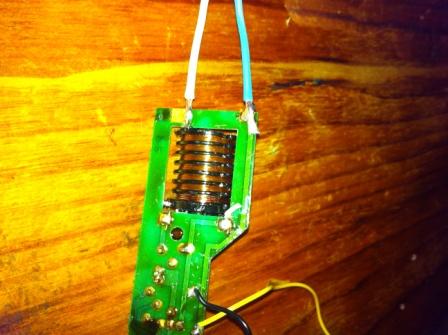

Ok - You now need to add some heavy gage wire to the 2 main terminals that you just took off from the metal neck. Make sure that these are long enough to hang out of the top of the lighter (you will see why later)
Remove the original wire and solder the heavy gage wire on.
Next attach the AAA battery holder to the battery wires - make sure you put the positive wire from the circuit board to the positive termiinal on the battery holder - do the same for the negatives. I know this seems obvious but it's an easy mistakke to make.
Remove the original wire and solder the heavy gage wire on.
Next attach the AAA battery holder to the battery wires - make sure you put the positive wire from the circuit board to the positive termiinal on the battery holder - do the same for the negatives. I know this seems obvious but it's an easy mistakke to make.
Step 5 - Modifying the Ligher Casing and Adding the Bits Back In.

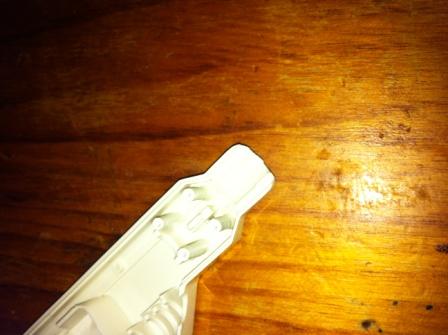

Next you will need to get your dremmel out and grind off some of the plastic where the batterys are to go.
You will also need to do a little grinding at the tip to make sure that the wires will fit correct.
Next put back all of the bits that you toook out of the body of the lighter - Place the 2 heavy gage wires along the barrel of the lighter.
Cut the wires at the end of the barrrel, strip the wires and tin the ends with solder.
You will also need to do a little grinding at the tip to make sure that the wires will fit correct.
Next put back all of the bits that you toook out of the body of the lighter - Place the 2 heavy gage wires along the barrel of the lighter.
Cut the wires at the end of the barrrel, strip the wires and tin the ends with solder.
Step 6 - Adding the Wire Ends

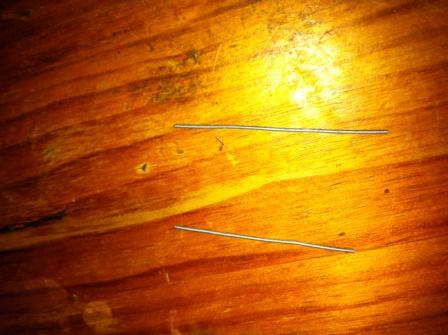

So now you should have the 2 wire ends tinned with solder. The next step is to cut 2, 5cm lengths of wire. You can use anything for this, just make sure that it doesn't bend easily.
Tin the end of the 2 wires and add these to the end of the 2 heavy gage wires.
Cover the soldered parts with heat shrink plastic.
Once you are happy with the position and fit (you might need to dremmel some more if the fit is a bit off) glue down with hot glue. Test everything first before gluing, nothing worse than having to pull everything apart when it's been hot glued down!
I also added some glue to the wire terminals on the circuit board for added strength.
Tin the end of the 2 wires and add these to the end of the 2 heavy gage wires.
Cover the soldered parts with heat shrink plastic.
Once you are happy with the position and fit (you might need to dremmel some more if the fit is a bit off) glue down with hot glue. Test everything first before gluing, nothing worse than having to pull everything apart when it's been hot glued down!
I also added some glue to the wire terminals on the circuit board for added strength.
Step 7 - the Final Bits

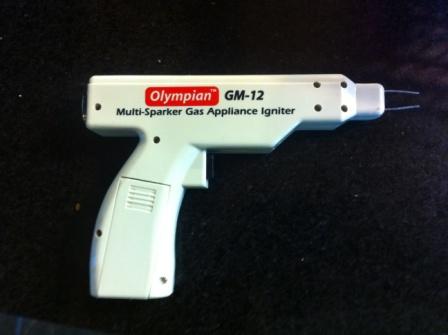

OK Now you are ready to put the casing back on - this should go on easliy but if you do have ay issues, check the hot glue didn't go in any places it shouldn't have.
Screw everything back into place (make sure you test it first and make sure it's working OK).
Cut the wires so only a couple of centimeters are hanging out. You will probably need to squeeze these together a little to get the cool spark effect.
THAT'S IT! You are now ready to scare the sh.t out of everyone.
Screw everything back into place (make sure you test it first and make sure it's working OK).
Cut the wires so only a couple of centimeters are hanging out. You will probably need to squeeze these together a little to get the cool spark effect.
THAT'S IT! You are now ready to scare the sh.t out of everyone.
Conclusion
It's up to you guys on what you can do to modify this stun gun. Some ideas include:
Paint it black
Put a laser where the light was
Put a higher voltage battery in (be careful!!)
Stick it in a nerf gun.
Good luck and have fun.
