Easy Weather Station Box
Hello !!! To day i would like to present How to make Weather Station Box. the weather station reading temperature and humidity form DHT22 sensor. when espresso lite read data form dht22 then sent data to Thingspeak and sleep 30 minute. I use dht22 because espresso lite built-in pin for DHT and OLED. it's very easy to make. let's start to join now Go Go Go...
Hardware Required
- ESPresso Lite (ESP8266)
- OLED 128x64 i2c
- DHT22
- FT232 FTDI
- Adapter 5v
- Power Bank ABS/ARUN 5600 mAh Model Y38
- Mini Solarcell (next feature)
- 3D printer (If you have)
- account Thingspeak

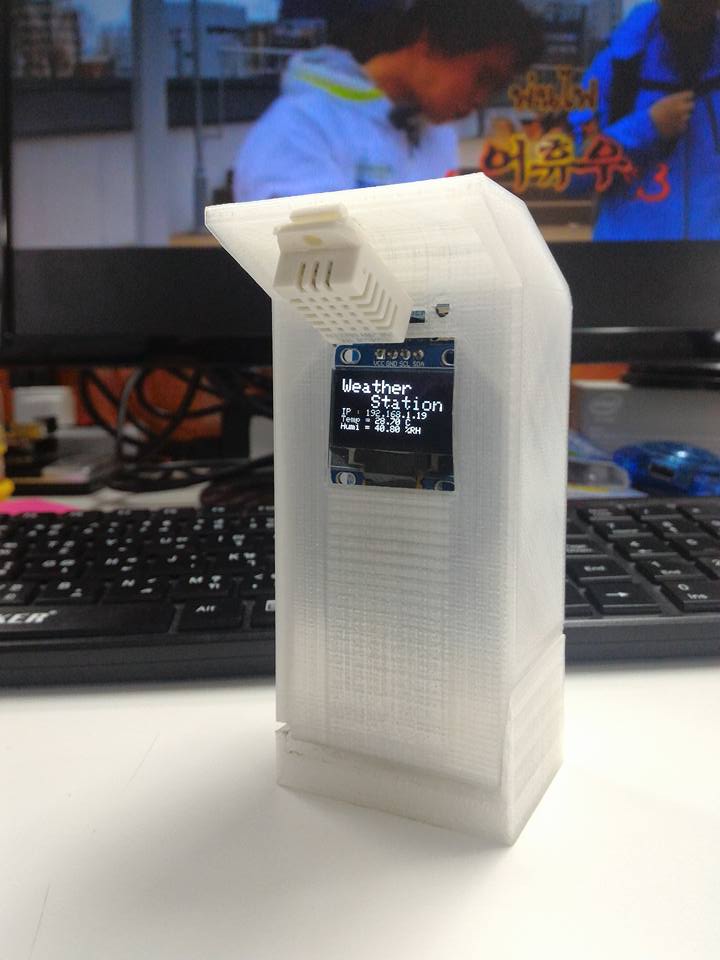

3D Printed Case
can download .stl file at here
Hack Power Bank
Remove case power bank, i just use battery and charger
Connect OLED and DHT to Board
I use OLED 128x64 i2c is 4 pin : VCC GND SCL SDA (oled in picture is not correct i use, you can find another oled same this pin)
Assemble Case
Take battery below esp board and put charging board to bottom case
Upload Code to ESPresso Lite
add API key form thingspeak to esp code (if you don't know api key, just see next step) Example Code

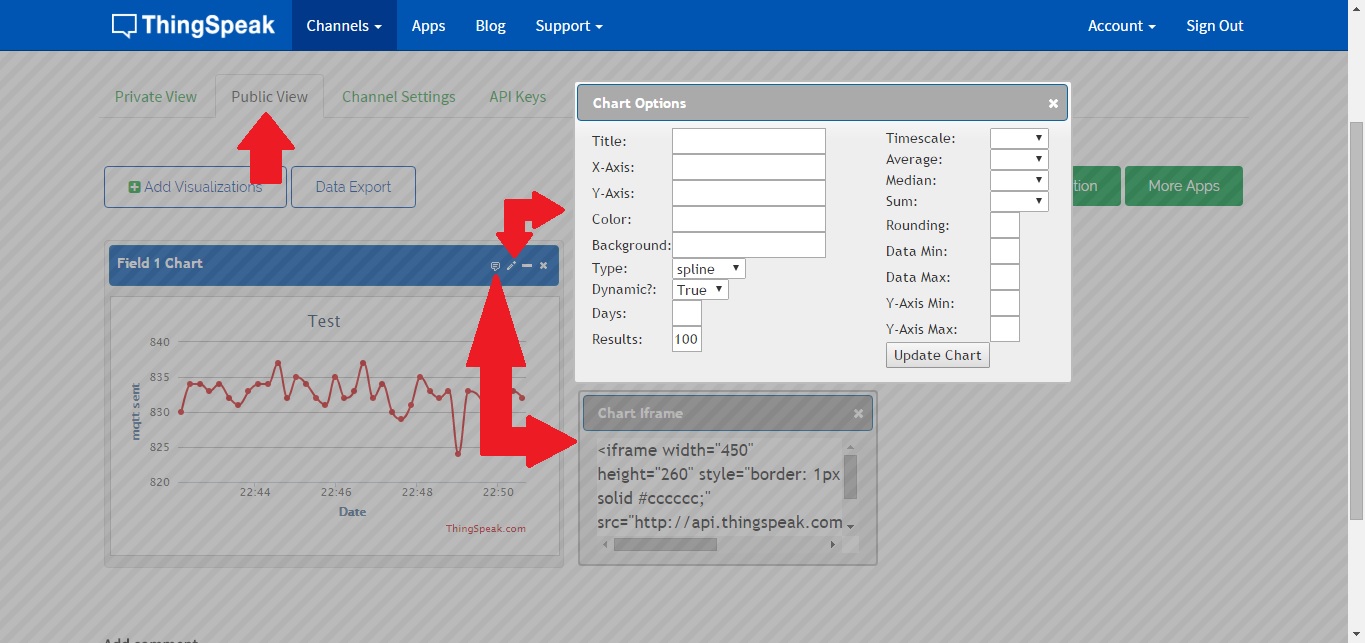

Edit Thingspeak
Create channel and copy API key to esp code
Use Github.io and Enjoy It

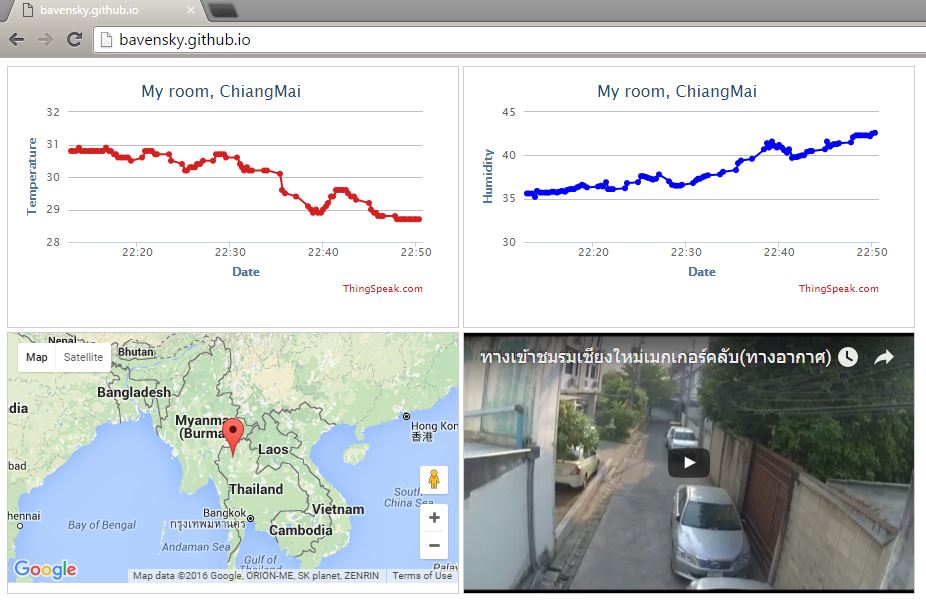

Use github.io for display graph temperature and humidity. Next step you can add another sensor such as DS18B20, Soil moisture sensor, raindrop sensor etc. have to enjoy :)
