Easy Skateboard Rack


After having build my own skateboard, I needed a rack to store them: my wife wasn't that happy to see all the boards around...

I designed this one after a little surf on the net.

I build it using MDF 18mm thick. I have used two 66 x 24 cm sheets for the sides, one 42 x 35 cm for the back and one 30 x 5 cm as reinforcement.

Enjoy this I'ble.

You liked it? Share it! Vote for it!

Check our on line shop to discover our home made boards

Drawing Is Better Than Explaining


Here is the drawing of the rack with all dimensions.

I kept it as simple as possible in order to avoid complex cuttings and machining.

This is a simple 6 slots rack. Jump to the latest steps as I suggest you how to hang your helmets by adjusting a little bit the design. That's lessons learned ;-)

TRacing the Lines on the Boards

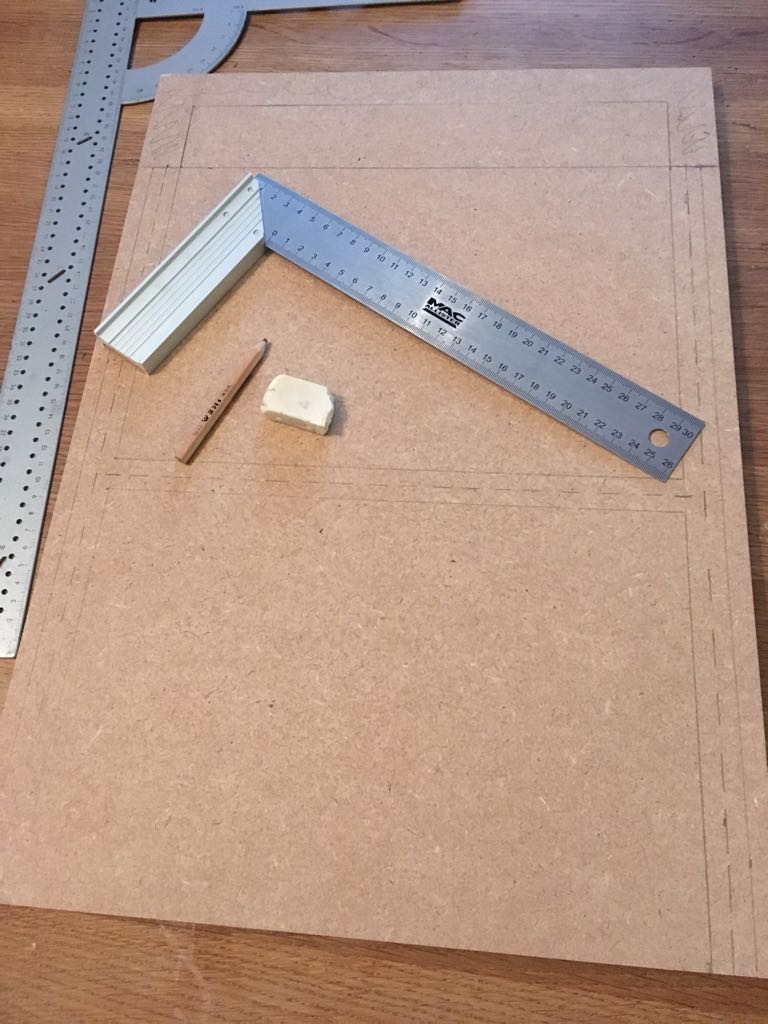

I reported the design on the MDF boards in order to cut them.

It is a really important step to insure a good fit of the mounting.

I completely draw the rack to be sure that I will be able to build it.

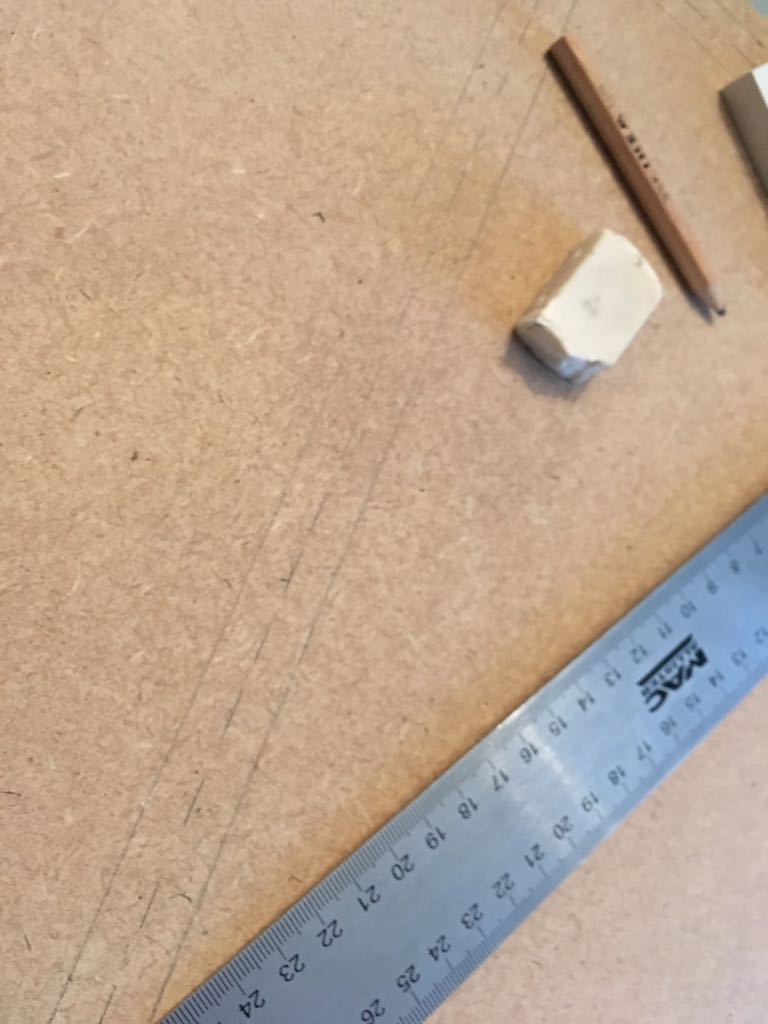

I used dotted line as guide for the later routing. I have also defined the reinforcement plate using construction line to be directly fitting the sides and the back with little adjustments.

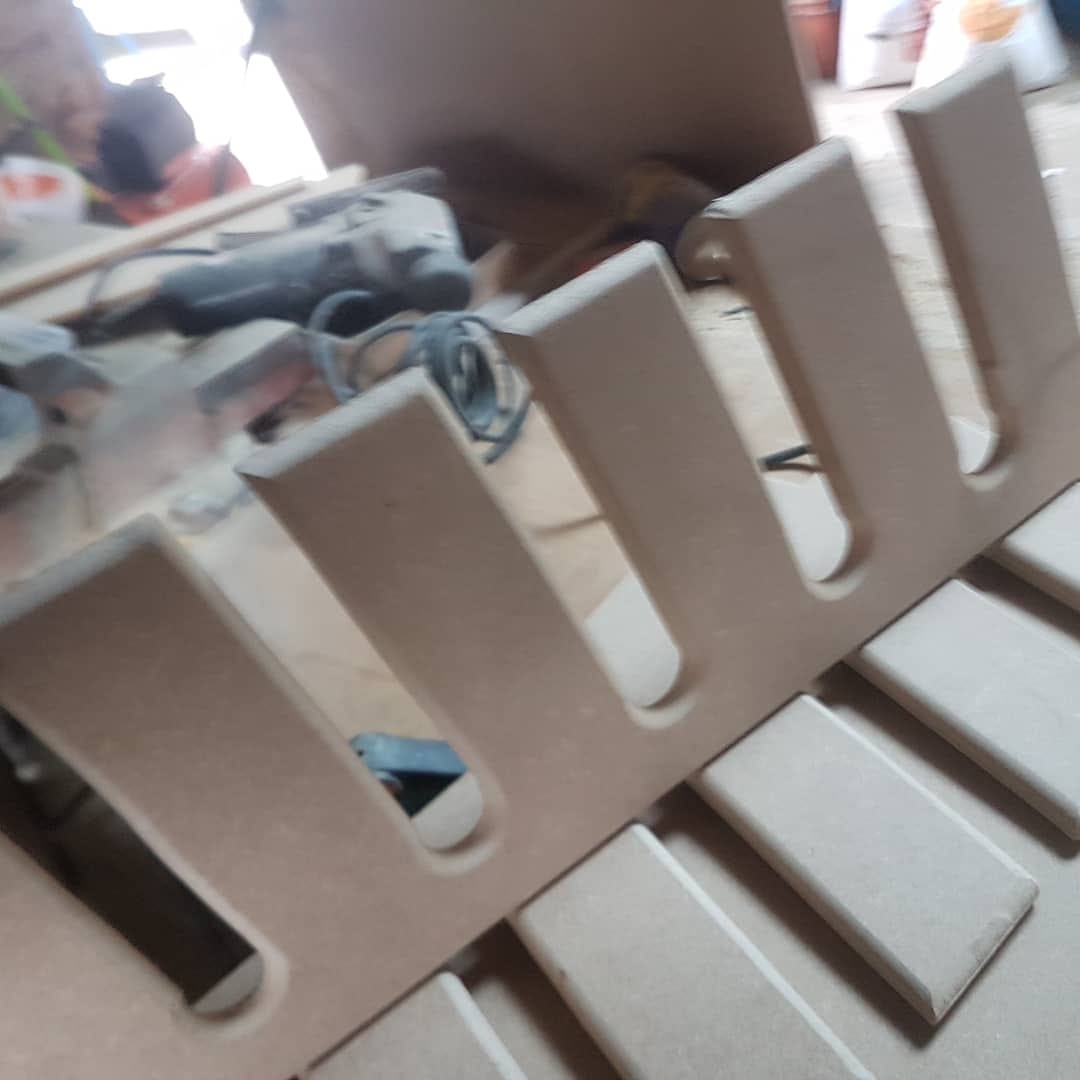

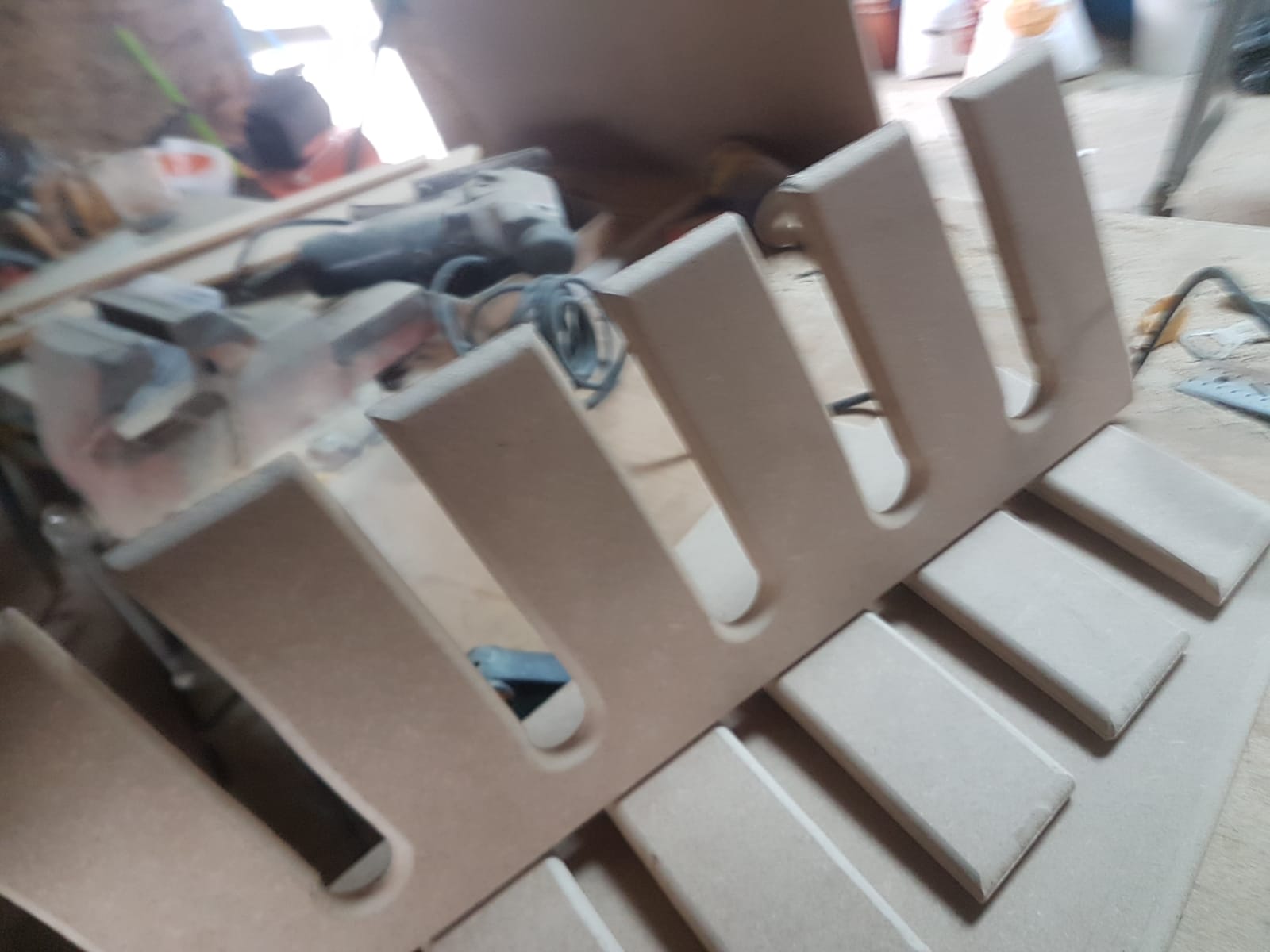

Cutting


I used a little tip to cut the sides all in once. I screwed the 2 boards together. Thus I managed to have exactly similar sides. However if you make a cutting error, then everything is lost... That's a choice ;-)

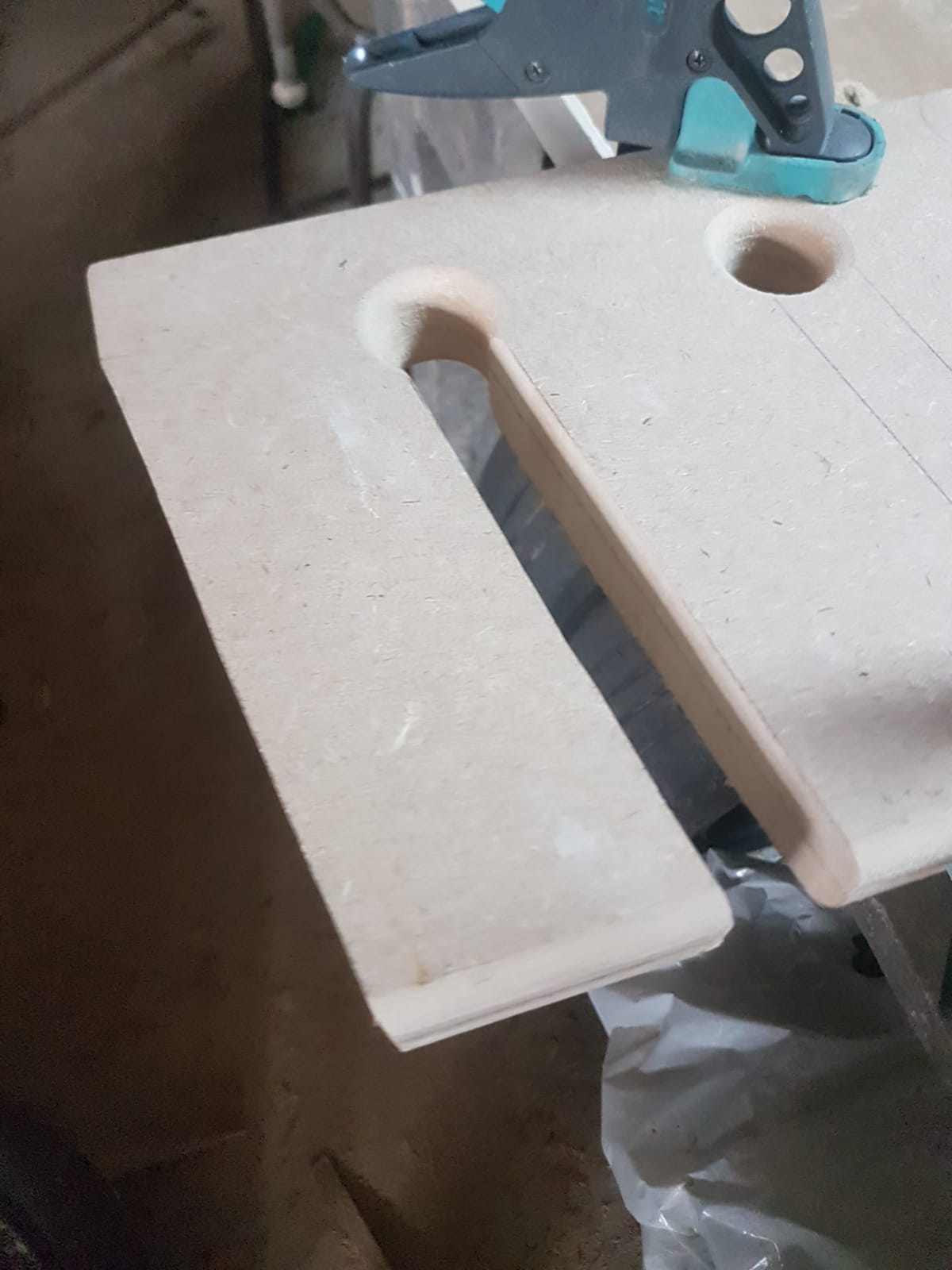

I started with the rounded end of the slots using a bell saw and then the useful and tradition jigsaw.

I did all of this in our workshop in the mountain. Aside building it it was quite an experience to make it in the cold and almost stucked by snow.

I actually did not used the router apart from rounding the edges as I had not the right diameter. And with all the snow outside I couldn't go to buy one.

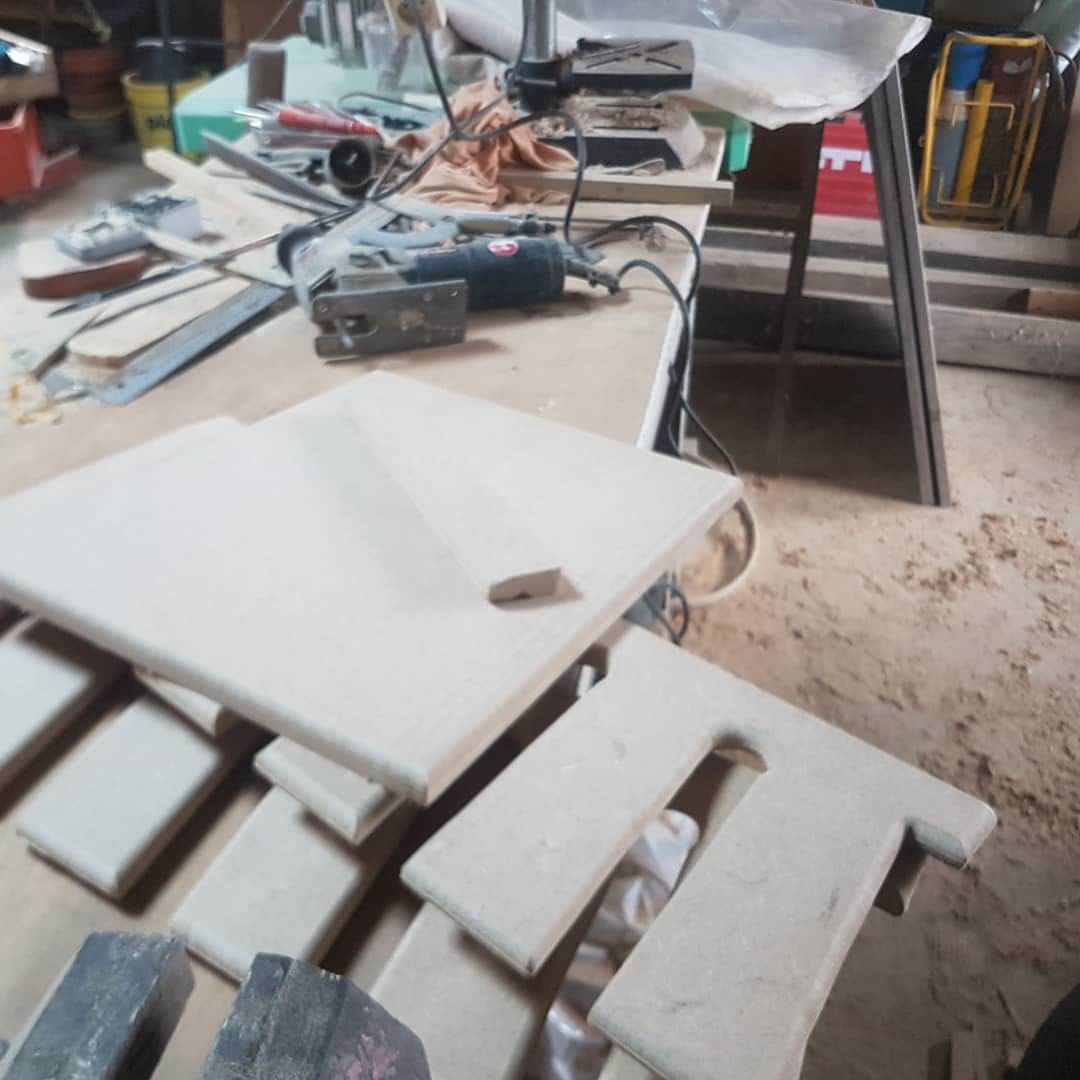

The Router and More

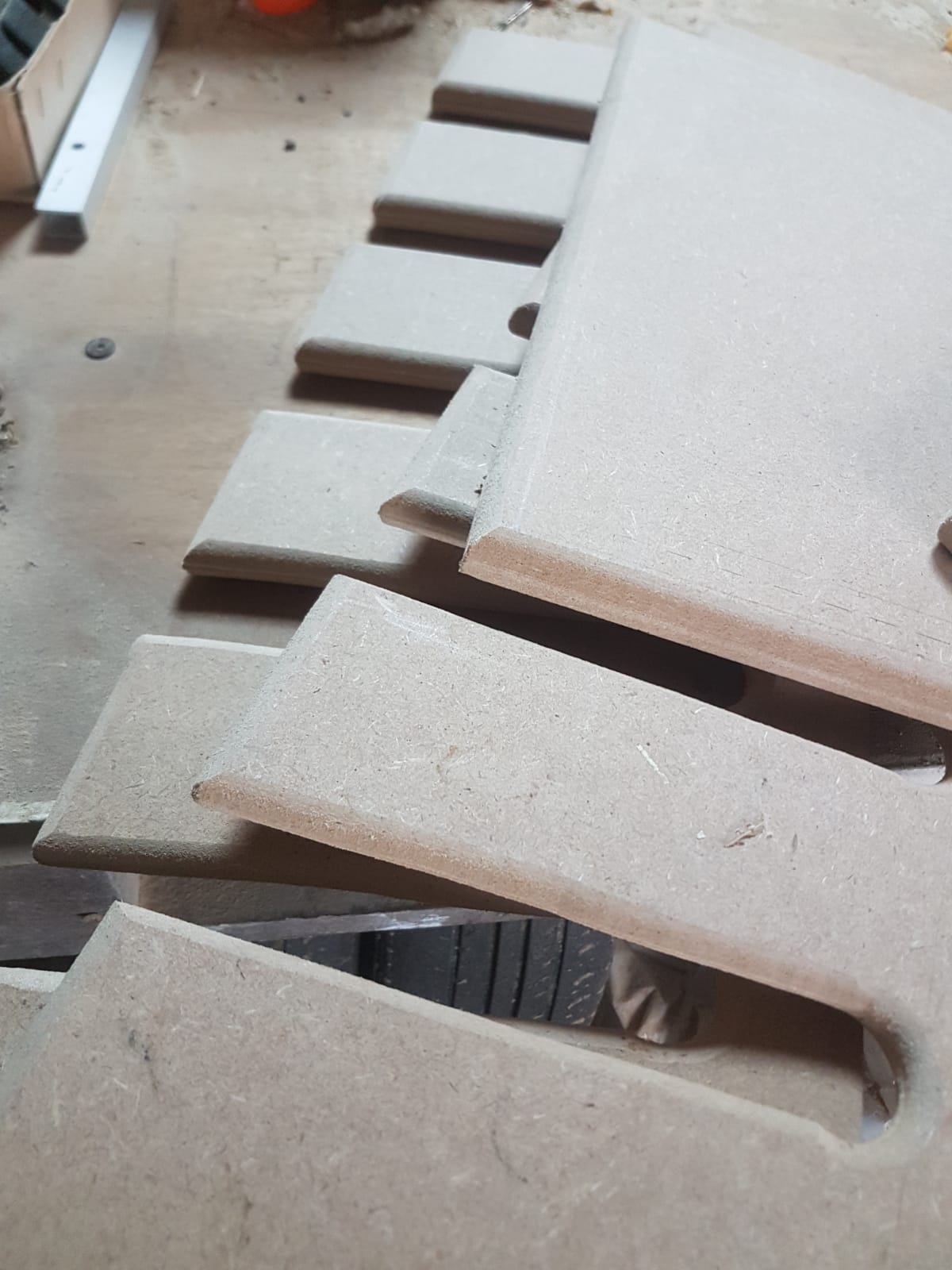

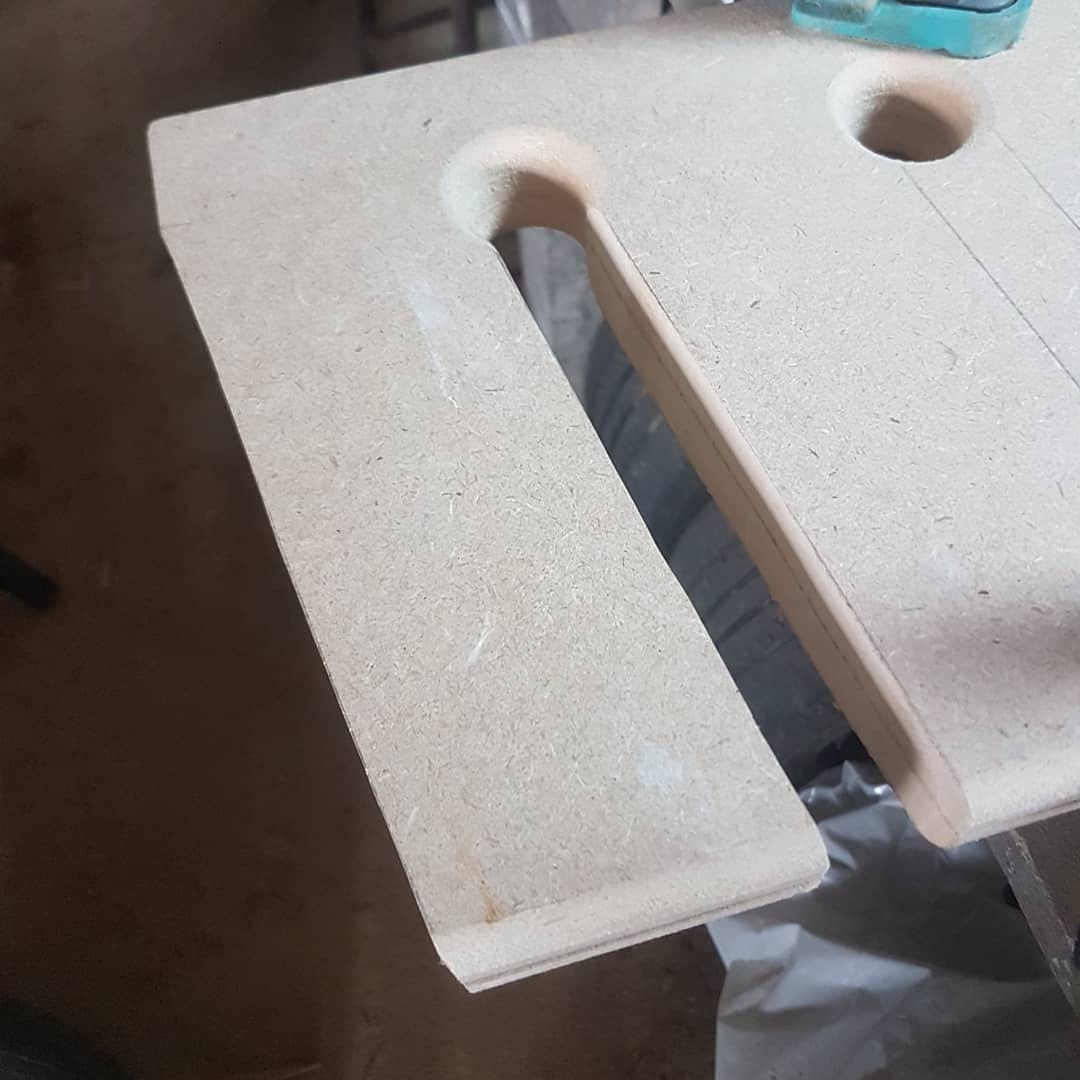

So I used the router to round all corners and have a nice finish.

Then it was necessary to carrefully sand all parts to obtain a good finish once painted or varnished.

I did paint the parts at that stage. The snow is gone and I am back to my flat in the city of Lyon, FR.

Mounting the Rack


We are almost done, let's mount it.

Position the sides and the reinforcement. Oh noooo. Since I did not used the router, my reinforcement is too small... Let's forget about it ;-)

I did a first attempt without screwing the parts just to see if everthing was OK. It was except the reinforcement but well....

I used 3 screws for each side. Done.

Done!! (mounting It on the Wall)

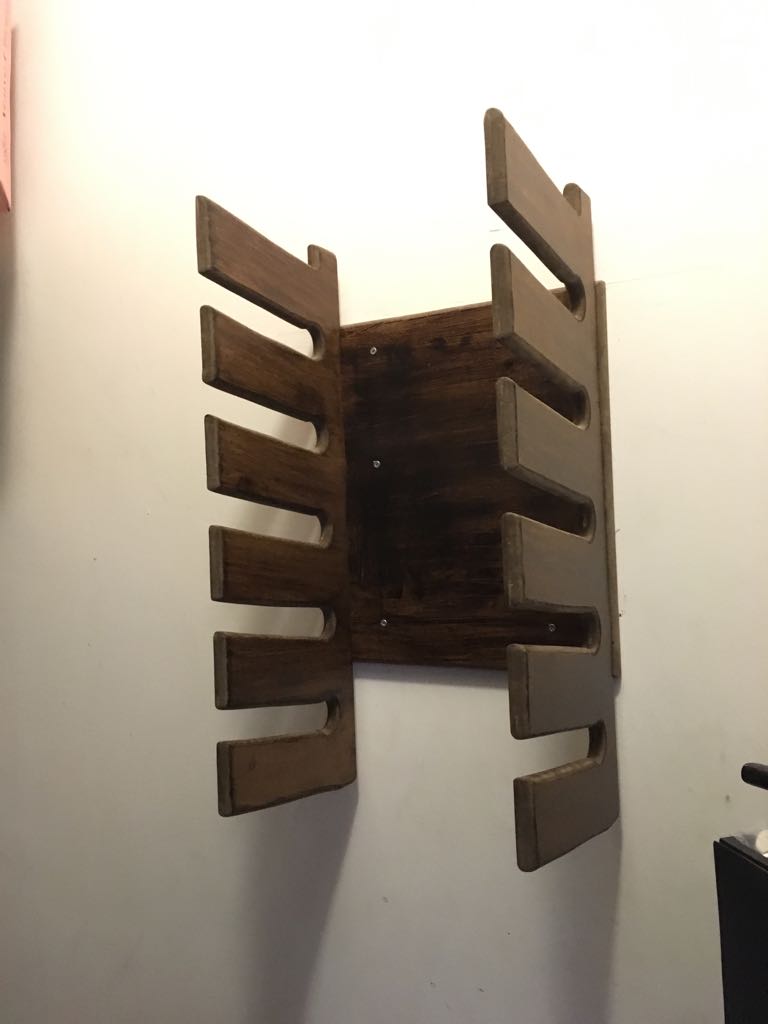

One fixed and screwed, I just mounted it on the wall.

As I have weak walls I used dedicated screws. I took 6 of them to be really sure that the rack will stay in its position. The whole thing is given to support more than 100kg. I guess that the wall will fall much before this limit.

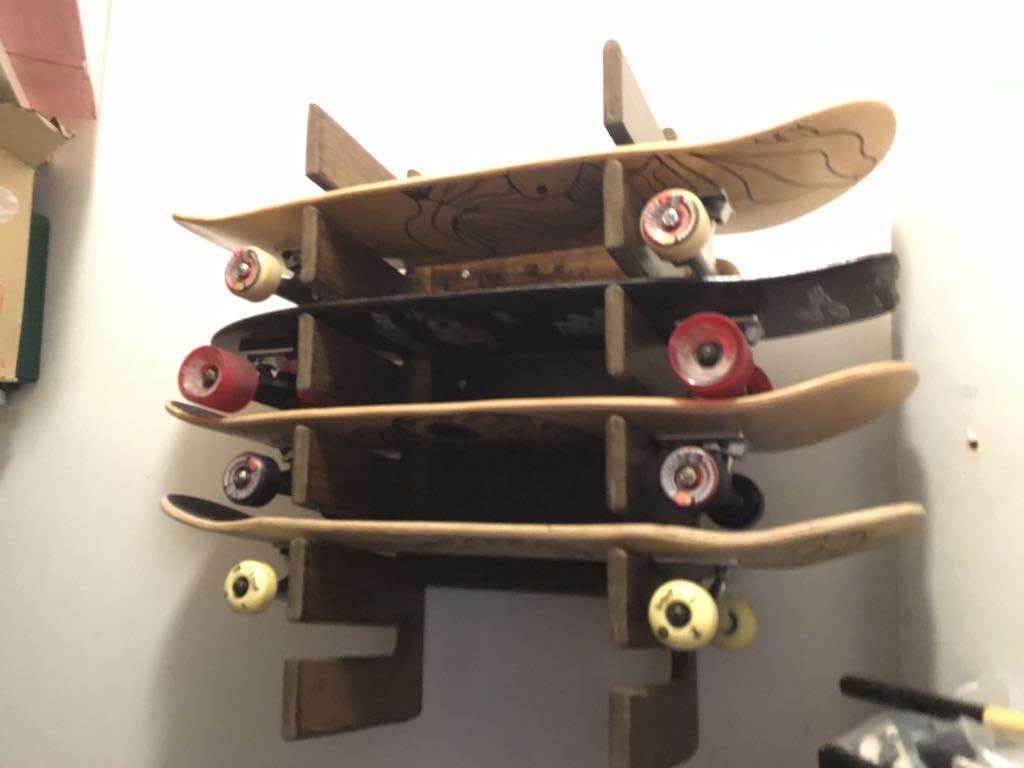

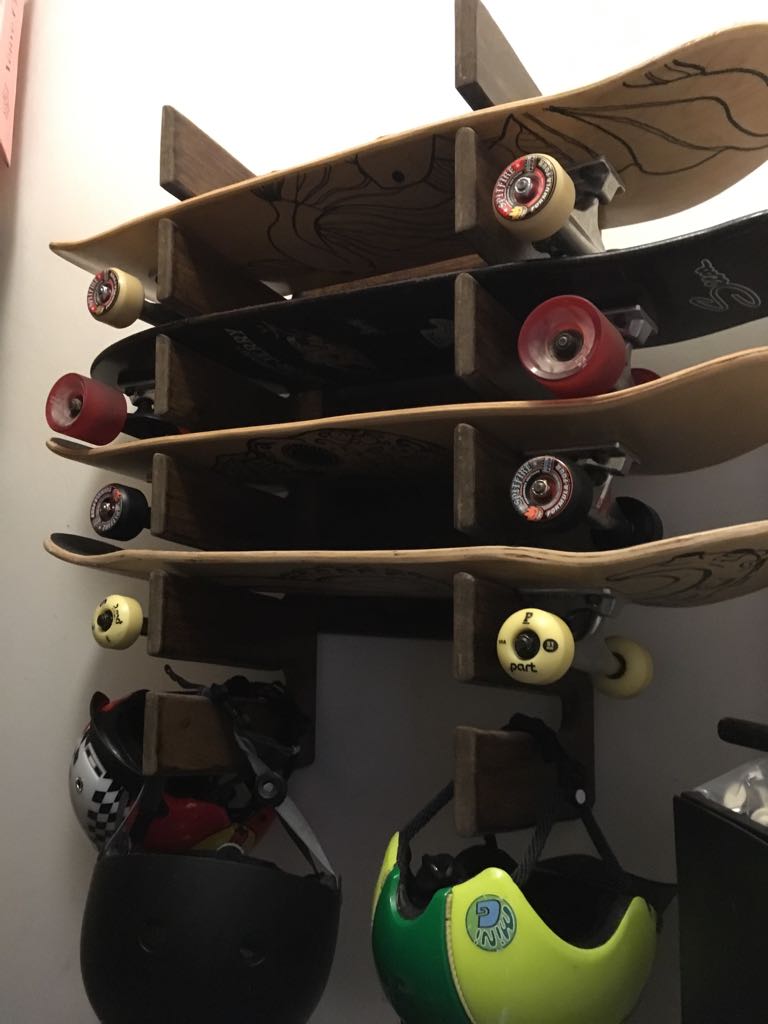

At the time I have 4 boards (1 I bought - the Brown longboard-, and 3 I built). The rack can up to 6 boards. I used the lowest slot for the helmets. Another solution would be to drill very big holes in the lowest part of the rack to hang them.

Hope you enjoyed it!
