Easy Make PCB Board

HI Guys I'm Steve From India

And Today i'm Going to Show to How To make a PCB Board.

Click Here to See The Video

• Copper Clad click
• Photo Paper
• Laser Printer
• Ferric chloride

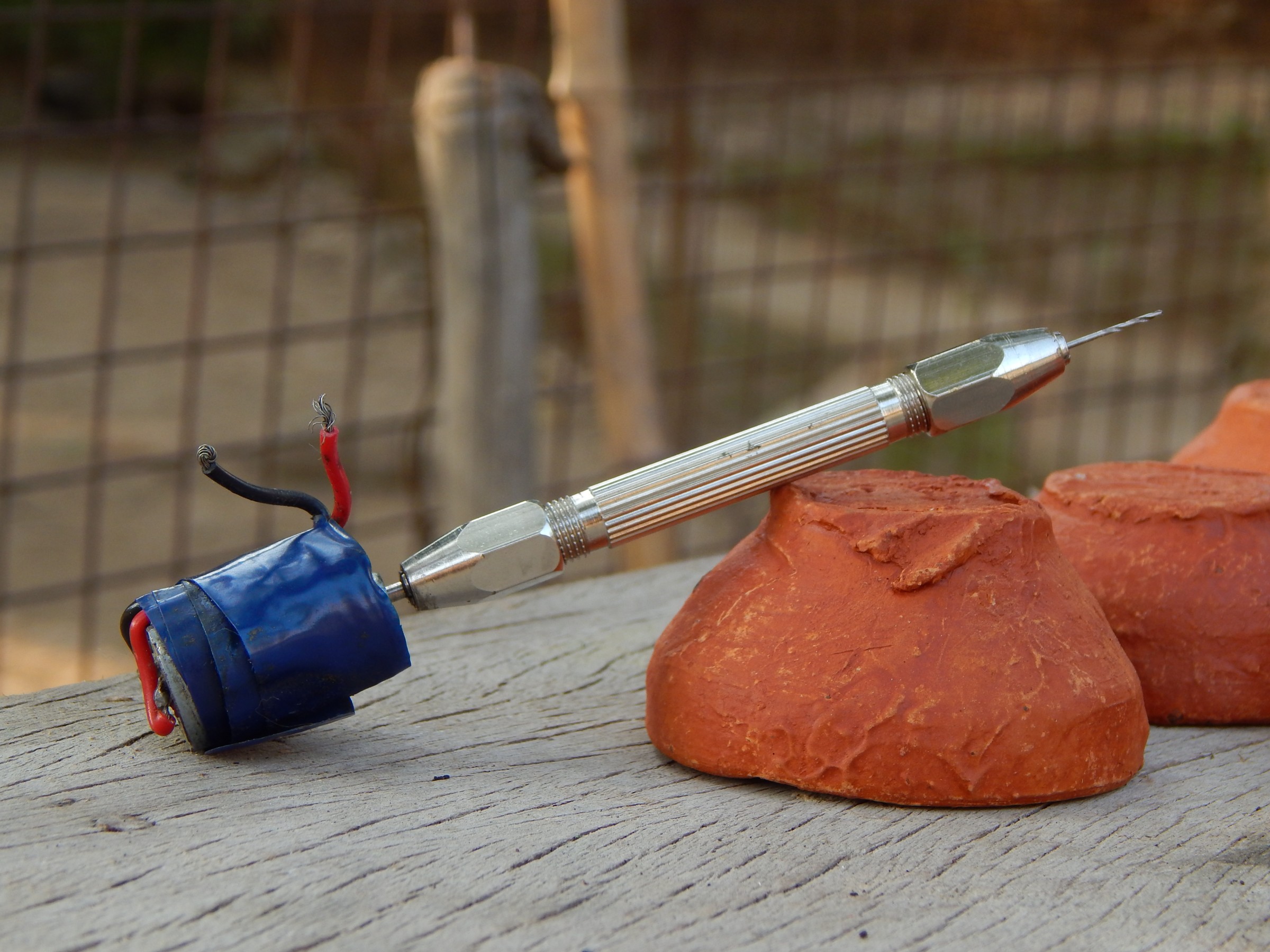

• PCB Drill click
• Cloth Iron

I'll do step by step

• Print Out Your PCB layout in photo paper with Laser Printer Only
• Cut The Copper Clad in The Same size to match the layout dimension
• Now Put The Paper onto The Copper Clad and Press With The Hot IRON
• Now You Need a Bowl of Water
• Put The PCB into The Water Let it soak For Around 30 minutes
• Now carefully Remover The Paper From Board
• After Removing The paper
• You need to put some of Ferric chloride in a container with little water
• Now put the PCB into the Ferric chloride Solution
• After 20-30 minutes You Are done to take the PCB OFF

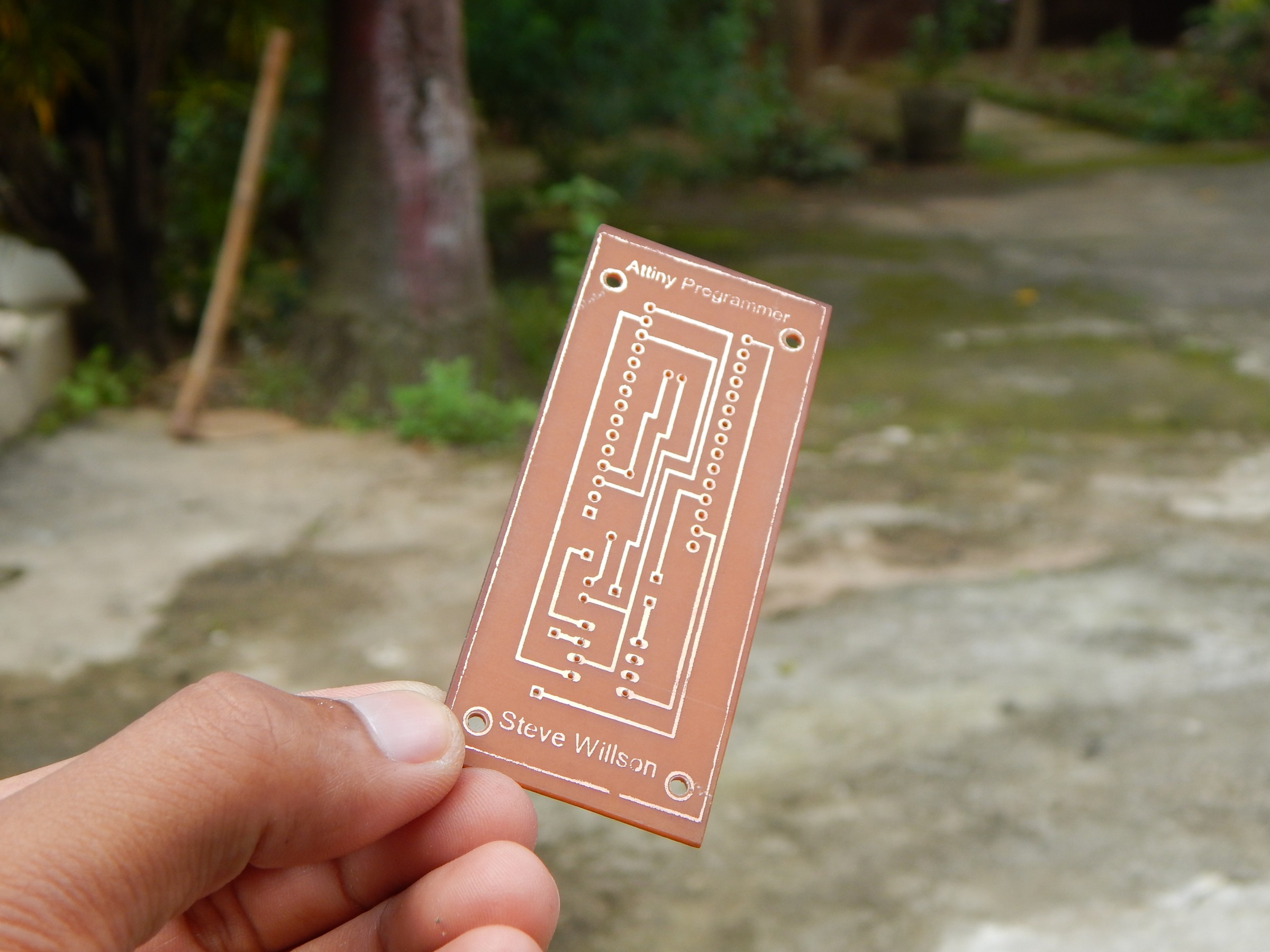

• Now clean the PCB with some water
• Now You Need a acetone and cotton ball to remove the black part
• After Doing that you need to drill The holes for The components

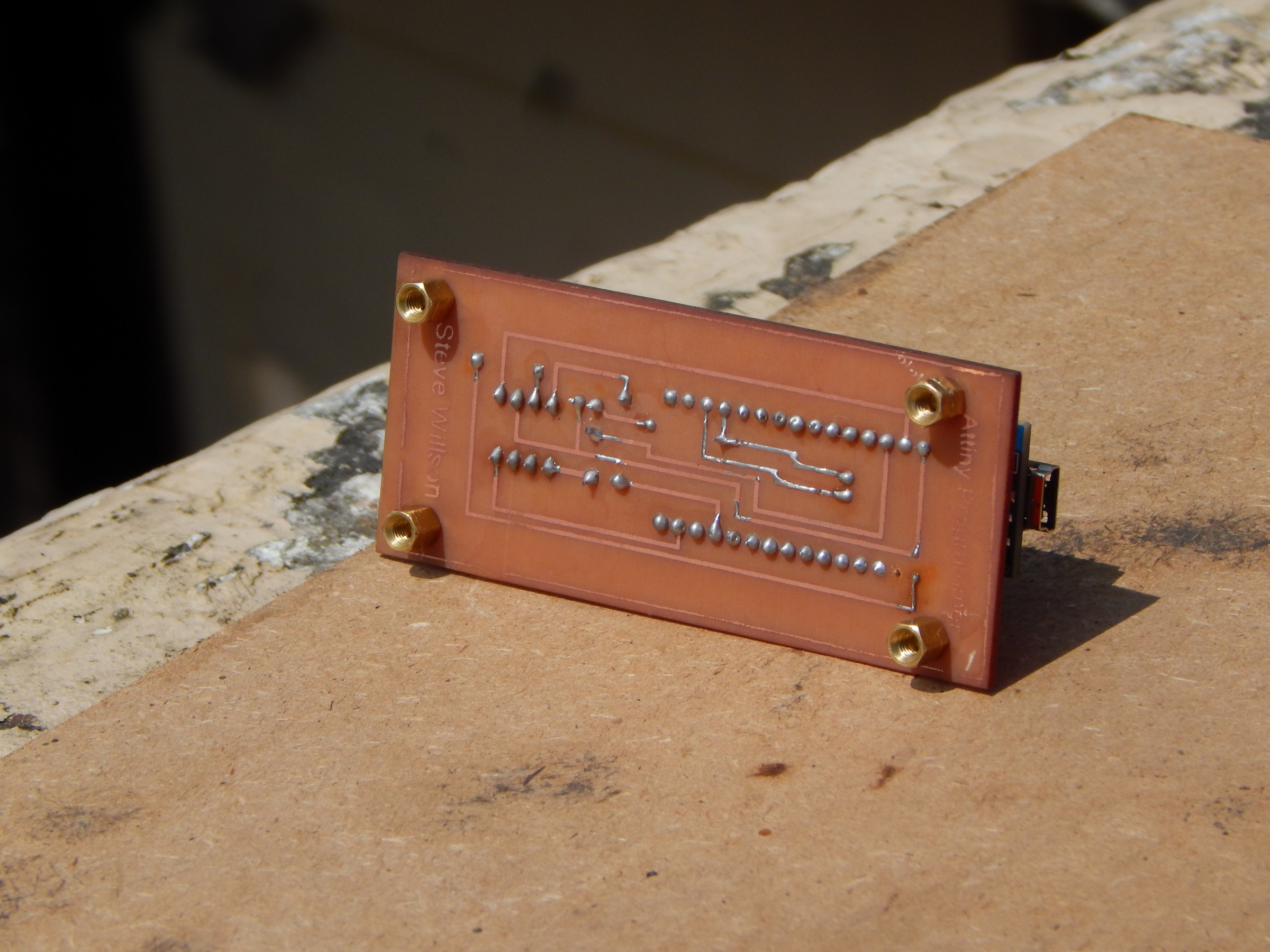

• Now Place your components and solder it

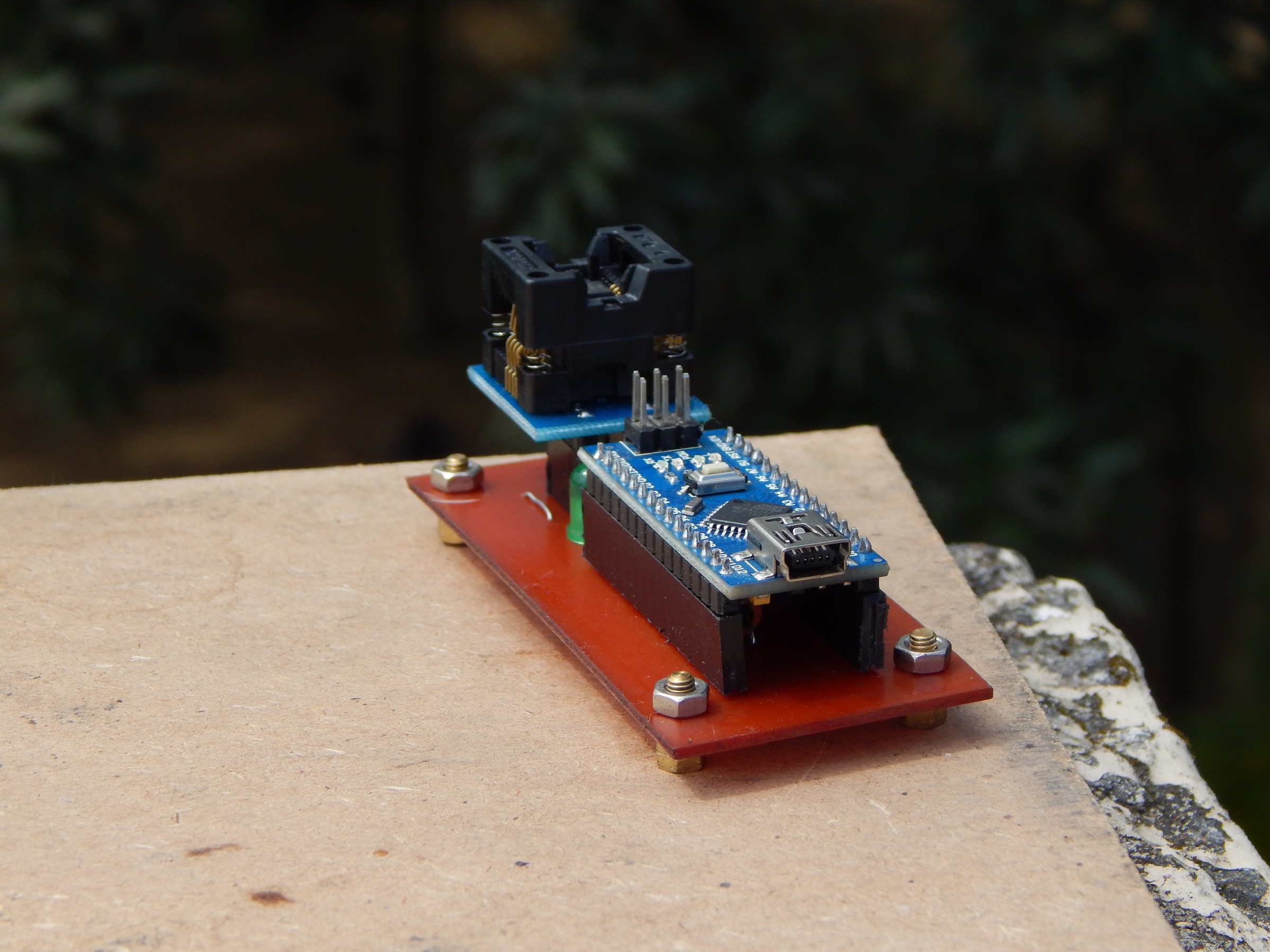

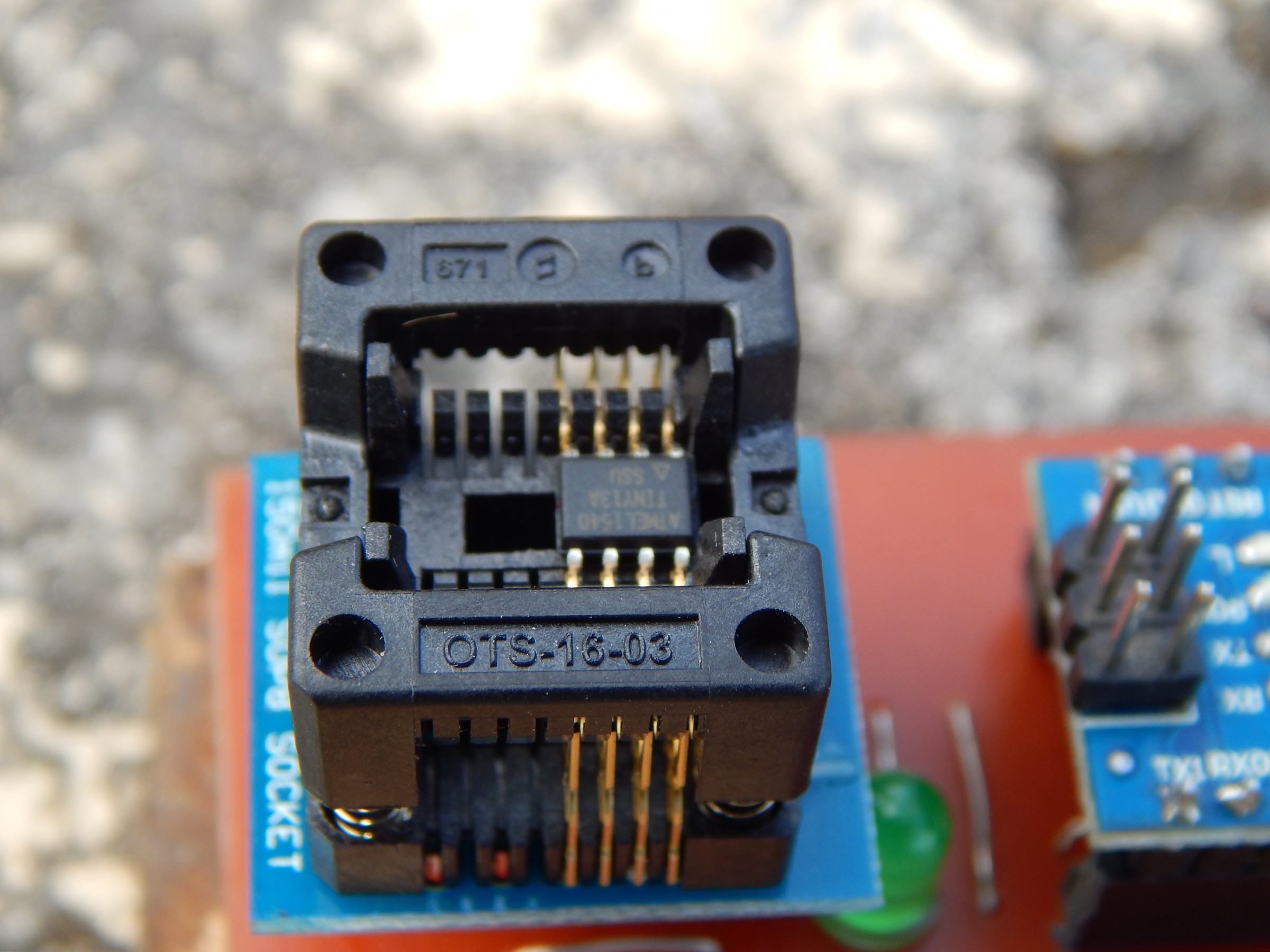

• Your PCB is Competed Your PCB will Look Something like This
