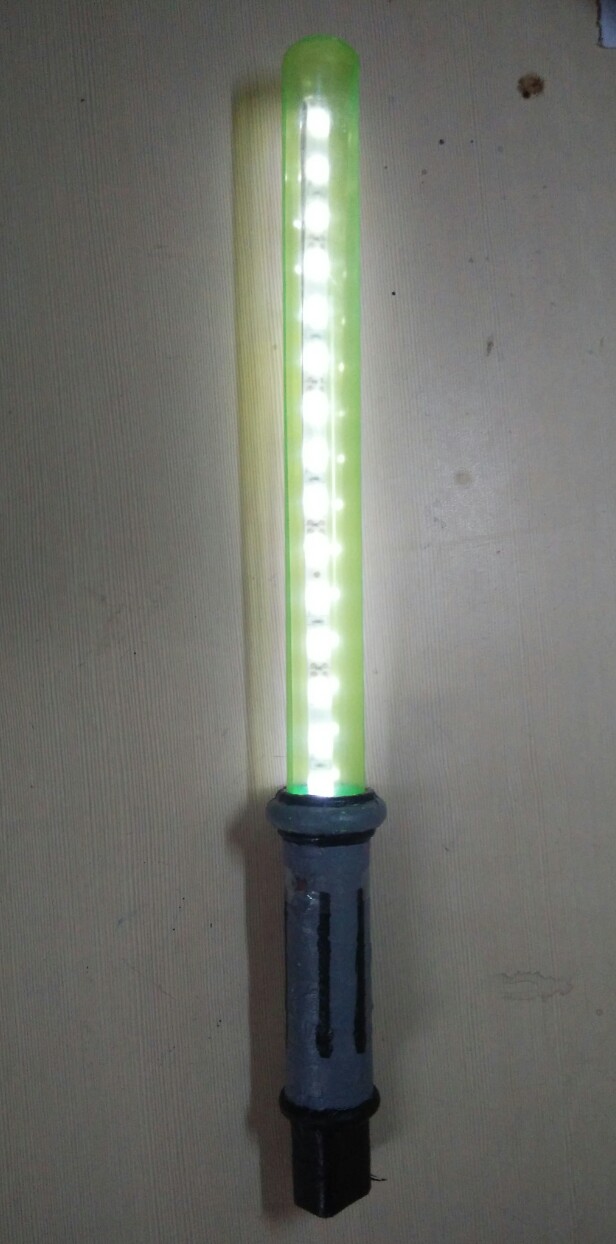

Easy Light Saber Using Old Bubbles Toy

I think there are many who like Star wars because of the Light saber. At least I do.

I always wanted one, but was not available... now it is easily available, but I wanted to make it.....

So in this instructable, I will share how to recycle old toys and make one, with simple parts to get.

Material
- Bubbles toys ( long tube ones )
- 9v battery
- led strip 50cm
- push button switch
- some wires
- paper tape
- GI wire ( hard metal wire )
- acrylic paint

Tools
- Soldering iron
- Wire cutter
- print brush

The biggest challenge I had was the battery SIZE. How to get inside the handle ?

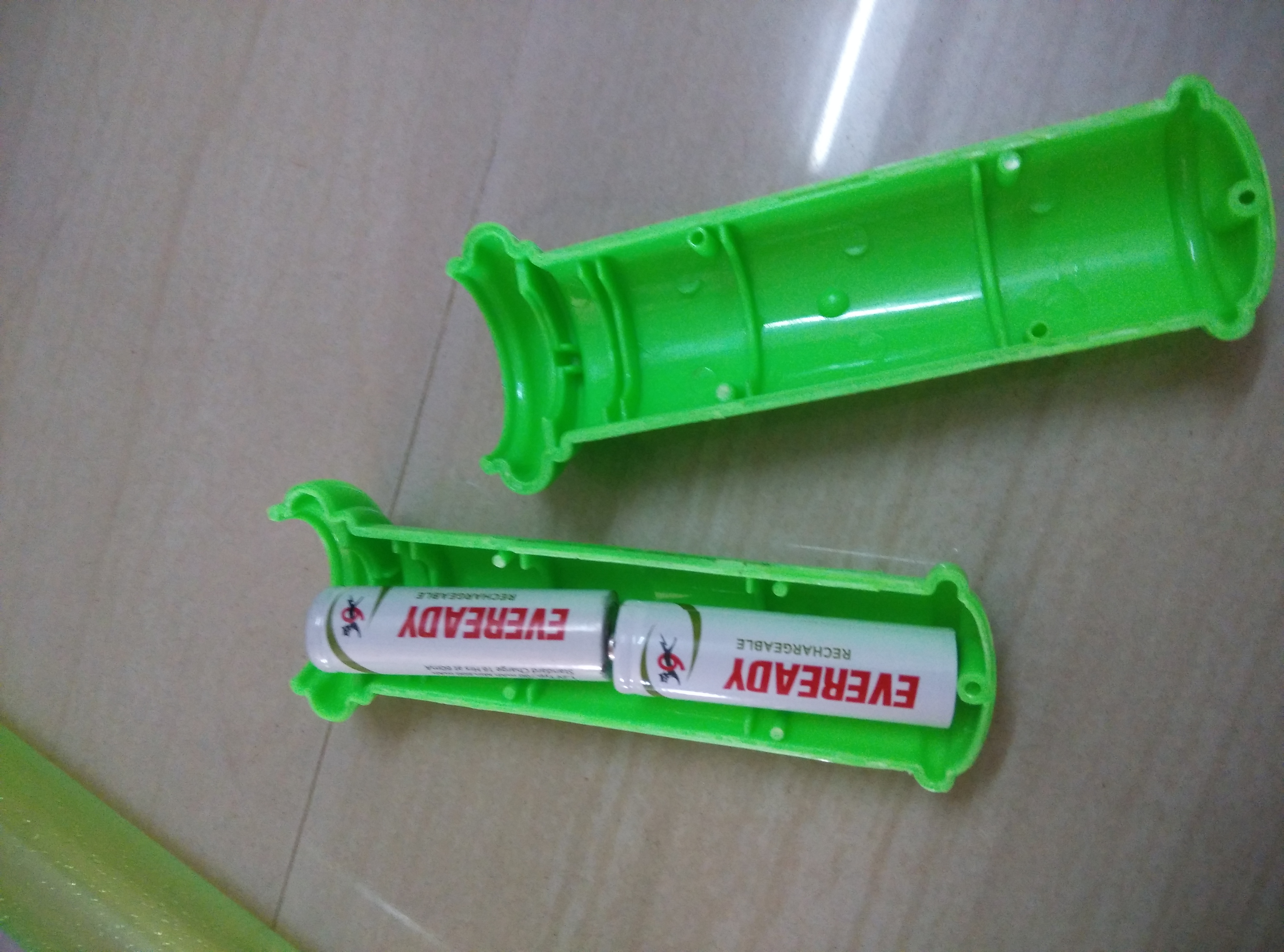

I tried using 2 AA batteries but not enough space. So I fixed it at the buttom where I had just enough space to fit it.

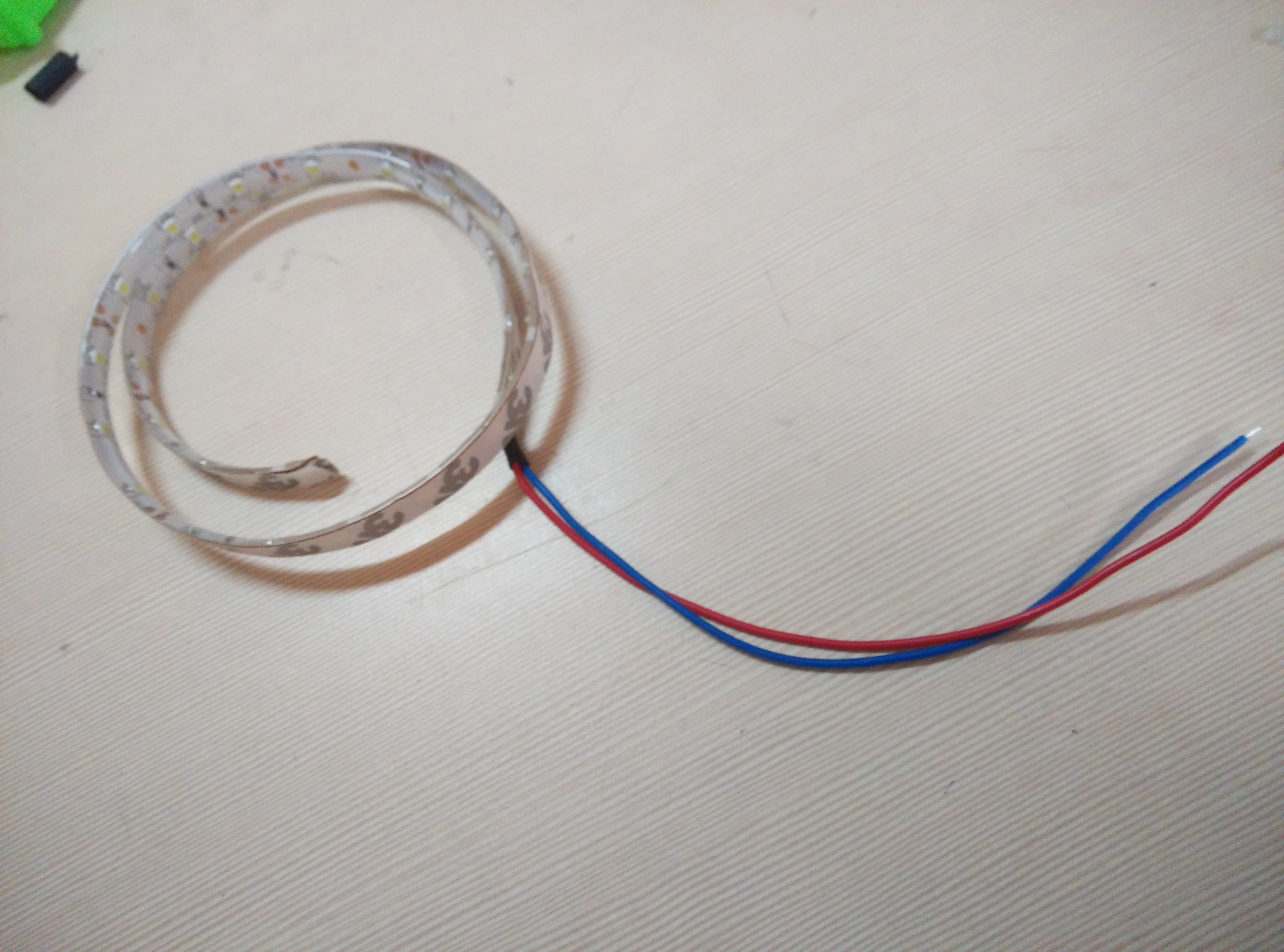

I used a 60 SMD per meter led strip.

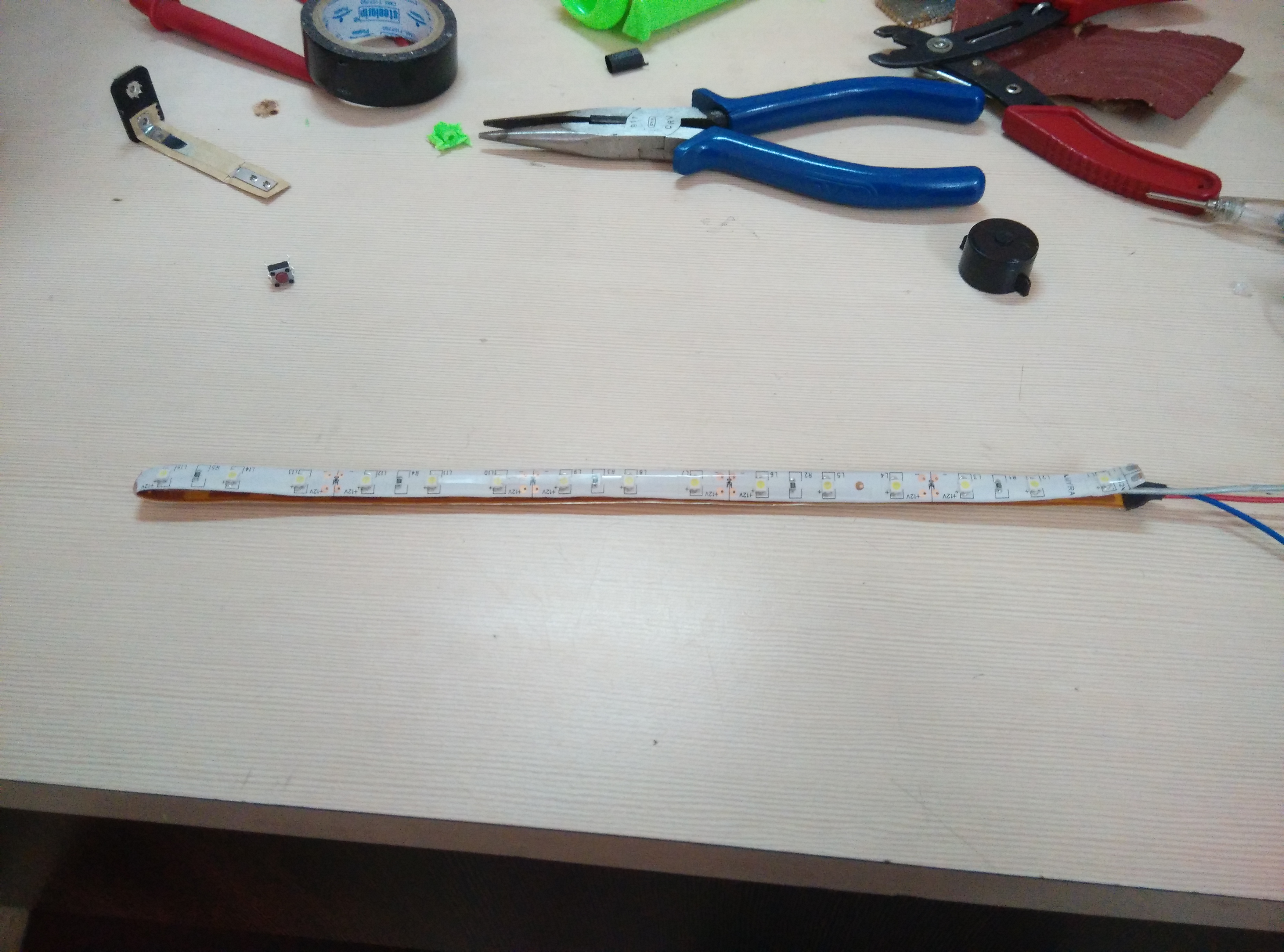

On a hard metallic wire, I secured led strip using some transparent tape.

The lead strip was now in a rigid and linear structure.

Solder +ve and - ve of the strip to a battery and a switch

I used a small piece of pcb to solder buttom. This can be then fixed on the handle using a small screw

Place all the components carefully inside the handle and using paper tape cover the handle and battery

There are many designs, based on characters....

I used grey arcylic paying as base color. then tried using a plastic sheet as stencil to make some designs.

The plastic sheet was to thin, the paint did not come out as I wanted.


Happy that my first attempt on stencil was a good learning

I need to fix a way to scatter led light. may be will use butter/tracing paper ...

My kid was happy with this much, so I stopped here....

I took some photos him playing with light saber and setting exposure time as 2 s

Amazing results
