Easy LEGO IPod Dock
this is a fairly simple design for a lego ipod dock that fits most ipods. this design was actually hodge-podged from peices laying around so most of them can be substituted to make it sturdier.
Parts

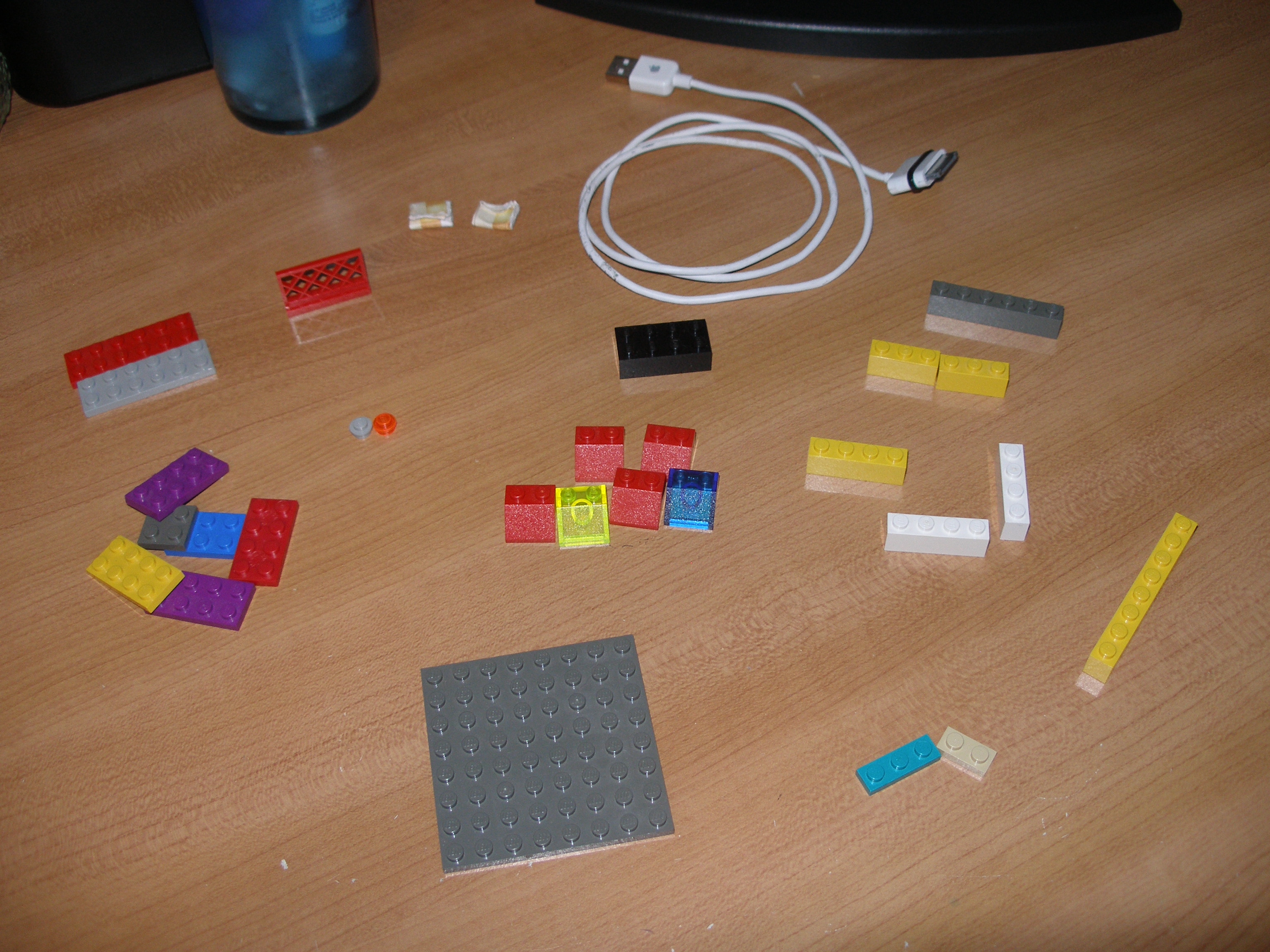

you will need the following LEGO peices.
1x "8x8" THIN base
2x "2x6" THIN brick
5x "2x4" THIN brick***
2x "1x1" THIN dot brick"
1x "1x6" THIN brick***
6x "2x2" regular or slanted brick (i used slanted)
1x "2x4" regular brick
3x "1x4" regular brick
1x "1x8" regular brick
2x "1x6" regular brick
1x specialty fence brick or 1x4 THIN brick... either work
and will also need the followng
1x "iPod dock cable
2x folded paper (these can be made easily with a little trial and error)
1x zip-tie
*** these i actually used different parts for... i listed the ones that would make it the most sturdy***
1x "8x8" THIN base
2x "2x6" THIN brick
5x "2x4" THIN brick***
2x "1x1" THIN dot brick"
1x "1x6" THIN brick***
6x "2x2" regular or slanted brick (i used slanted)
1x "2x4" regular brick
3x "1x4" regular brick
1x "1x8" regular brick
2x "1x6" regular brick
1x specialty fence brick or 1x4 THIN brick... either work
and will also need the followng
1x "iPod dock cable
2x folded paper (these can be made easily with a little trial and error)
1x zip-tie
*** these i actually used different parts for... i listed the ones that would make it the most sturdy***
Prep
add a zip-tie around your ipod connector so the release buttons are held down firmly
The Bottom Parts

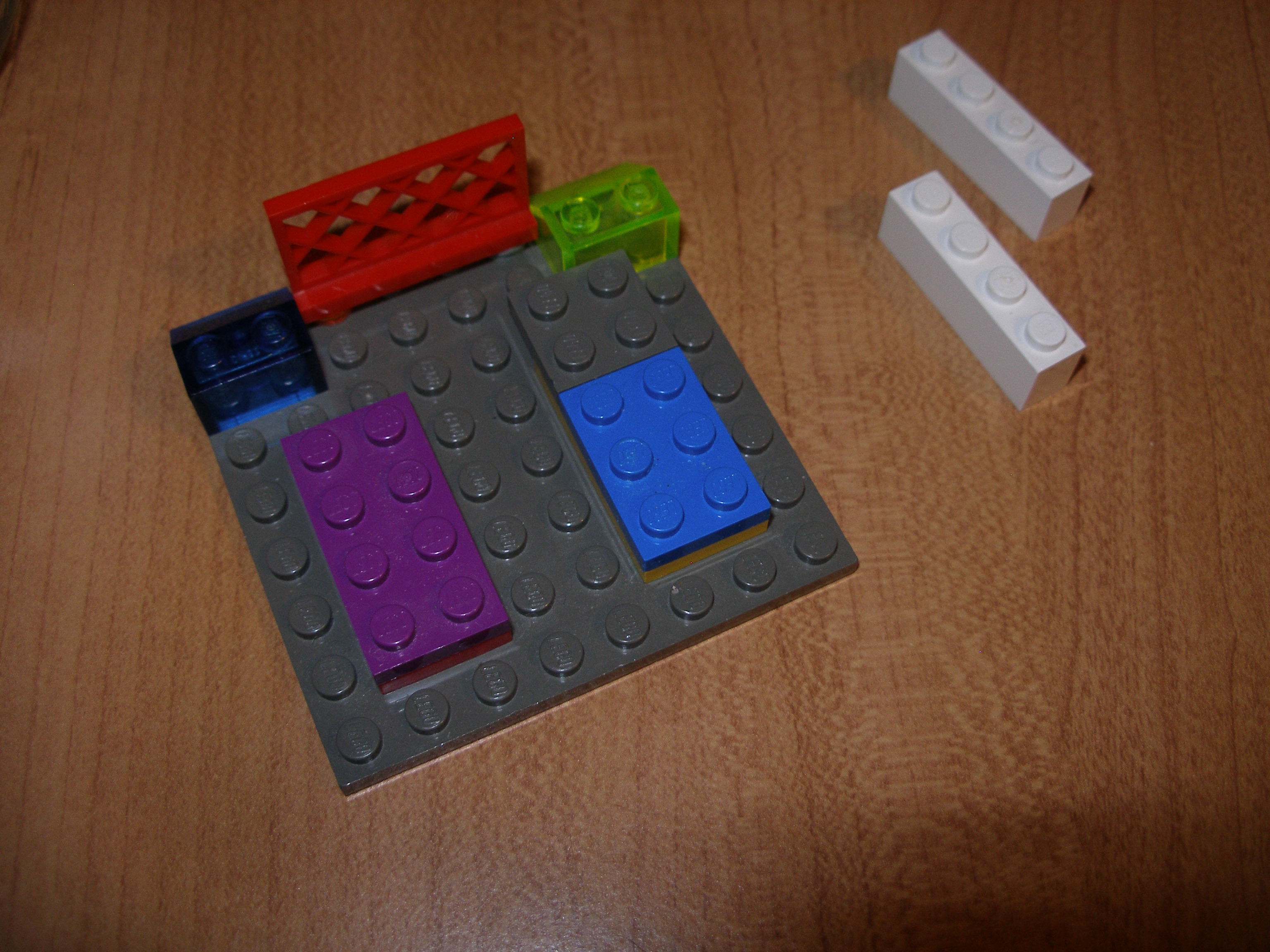

now lets start... the pieces next to the base will be used in the next step/picture

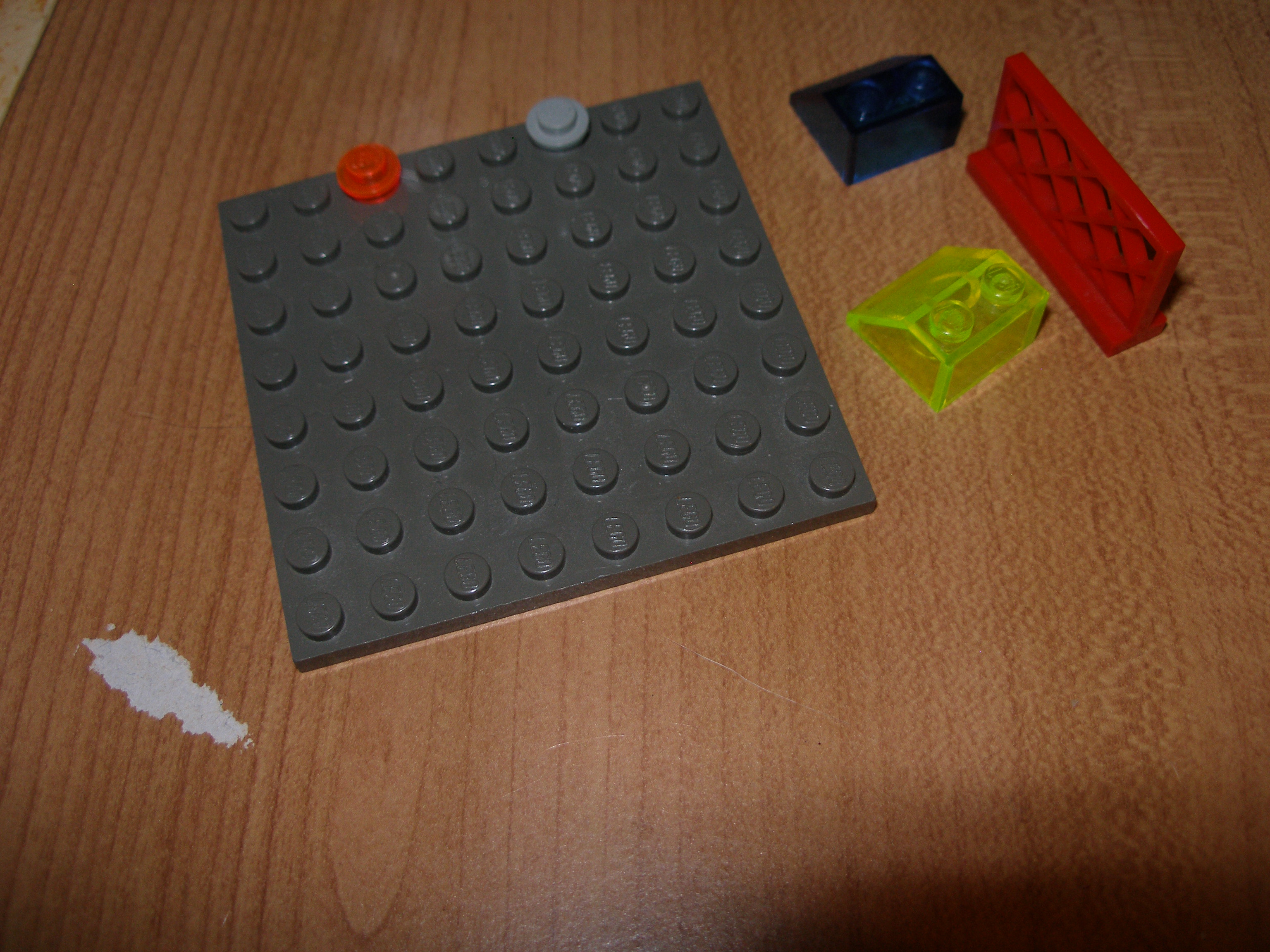

pic 1. start with the two dot pieces and place them on the back evenly spaced...

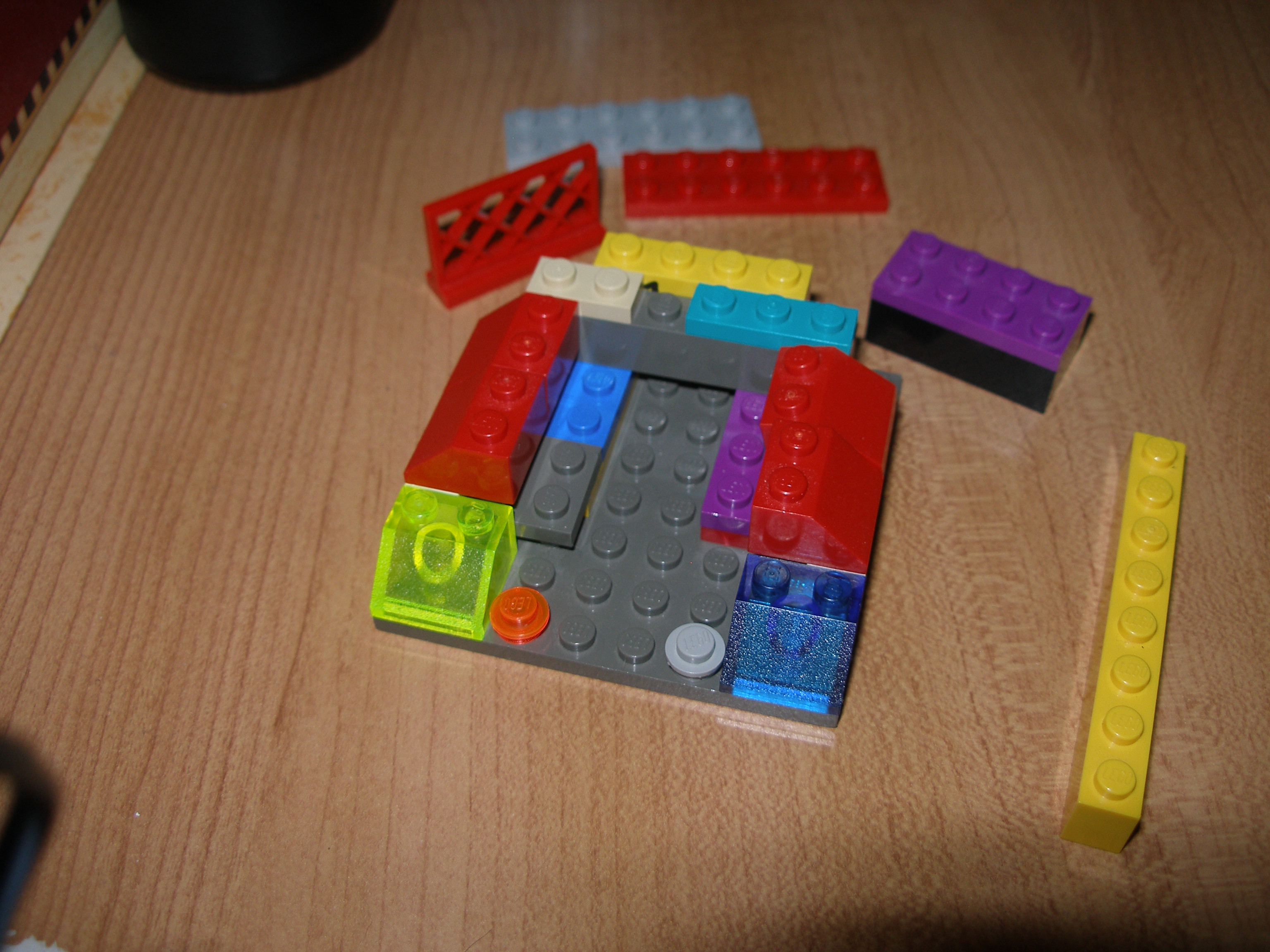

pic 2. place two of the slanted pieces on the outer edges and place the fence piece on top of the dot pieces

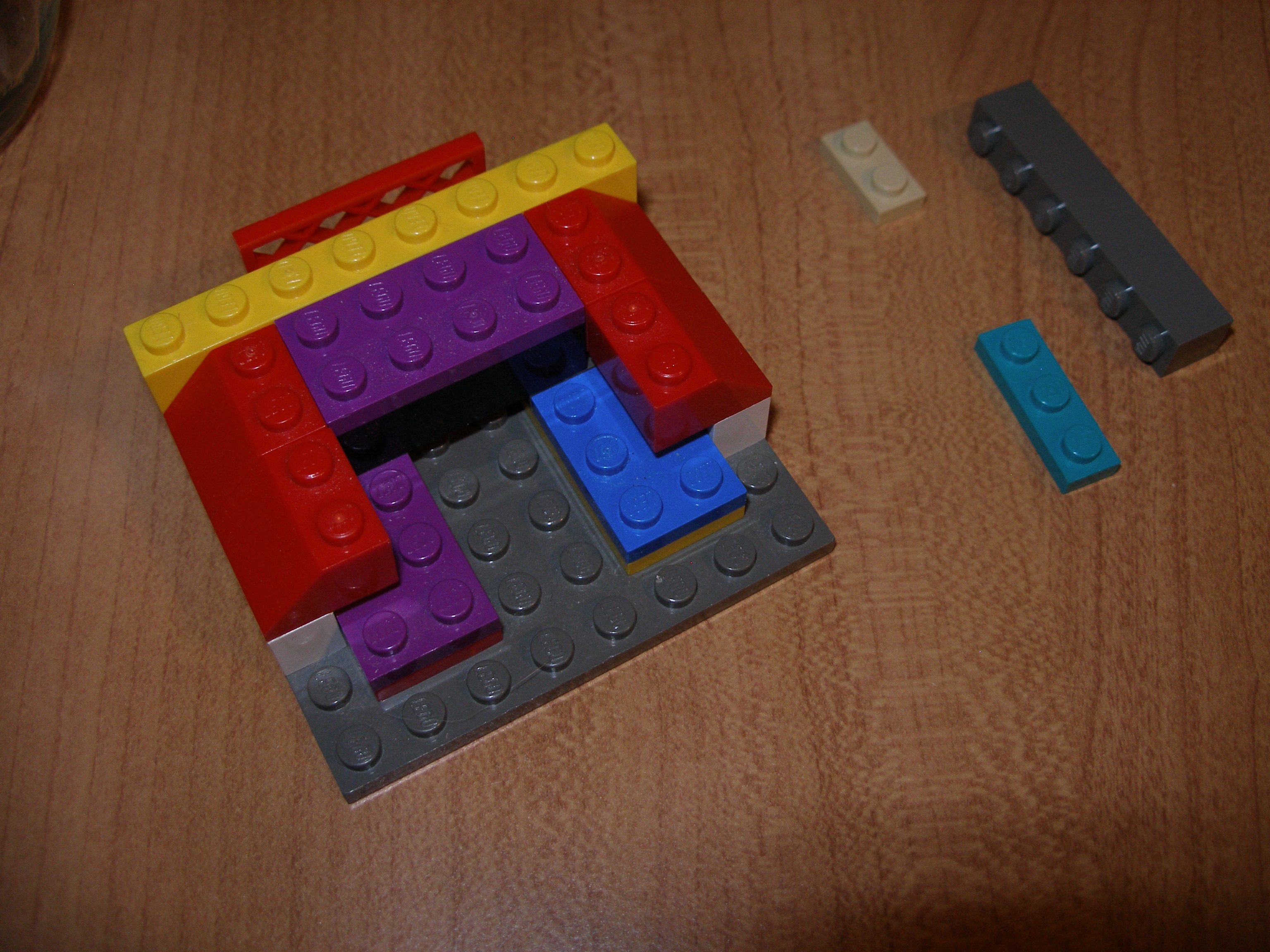

pic 3. take 4 of the 2x4 thin pieces and stack them into two piles of two. place where pictured
pic 4. put the 1x8 piece over the two slanted pieces and then put a 2x4 thin on top of the 2x4 regular and put where pictured and put the two 1x4 pieces on the outer edges where pictured
pic 1. start with the two dot pieces and place them on the back evenly spaced...
pic 2. place two of the slanted pieces on the outer edges and place the fence piece on top of the dot pieces
pic 3. take 4 of the 2x4 thin pieces and stack them into two piles of two. place where pictured
pic 4. put the 1x8 piece over the two slanted pieces and then put a 2x4 thin on top of the 2x4 regular and put where pictured and put the two 1x4 pieces on the outer edges where pictured
The Upper Levels

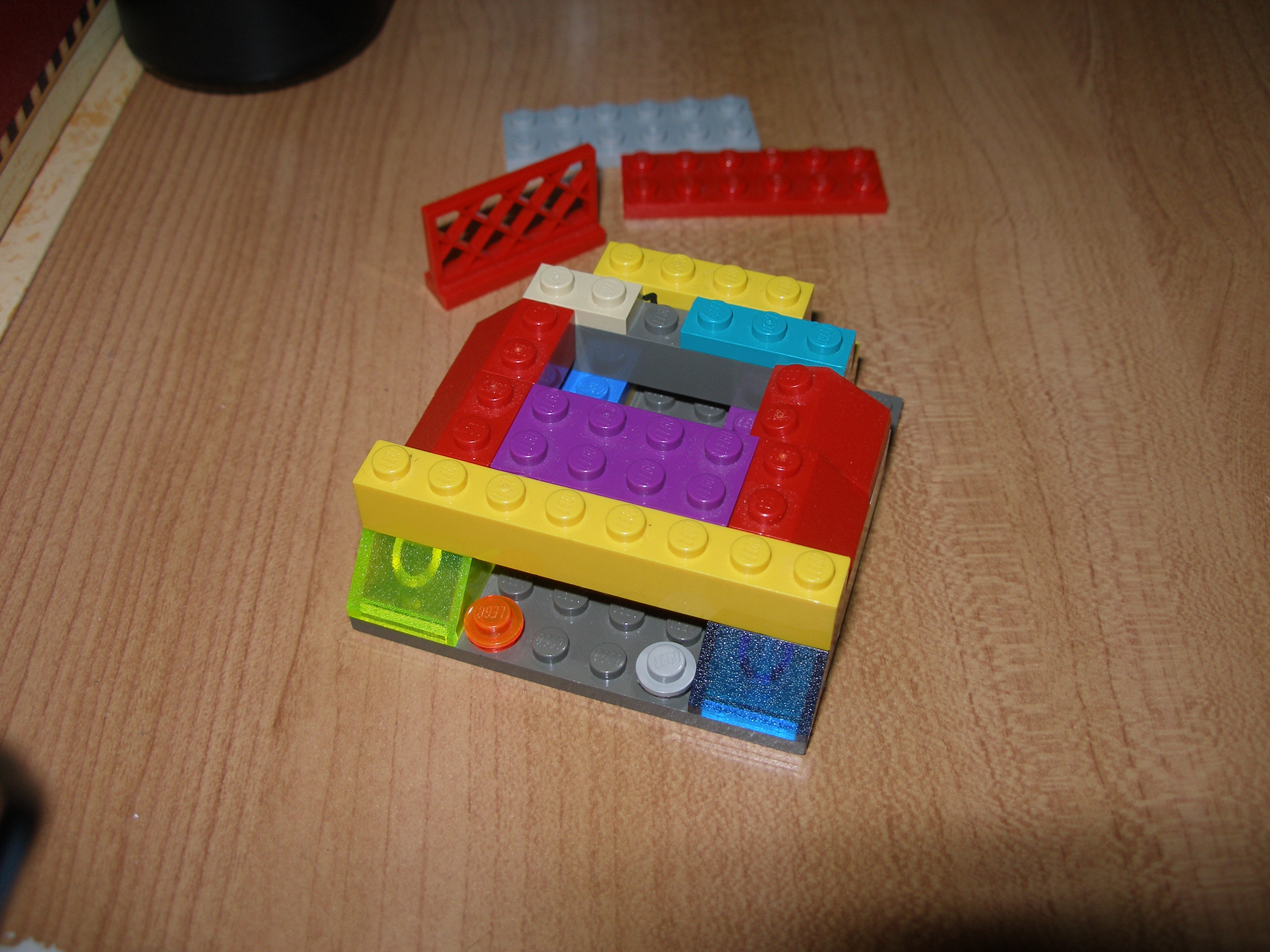

pic 1. add the 2x2 slants where pictured
pic 2. put the 1x6 thin piece on top of the 1x6 regular piece. i hodge-podged this part
pic 3. stack the 1x4 piece on top of the center of the other 1x6 piece and put on the very front.
pic 4. place the two 2x6 thin pieces where pictured.
DONE! now time to add the dock connector.
pic 2. put the 1x6 thin piece on top of the 1x6 regular piece. i hodge-podged this part
pic 3. stack the 1x4 piece on top of the center of the other 1x6 piece and put on the very front.
pic 4. place the two 2x6 thin pieces where pictured.
DONE! now time to add the dock connector.
Adding the Dock

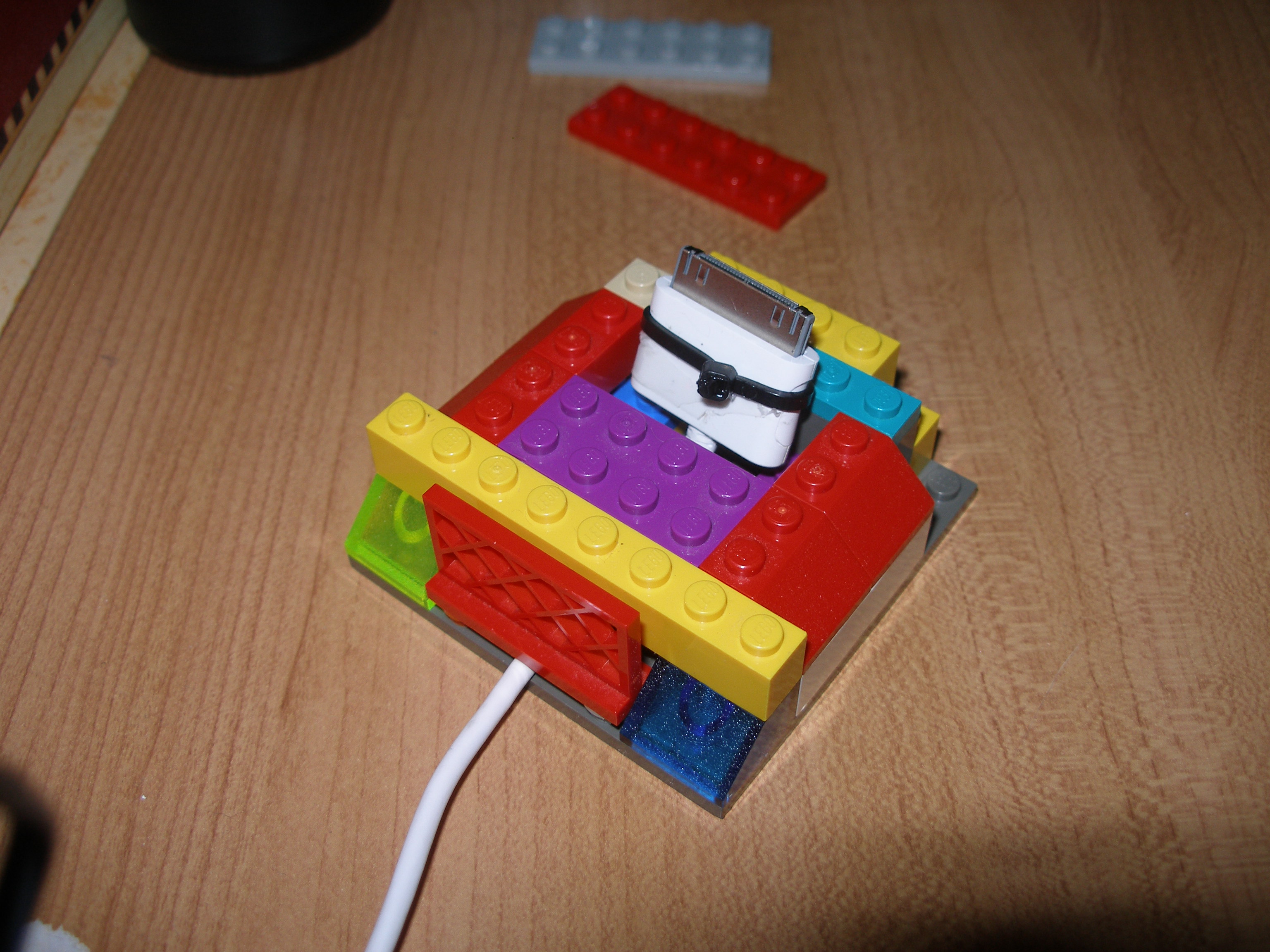

pic 1. completed without the dock
pic 2. remove the fence piece and the two 2x6 thin pieces
pic 3. remove the 2x6 and 2x6 thin combo and the 1x8
pic 4. lay the dock cable down where pictured and then put the fence piece back on top of the dot pieces
pic 5. add the 2x6 combo and the 1x8 back where they were originally.
pic 6. add the paper shims on both sides
pic 7. add 2x6 thin pieces back
pic 2. remove the fence piece and the two 2x6 thin pieces
pic 3. remove the 2x6 and 2x6 thin combo and the 1x8
pic 4. lay the dock cable down where pictured and then put the fence piece back on top of the dot pieces
pic 5. add the 2x6 combo and the 1x8 back where they were originally.
pic 6. add the paper shims on both sides
pic 7. add 2x6 thin pieces back

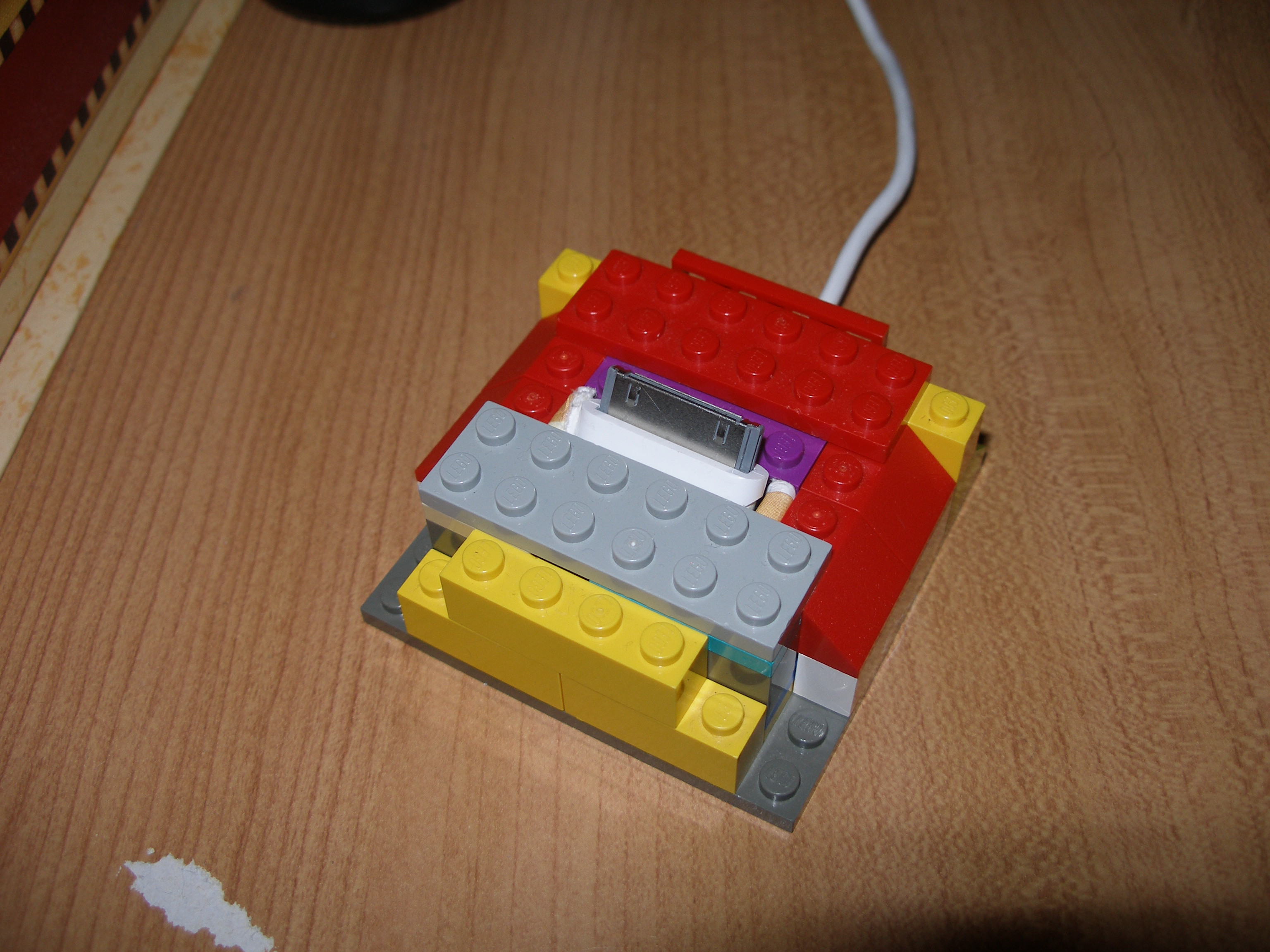

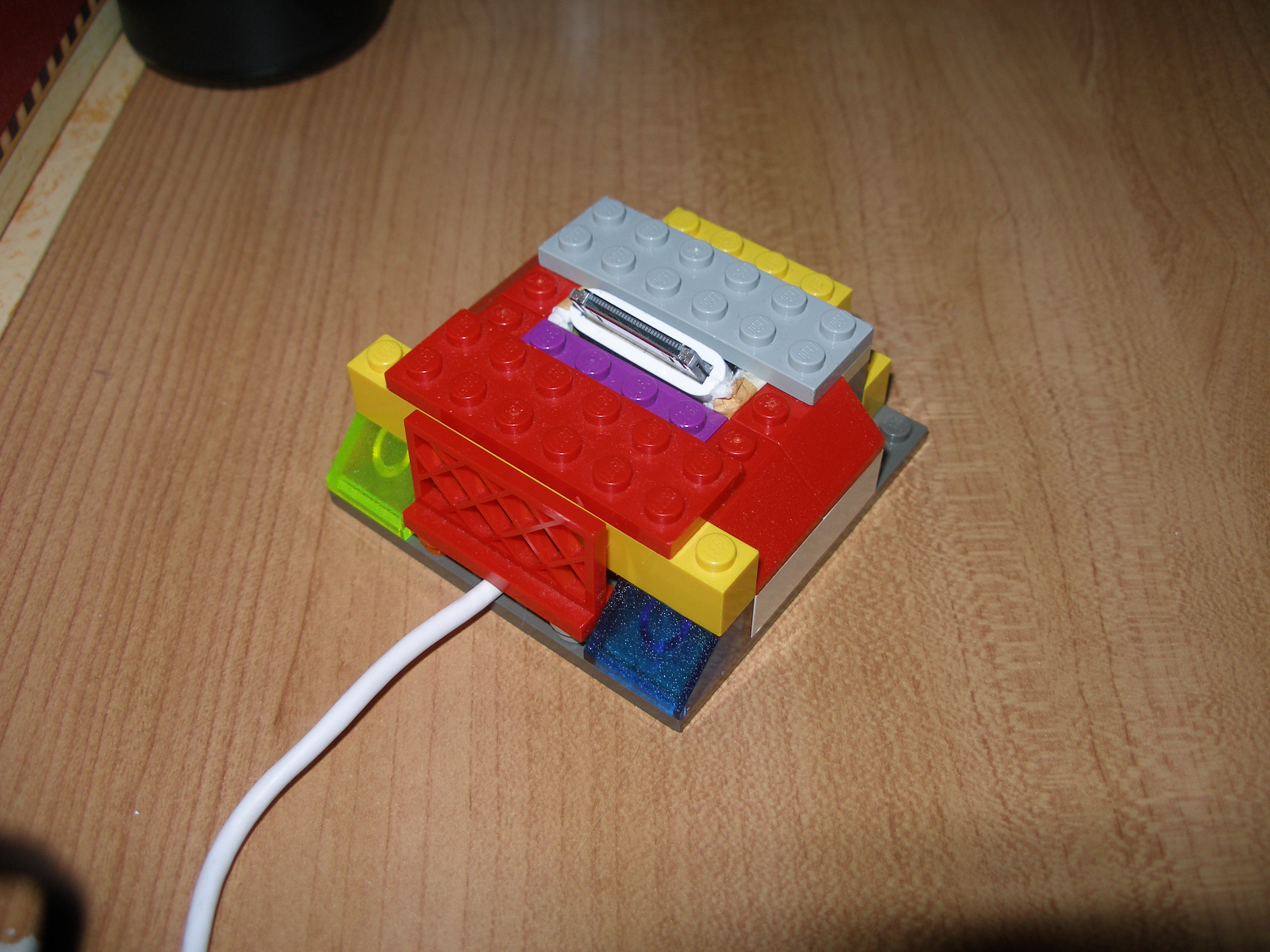

FINISHED!
the final product is a somewhat sturdy dock that can be easily rebuilt
