Easiest Scrap Microscope for Mobile


Ive always been fascinated about the macro world. And that available as easy as in a mobile is quite interesting for many. Ive managed to make it with things you probably find lying around.

What you need:

1.Tape (wrote that just to fill up the page xD)

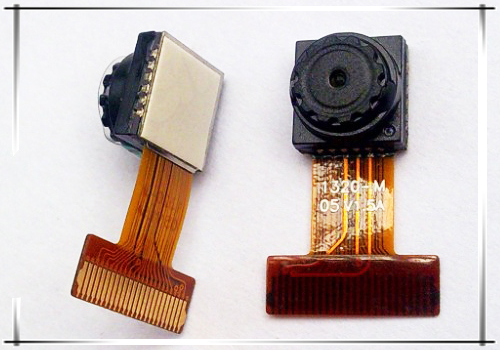

2.An old device, any device with a camera, can be an old nokia phone or scrap webcam, no matter how low the megapixel is. Basically we just need something like this:

DULCII-For-Huawei-Nexus-6P-Nexus6P-Front-Facing-Back-Big-Rear-Camera-Module-Spare-Smartphone-Replace.jpg_640x640.jpg

First we need to take out the lens from the scrap camera.

Probably may sound like professional work,

Most of you know how to remove a screw right? Its actually just easy as that.

See that gear like plastic thing (In picture) just rotate that anticlockwise, it should come off just like a screw would.

**I did it with my teeth, I'm pretty sure there's no use posting a video of that**


You'll get something like this:

IMG_20180401_153048 (1).jpg

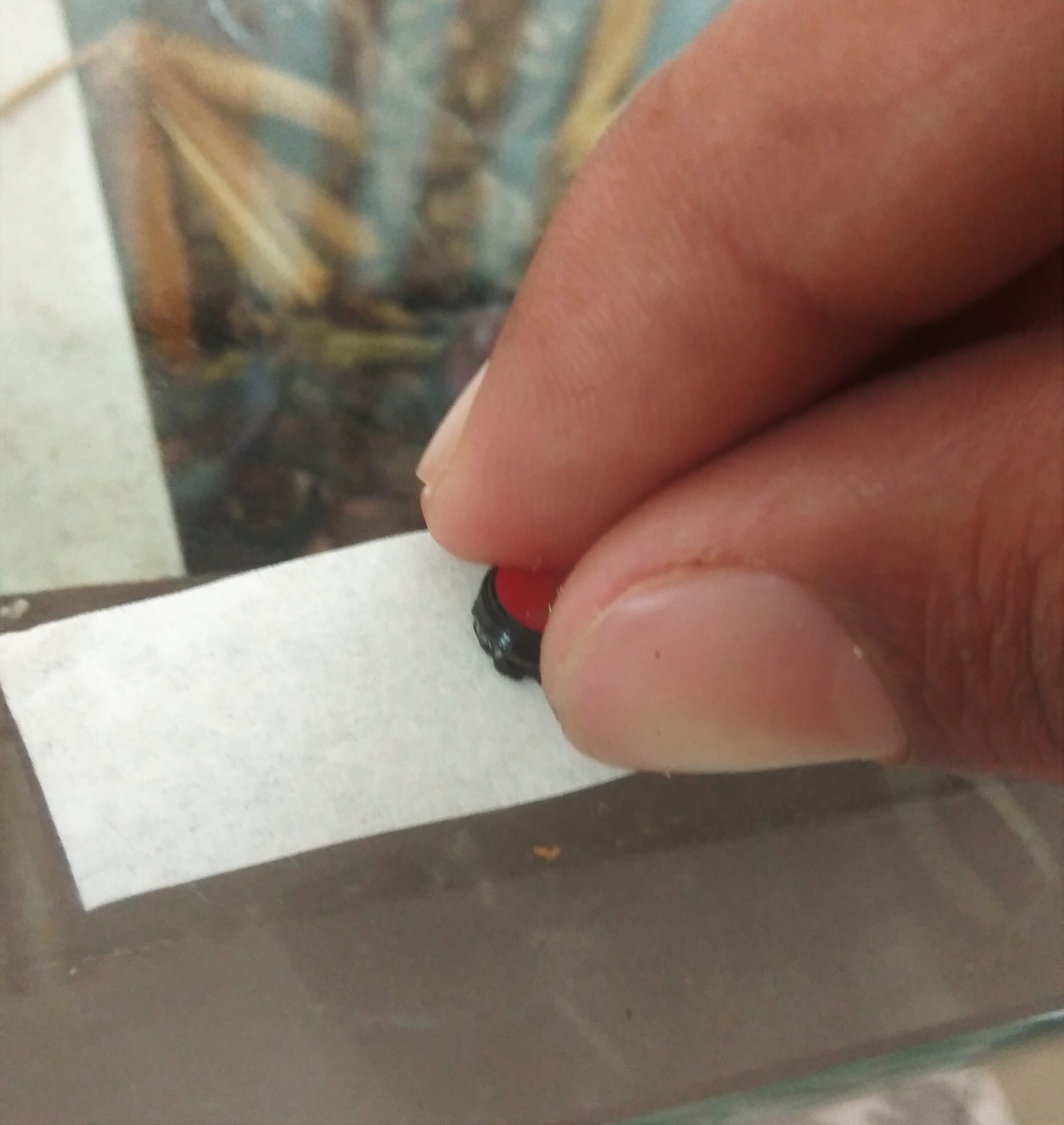

Take a Tape, Put a hole, Stick the front face of the lens onto the hole,Land it on your phone camera

Start Shooting!


Shoot!

This is my first instructable, Hope people dont hate it :))

BTW some shots:
