ESPboy DIY - Retro Gaming and Software Development Multi-tool
by ESPboy in Circuits > Gadgets
8316 Views, 8 Favorites, 0 Comments
ESPboy DIY - Retro Gaming and Software Development Multi-tool
![IMG_0756.jpg](/proxy/?url=https://content.instructables.com/FFS/8CQW/KW994I7I/FFS8CQWKW994I7I.jpg&filename=IMG_0756.jpg)
Let's make a simple DIY version of ESPboy -- a multi-tool for retro gaming and software development, using just a few parts for about $8 in 15 minutes.
It will be compatible with the original ESPboy1/ESPboy2 , ESPboy software, ESPboy WebAppStore and AppStore (install "AppStore2 (OTA2)" from WebAppStore to get access to AppStore directly from the ESPboy using WiFi connection).
A detailed description and contacts of the ESPboy project you can find here:
Downloads
Supplies
![brb.png](/proxy/?url=https://content.instructables.com/F02/YUI1/KU18FPS7/F02YUI1KU18FPS7.png&filename=brb.png)

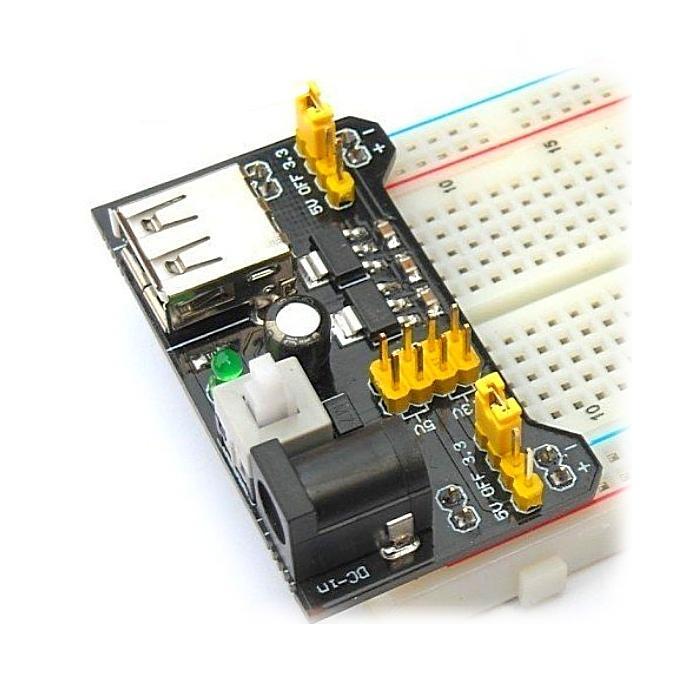

![pwr.jpg](/proxy/?url=https://content.instructables.com/FS4/0TR2/KU18FPS0/FS40TR2KU18FPS0.jpg&filename=pwr.jpg)
![wemos.jpg](/proxy/?url=https://content.instructables.com/FOA/Z20C/KU18FPRY/FOAZ20CKU18FPRY.jpg&filename=wemos.jpg)

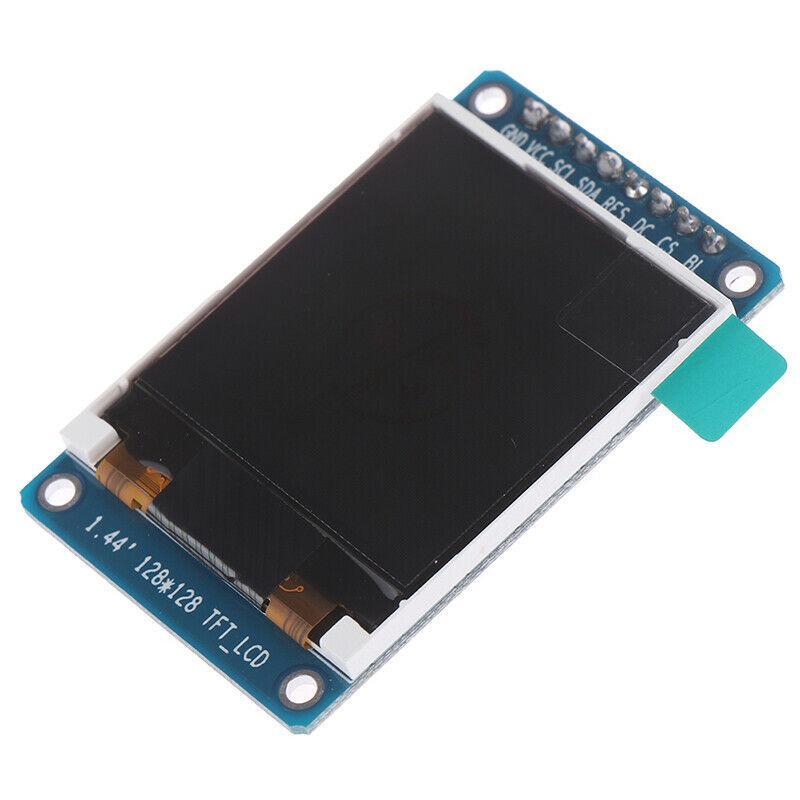

![lcd.jpg](/proxy/?url=https://content.instructables.com/FEG/641D/KU18FPS3/FEG641DKU18FPS3.jpg&filename=lcd.jpg)

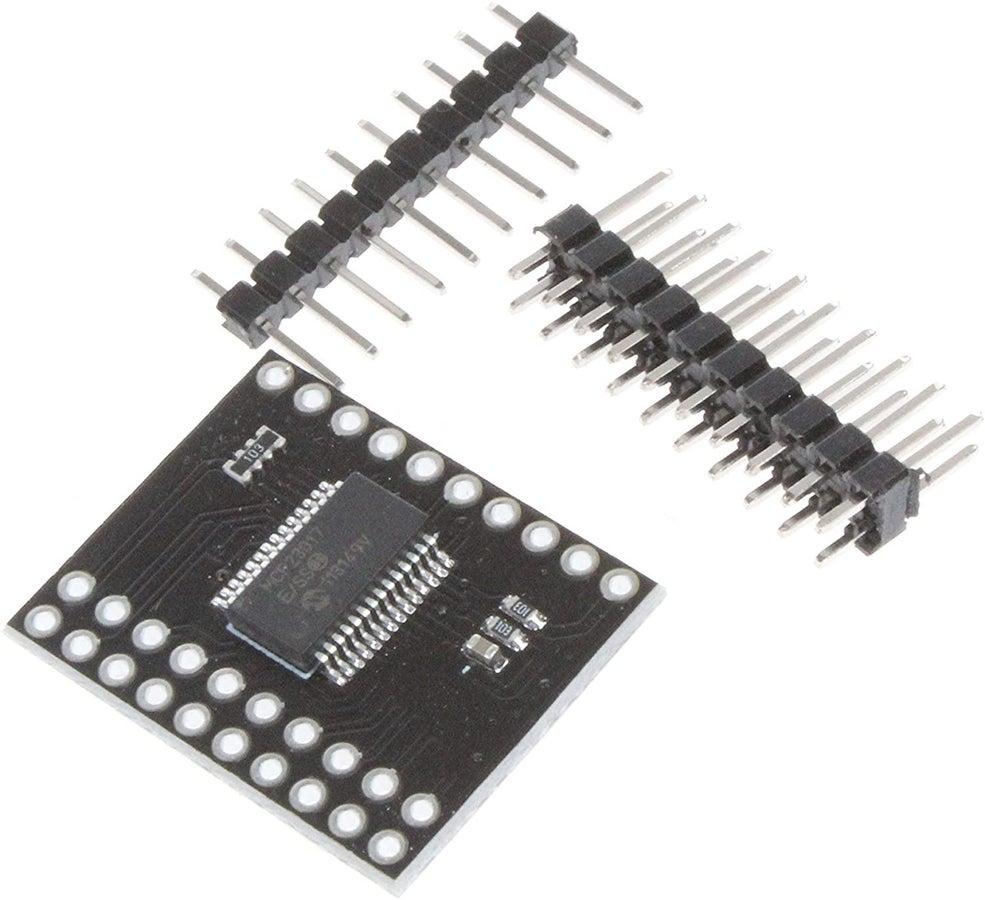

![mcp23017.jpg](/proxy/?url=https://content.instructables.com/FGC/ENSF/KU18FPS1/FGCENSFKU18FPS1.jpg&filename=mcp23017.jpg)
![btn.jpg](/proxy/?url=https://content.instructables.com/FPG/MLRD/KU18FPS6/FPGMLRDKU18FPS6.jpg&filename=btn.jpg)
![spk.jpeg](/proxy/?url=https://content.instructables.com/FYT/WN91/KU18G964/FYTWN91KU18G964.jpg&filename=spk.jpeg)
![wires.jpg](/proxy/?url=https://content.instructables.com/F2O/1E7N/KU18FPRX/F2O1E7NKU18FPRX.jpg&filename=wires.jpg)
DIY ESPboy minimal BOM
Schematic and Parts
![schematic.png](/proxy/?url=https://content.instructables.com/FOX/AL3A/LQXSFX92/FOXAL3ALQXSFX92.png&filename=schematic.png)
Check the schematic and BOM
![IMG_0756.jpg](/proxy/?url=https://content.instructables.com/FQT/2U16/KW994IBL/FQT2U16KW994IBL.jpg&filename=IMG_0756.jpg)
Connect according to schematic above
Upload the ESPboy Softwre
![Снимок экрана 2021-11-21 в 23.38.03.png](/proxy/?url=https://content.instructables.com/F7L/79TB/KW994JYP/F7L79TBKW994JYP.png&filename=Снимок экрана 2021-11-21 в 23.38.03.png)
You can upload software using Arduino IDE ESPboy software (chose WeMos D1 board in Arduino IDE settings menu)
or with the help of ESPboy webApp uploader from the Chrome browser
