ESP8266 Solenoid Water Valve With Leak Sensor

This is a small project for home assistant that can monitorize the home water supply if a leak is detected. Also, the valve can be turned on/off by sending a mqtt payload.

Supplies used:

WEMOS D1 Mini

HK19F DPDT Relay

Bicolor led R/G (common anode)

2 1K resistors

3 NPN Transistors (BC549C)

1 PNP Transistor

Jump wires

Breadboard

Solenoid pulse valve

For all my esp8266 cips i use the stored WIFI credentials for a faster connection to network. This is realy good when your esp is using the sleep mode so you need to be awake at lowest times as possible. For this project i did not remove the RTC saving credentials for network, not very usefull, but let them there.

How the code works:

Its use 2 mqtt topics.

topic_state : to send and receive the valve status.

topic_alert: on this topic the leak sensor send alert if there is any leakage

On topic_alert, the valve send every second the sensor condition state, dry or wet. The leak sensor can be created from two wires that are close enough.

The sketch:

#include <ESP8266WiFi.h>
#include <Wire.h>
#include <PubSubClient.h>


#define WLAN_SSID "******"
#define WLAN_PASSWD "*********"
#define mqtt_client "ESP8266-valve-1"
#define mqtt_server "*******"
#define mqtt_user "******"
#define mqtt_password "********"

#define topic_state "esp/leak_bathroom/state"
#define topic_alert "esp/leak_bathroom/alert"



#define SensorPin 0 // D3
int ledPinOn = 14; //---D5
int ledPinOff = 12; //---D6
int pulsePin = 13; // d7

WiFiClient espClient;
PubSubClient client(espClient);


struct {
  uint32_t crc32; // 4 bytes
  uint8_t channel; // 1 byte,   5 in total
  uint8_t bssid[6]; // 6 bytes, 11 in total
} rtcData;

long lastMsg = 0;
String   state = "off";
String   alert = "off";

uint32_t calculateCRC32(const uint8_t* data, size_t length)
{
  uint32_t crc = 0xffffffff;
  while (length--) {
    uint8_t c = *data++;
    for (uint32_t i = 0x80; i > 0; i >>= 1) {
      bool bit = crc & 0x80000000;
      if (c & i) {
        bit = !bit;
      }

      crc <<= 1;
      if (bit) {
        crc ^= 0x04c11db7;
      }
    }
  }
  return crc;
}

void setup() {
  Serial.begin(9600);
  Serial.setTimeout(2000);
  while (!Serial) {
  }
  Serial.println();
  // pinMode(A0, INPUT);
  pinMode(ledPinOn, OUTPUT);
  pinMode(ledPinOff, OUTPUT);
  pinMode(pulsePin, OUTPUT);
  digitalWrite(ledPinOn, LOW);
  digitalWrite(ledPinOff, HIGH);
  digitalWrite(pulsePin, LOW);


  // Try to read WiFi settings from RTC memory
  bool rtcValid = false;
  if (ESP.rtcUserMemoryRead(0, (uint32_t*)&rtcData, sizeof(rtcData))) {
    // Calculate the CRC of what we just read from RTC memory, but skip the first 4 bytes as that's the checksum itself.
    uint32_t crc = calculateCRC32(((uint8_t*)&rtcData) + 4, sizeof(rtcData) - 4);
    if (crc == rtcData.crc32) {
      rtcValid = true;
    }
  }
  if (rtcValid) {
    Serial.println("The RTC data is good, make a quick connection");
    WiFi.begin(WLAN_SSID, WLAN_PASSWD, rtcData.channel, rtcData.bssid, true);
  }
  else {
    Serial.println("The RTC data was not valid, so make a regular connection");
    WiFi.begin(WLAN_SSID, WLAN_PASSWD);
  }
  Serial.print("Connecting to ");
  Serial.println(WLAN_SSID);
  int retries = 0;
  int wifiStatus = WiFi.status();
  while (wifiStatus != WL_CONNECTED) {
    retries++;
    if (retries == 100) {
      Serial.println("Quick connect is not working, reset WiFi and try regular connection");
      WiFi.disconnect();
      delay(10);
      WiFi.forceSleepBegin();
      delay(10);
      WiFi.forceSleepWake();
      delay(10);
      WiFi.begin(WLAN_SSID, WLAN_PASSWD);
    }
    if (retries == 600) {
      Serial.println("Giving up after 30 seconds and going back to sleep");
      // Giving up after 30 seconds and going back to sleep
      WiFi.disconnect(true);
      delay(1);
      WiFi.mode(WIFI_OFF);
      ESP.deepSleep(0);
      return; // Not expecting this to be called, the previous call will never return.
    }
    delay(50);
    wifiStatus = WiFi.status();
  }
  Serial.print("Connecting to: ");
  Serial.println(WLAN_SSID);
  Serial.print(" Connected ");
  Serial.println(WiFi.localIP());
  Serial.print("Connecting to MQTT...");
  client.setServer(mqtt_server, 1883);
  if (client.connect(mqtt_client, mqtt_user, mqtt_password)) {
    Serial.println("connected");
    delay(50);
    client.publish(topic_state, "reset");
    client.subscribe(topic_state);
    client.setCallback(callback);
  }
  else {
    Serial.print("failed, rc=");
    Serial.print(client.state());
    Serial.println("will try again in 5 seconds");
    delay(5000);
  }

  // Write current connection info back to RTC
  rtcData.channel = WiFi.channel();
  memcpy(rtcData.bssid, WiFi.BSSID(), 6);
  rtcData.crc32 = calculateCRC32(((uint8_t*)&rtcData) + 4, sizeof(rtcData) - 4);
  ESP.rtcUserMemoryWrite(0, (uint32_t*)&rtcData, sizeof(rtcData));
}


void loop() {
  if (!client.connected()) {
    reconnect();
  }

  client.loop();
  long now = millis();
  if (now - lastMsg > 3000) {
    lastMsg = now;
    if (digitalRead(SensorPin) == 1) {
      Serial.println("dry");
      client.publish(topic_alert, "off");
    } else {
      Serial.println("wet");
      client.publish(topic_alert, "on");
    }
  }
}

void callback(char* topic, byte* payload, unsigned int length) {
  //Serial.print("Message arrived in topic: ");
  //Serial.println(topic_state);
  String messageTemp;
  for (int i = 0; i < length; i++) {
    messageTemp = messageTemp + String((char)payload[i]);
  }
  //Serial.println(messageTemp); // Print out messages.
  Serial.print("Valva de apa este:");
  if (messageTemp == "on") {
    Serial.println(" pornita");
    digitalWrite(ledPinOn, HIGH);
    digitalWrite(ledPinOff, LOW);
    //////////////// send 2 second pulse to relay
    digitalWrite(pulsePin, HIGH);
    delay(1000);
    digitalWrite(pulsePin, LOW);
  }
  else if (messageTemp == "off") {
    Serial.println(" oprita");
    digitalWrite(ledPinOn, LOW);
    digitalWrite(ledPinOff, HIGH);
    //////////////// send 2 second pulse to relay
    digitalWrite(pulsePin, HIGH);
    delay(1000);
    digitalWrite(pulsePin, LOW);
  }
}
void reconnect() {
  while (!client.connected()) {
    Serial.print("Restore MQTT connection...");
    if (client.connect(mqtt_client, mqtt_user, mqtt_password)) {
      Serial.println("reconnected");
      client.subscribe(topic_state);
    } else {
      Serial.print("failed, rc=");
      Serial.print(client.state());
      Serial.println(" try again in 5 seconds");
      // Wait 5 seconds before retrying
      delay(5e+6);
    }
  }
}

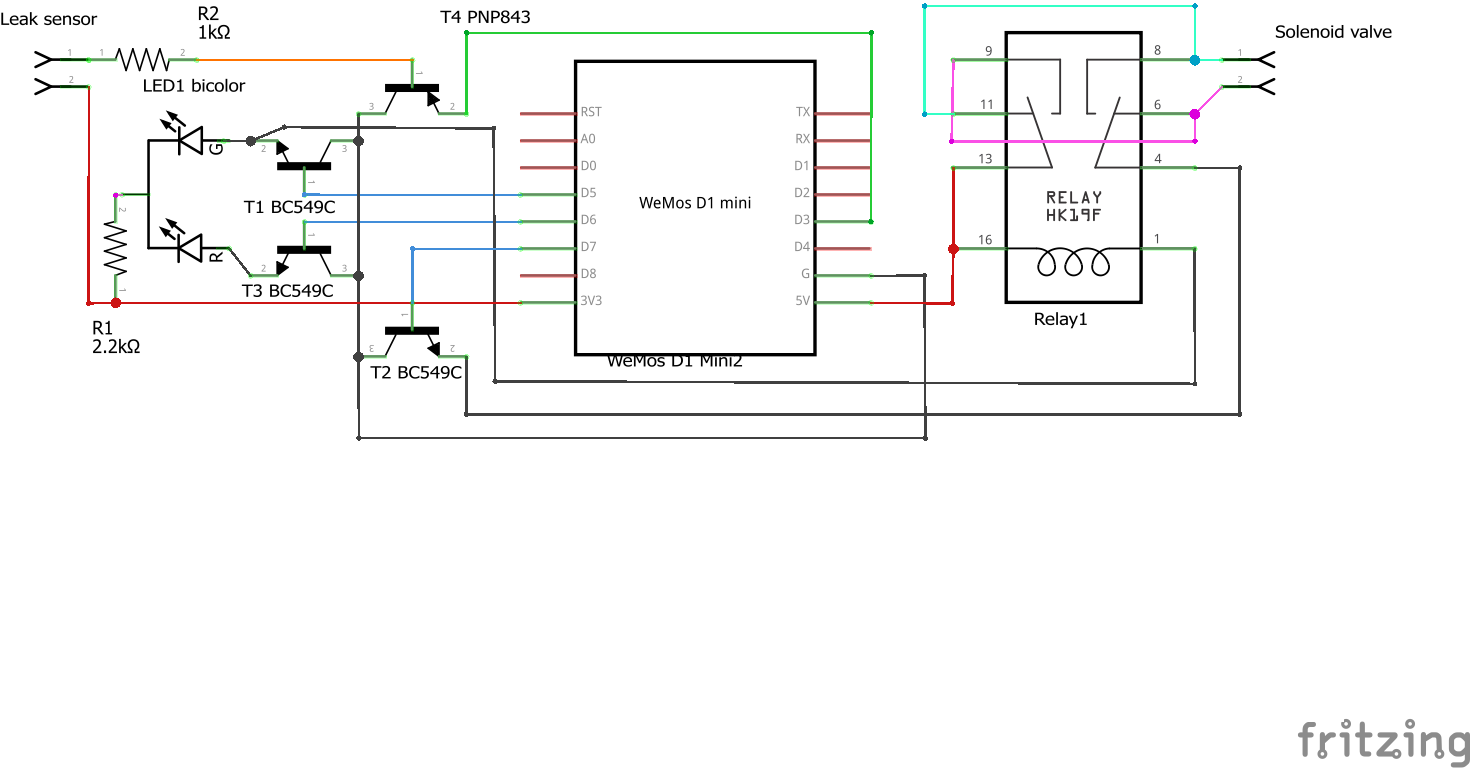

The circuit is not that complicated. Carefully follow the parts and wires positions. Or download the Fritzing file for a better view of connections.

For close or open solenoid valve, we must reverse the polarity, so, we have the DPDP relay. Also, the valve must receive only a pulse so we add a NPN transitor to act as a relay for cutting the voltage on DPDT relay.

The other NPN transistor are used for bicolor led, in order to show the valve status, On/Off. Also, we have a PNP transistor used for leak sensor.

I think in the future we also need to add a battery for this valve, in case of power outage and leak.

have fun creating
