ESP8266 ESP-01 Remote Multi Socket

Hardware :

1. (1) ESP8266 - ESP01

2. (1) Relay 220V (5V Control)

3. (1) Multi Socket

How to make :

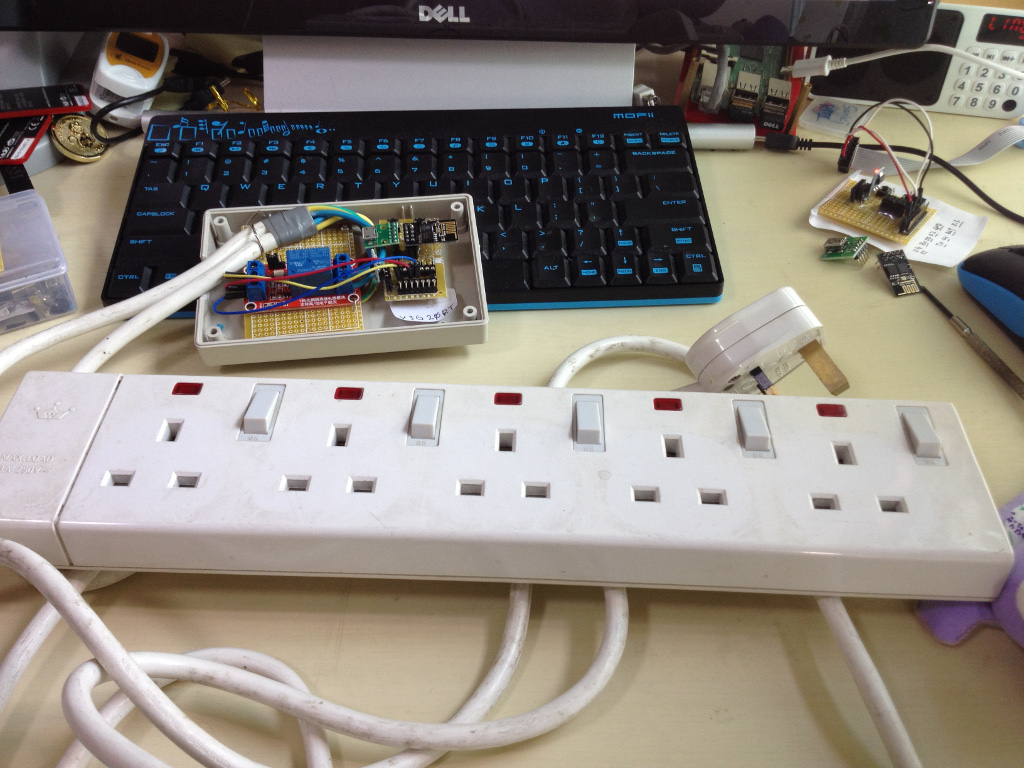

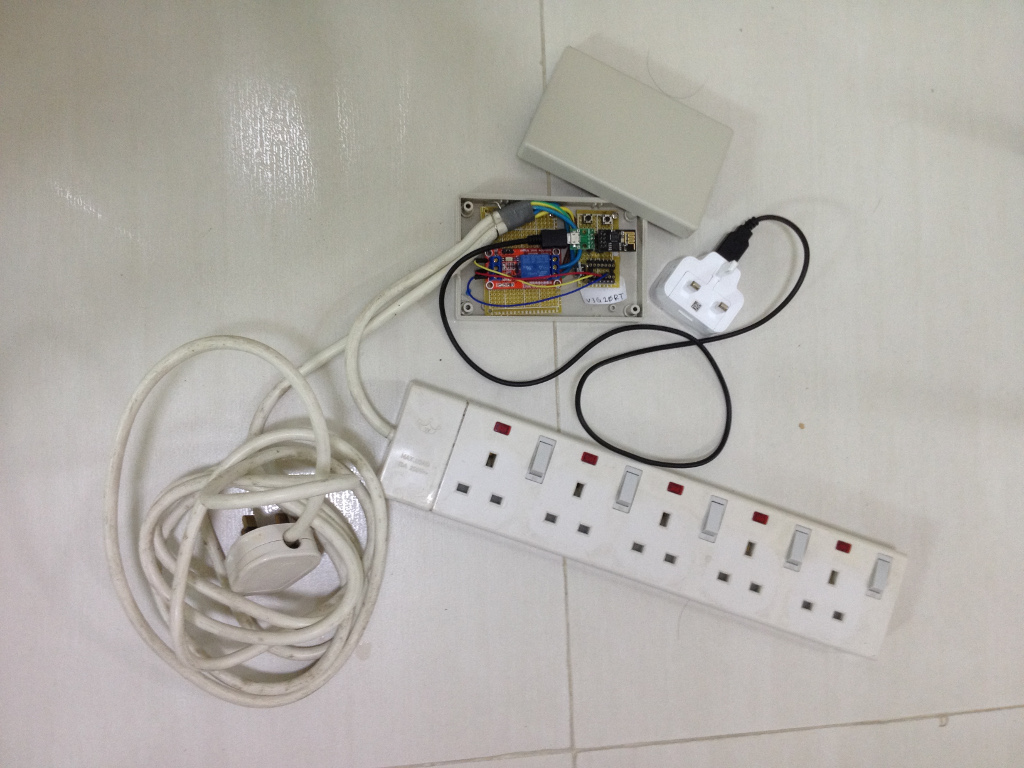

See Above Photo

ESP8266 Programming :

• upload the following code to ESP-01
• Modify SSID and Password
• Modify Home Route Port Following to control it if you are outside.

More Information : iMediaBank - http://www.imediabank.com

<p>/*<br> * SANKI 2016 03 31
 *
 *  This sketch demonstrates how to set up a simple HTTP-like server.
 *  The server will set a GPIO pin depending on the request
 *    <a href="http://server_ip/gpio0" rel="nofollow">  http://server_ip/gpio0  </a> will set the GPIO0 high/low,
 *    <a href="http://server_ip/gpio2" rel="nofollow">  http://server_ip/gpio0  </a> will set the GPIO2 high/low
 *  server_ip is the IP address of the ESP8266 module, will be
 *  printed to Serial when the module is connected.
 *
 *  Before RUN :
 *                Change SSID and Password
 *                Change port number
 *
 */</p><p>#include
#include
#include
#include </p><p>#include </p><p>const char* ssid = "";
const char* password = "";</p><p>ESP8266WebServer server(1102);</p><p>const int led = 0;
String sMessage = "";
void handleNotFound(){
  digitalWrite(LED_BUILTIN , 1);
  String message = "File Not Found\n\n";
  message += "URI: ";
  message += server.uri();
  message += "\nMethod: ";
  message += (server.method() == HTTP_GET)?"GET":"POST";
  message += "\nArguments: ";
  message += server.args();
  message += "\n";
  for (uint8_t i=0; i</p><p>void handleMessage(int gpio0, int gpio2){
  digitalWrite(LED_BUILTIN , 1);</p><p>
  // Prepare the response
  //String s = "HTTP/1.1 200 OK\r\nContent-Type: text/html";
  String s = "\r\n\r\n\r\n
\r\n";
  //s += "
";   // Color Only</p><p>  s += "
";
  s += "
</p><p>";
  s += "</p><p>";

  s += "
";</p>
  s += "";
 // s += "  <div>";
  /*
  s += "GPIO2 is now ";
  s += (val)?"high":"low";
  s += "";
  */

  s += "<p>ESP-01 Relay </p>";
    s += "" + sMessage + "";


      if (gpio0 == 0)
      s += "<p>Relay 0 (gpio 0) OFF</p>";
  else
      s += "<p>Relay 0 (gpio 0) ON</p>";



    if (gpio2 == 0)
      s += "<p>Relay 0 (gpio 2) OFF</p>";
  else
      s += "<p>Relay 0 (gpio 2) ON</p>";

 s += "<p>Reset :  All ONAll OFF</p>";


  //s += "</div>
";<p>  //s += m + "\n";
  s += "</p><p>\n";
  server.send(200, "text/html", s);
  digitalWrite(LED_BUILTIN , 0);
}</p><p>void handleRoot() {
  digitalWrite(LED_BUILTIN , 1);
  //server.send(200, "text/plain", "hello from esp8266! ---- \nTest Port /gpio");
  handleMessage(digitalRead(0), digitalRead(2));
  digitalWrite(LED_BUILTIN , 0);
}</p><p>void handleReset(int onoff) {
  digitalWrite(LED_BUILTIN , 1);
  //server.send(200, "text/plain", "hello from esp8266! ---- \nTest Port /gpio");
  if (onoff == 0) {
    digitalWrite(0, 0);
    digitalWrite(2, 0);
    handleMessage(0 ,0);
  }
  if (onoff == 1) {
    digitalWrite(0, 1);
    digitalWrite(2, 1);
    handleMessage(1, 1);
  }
  digitalWrite(LED_BUILTIN , 0);
}</p><p>String ipToString(IPAddress ip){
  String s="";
  for (int i=0; i<4; i++)
    s += i  ? "." + String(ip[i]) : String(ip[i]);
  return s;
} //- See more at: <a href="http://www.esp8266.com/viewtopic.php?p=25466#sthash.TxIeuo7o.dpuf" rel="nofollow">  http://server_ip/gpio0 ></p><p>void setup(void){
  pinMode(LED_BUILTIN, OUTPUT);
  digitalWrite(LED_BUILTIN, 0);
  Serial.begin(115200);
  WiFi.begin(ssid, password);
  Serial.println("");</p><p>  // Wait for connection
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }</p><p>   server.begin();
  Serial.println("HTTP server started");

  Serial.println("");
  Serial.print("Connected to ");
  Serial.println(ssid);
  Serial.print("IP address: ");
  Serial.println(WiFi.localIP());</p><p>  if (MDNS.begin("esp8266")) {
    Serial.println("MDNS responder started");
  }</p><p>  uint8_t MAC_array[6];
  char MAC_char[18];</p><p>  WiFi.macAddress(MAC_array);

  sprintf(MAC_char, "%02x:%02x:%02x:%02x:%02x:%02x", MAC_array[0],MAC_array[1],MAC_array[2],MAC_array[3],MAC_array[4],MAC_array[5]);
  Serial.print("MAC Address : ");
  Serial.println(MAC_char);</p><p>  sMessage += "[SSID : " + String(ssid) + "] [Server IP : " + ipToString(WiFi.localIP()) + "] [MAC : " + MAC_char + "]";

  // prepare GPIO2
  pinMode(2, OUTPUT);
  digitalWrite(2, 0);
  pinMode(0, OUTPUT);
  digitalWrite(0, 0);</p><p>  server.on("/", handleRoot);</p><p>  server.on("/reseton", [](){
    //server.send(200, "text/plain", "this works as well");
    handleReset(1);
  });</p><p>  server.on("/resetoff", [](){
    //server.send(200, "text/plain", "this works as well");
    handleReset(0);
  });</p><p>  server.on("/gpio2", [](){
    String m = "GPIO 2 : ";
    int val = digitalRead(2);
    if (val == 0) {
      val = 1;
      m += "ON";
    } else {
      val = 0;
      m += "OFF";
    }
    digitalWrite(2, val);
    //server.send(200, "text/plain", m);
    handleMessage(digitalRead(0), val);

  });</p><p>   server.on("/gpio0", [](){
    String m = "GPIO 0 : ";
    int val = digitalRead(0);
    if (val == 0) {
      val = 1;
      digitalWrite(0, 1);
      m += "ON";
    } else {
      val = 0;
      digitalWrite(0, 0);
      m += "OFF";
    }
    //digitalWrite(led, val);
    //server.send(200, "text/plain", m);
     handleMessage(val, digitalRead(2));

  });

  /*
  server.on("/gpio2/0", [](){
    server.send(200, "text/plain", "Turn OFF GPIO 2");
    digitalWrite(2, 0);
  });
  */

  server.onNotFound(handleNotFound);</p><p>
}</p><p>void loop(void){
  server.handleClient();
}</p>
