ESP32C3 Can Run a Mini TV?

Smallest single core @240Mhz max Microcontroller is able to display the pictures with slide show on a capacitive touch 3.5inch SPI display.

Nowadays a new ESP32 MCU is in trend which is known as esp32c3. It comes with a very small form factor and with a low number of pins gives the same power of real esp32. This version is updated and has only one core CPU based on RISC V and BLE. No mean to a use 2 core tensilica @240Mhz with small projects which comes in old ESP32.

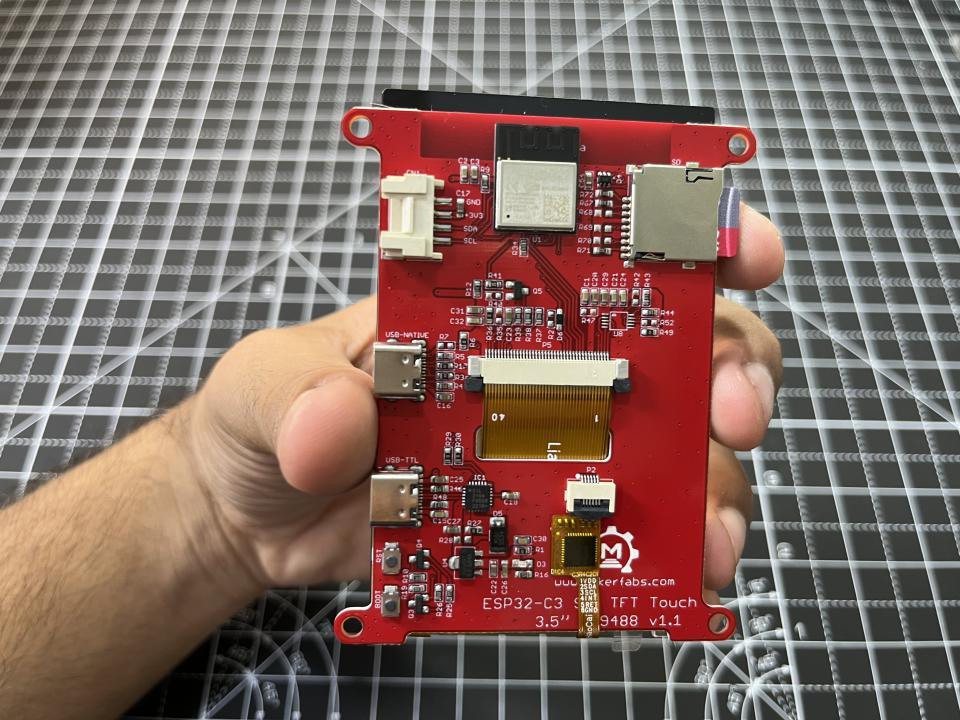

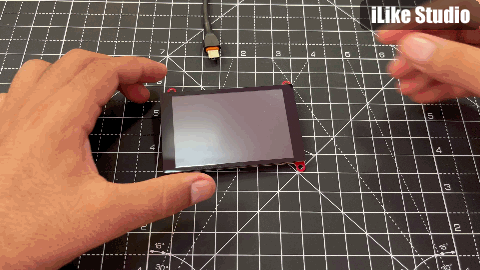

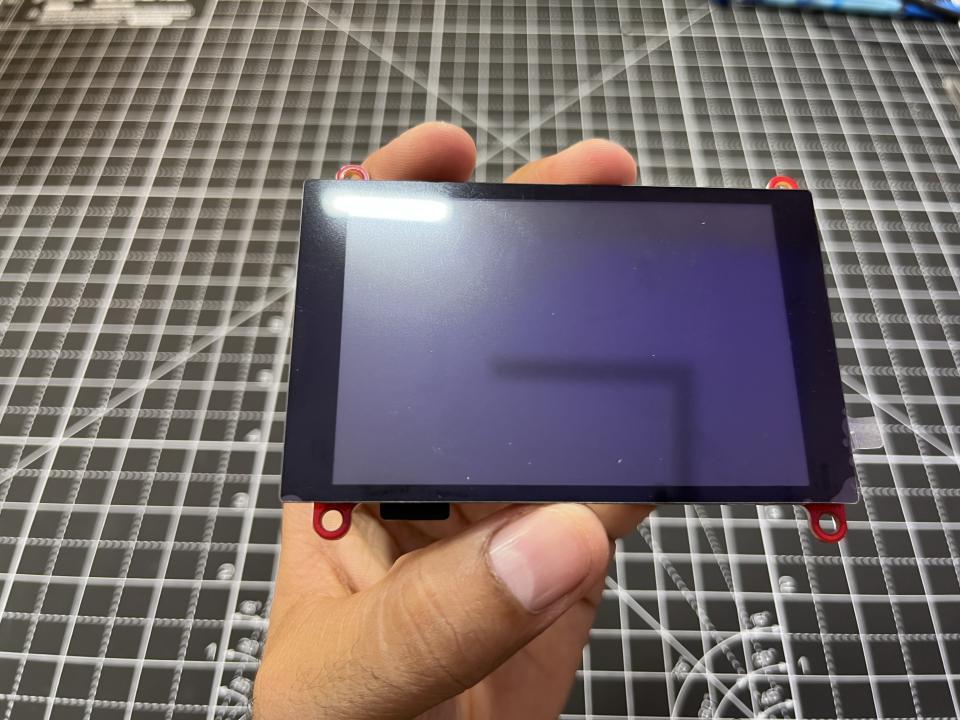

But this is not only about the microcontroller, we have a touch screen-based shield that can be used to provide better user interface. The screen comes from makerfabs open-source environment. It is 3.5 Inch SPI TFT capacitive touch screen which is way faster than any I2C screen. You can find more details regarding firmware from here.

Let’s modify some program to display own photos on this shield. This shield can be used to make a small slideshow of photos. But I am still working on playing GIF and Videos on this. As for now you can download the schematics and Gerber files of the project from the official webpage of makerfabs. You can use JLCPCB PCB prototype and SMT assembly service to make your own shield or buy from here. Sign-up now to JLCPCB and get $54 coupons as new user reward.

Controller: ESP32-C3-MINI-1-N4, 4MB Flash, RISCV-32bit, 160MHz, 400KB SRAM, Bluetooth 5

Wireless: Wi-Fi & Bluetooth 5.0

LCD: 3.5inch TFT LCD

Resolution: 480*320

LCD interface: SPI

LCD Driver: ili9488

Touch Panel: Capacitive

Touch Panel Driver: FT6236

USB: Dual USB Type-C(one for USB-to-UART and one for native USB)

Power Supply: USB Type-C 5.0V(4.0V~5.25V)

Mabee interface: 1*I2

MicroSD: Yes

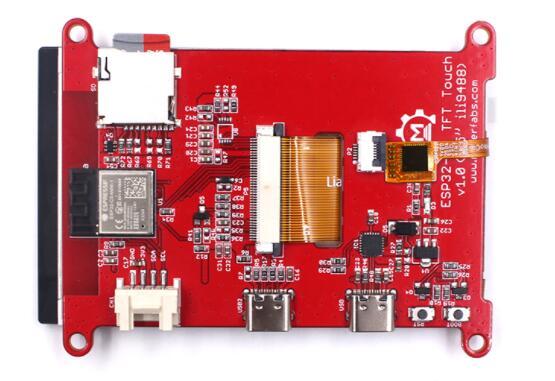

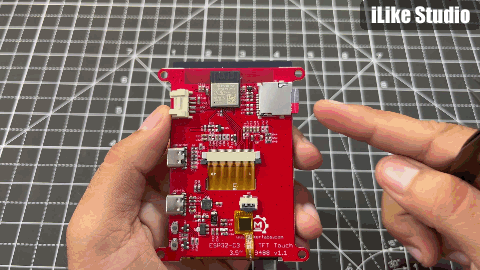

Being a number of the Makerfabs ESP Display family, this ESP32 C3 SPI 3.5-inch Touch is 320*480, with ILI9488 driver. Same as the other Makerfab's ESP32 displays, there 2 USB connectors, one for USB2UART convertor, and 1 USB native; on-board SD card, and Mabee connector(I2C) which is Seeedstudio Grove compatible, so it fits for applications that need sensor connected.

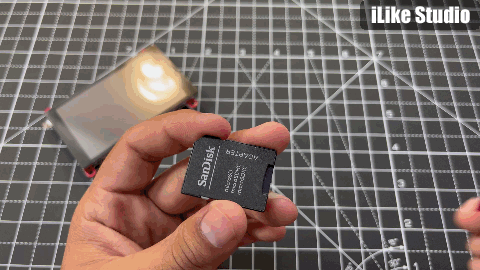

The shield comes with a SD CARD and the code the code is designed to read the SD files automatically. But only support 24-bit BMP files of 320*480 resolution. And a modification in the code is required after uploading the files into SD card.

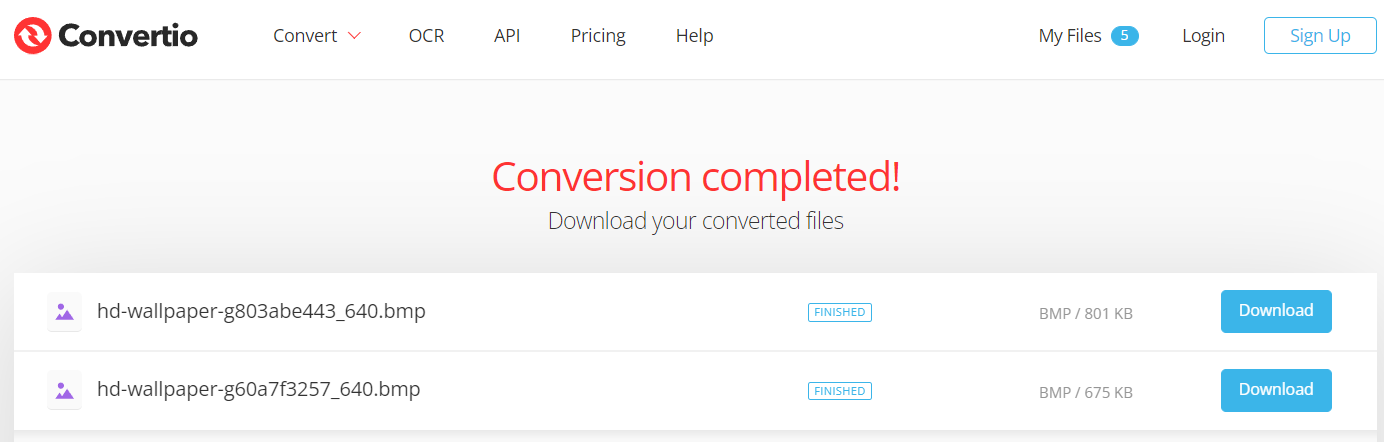

1) Download the files in JPG or PNG format that you want to display. Then open this Image to BMP convertor website. Which will convert the files into 24-bit colour format automatically. Just upload the Image files and download the BMP files from there.

2) Then set the resolution to 480*320 using the paint/ photoshop software in your laptop.

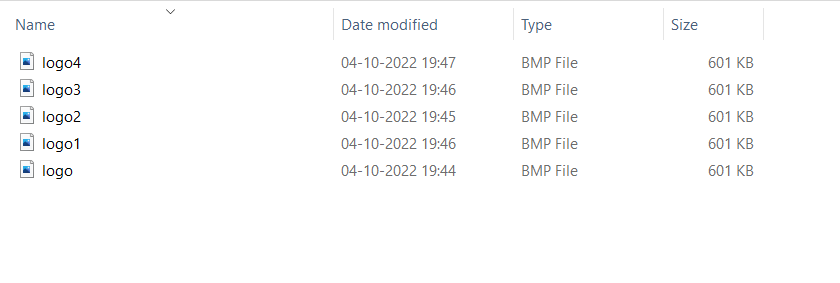

3) Upload the files into SD card and rename the files as “logo, logo1, logo2….”

In this code some basic SD card, FS and lovyanGFX are used. You can download all these libraries from manage libraries section under tools menu. Try to get the best version of libraries from there. The code is long enough to make a mess here that’s why I am only sharing some modifying part. You can download the full code and schematics from here along with the images used by me.

i = 0;
lcd.setRotation(3);
print_img(SD, "/logo.bmp", 480, 320);
delay(1000);
print_img(SD, "/logo1.bmp", 480, 320);
delay(1000);
print_img(SD, "/logo2.bmp", 480, 320);
delay(1000);
print_img(SD, "/logo3.bmp", 480, 320);
delay(1000);
print_img(SD, "/logo4.bmp", 480, 320);
delay(1000);

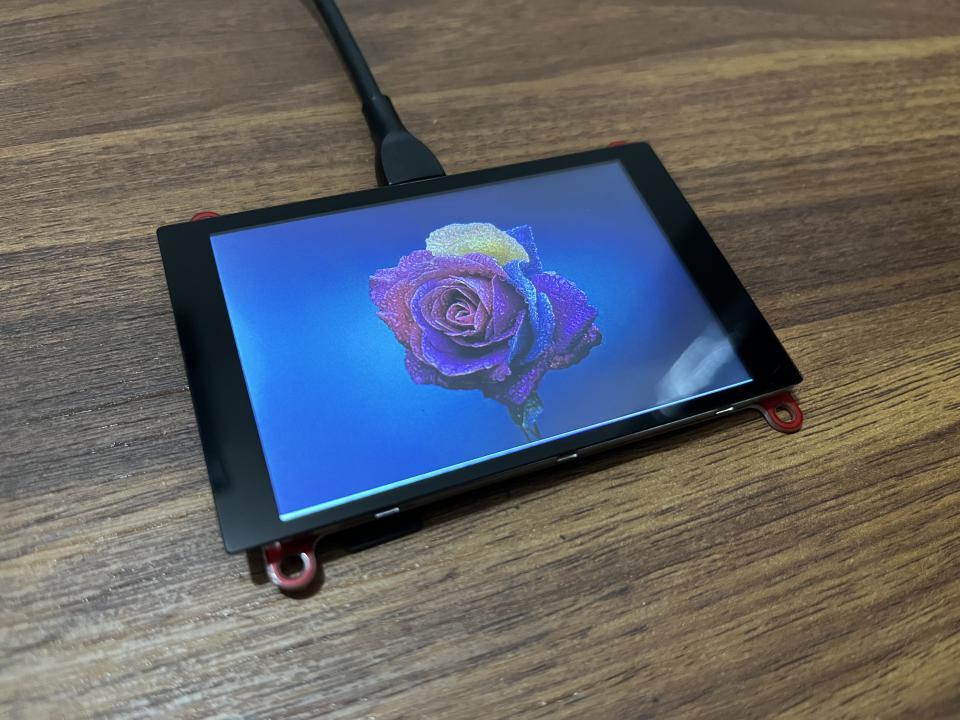

In the same manner different images can be displayed. you can lower down the delay the microcontroller support up to 100FPS highest.

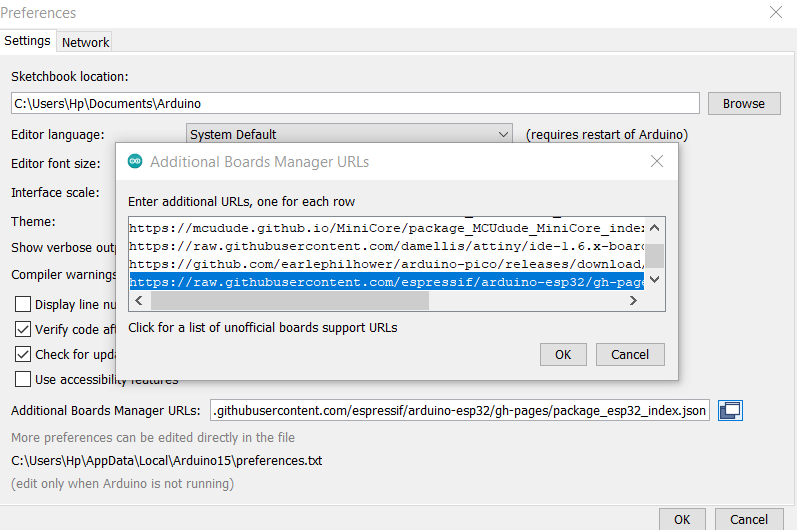

Paste this code in the preferences section under the file menu and download the latest version of esp32 boards form tools section in Arduino IDE.

https://raw.githubusercontent.com/espressif/arduino-esp32/gh-pages/package_esp32_index.json

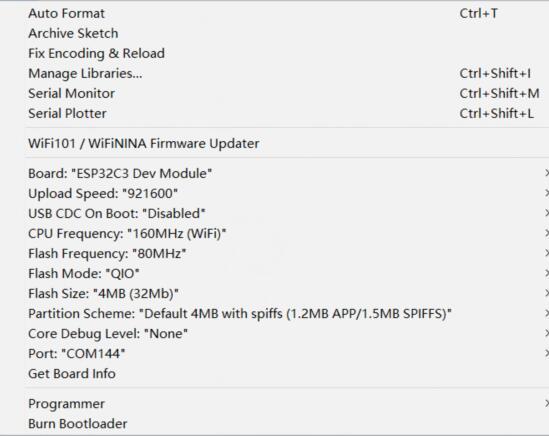

Then select the ESP32C3 dev board and the right COM port.

No need to change more settings and then click to upload. It will take a longer time in compiling the code for ESP32C3 than simple ESP32. Error may occur due to absent libraries.

You can make your own version of display using ESP through the schematics given here. It allows you to design the schematics with other types of screen.

You can use PCB prototype and SMT service from JLCPCB. SMT assembly is starting from just $8 and you can choose different specs for the PCB. Get a quote right now from JLCPCB and get 5pcs of 2-layer PCB in just $2.

I tried a lot of different files, and we need the same resolution files otherwise the drivers are failed to detect the colors and we got nothing on screen. But after editing some files in paint and converting them into BMP do the fine job.

I am really excited to display a video file on this small TFT, colors may not be much accurate due to 24-bit limitation. But it is better to use with car stereo system as a control menu and display.
