ESP32-S3 Digital Combination Lock Based SquareLine

In this article, I'm going to make a digital combination lock, using Squareline_studio and MaTouch ESP32-S3 Rotary IPS Display with Touch 2.1 “ST7701”

Ever been in those "tongue-tied" moments? You know, when you're too shy to confess your feelings to someone, or after an argument, you don't want to apologize to your kids. And maybe you want to give your friend a surprise, but you don't want to just say a few words. Well, I've had moments like these, and the situations can really give me headaches。

So, look! I've made a digital combination lock using SquareLine. When someone enters the correct password, they can see the unlocked images and text.

• The MaTouch ESP32-S3 Rotary IPS Display with Touch 2.1“ ST7701, with rotary encoder.

The rotary encoder and its pressable operation are perfect for making a combination lock. The rotary encoder controls the value change and the pressable operation is used to confirm the code.

• LED_RGB
• Software support: Arduino, SquareLine

connect J2 to LED: 3V3 to V and TX to G

Yes, just that. It's super easy.

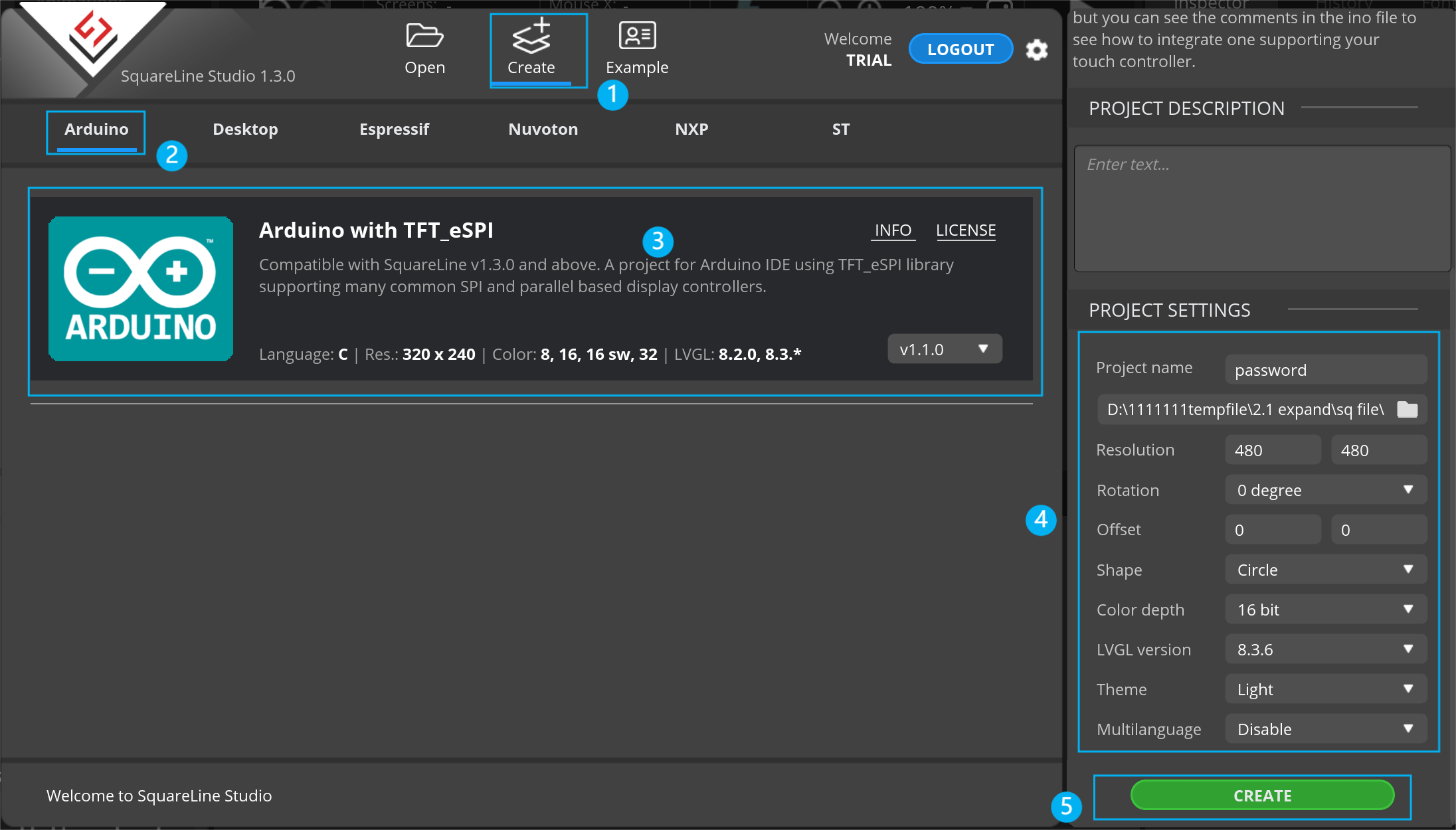

• Create a new product

Choose the Arduino and enter in parameters. According to the features of MaTouch ESP32 S3 2.1 Rotary TFT with Touch, the resolution is 480*480, the shape is a circle, and the color depth is 16-bit.

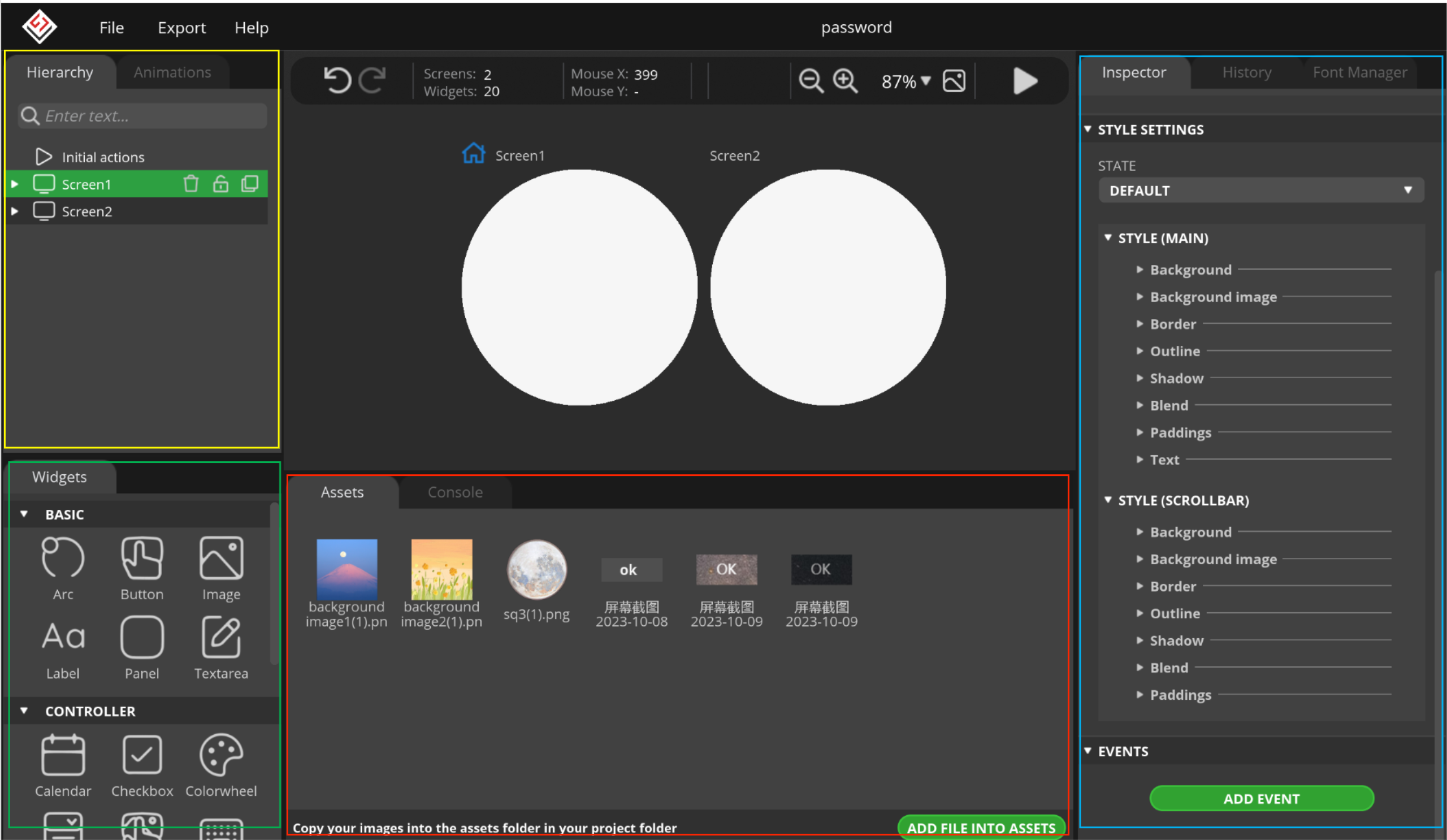

• Design the screen

Add the images and fonts you like to assets, and then it allows you to select them and widget components to design the scenes. After, clicking the widget of the list on the Hierarchy panel, you can modify the parameters of the select widget on the Inspector panel, all is determined by your preference.

Here, I'd suggest selecting some photos that hold cherished memories for both parties.

You also can place some words you want to say to other person on the second screen, so they can discover them upon unlocking.

Detailed guidance

The MaTouch ESP32 S3 2.1 Rotary TFT with Touch is not compatible with the TFT_eSPI library, so I use the GFX_Library_of_Arduino library instead of the driver.

• Since I did not use the TFT_eSPI library, it is needed to delete or comment all the codes related to the TFT_eSPI library.

#include <TFT_eSPI.h>

TFT_eSPI tft = TFT_eSPI(screenWidth, screenHeight); /* TFT instance */

    tft.startWrite();
    tft.setAddrWindow( area->x1, area->y1, w, h );
    tft.pushColors( ( uint16_t * )&color_p->full, w * h, true );
    tft.endWrite();

    tft.begin();          /* TFT init */
    tft.setRotation( 3 ); /* Landscape orientation, flipped */

• When I use the GFX library， it is needed to define the GFX Library For the Arduino Interface pin.

Arduino_ESP32RGBPanel *bus = new Arduino_ESP32RGBPanel(
    1 /* CS */, 46 /* SCK */, 0 /* SDA */,
    2 /* DE */, 42 /* VSYNC */, 3 /* HSYNC */, 45 /* PCLK */,
    11 /* R0 */, 15 /* R1 */, 12 /* R2 */, 16 /* R3 */, 21 /* R4 */,
    39 /* G0/P22 */, 7 /* G1/P23 */, 47 /* G2/P24 */, 8 /* G3/P25 */, 48 /* G4/P26 */, 9 /* G5 */,
    4 /* B0 */, 41 /* B1 */, 5 /* B2 */, 40 /* B3 */, 6 /* B4 */
);

// Uncomment for 2.1" round display
Arduino_ST7701_RGBPanel *gfx = new Arduino_ST7701_RGBPanel(
    bus, GFX_NOT_DEFINED /* RST */, 0 /* rotation */,
    false /* IPS */, 480 /* width */, 480 /* height */,
    st7701_type5_init_operations, sizeof(st7701_type5_init_operations),
    true /* BGR */,
    10 /* hsync_front_porch */, 8 /* hsync_pulse_width */, 50 /* hsync_back_porch */,
    10 /* vsync_front_porch */, 8 /* vsync_pulse_width */, 20 /* vsync_back_porch */);

LVGL is a user interface library primarily focused on display functionality, but it lacks user interaction capabilities. So, I need something to help me touch or interact with the screen.

• Modify the touchpad function according to the pre-set functions in touch.h, and pass the state of the touchpad to the LVGL graphics library.

void my_touchpad_read( lv_indev_drv_t * indev_driver, lv_indev_data_t * data )
{
   int touchX = 0, touchY = 0;

    if (read_touch(&touchX, &touchY) == 1)
    {
        data->state = LV_INDEV_STATE_PR;

        data->point.x = (uint16_t)touchX;
        data->point.y = (uint16_t)touchY;
    }
    else
    {
        data->state = LV_INDEV_STATE_REL;
    }
}

To establish a connection between the rotary encoder values and the values of the semi-circle and the labels, some intermediate processing is required.

• Trigger an interrupt whenever the pin ENCODER_CLK changes value， get the value of the counter.Get the value of arc_coun, let the value of ui-Arc1 be changed with the encoder, cycled from 0 to 9

attachInterrupt(ENCODER_CLK, encoder_irq, CHANGE);

void encoder_irq()
{
    State = digitalRead(ENCODER_CLK);
    if (State != old_State)
    {
        if (digitalRead(ENCODER_DT) == State)
        {
            counter++;
        }
        else
        {
            counter--;
        }
    }
    old_State = State; // the first position was changed
}

void cal_encoder()
{
    USBSerial.print("Position: ");
    USBSerial.println(counter);

    target_count = (counter % 20) / 2;
    if (target_count < 0)
    {
        target_count = (counter % 20) / 2 + 10;
    }

    if (target_count > arc_coun)
        arc_coun++;
    else if (target_count < arc_coun)
        arc_coun--;

    USBSerial.print("arc_Position: ");
    USBSerial.println(arc_coun);
}

lv_arc_set_value(ui_Arc1, (int)arc_coun);

if (label_flag == 1)
    {
        _ui_arc_set_text_value(ui_Label1, ui_Arc1, "", "");
        if (arc_coun == 2)
        {
            if (digitalRead(BUTTON_PIN) == 0)
            {
                USBSerial.println("Button Press");
                while (digitalRead(BUTTON_PIN) == 0)
                {
                    delay(50);
                }
                label_flag = 2;
            }
        }
    }


    if (label_flag == 2)
    {
        _ui_arc_set_text_value(ui_Label2, ui_Arc1, "", "");
        if (arc_coun == 4)
        {
            if (digitalRead(BUTTON_PIN) == 0)
            {
                USBSerial.println("Button Press");
                while (digitalRead(BUTTON_PIN) == 0)
                {
                    delay(50);
                }
                label_flag = 3;
            }
        }
    }
    if (label_flag == 3)
    {
        _ui_arc_set_text_value(ui_Label3, ui_Arc1, "", "");
        if (arc_coun == 6)
        {
            if (digitalRead(BUTTON_PIN) == 0)
            {
                USBSerial.println("Button Press");
                while (digitalRead(BUTTON_PIN) == 0)
                {
                    delay(50);
                }
                label_flag = 4;
            }
        }
    }
    if (label_flag == 4)
    {
        _ui_arc_set_text_value(ui_Label4, ui_Arc1, "", "");
        if (arc_coun == 8)
        {
            if (digitalRead(BUTTON_PIN) == 0)
            {
                USBSerial.println("Button Press");
                while (digitalRead(BUTTON_PIN) == 0)
                {
                    delay(50);
                }


                label_flag = 0;
                _ui_state_modify(ui_ImgButton2, LV_STATE_DISABLED, _UI_MODIFY_STATE_REMOVE);
            }
        }
    }

• Unlock code,the LED will be light

void unlock()
{
    USBSerial.println("Unlock...");
    digitalWrite(RX_PIN, HIGH);
    digitalWrite(TX_PIN, LOW);
}

The raw code.

How the code work.

Yes, as shown in the picture,the MaTouch ESP32-S3 Rotary IPS Display with Touch 2.1“ ST7701 also has a WiFi function, which can get NTP and display the actual time in the center of the screen.

Turn the encoder to control the value change, press the screen for password confirmation, when the correct password is entered, the LED lights up and the second screen shows up。

More details.
