ESP32 Based Phone Stand

I created a phone stand that can be controlled remotely using wifi based on the ESP32.
How to use
We use the controls on Blynk which is a slider to control the position of the servo through the angle
Supplies



In this project, I used these materials
- ESP32
- Jumper Cables

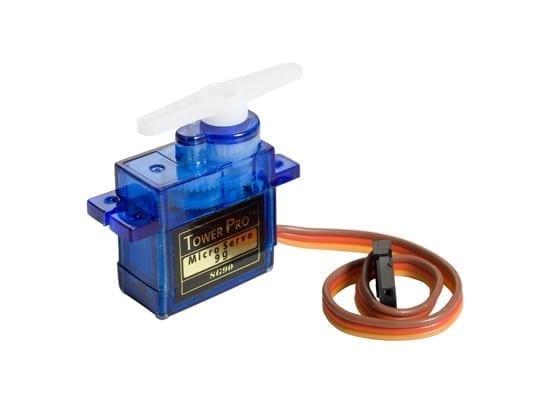

- SG90 Servo
Building the Circuit

In this circuit, I connected the devices to these pins respectively:
- PIN 13 Servo1
- PIN 12 Servo2
- PIN 14 Servo3
Then I coded a program to control the servos through Blynk
The details of the code are in this GitHub repository
https://github.com/Mtthoe/TR_IOT
Connect to Database

Now I need to make a device on Blynk, add my device, and create a Dashboard with all the widgets used to control the servos as well as show the output.
