ESP32 Alexa Home Automation System with Manual & Voice Control Feedback | IoT Projects 2021

In this IoT project, I have shown how to make an IoT-based ESP32 Alexa Smart Home System to control 8 home appliances from the manual switch & Amazon Alexa App. If the internet is not available, then you can control the home appliances from manual switches. During the article, I have shown all the steps to make this home automation system.

This ESP32 control smart relay has the following features:

1. Control home appliances with voice commands using Alexa

2. Control home appliances with manual switches.

3. Monitor real-time feedback in the Alexa App.

4. Control home appliances manually without internet.

5. Just need Echo Dot. No third-party app required.

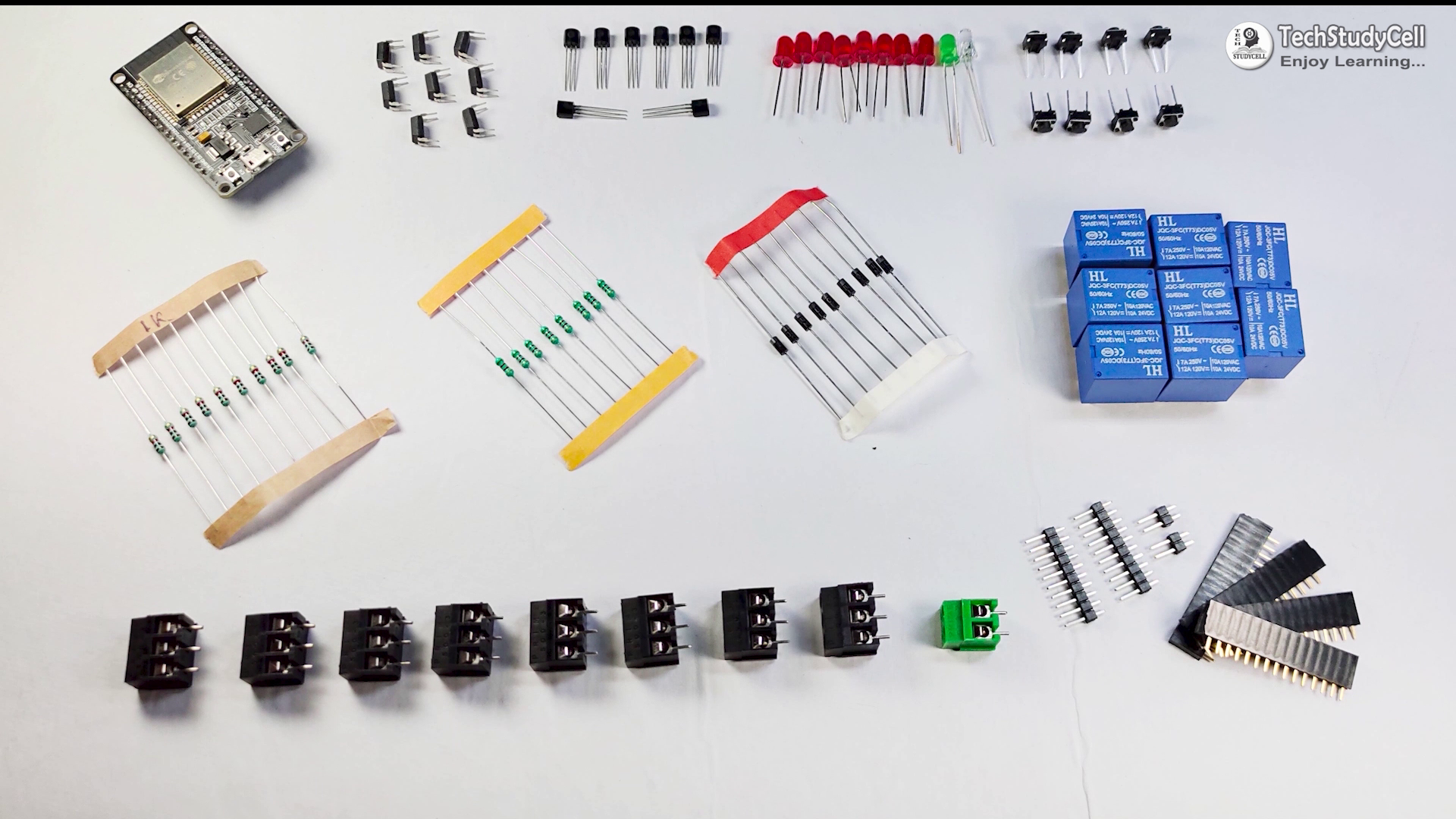

Supplies

1. Relays 5v (SPDT) (8 no)

2. BC547 Transistors (8 no)

3. PC817 Optocuplors (8 no)

4. 510-ohm 0.25-watt Resistor (8 no) (R1 - R8)

5. 1k 0.25-watt Resistors (10 no) (R9 - R18)

6. LED 5-mm (10 no)

7. 1N4007 Diodes (8 no) (D1 - D8)

8. Push Buttons (8 no)

9. Terminal Connectors

10. 5V DC supply

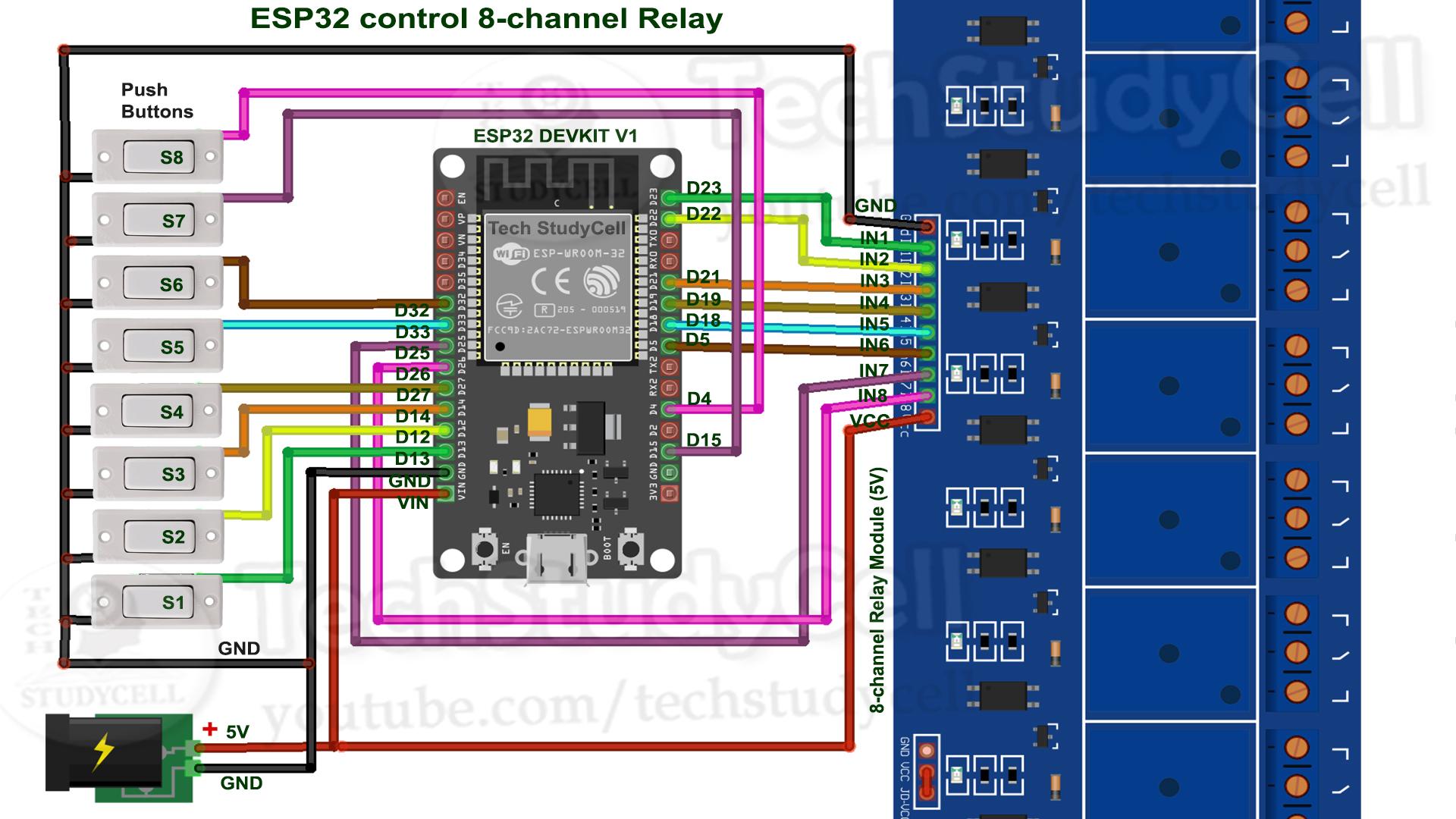

Circuit Diagram of the ESP32 Project

Circuit website.jpg

This is the complete circuit diagram for this home automation project. I have explained the circuit in the tutorial video.

The circuit is very simple, I have used the GPIO pins D23, D22, D21, D19, D18, D5, D25 & D26 to control the 8 relays.

And the GPIO pins D13, D12, D14, D27, D33, D32, D15 & D4 connected with switches to control the 8 relays manually.

I have used the INPUT_PULLUP function in Arduino IDE instead of using the pull-up resistors. I have used a 5V mobile charger to supply the smart relay module.

Testing the Circuit Before Designing the PCB

p 11.jpg
p 9.jpg

Before designing the PCB, I have made the complete circuit using ESP32, an 8-channel relay module, and manual switches.

As you can see, the relay can be controlled from the manual switches and Amazon Alexa App.

In the following steps, I have explained the complete projects in detail, also shared the code and PCB Garber file.

Download the code for this project.

Control Relays With Voice Commands Using Alexa

p 2.jpg
p 3.jpg

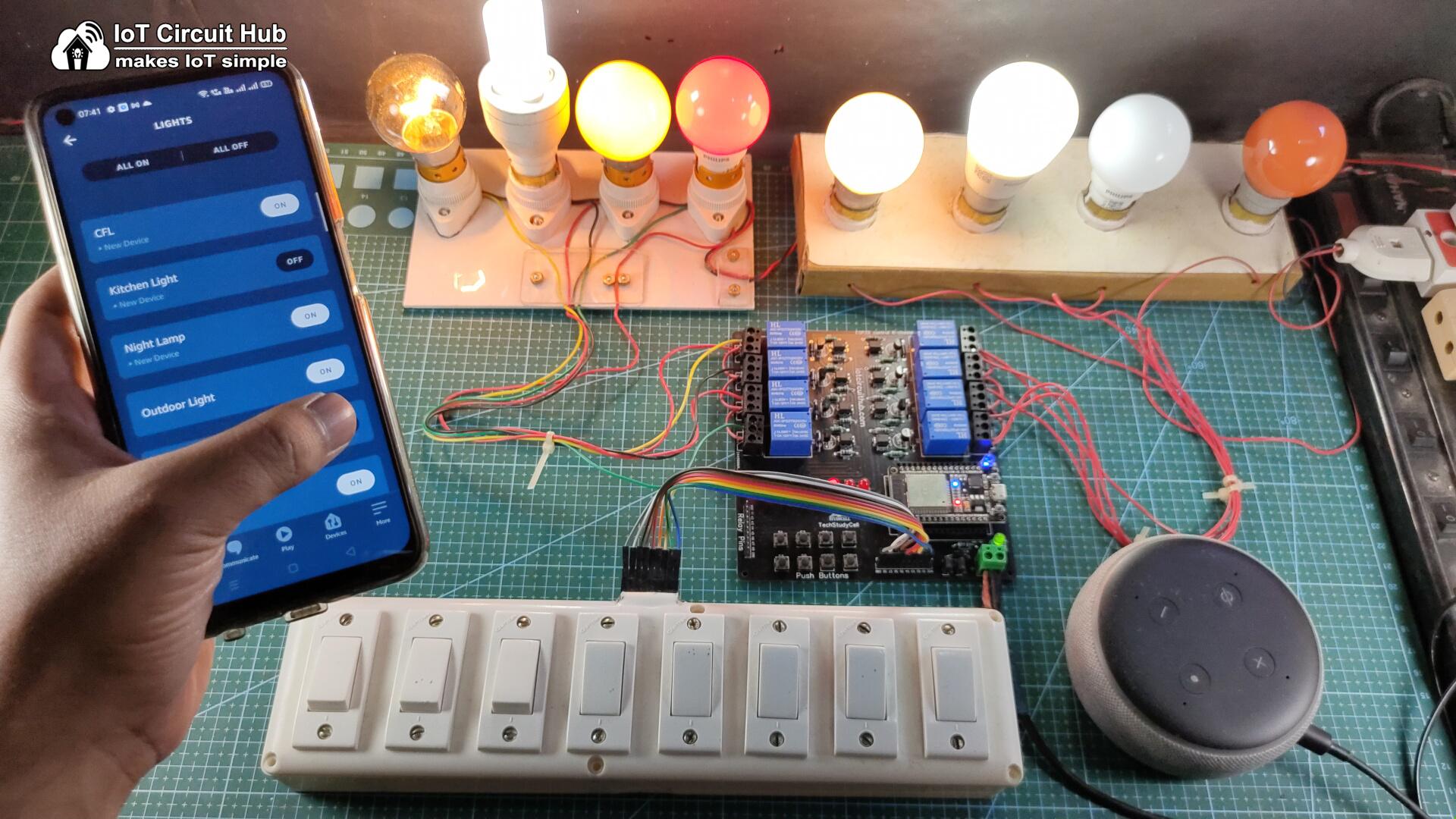

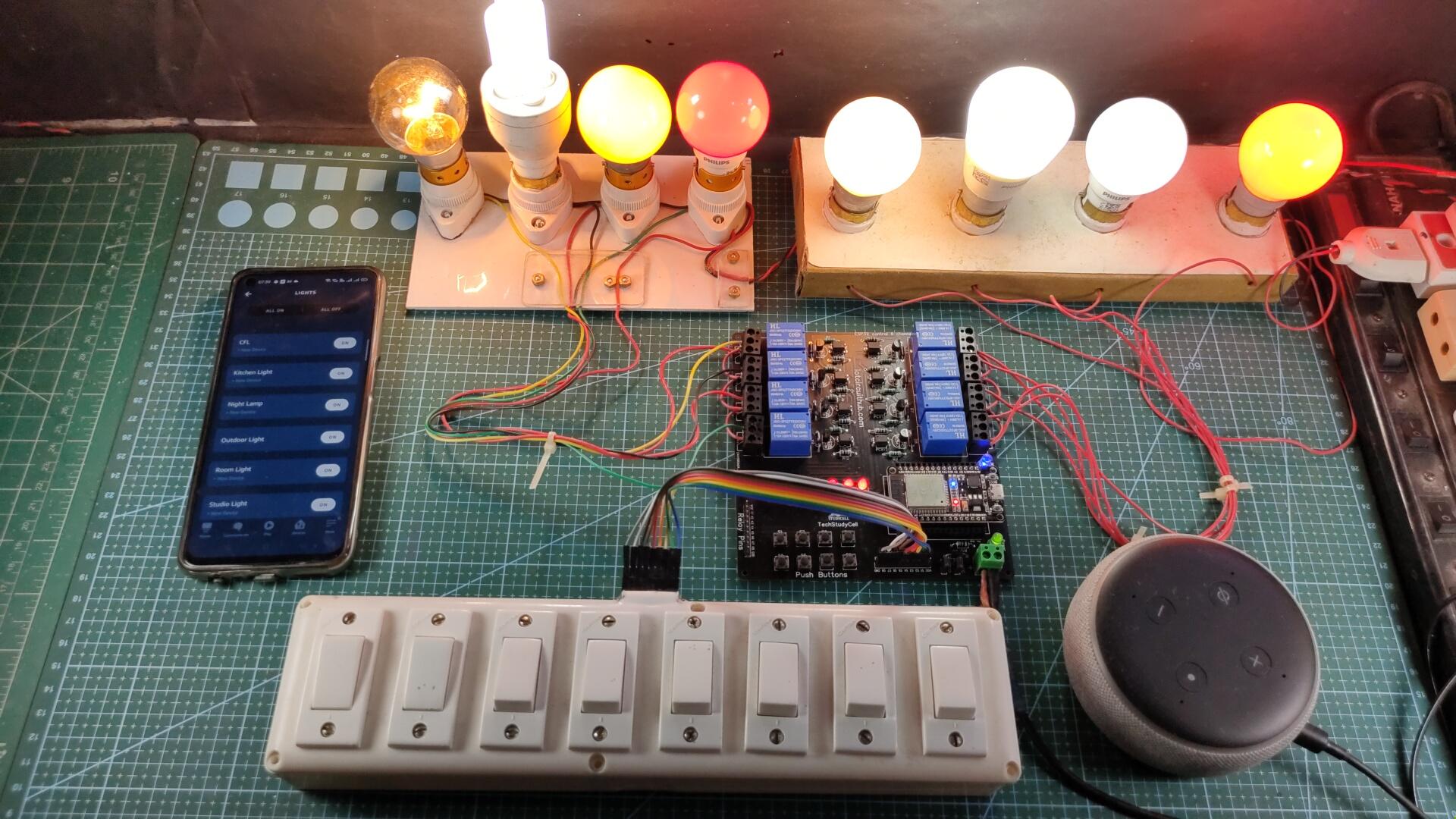

If the ESP32 module is connected with the WiFi, then you can control the home appliances from Amazon Alexa App and also from the manual switches.

You can control, monitor the real-time status of the relays in the Alexa App. The ESP32, Amazon Echo Dot should be connected to the same WiFi network.

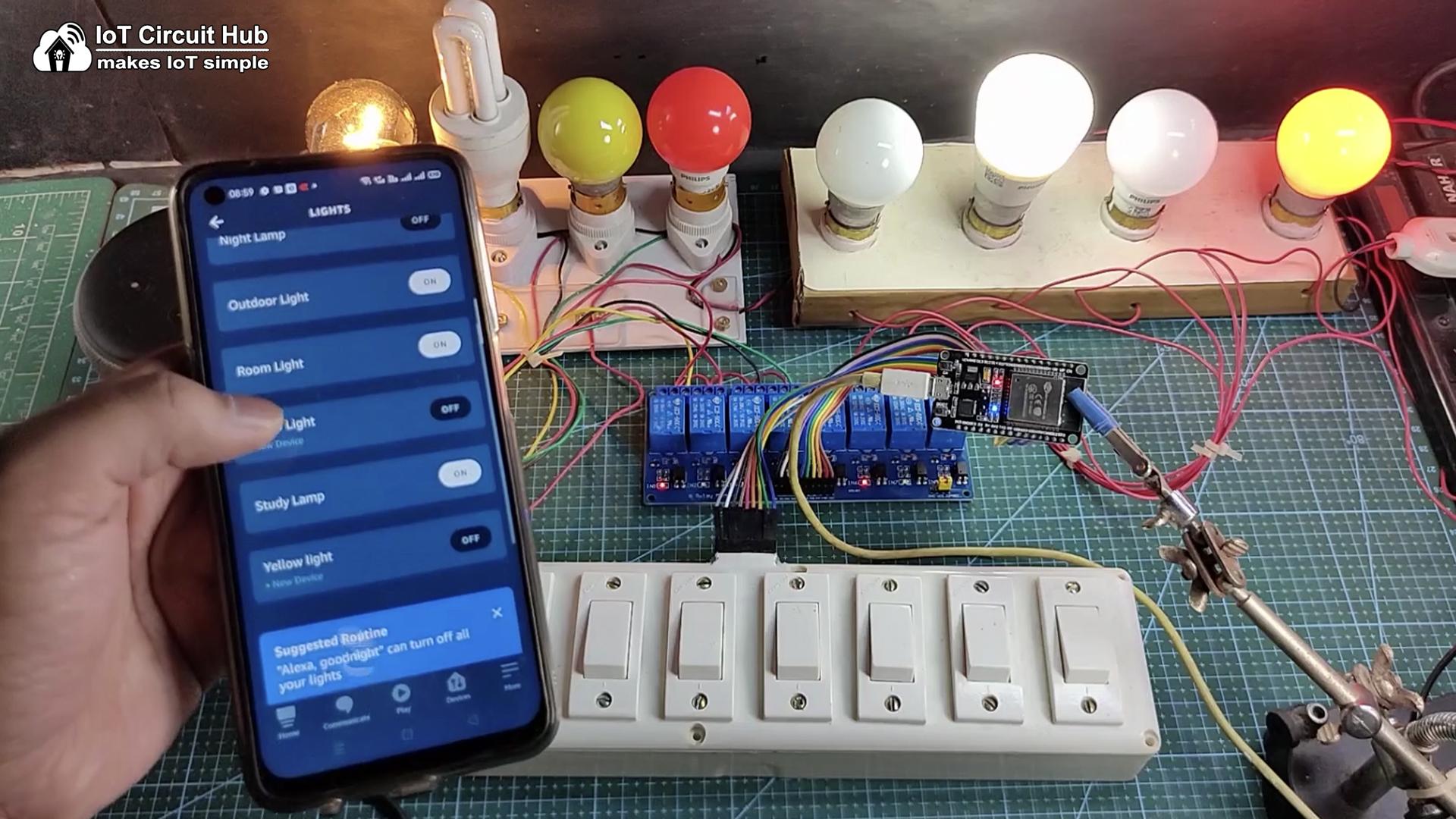

Control Relays Manually With Switches

p 8.jpg
p 4.jpg
p 5.jpg

If the WiFi is not available, you can control the relays from the manual switches.

The ESP32 will check for the WiFi after every 3 seconds. When the WiFi is available, the ESP32 will automatically connect with the WiFi.

Please refer to the circuit diagram to connect the manual switches.

Design the PCB for This Smart Home System


To make the circuit compact and give a professional look, I have designed the PCB after testing all the features of the smart relay module.

You can download the PCB Gerber file of this home automation project from the following link: https://drive.google.com/uc?export=download&id=1Y8rXnczq6baxAKOrBEE8aro-uqcK0J93

Order the PCB

JLC PCB_Pic 1.jpg
JLC PCB_Pic 2.jpg

After downloading the Garber file you can easily order the PCB

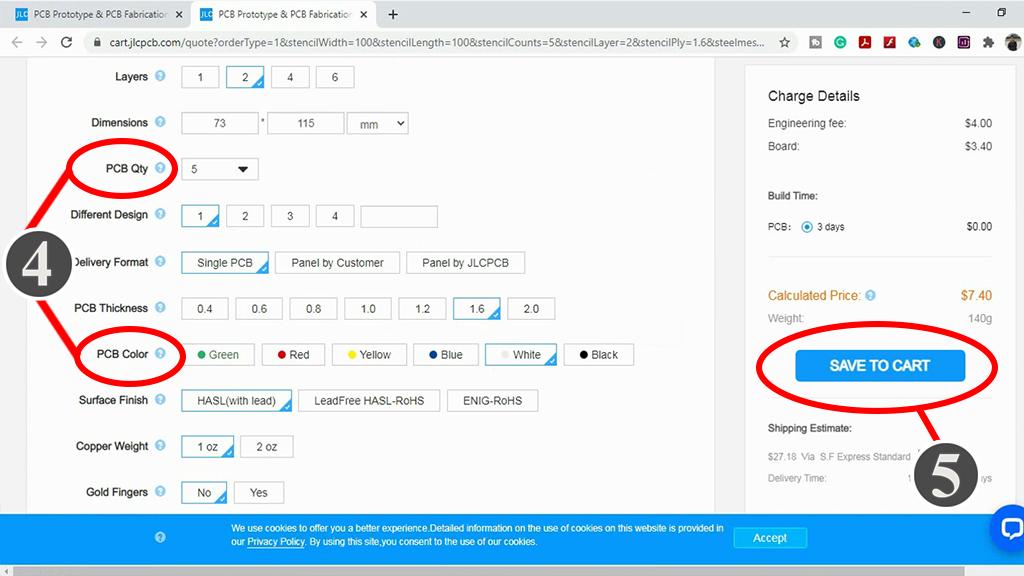

1. Visit https://jlcpcb.com/RHS and Sign in / Sign up

2. Click on the QUOTE NOW button.

3 Click on the "Add your Gerber file" button. Then browse and select the Gerber file you have downloaded.

Uploading the Gerber File and Set the Parameters

JLC PCB_Pic 3.jpg

4. Set the required parameter like Quantity, PCB masking color, etc

5. After selecting all the Parameters for PCB click on SAVE TO CART button.

Select Shipping Address and Payment Mode


6. Type the Shipping Address.

7. Select the Shipping Method suitable for you.

8. Submit the order and proceed with the payment. You can also track your order from the JLCPCB.com.

My PCBs took 2 days to get manufactured and arrived within a week using the DHL delivery option.

PCBs were well packed and the quality was really good at this affordable price.

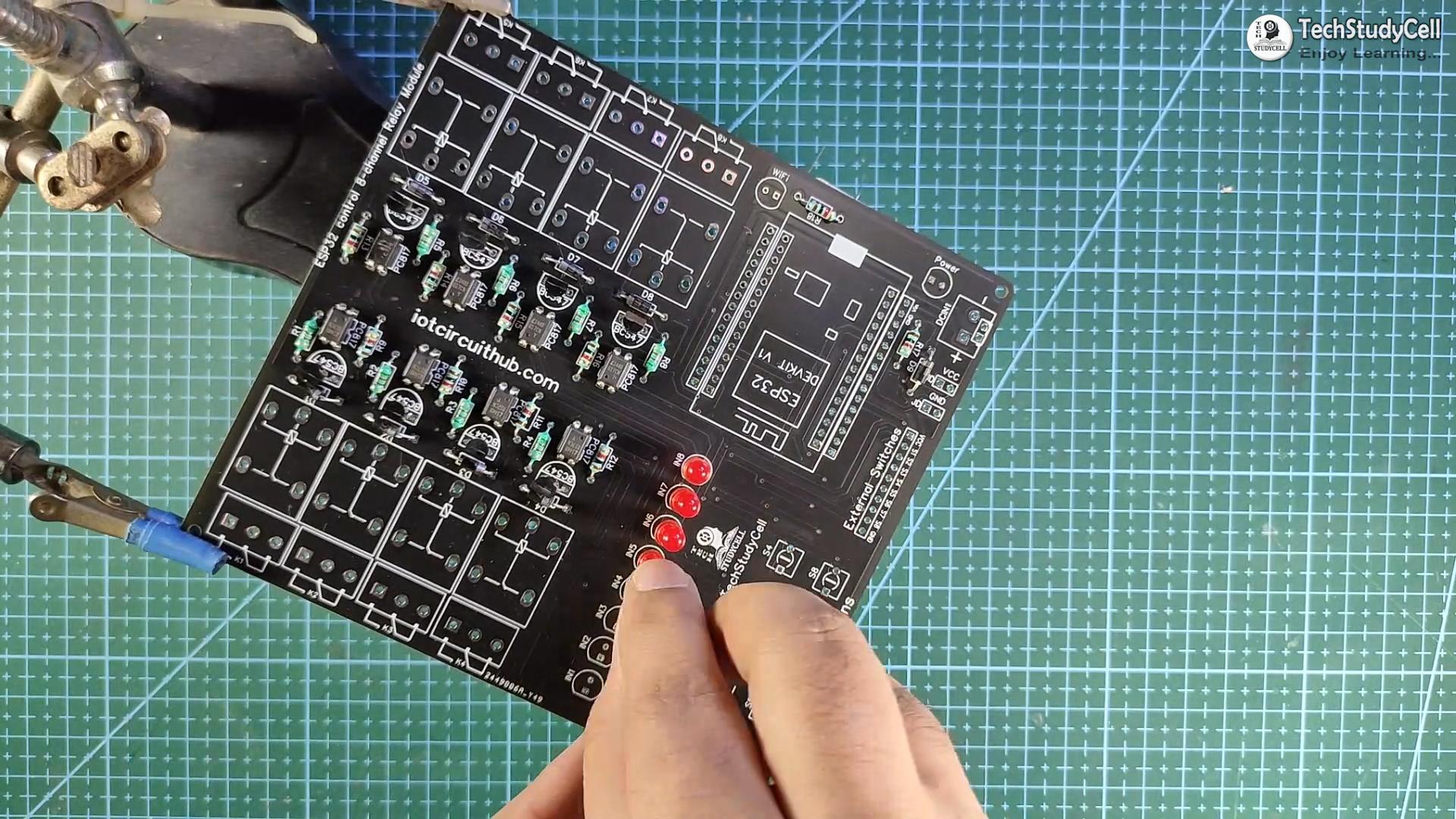

Solder All the Components on PCB

ESP32 Blynk raw.00_03_33_05.Still008.jpg
ESP32 Blynk raw.00_03_34_47.Still009.jpg

After that, I have soldered all the components as per the circuit diagram.

Then connect the ESP32 board with the PCB.

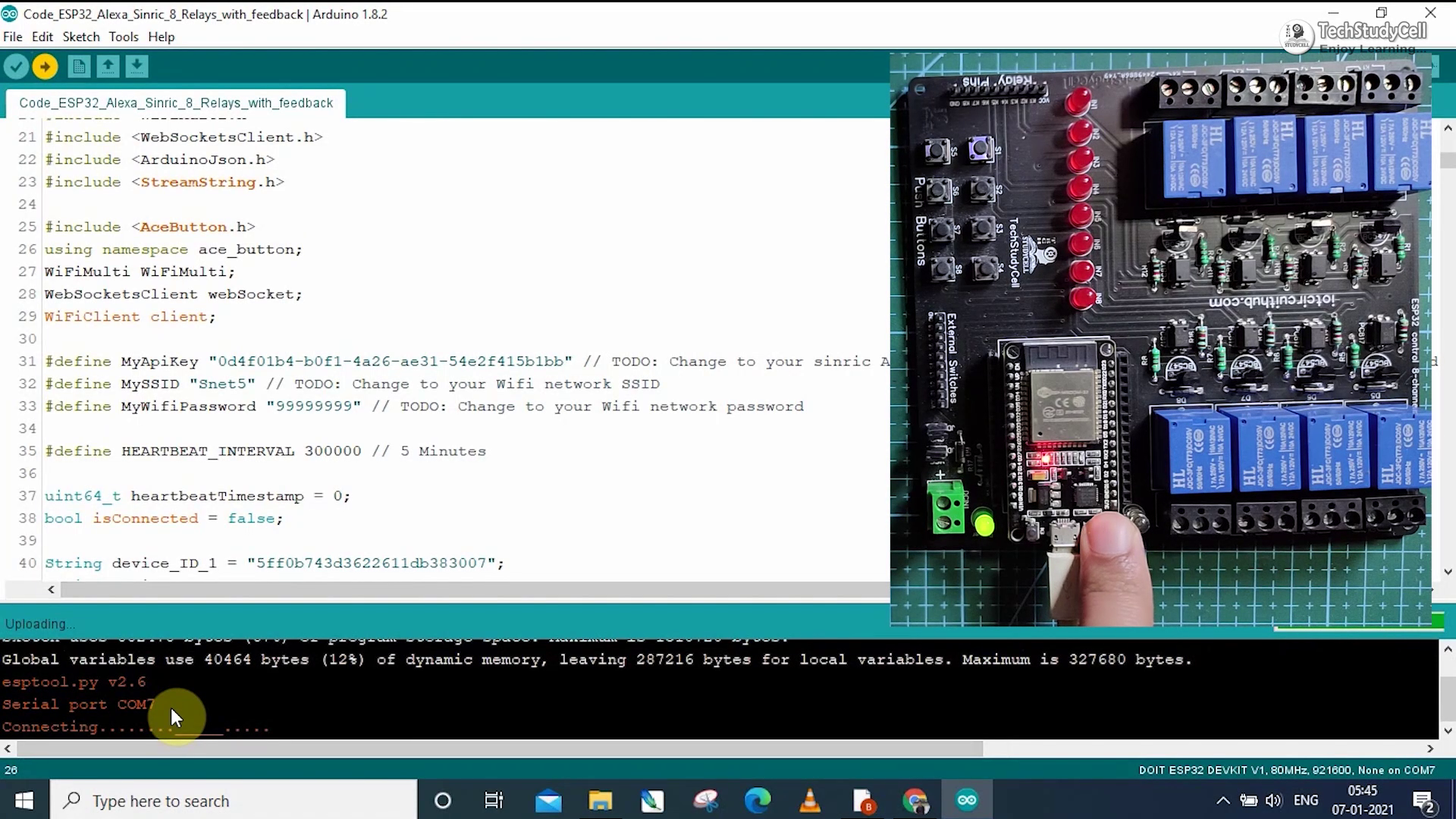

Program ESP32 Using Arduino IDE


Download the code.

First, you have to install the required libraries. I have shared all the links in the code.

Then enter the WiFi credentials:

const char* ssid = "WiFi Name";

const char* password = "WiFi Password";

After that select the DOIT ESP32 DEVKIT V1 board and the PORT. Then click on the upload button.


While uploading if you see the "Connecting.....___" text, press the BOOT button of ESP32.

Configure the Alexa App for the Smart Home System

ESP32 Alexa Sinrec_Pic_2.jpg

Open Amazon Alexa App and follow the steps:

1. Tap on Devices. Then Tap on the "+" icon.

2. Tap on "Light", then select "Others".

3. Goto Alexa and tap on "DISCOVER DEVICES".

It will take a minute to add devices. During this time the ESP32 should be connected with the WiFi.

4. Tap on "Devices", and tap on "Lights" to see all the devices.

Testing the PCB With Alexa


After uploading the code, if the ESP32 connects with the WiFi, the blue LED will turn on.

Then you can control the relay module from Amazon Alexa App.

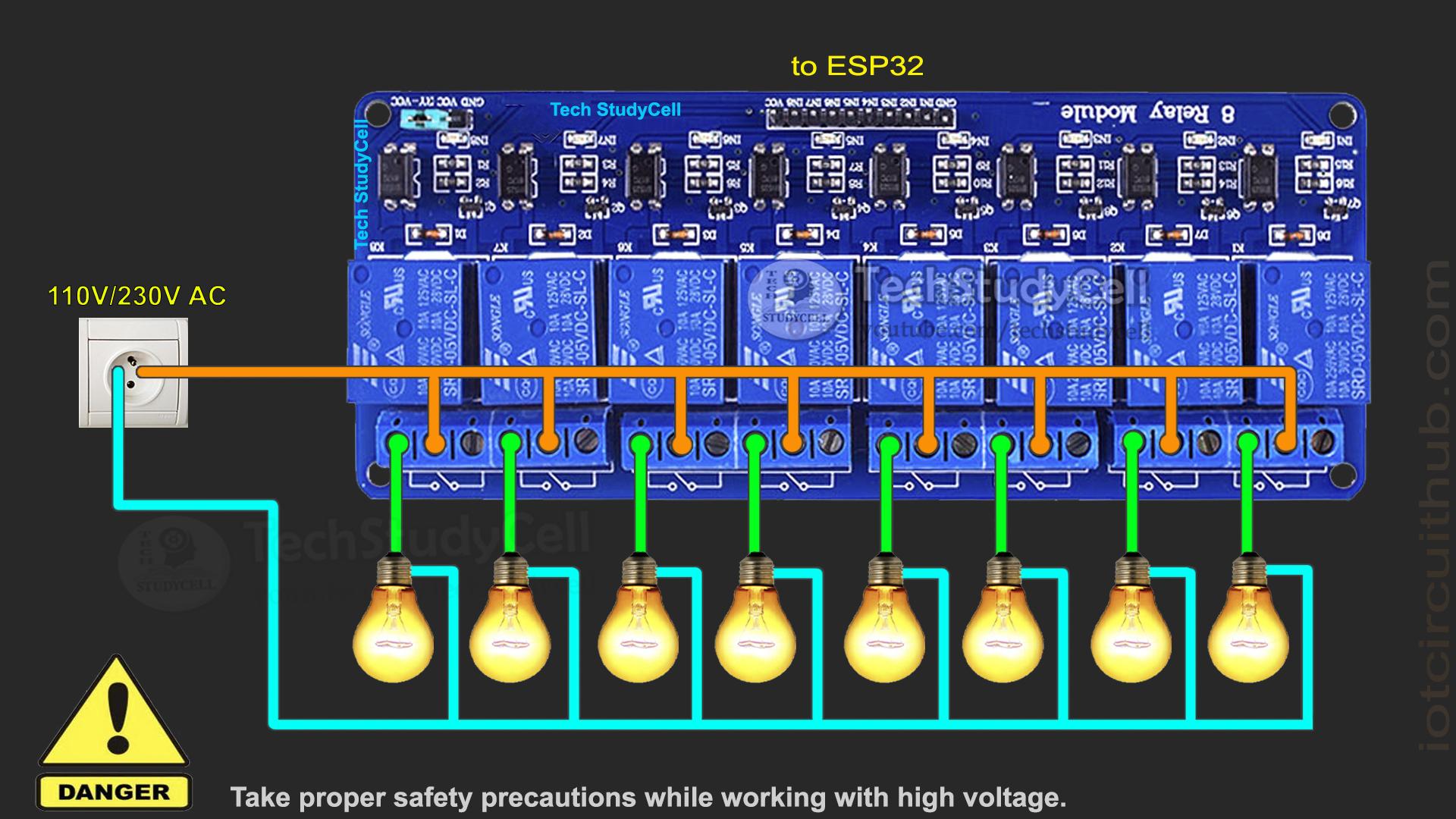

Connect the Home Appliances


Connect the 8 home appliances as per the circuit diagram. Please take proper safety precautions while working with high voltage.

Connect 5-volt DC supply with the PCB. (I have used my old mobile charger)

Turn ON the Supply


Turn on the 110V/230V supply and 5V DC supply.

Finally!! the Alexa Home Automation System Is Ready

p 1.jpg

Now you can control your home appliances in a smart way.

I hope you have liked this Alexa home automation project. I have shared all the required information for this project. I will really appreciate it if you share your valuable feedback.

Also if you have any query please write in the comment section. Thank you & Happy Learning.
