Access Control System - Everything Can Be Configured Via Web UI (IoT)

Hi everyone in this project we gonna make ESP RFID accsess control board with ESP8266 and RC522. Access control system using a cheap RFID reader and ESP microcontroller.
- Minimal effort for setting up your Access Control system
- Capable of managing up to 1.000 Users (even more is possible)
- Great for Maker Spaces, Labs, Schools, etc
- Cheap to build and easy to maintain

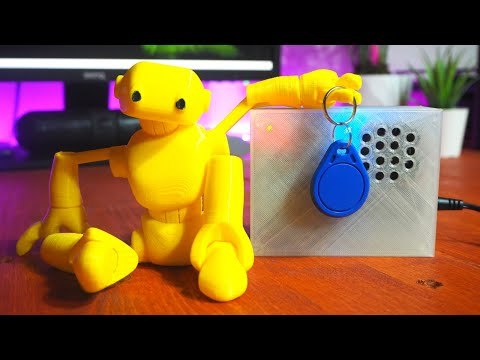

Video Tutorial

Minimal effort for setting up your Access Control system, just flash and everything can be configured via Web UI. This control board is great for Makerspace, labs and schools. I made this for my own workshop.
Hardware and Tools

Required Components:
Geekcreit® NodeMcu ESP8266 ESP-12F
Types of door locks that can be used:
12V Electric Solenoid Door Lock
12V Electric 180KG Magnetic Door Lock
12V Electric 60KG Magnetic Door Lock
12V Electric Fail Safe Door Lock
Required Hardware:
PCB Gerber File and Schematic


In this project, I have choosen PCBWay. PCBWay is the only way to make this project happen a very low cost and high quality.
Product Detail
Board type : Single PCB
Size : 93.6 x 73.53 mm
Layers : 2 Layers
Total: US $5
PCB Gerber & Schematic
Flash Firmware & Web UI


Steps
- First, flash firmware (you can use /bin/flash.bat on Windows) to your ESP - https://github.com/esprfid/esp-rfid/releases
- Search for Wireless Network "esp-rfid-xxxxxx" and connect to it (It should be an open network and does not require password)
- Open your browser and type either "http://192.168.4.1"
- Log on to ESP, default password is "admin"
- Go to "Settings" page
- Configure your amazing access control device. Push "Scan" button to join your wireless network, configure RFID hardware, Relay Module.
- Save settings, when rebooted your ESP will try to join your wireless network.
- Go to "Users" page
- Scan a PICC (RFID Tag) then it should glimpse on your Browser's screen.
- Type "User Name" or "Label" for the PICC you scanned.
- Choose "Allow Access" if you want to
- Click "Add"
3D Case STL

Download the ESP-RFID 3D Case Stl : https://app.box.com/s/2t14d0cgn65acwndw24jkqob7rd63e2g
- Layer Height: 0.2
- Infill: 20%
- Support: None
- Material: PLA
- Time: 04h
In this project, JGAURORA A5S 3D printer was used.
