EMG Biofeedback

by randofo in Circuits > Assistive Tech

112323 Views, 436 Favorites, 0 Comments

EMG Biofeedback


This biofeedback setup uses an EMG sensor to represent muscle tension as a series of beeps and allows you to train your body to adjust muscle tension at will. In short, the more tense you are, the faster the beeps become, and the more relaxed, the slower. Using this device you can learn how to regulate your body to speed up and slow down the beeps; hence increasing and decreasing muscle tension. With some practice, you will have enough understanding of your body to be able to control muscle tension without use of the device. This is cool because it allows you to consciously control a part of the body you would not normally be able to otherwise sense or easily control.

I set mine up to monitor the muscles in my shoulder and neck that are responsible for tension headaches, but you can place them on just about any muscle group. I recommend experimenting with the placement of the sensors and seeing what is possible.

Go Get Stuff


You will need:
- An EMG sensor
- Electrode cables
- Electrodes
- An Arduino
- A +/- 5V regulated supply board***
- 3-Pin female header
- 9V battery snap
- 1/4" stereo jack
- Headphones with 1/4" plug
- European-style terminal strip
- 22awg hookup wire

***+/-5V is the bottom range for the sensor board. I found two 9V batteries wired in series worked better than this board. The single red Wire is +9V, the junction where the two batteries meet is ground, and the lone black wire is -9V. Alternately, you can get a +/-12v mini board from Futurlec. However, I have not tried this.

(Please note that some of the links on this page contain Amazon affiliate links. This does not change the price of any of the items for sale. However, I earn a small commission if you click on any of those links, and I reinvest this money into materials and tools for future projects. If you would like an alternate suggestion for a supplier of any of the parts, please let me know.)

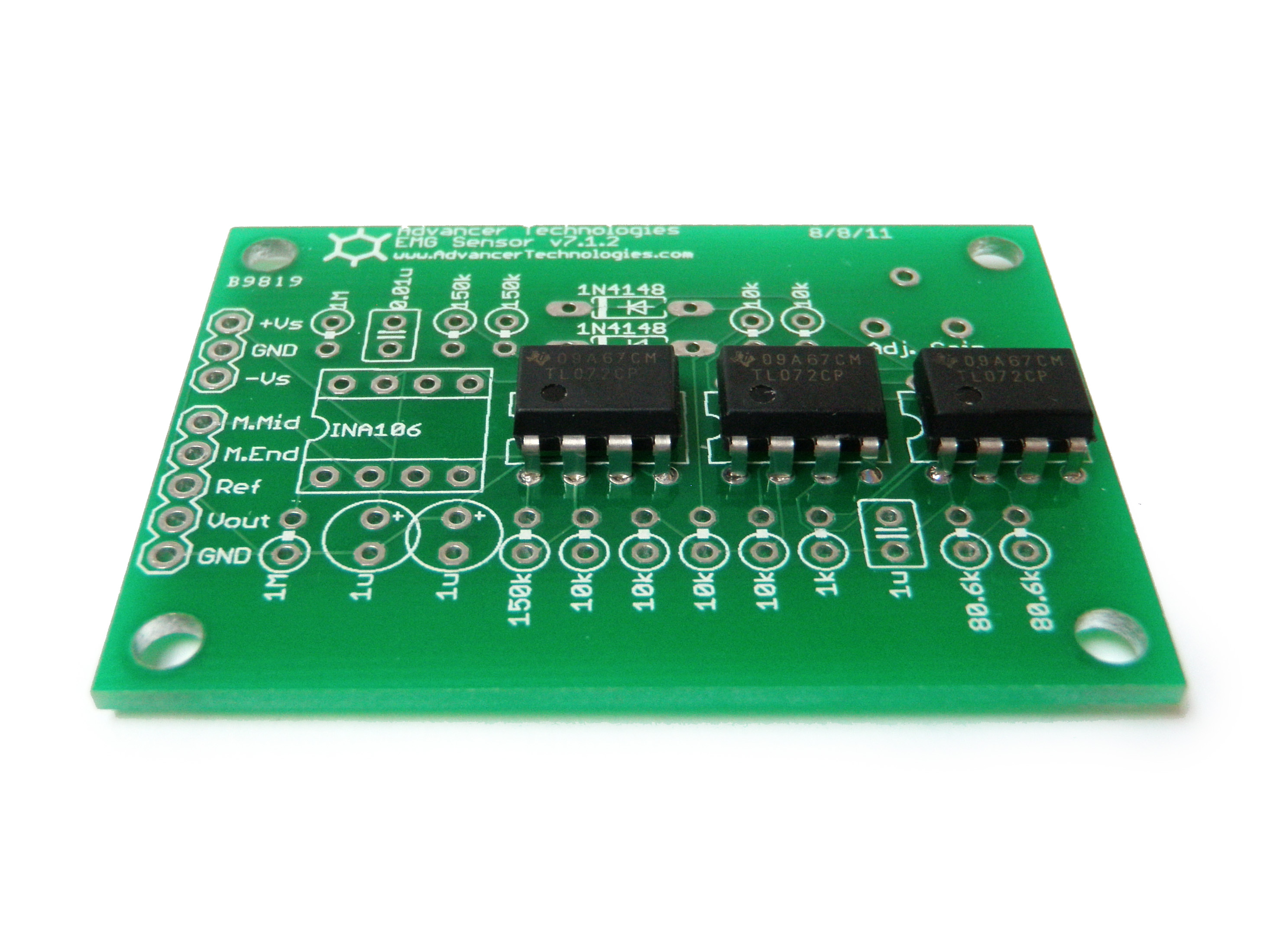

EMG Board


Assembled the EMG board with the parts provided as labeled.

Note that it comes with 5-band resistors and those are read differently from the typical 4-band resistors.

Prepare the Cables

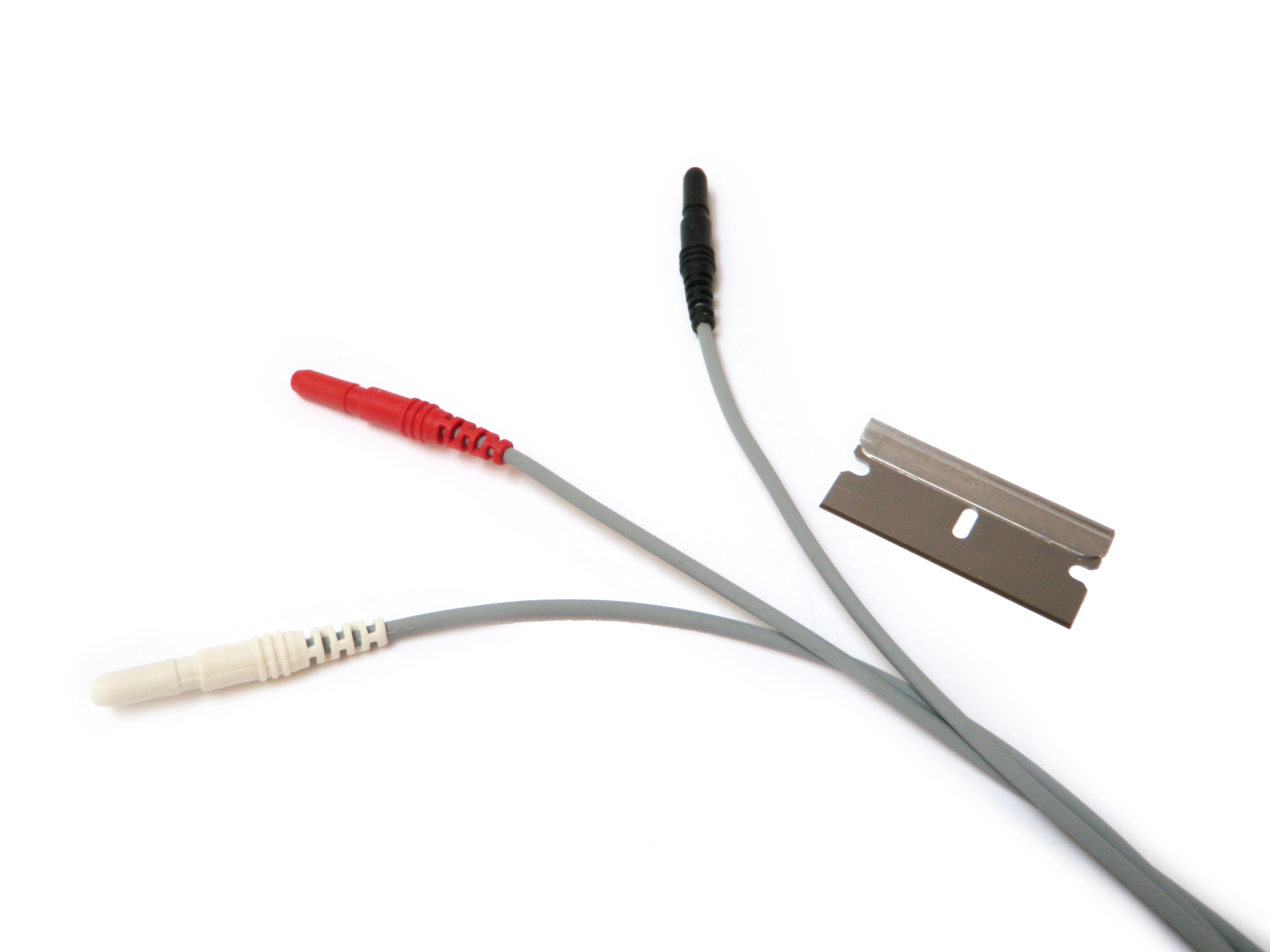

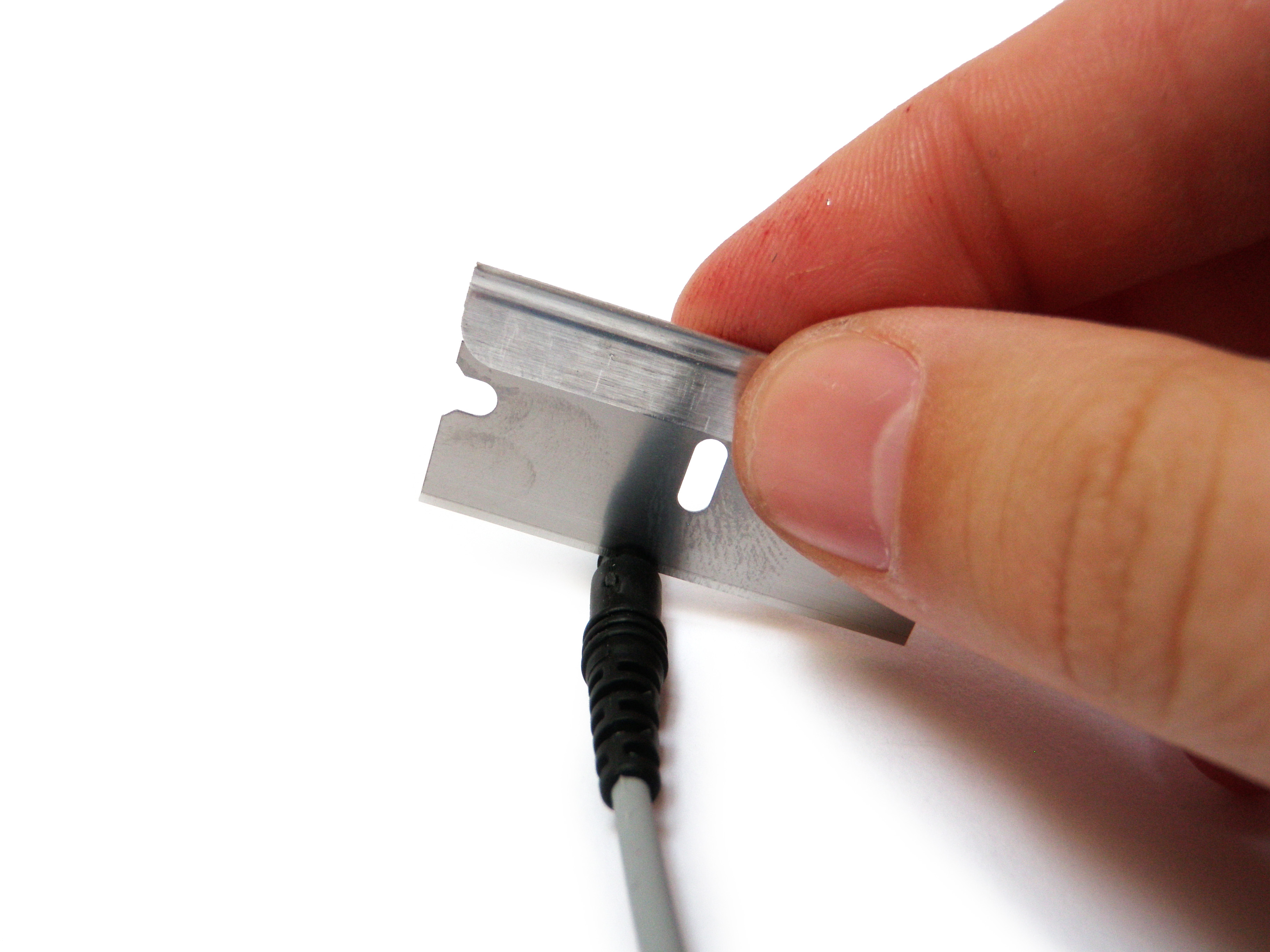

Take a razor blade or other sharp object and cut around the circumference of the center of the cables plug to expose a metal tip.

Repeat this for all three cables.

Power Connector

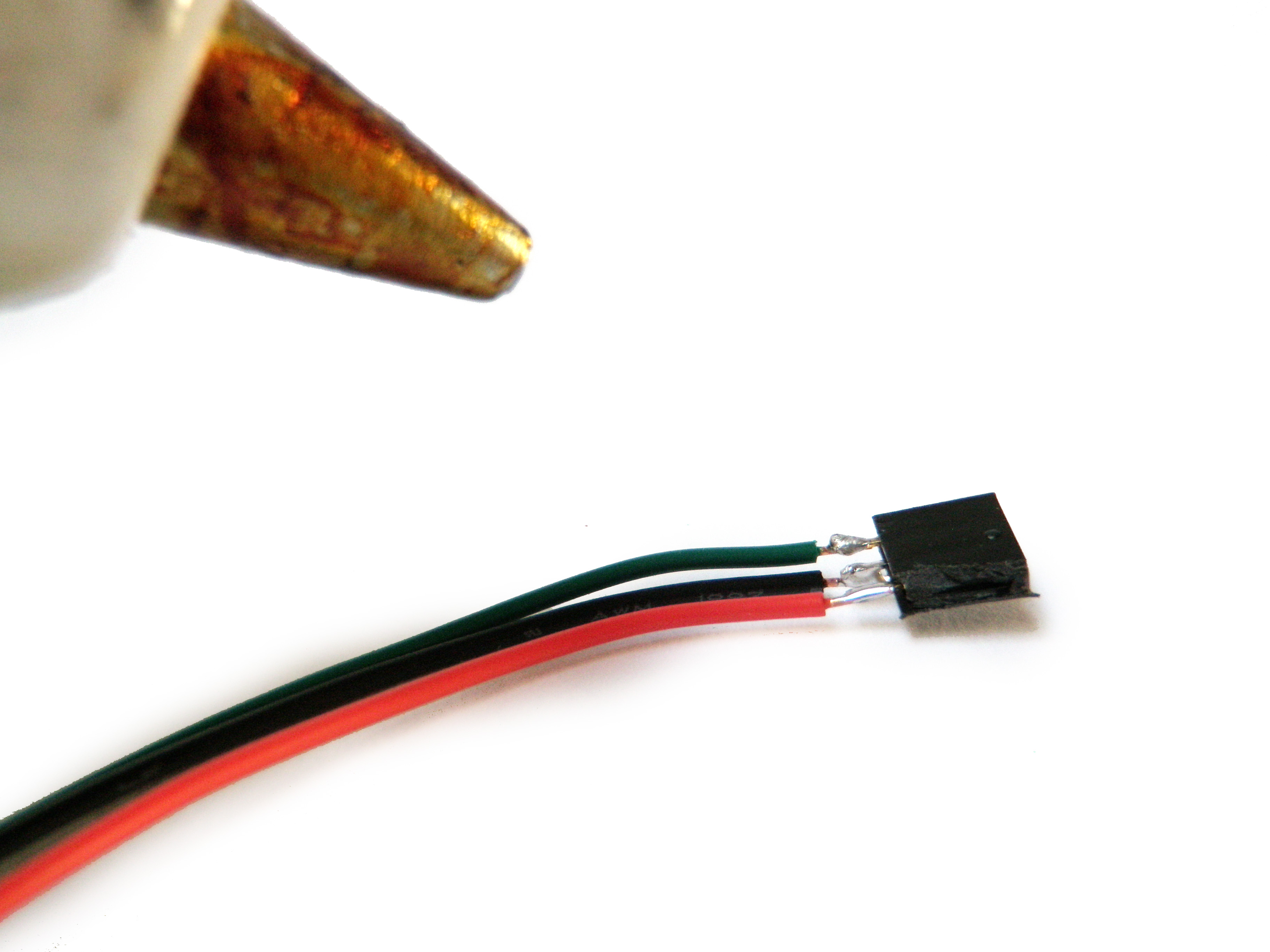

Solder a red, green, and black wire to the 3-pin socket.

Make certain the black wire is in the center. The other two wire can be on either side.

When you are done, you may want to reinforce the connections with a bit of hot glue (or similar).

Plug Things

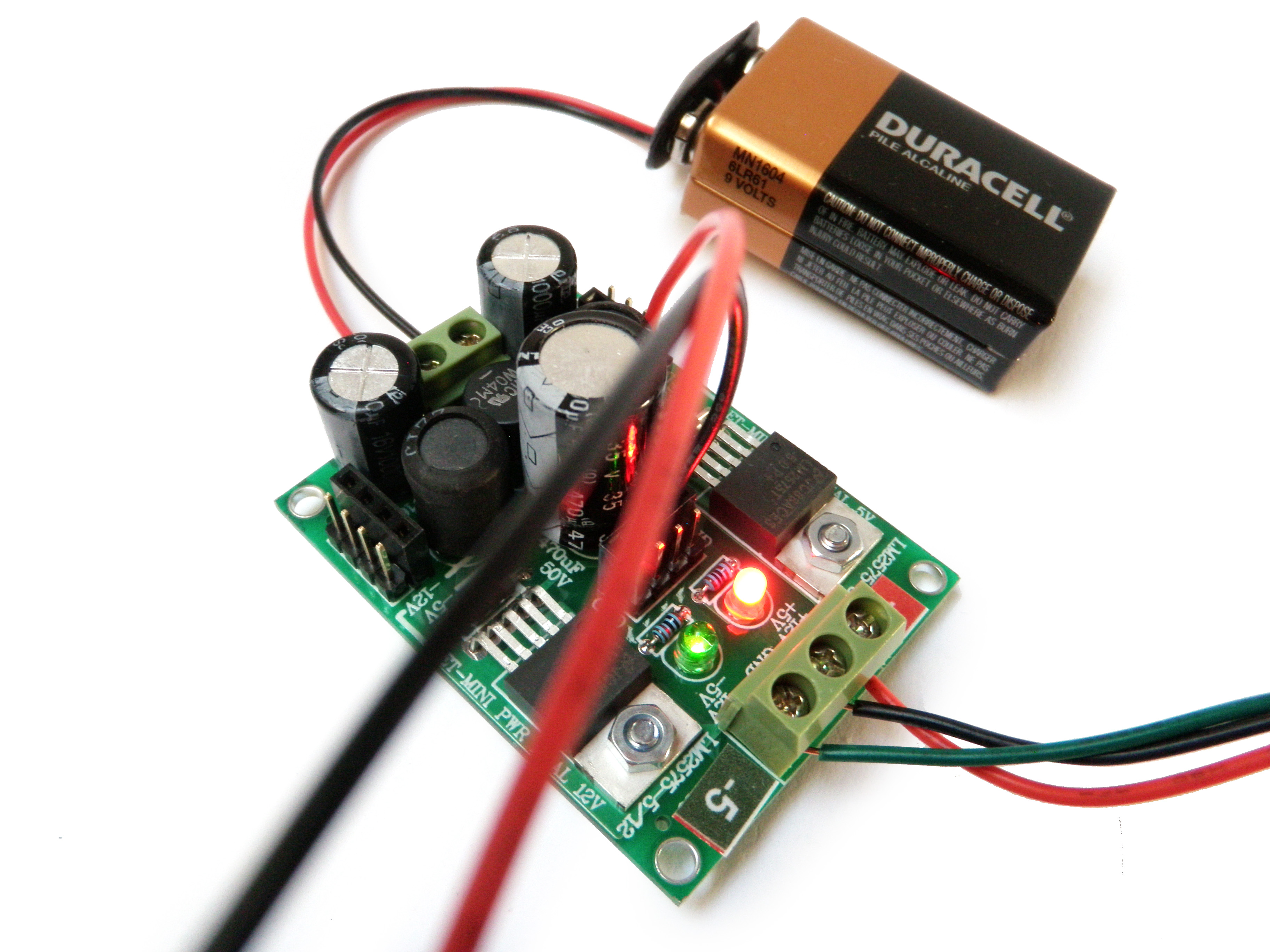

Plug the three wires from the socket into the +/- 5V power supply such that green is going to -5V, black is going to ground, and red is going to +5V.

Also plug the 9V battery snap wires into the power-in connector. Make certain that the red wire is going to the pin labeled "VIN".

Program the Arduino

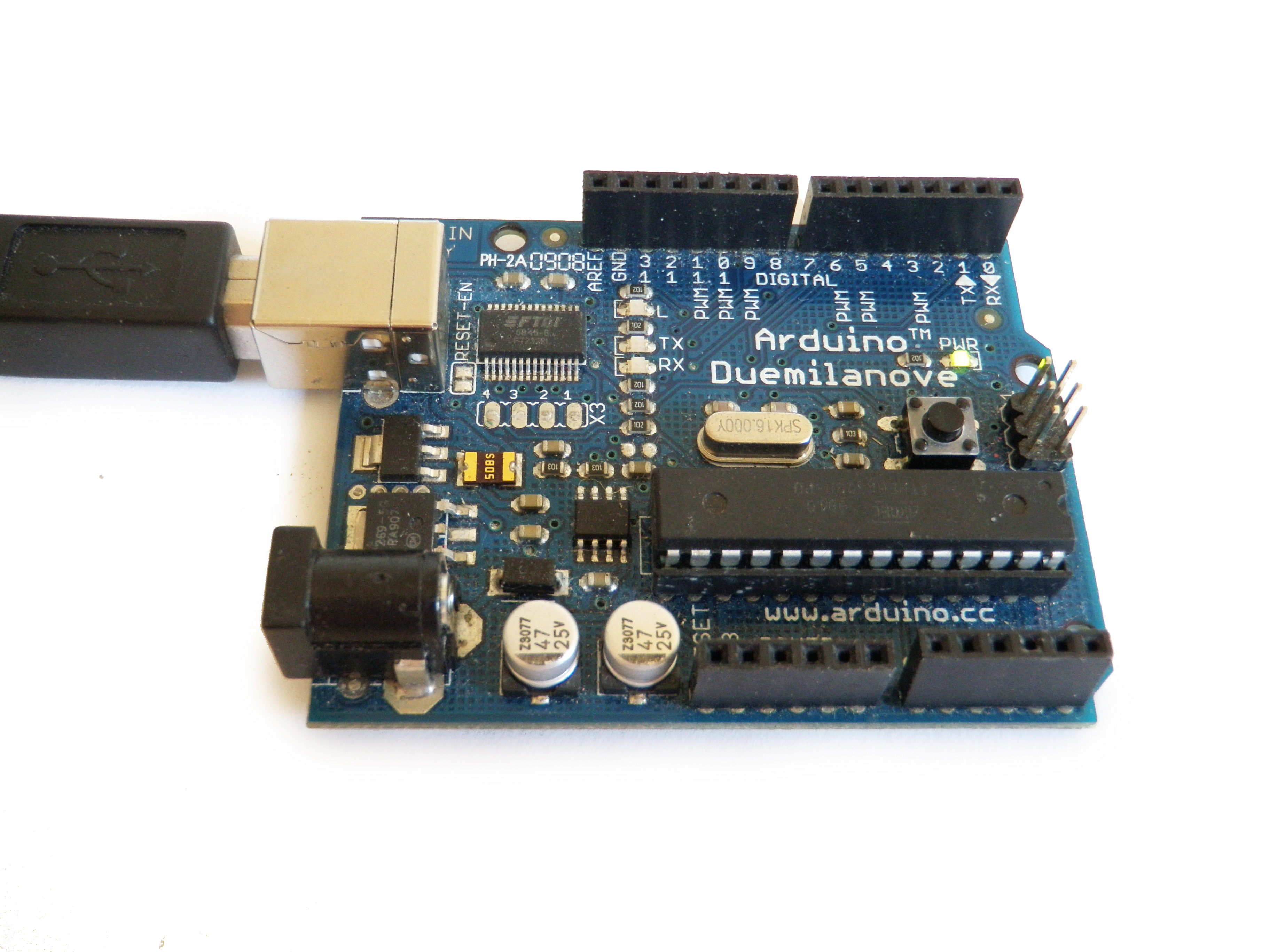

Program the Arduino with the following code:




Audio Jack


Wire the two signal tabs together and then attach a long red wire to one of them.

Attach a long black wire to the terminal connected to the inner ground lug.

Terminal Connection


Trim the European-style terminal strip down so that there are 3 pairs of connectors.

Plug the electrodes into one side.

Plug corresponding wires into the other side. I didn't have a white wire, so I used green.

Plug In


On the sensor board, plug the green/white wire into the header slot labeled "M.Mid"

Plug the red wire into slow labeled "M.End"

Plug the black wire into the slot labeled "Ref"

Connect to Arduino


Connect the slot labeled "Vout" on the sensor board to analog pin 0 on the Arduino.

Connect together ground on the two boards.

Power


Connect the 3-pin female header from the power board to the sensor board such that the green wire is aligned with -V.

More Power

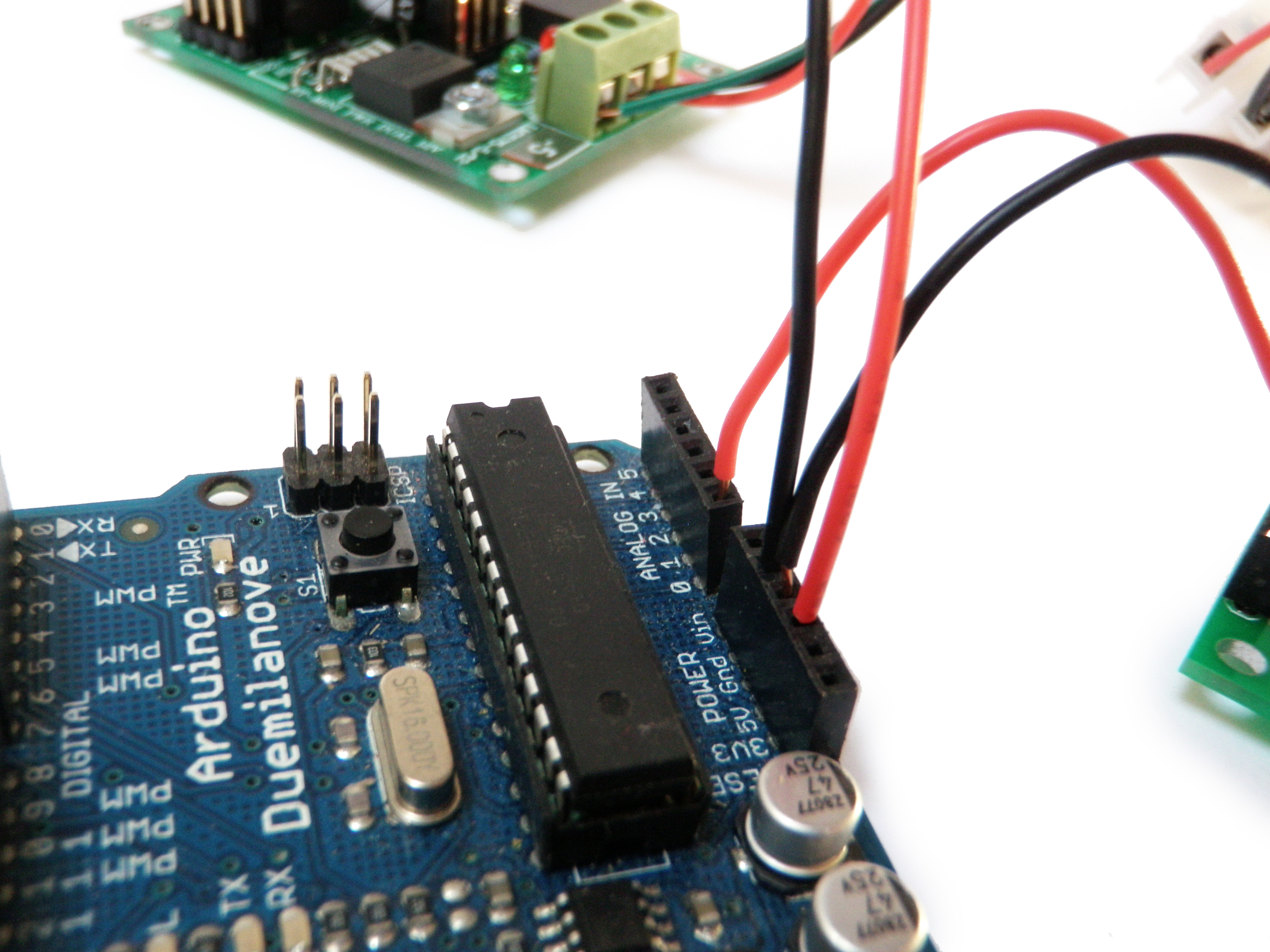

From the power board connect the +5V and ground connections to the corresponding pins on the Arduino.

***If you are using an alternate power supply greater than +5V, be sure to connect it to the voltage in jack on the Arduino instead.

Connect Electrodes


Snap the electrodes into the ends of the adapter cables.

Attach Resistor


Attach a 20K resistor to the end of the long red wire affixed to the audio jack.

Increasing or decreasing the value will determine the volume of the beeps. I would not decrease it to less than 10K or it will be too loud and might harm your hearing.

Plug in Jack


Plug the resistor that you just attached to the audio cable into pin 8 on the Arduino.

Plug the black wire into ground.

Attach Electrodes


Place electrodes along the muscle you want to monitor.

The black electrode is reference and should be placed in an area not affected by the muscles you are trying to measure.

The red should be placed at the end of the muscle near where it attaches to a tendon.

The white should be placed in the center of the muscle.

This is how I placed them on my shoulder to monitor tension. I got suitable results with this configuration.

Plug It In


Plug in your battery to power it all up.

Headphones


Put on the headphones. Notice how you can adjust the length of the beep by tensing and relaxing your muscle.

Now, you can train yourself to produce a sound of a certain duration by concentrating on that muscle group.

You can also monitor the sensor readings by plugging the Arduino back into the computer and turning on the serial monitor. Make certain you unplug any external voltage sources to the Arduino before you try this.
