Easy Ten Minute Rocket

Here's an easy ten minute rocket.  My younger brother and I have lots of fun making this.  We used an an inner tube, drill, drill bits, a rod, duct tape, a plastic soda bottle, wood, metal hammer, pvc pipe, and a utility knife.


Step 1

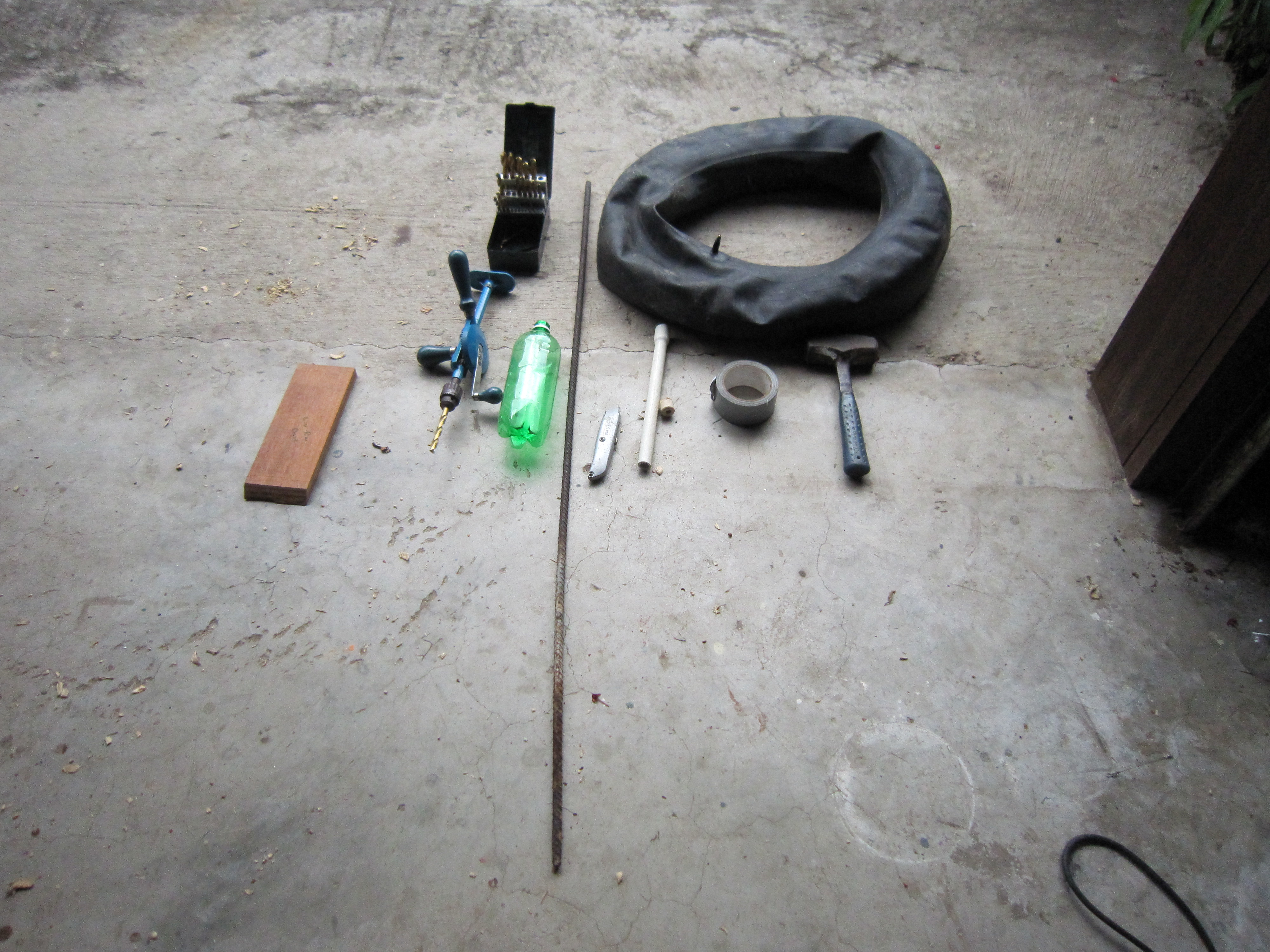

First, start with an inner tube, drill, drill bits, a rod, duct tape, a plastic soda bottle, wood, metal hammer, pvc pipe, and a utility knife.

Step 2

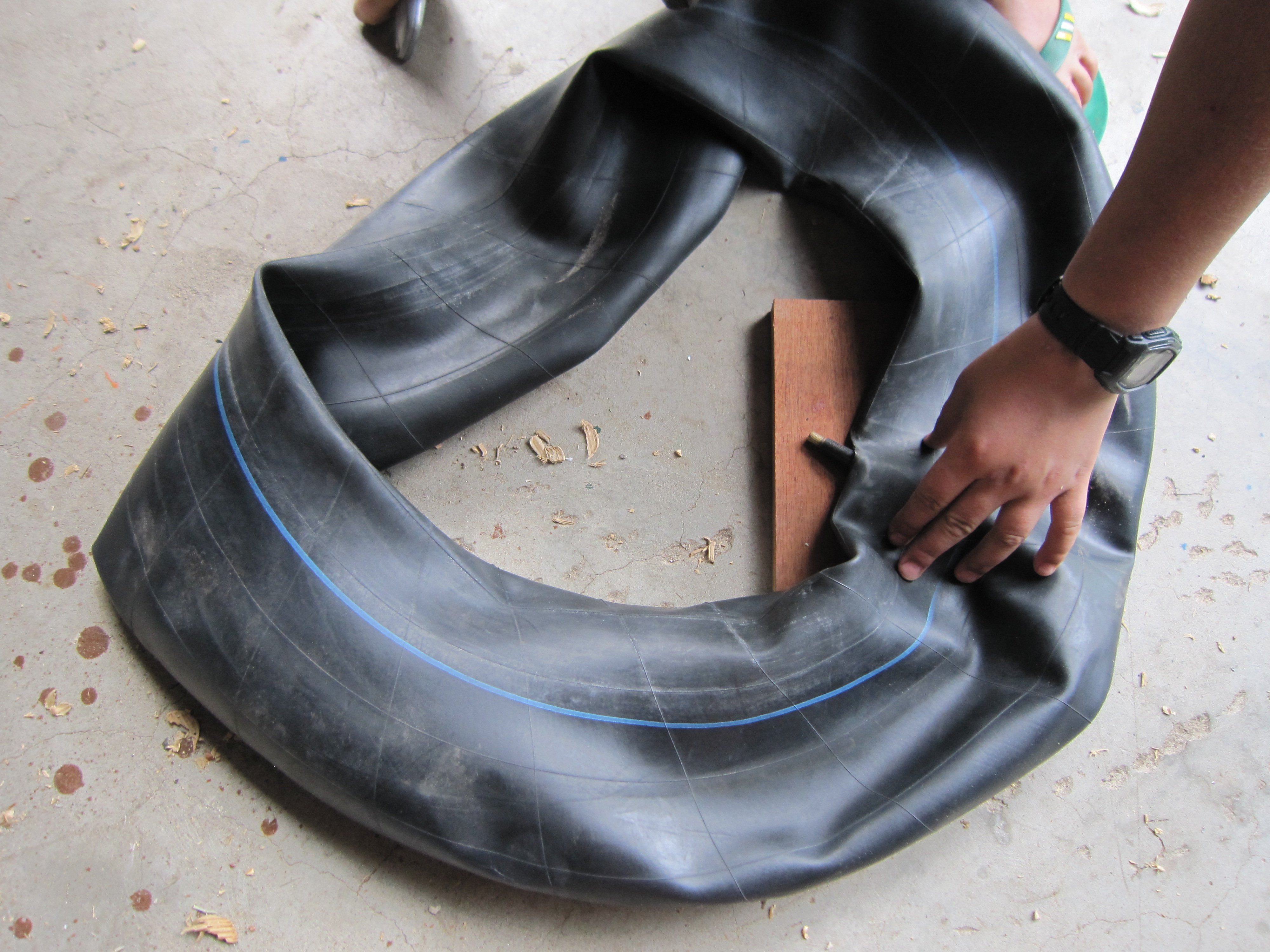

Cut the tire nozzle out of the inner tube.

Step 3

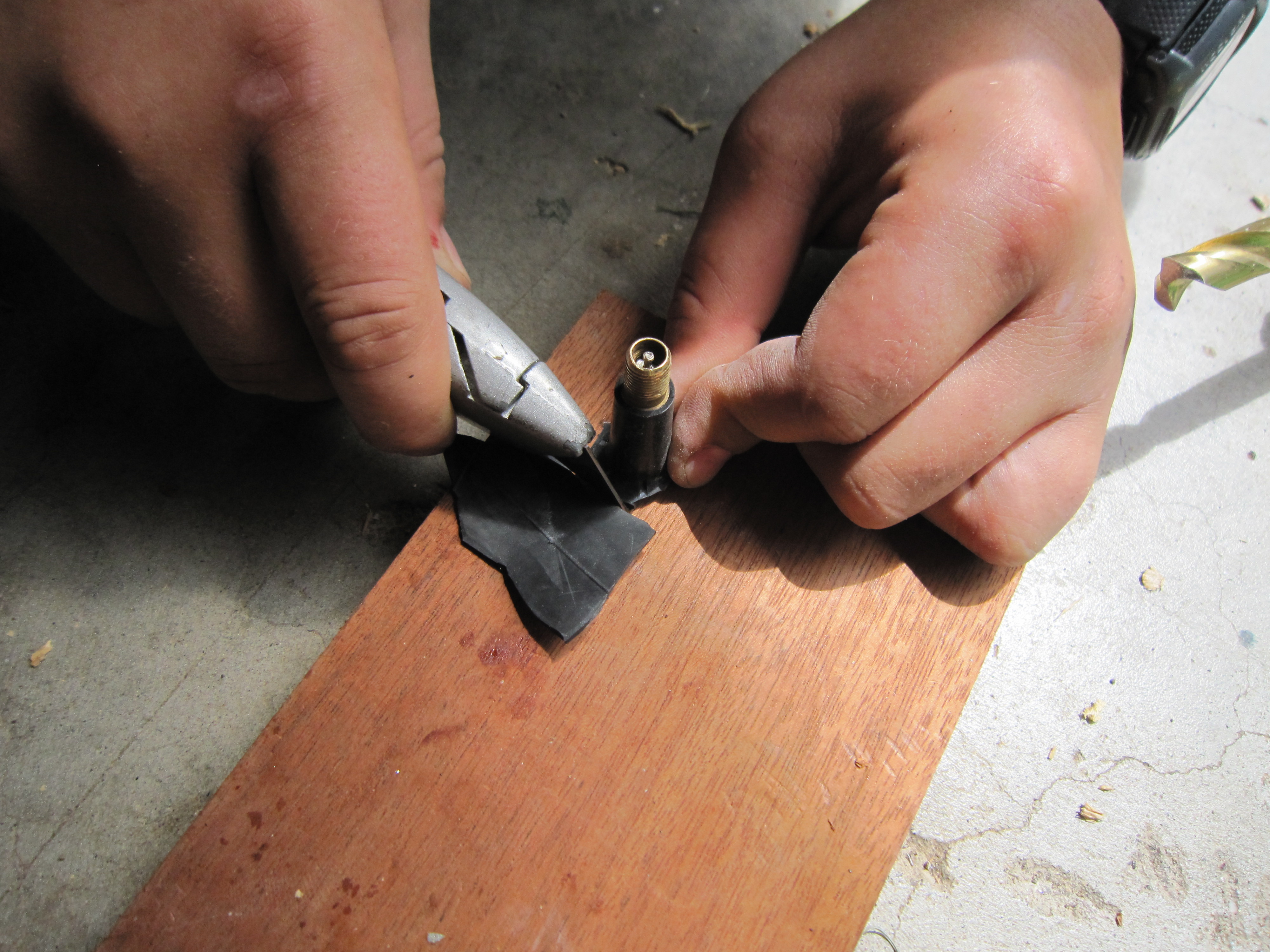

Cut the rubber from the nozzle.


Step 4

Ask your mom or dad if they would have a plastic cork; you can also ask your friends' parents to save corks for you.  Don't use a real cork made out of cork because it will fall apart.  You might have to cut the plastic cork if it's too long.

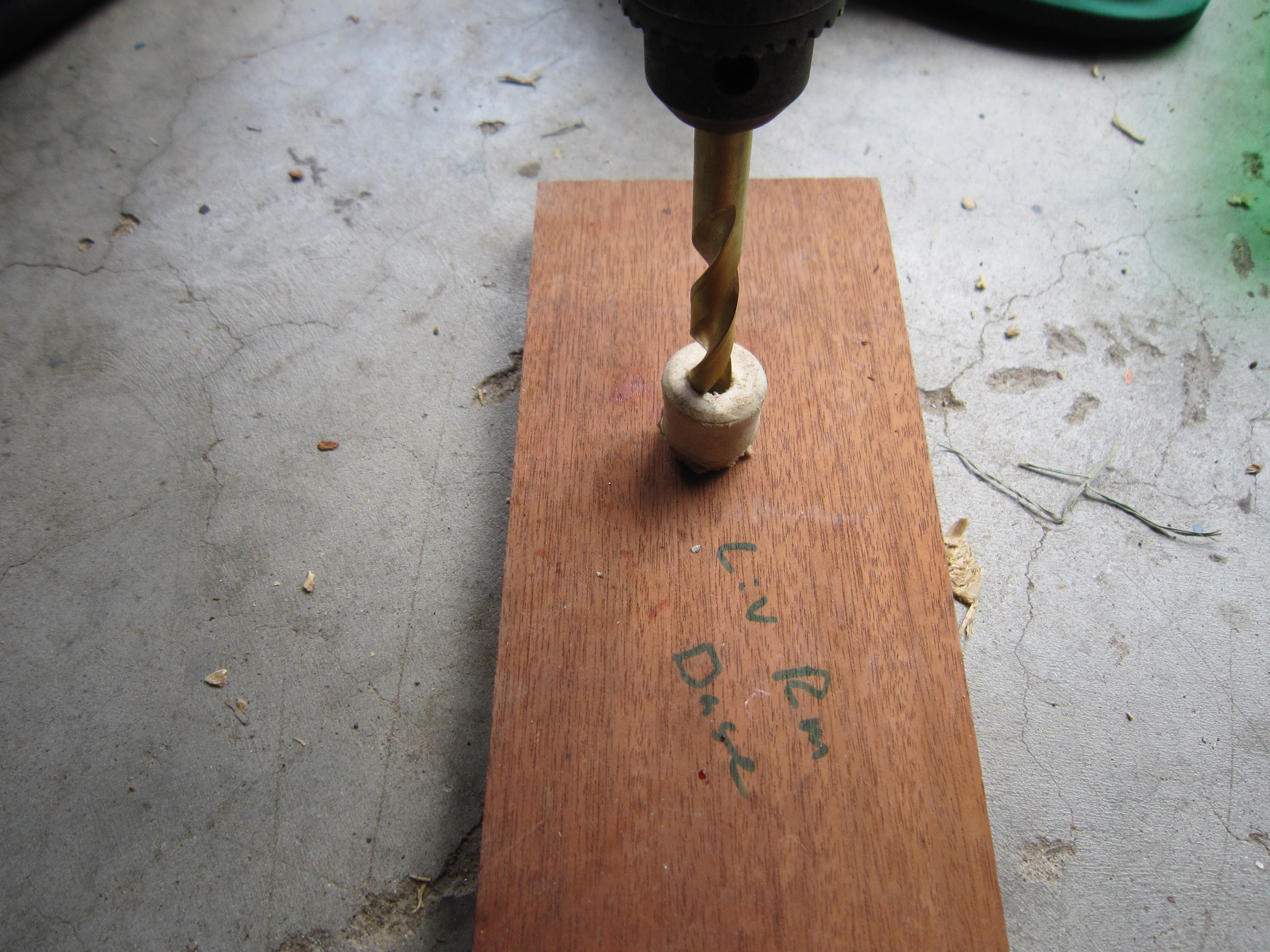

Drill a hole in the cork to fit the tire nozzle.


Step 5

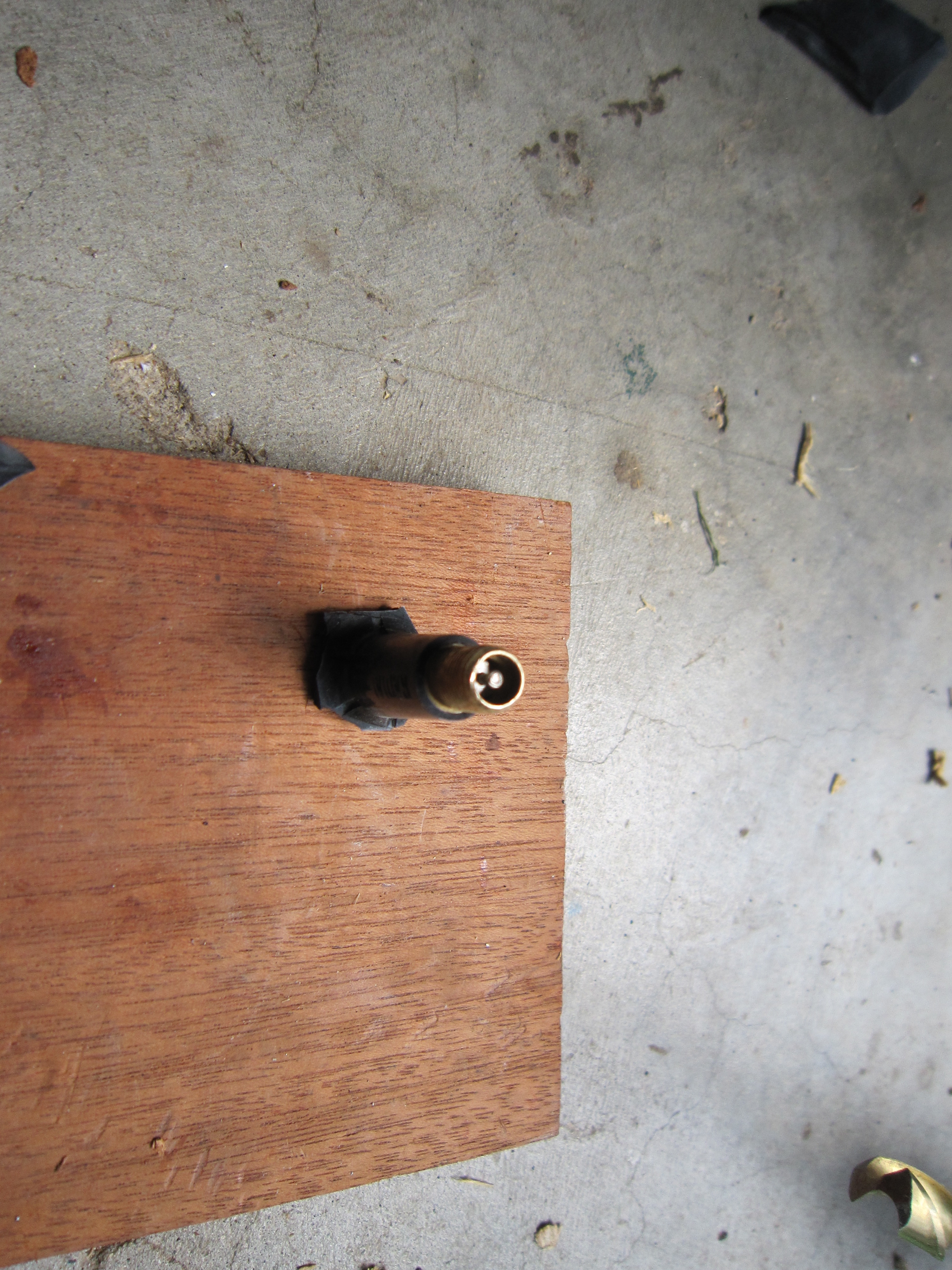

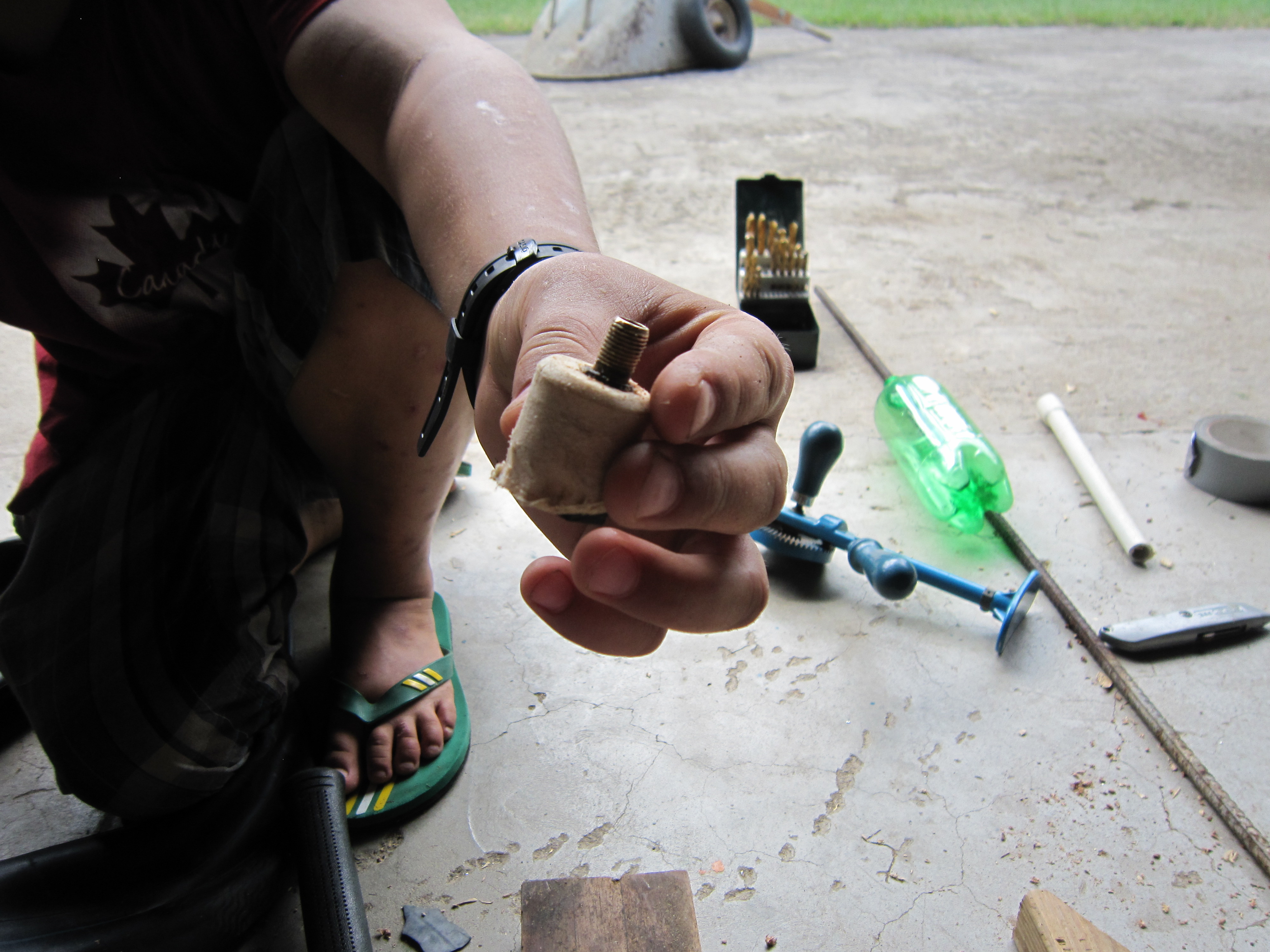

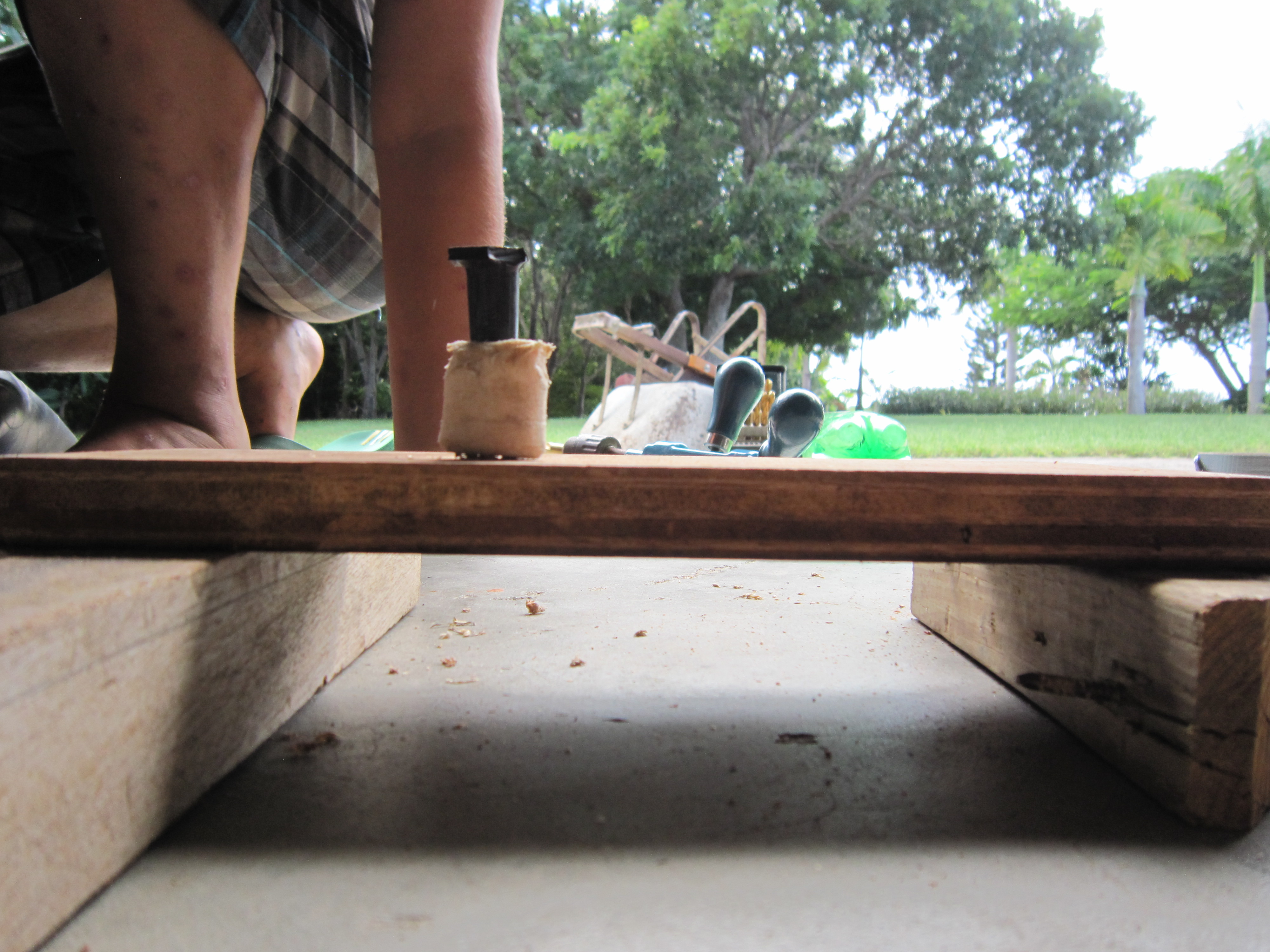

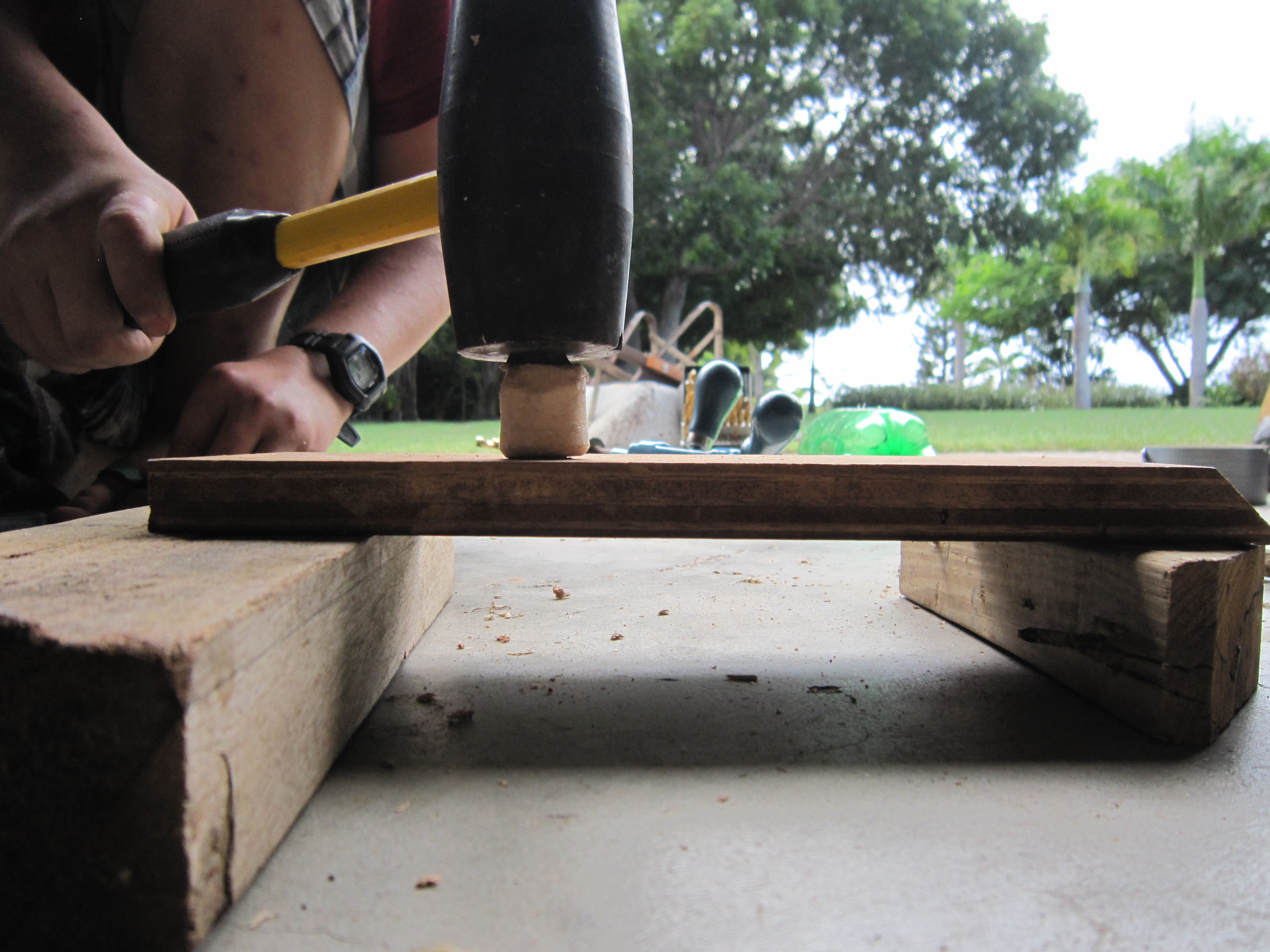

Get two blocks of wood (2x4's).  Drill a hole in the wood.  Put the tire nozzle in the hole of the cork.  Take a rubber mallet and just tap the nozzle into the cork.

Step 6

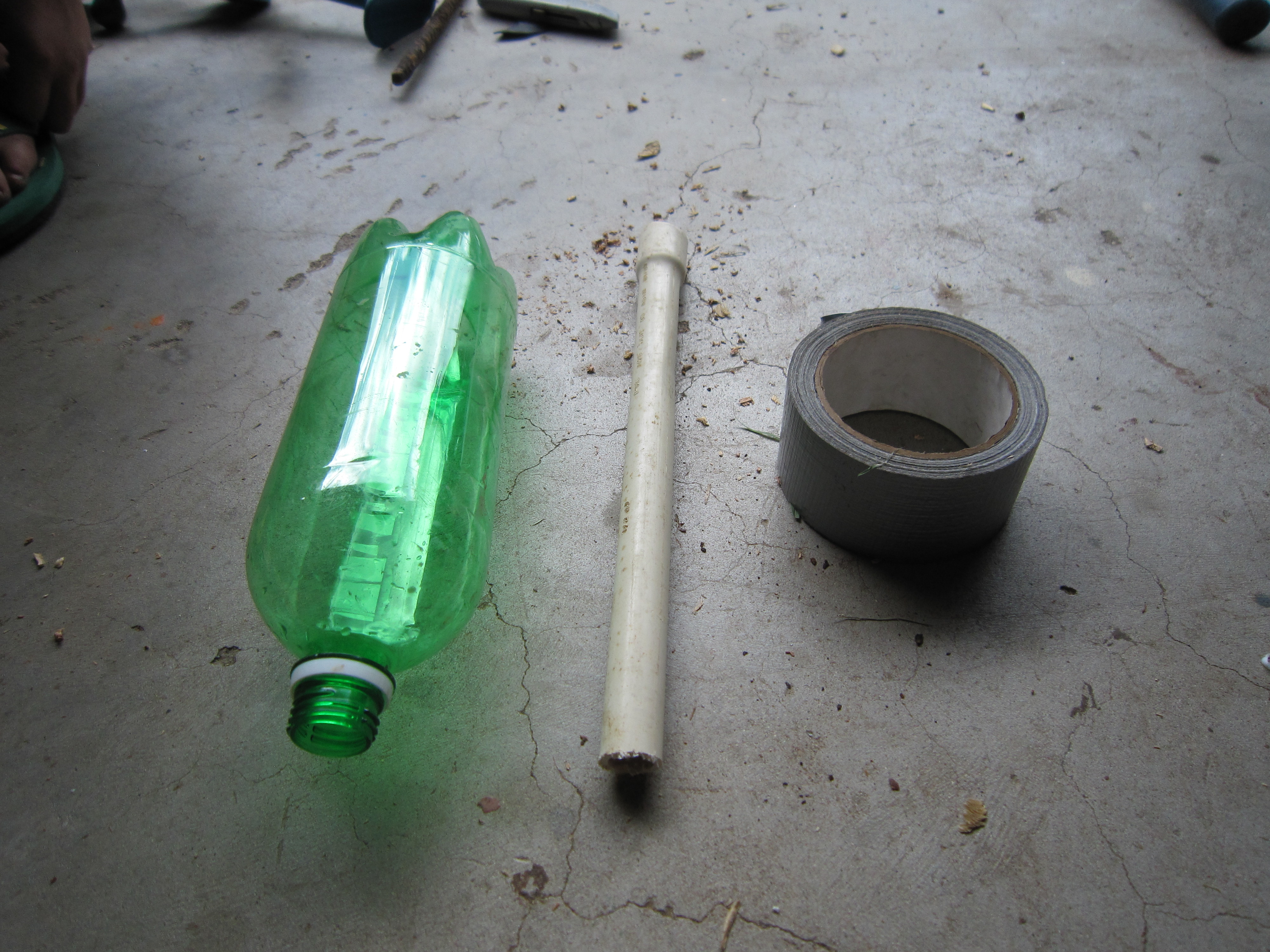

Get a plastic soda bottle, a short piece of pvc pipe, and a roll of duct tape.

Cut a 3" piece of pipe and tape it to the bottle.

STEP 7

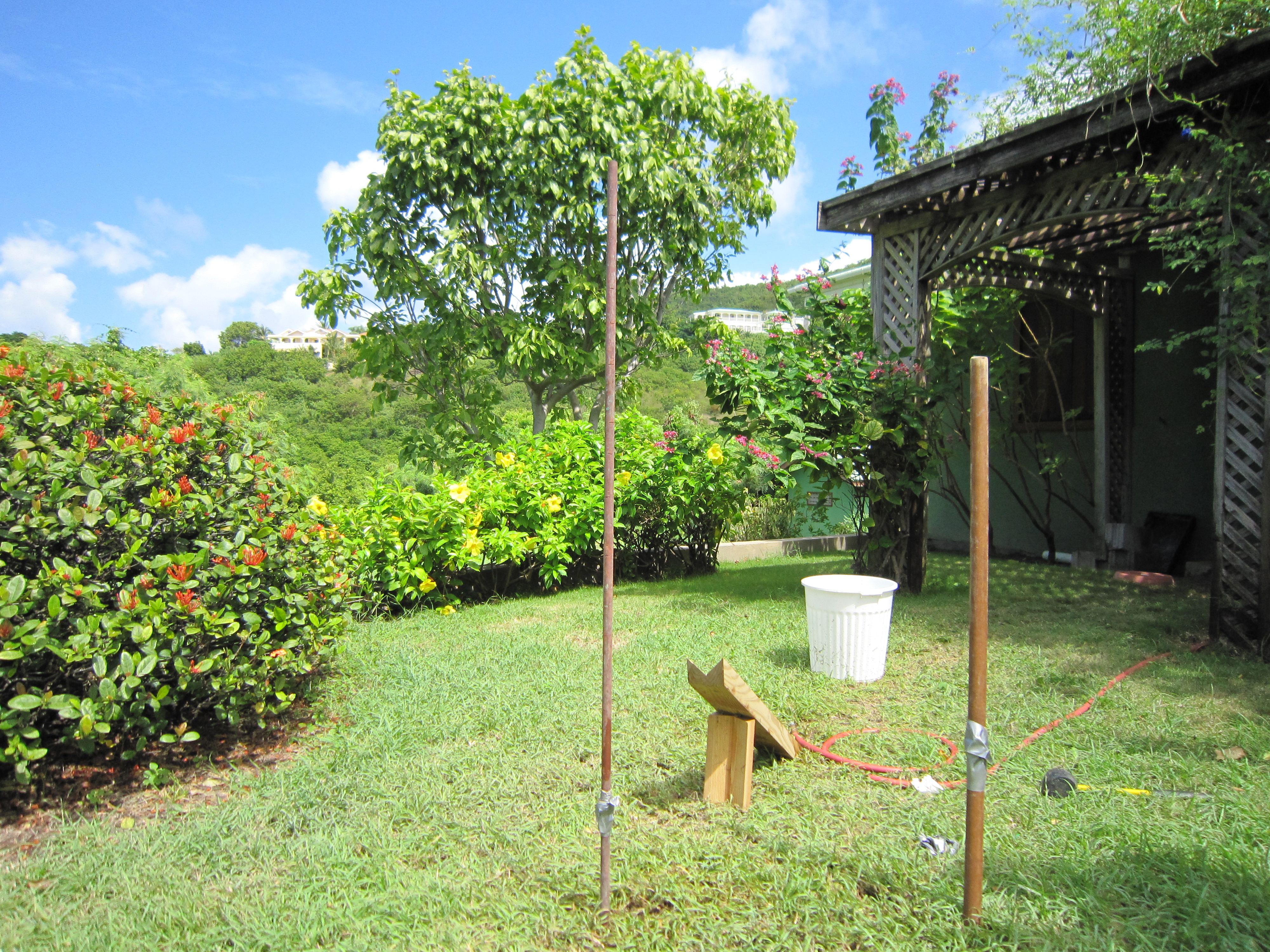

Use a piece of copper pipe or a rod.  Pound the rod or pipe in the ground.

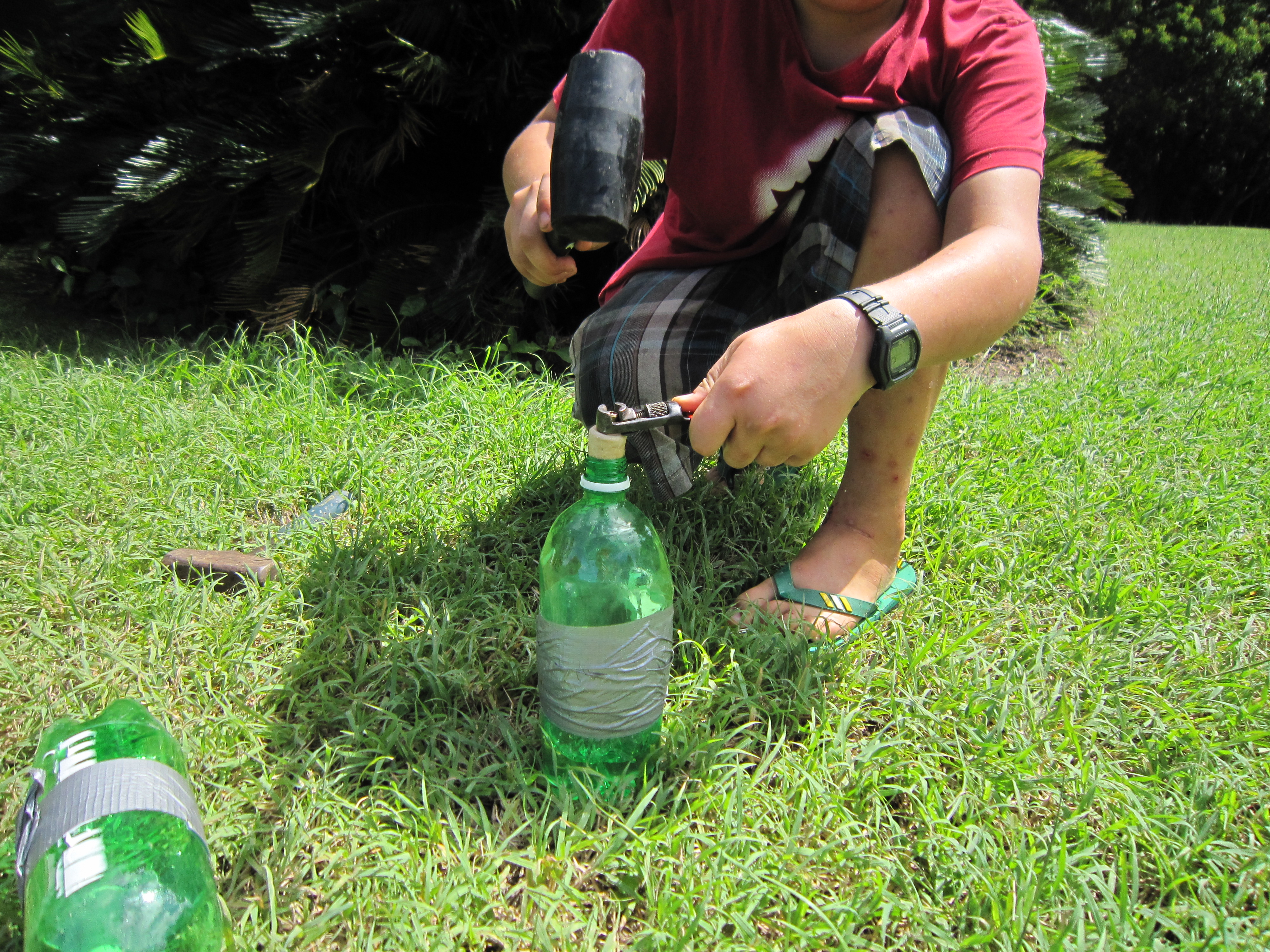

Take the rubber mallet and tap the plug in as in the picture below.  Slide the bottle on to the pipe.

STEP 8

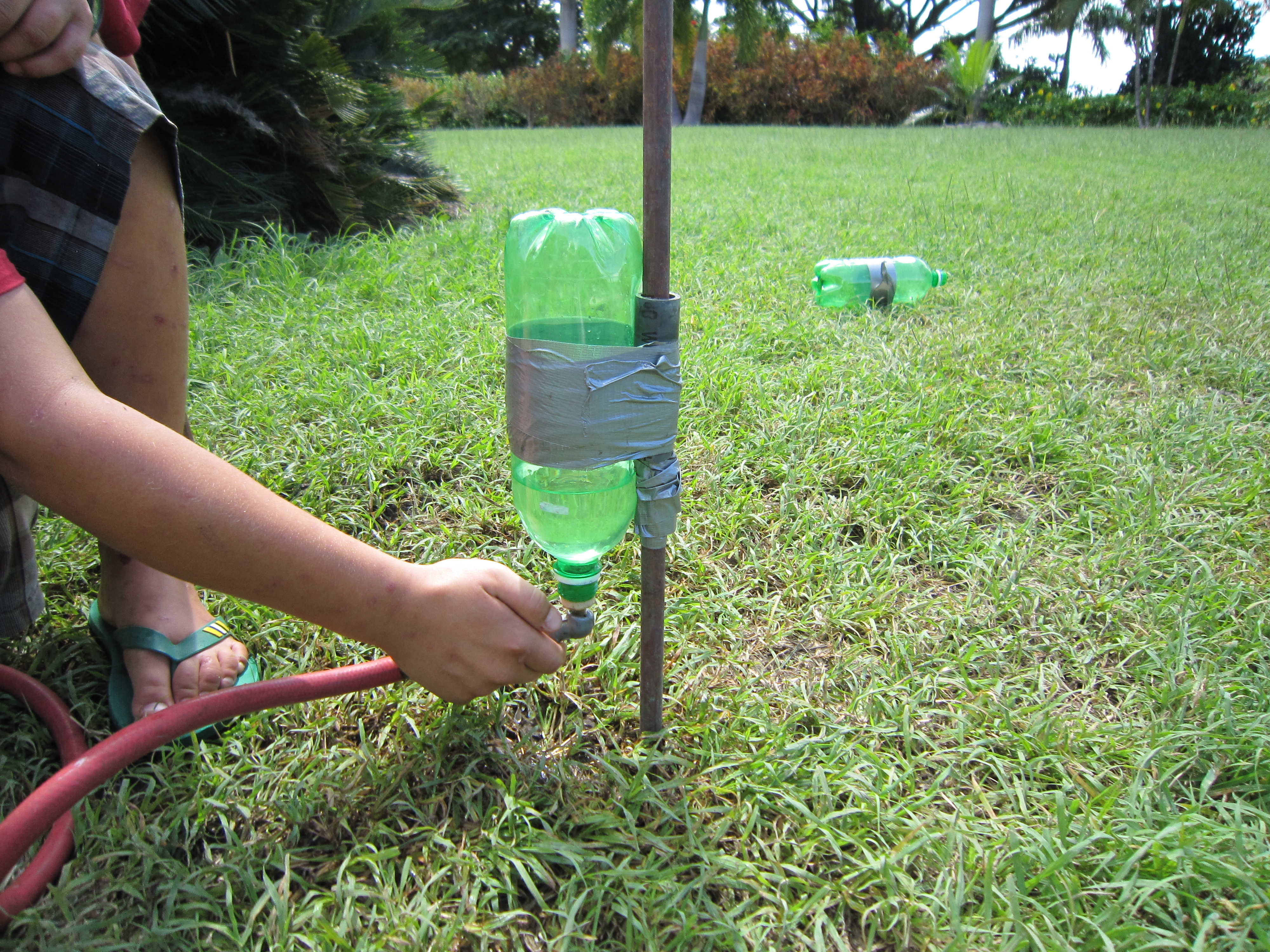

Use an air compressor.  Find a tire air filler and fill the bottle with air.  We fill our bottles to about 50-80 psi. While you're filling the bottle with air, it will take off!

Try not to lose the cork so you can re-use it!
