EASY MSP430 LaunchPad ISP With Only 4 Wires!!!

now, i would like to show you how to turn your own launchpad into a ISP with only 4 wires!!!
this is my first time to post  instruction, I am a senior high student,
sorry for my poor grammar.

in the example i use MSP430G2231, but you can replace it with any 430 families chip, whether 14pins or 20pins


=============================
Need list:

1. only 4 dupont wires (with one side male and other side female)
2.launchpad breadboard

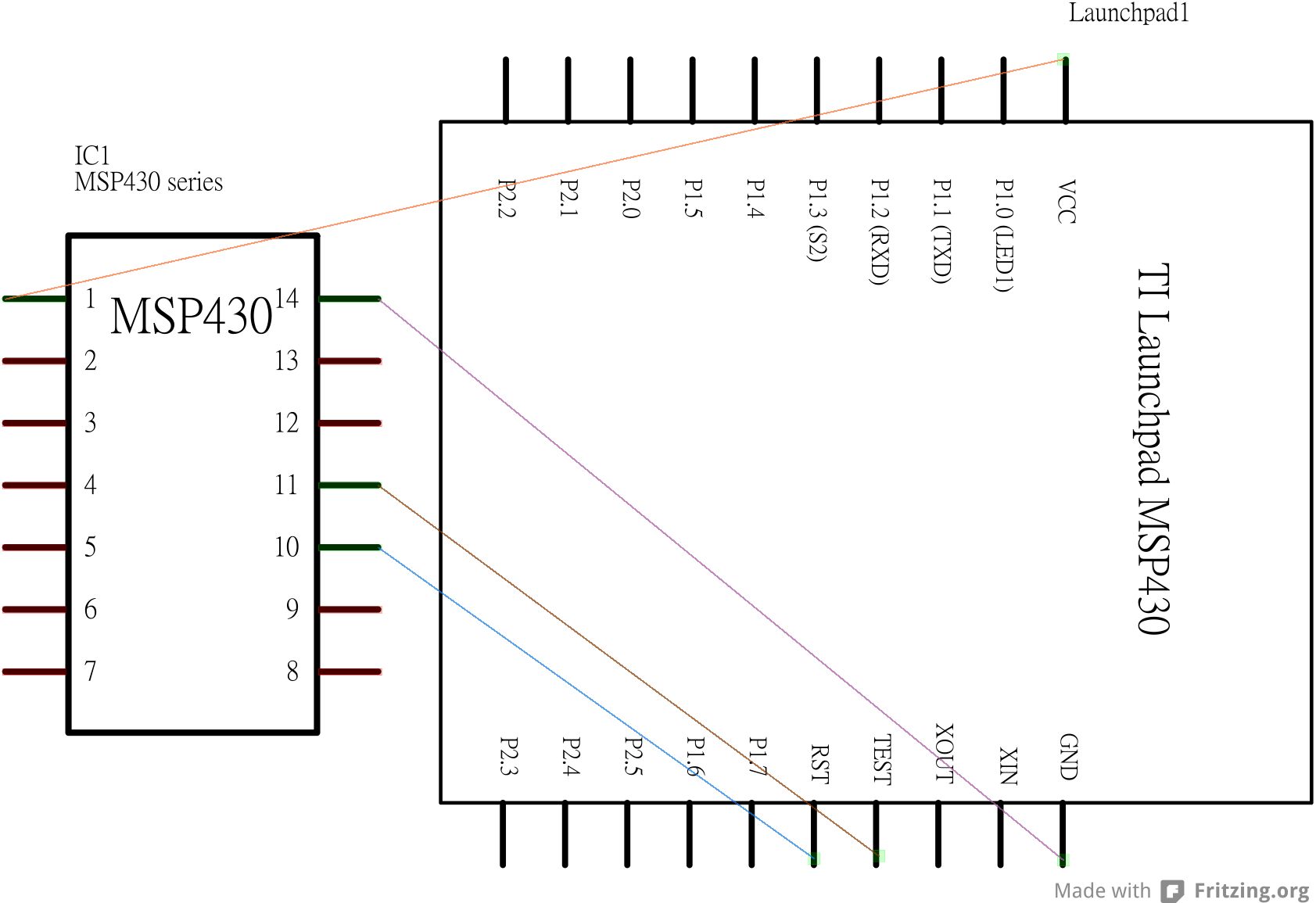

connect them like followings, this example is 14pins chip

 Vcc <---> pin1

 GND <---> pin14

 TEST <---> pin11

 RST <---> pin10

if your chip is 20pins, you can do like this

Vcc <---> pin1

GND <---> pin20

TEST <---> pin17

RST <---> pin16

if previous picture is not clear, maybe this can help you,

at last, you can upload your program by Energia or CCS something else

and it done!!



hope you enjoy~~~


and you must want to know how to make your MSP430 IC work independently(without launchpad board)
