ARDUINO MOTION SENSOR

For this simple project all you need is

the arduino and software

pir motion sensor

speaker or buzzer

first connect the sensor middle pin to digital pin 2 and the GND to the GND on the arduino and lastly the power pin goes to the 5V on the arduino.

second the step is the speaker that is pluged into the didgital pin 10, 11 or 12 and the black wire goes to the GND on the arduino.

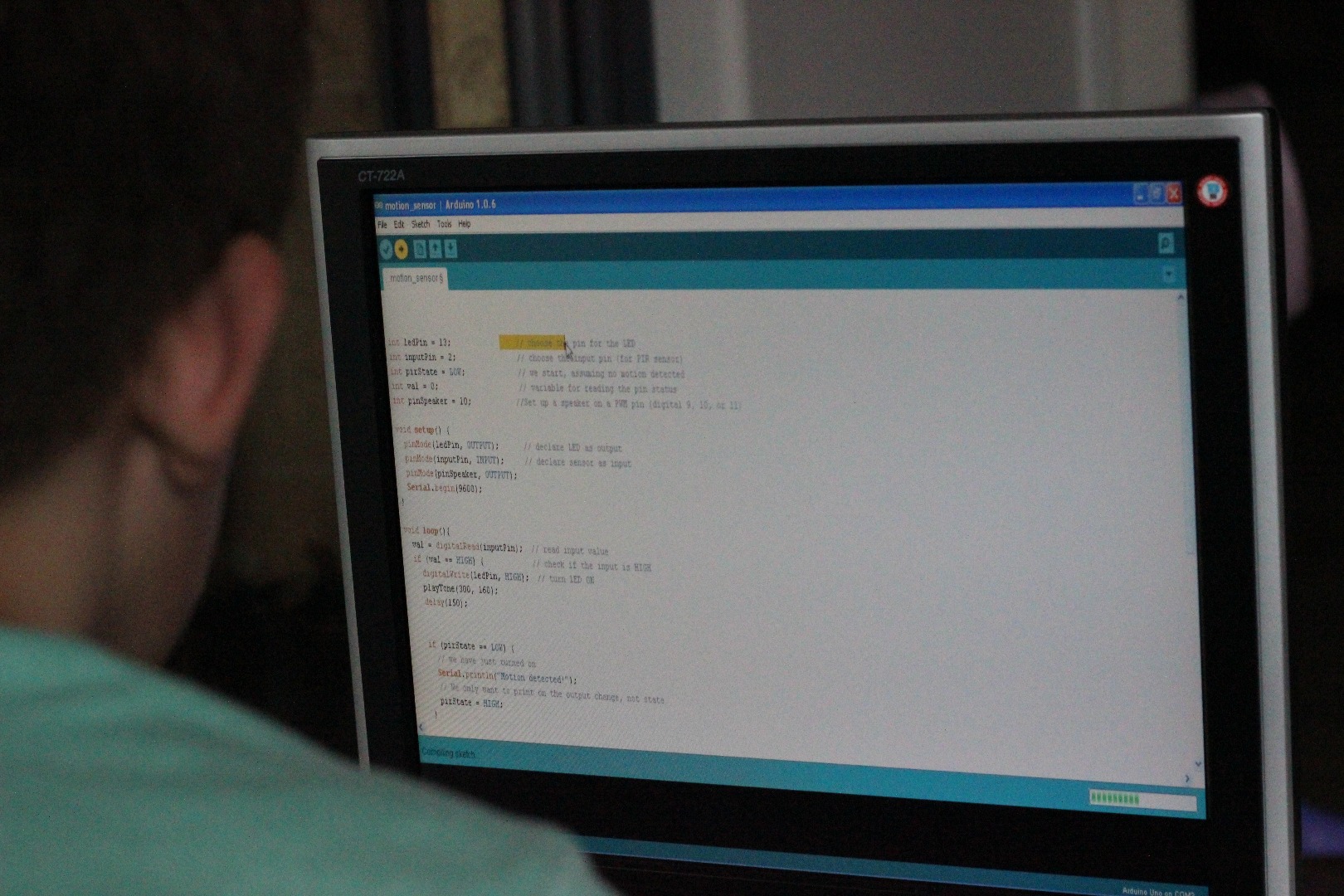

the code for this project is

int ledPin = 13;
int inputPin = 2; int pirState = LOW; int val = 0; int pinSpeaker = 10;

void setup() { pinMode(ledPin, OUTPUT); pinMode(inputPin, INPUT); pinMode(pinSpeaker, OUTPUT); Serial.begin(9600); }

void loop(){ val = digitalRead(inputPin); if (val == HIGH) { digitalWrite(ledPin, HIGH); playTone(300, 160); delay(150);

if (pirState == LOW) { Serial.println("Motion detected!"); pirState = HIGH; } } else { digitalWrite(ledPin, LOW); playTone(0, 0); delay(300); if (pirState == HIGH){ Serial.println("Motion ended!"); pirState = LOW; } } }

void playTone(long duration, int freq) { duration *= 1000; int period = (1.0 / freq) * 1000000; long elapsed_time = 0; while (elapsed_time < duration) { digitalWrite(pinSpeaker,HIGH); delayMicroseconds(period / 2); digitalWrite(pinSpeaker, LOW); delayMicroseconds(period / 2); elapsed_time += (period); } }

to download the coding software go to https://www.arduino.cc/en/Main/Software
