E-STADUIM GAME USING ARDUINO

Good Afternoon My Name is Hamza ( Or Hamza 681 ). I love Something Called Tech and Electronics I started my Trip With Arduino When I was 10 Years Old I loved It and continued until Years Later I wanted To do Something and Show it to the World !! So I thought Why Don't I show the world what I can make so I did this project that you will see Now ( Build A STADUIM ) In this Project we will control A goal Keeper and make a commentary voice using mp3 as we will see and a sensor that calculates if the ball passed the goal line ( GOAL LINE TECHNOLOGY VAR )It will be so Simple And Amazing And Thank You.

1- Arduino Uno (1) https://ram-e-shop.com/product/kit-arduino-uno/

2- Bread Board (1) https://ram-e-shop.com/product/bb01-bread-board/

3- MP3 Module (1) https://ram-e-shop.com/product/kit-mp3-m87/

4- USB Cable type A to B (1)

5- SD Card ( 8Gb or Higher ) (1)

6- Male to Male Jumper Wire (30 or more)

7- Resistor 1k Ohm (1)

8- 4ohm 0.3 Watt Speaker (1)

9- SG90 Servo Motor (1)

10- Joystick Module (1)

11- IR Sensor (1)

12- Male to Female wires (30 or More)

13- Buzzer (1)

14- Joystick Acrylic case ( Optional ) (1)

15- 5V 2A Power Adaptor (1)

16- Rosetta to DC socket (1)

17- 30X40 wood (1)

18- 30X40 Synthetic grass (1)

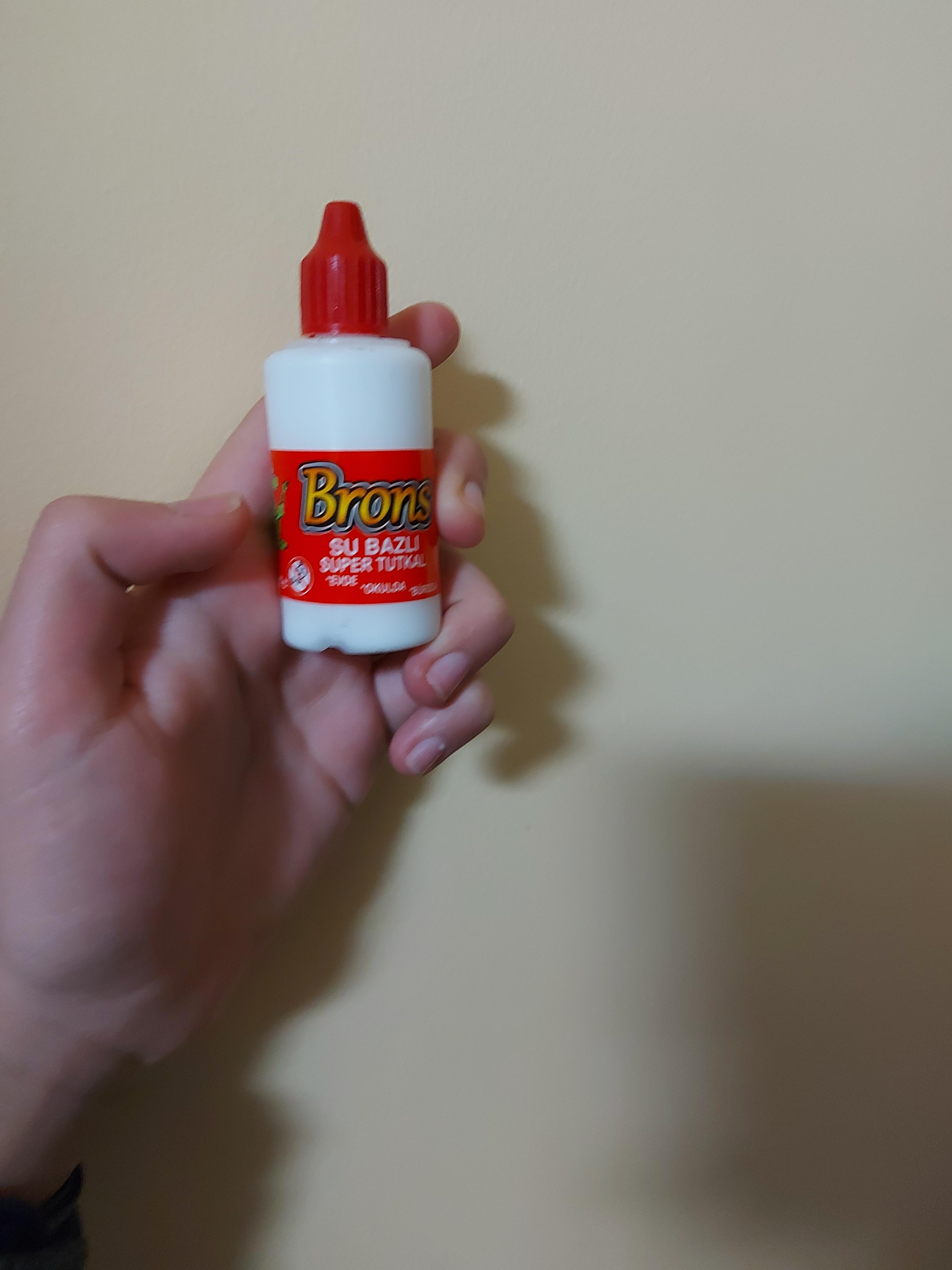

19- Strong Glue

20- A Maquette ( Net , Football Players, lights and trees to decorate )

21- Drill

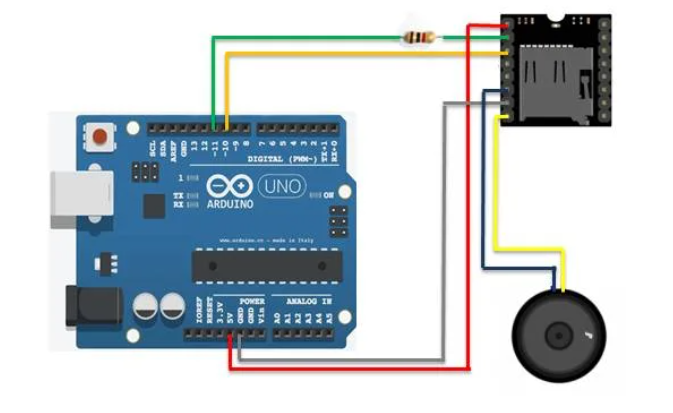

Now Build The Schemitic And Leave It on A side After You Finish

After You Finish Get The Rosetta And Put the positive to the 5v on bread Board And Negative on Gnd On arduino Then Gnd on arduino to Gnd On bread Board Then VIN on arduino To 5v on bread Board And Thats It Lets Go to Next Step

FIRST STEP

Cut Three circles in the wood Using a drill.

SECOND STEP

After that stick the grass To the Wood Using The Glue BUT GLUE ONLY THE PART OF THE 3 WHOLES AND LEAVE 25% NOT GLUED ON THE OTHER SIDE

THIRD STEP

Put The Net Maquette the opposite place Of the three wholes And Stick it

FOURTH STEP

Put the Trees And The Lights And Players In random Places As You wish.

Put All The Schemitic underneath and put the speaker In the 3 wholes That We Made Underneath the wood And A Line them Correctly put the JOYSTICK AND THE IR AND THE SERVO ON TOP AS YOU CAN SEE IN THE PICTURE.

Download The Code and the Mp3 Commentary Voice

AFTER UPLOADING REMOVE THE USB CABLE AND PUT THE 5V 2A ADAPTOR INSIDE THE ROSSETA SOCKET AND HAVE FUN :) !!!!!!
