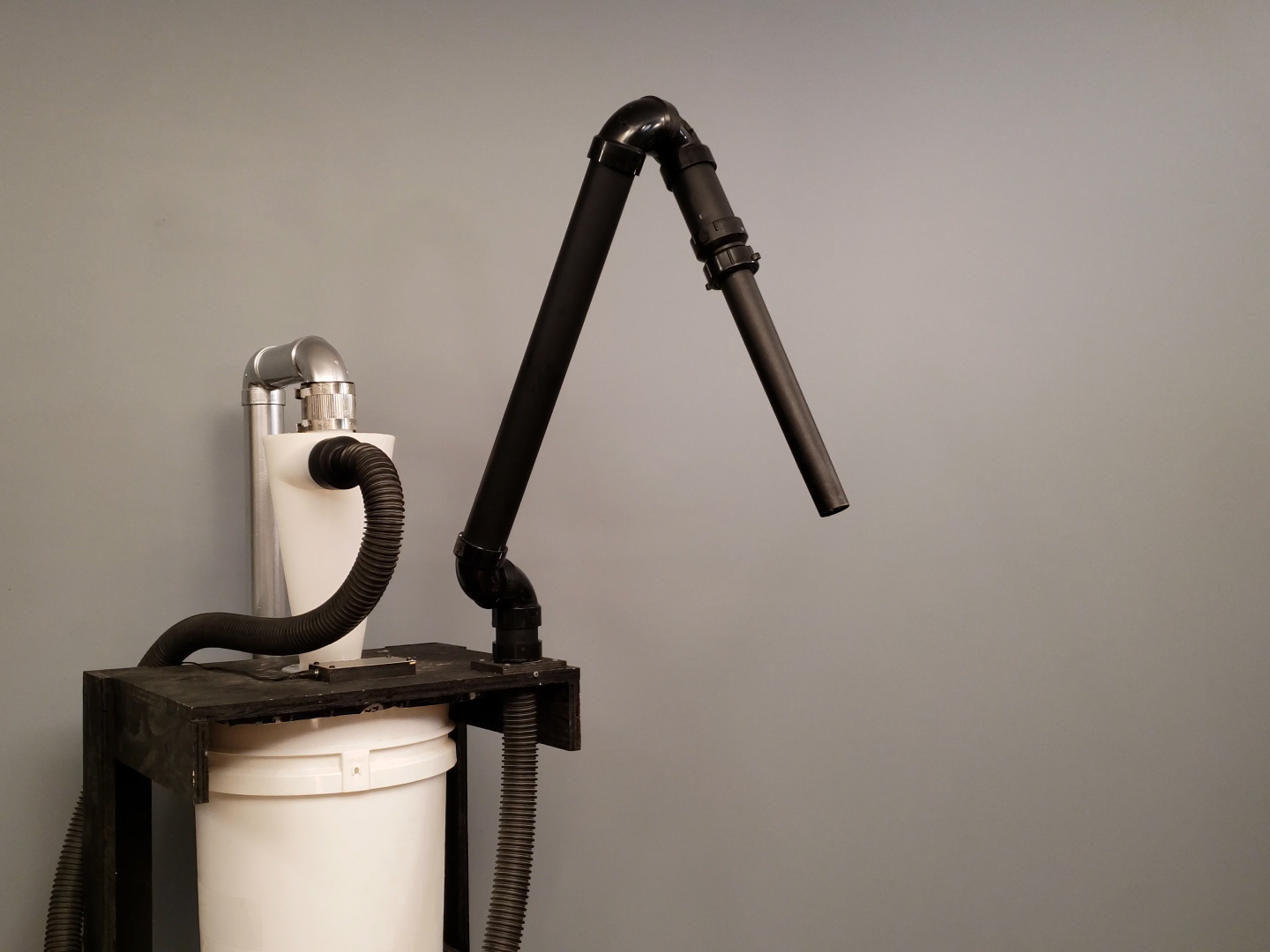

Dust Collector ARM
![DIY Dust Collector ARM - How to](/proxy/?url=https://content.instructables.com/FSJ/6PG2/JOMTFNYA/FSJ6PG2JOMTFNYA.jpg&filename=DIY Dust Collector ARM - How to)
Hi everyone!
Here's a new add-on i made for my dust collector cart , and it's awesome. While i can plug the hose directly into my miter saw and my table saw, i can't do this for my band saw and my drill press. So .. the idea came to me to build an extendable arm! I hope you enjoy this project, share photos with me if you build one.
Materials
![instruc-01-material-shopvac-dust-collector-arm.jpg](/proxy/?url=https://content.instructables.com/FI5/N0YD/JOIY4810/FI5N0YDJOIY4810.jpg&filename=instruc-01-material-shopvac-dust-collector-arm.jpg)
Here is the list of what you need to make this project.
- 1 x ABS pipe ( 1½ x 6' )
- 2 x ABS elbow ( Male to Female )
- 2 x ABS elbow ( Female to Female )
- 1 x ABS reducer ( 1½ to 1¼ )
- 3 x 8-32 screw x 5/8 long + washer and locknut
- ABS glue
Assemble All Parts
![instruc-02-material-shopvac-dust-collector-arm.jpg](/proxy/?url=https://content.instructables.com/FYJ/MJPF/JOIY4872/FYJMJPFJOIY4872.jpg&filename=instruc-02-material-shopvac-dust-collector-arm.jpg)
Now, before we go further, assemble all the parts together so you can see what the final result will be. You can adjust the length of the pipes at this step. I made it a way i can use my shopvac accessories so i can add lengths as i want.
Ohoh .. We Need to Fix That!
![instruc-03-material-shopvac-dust-collector-arm.jpg](/proxy/?url=https://content.instructables.com/F6K/CQV3/JOIY4870/F6KCQV3JOIY4870.jpg&filename=instruc-03-material-shopvac-dust-collector-arm.jpg)

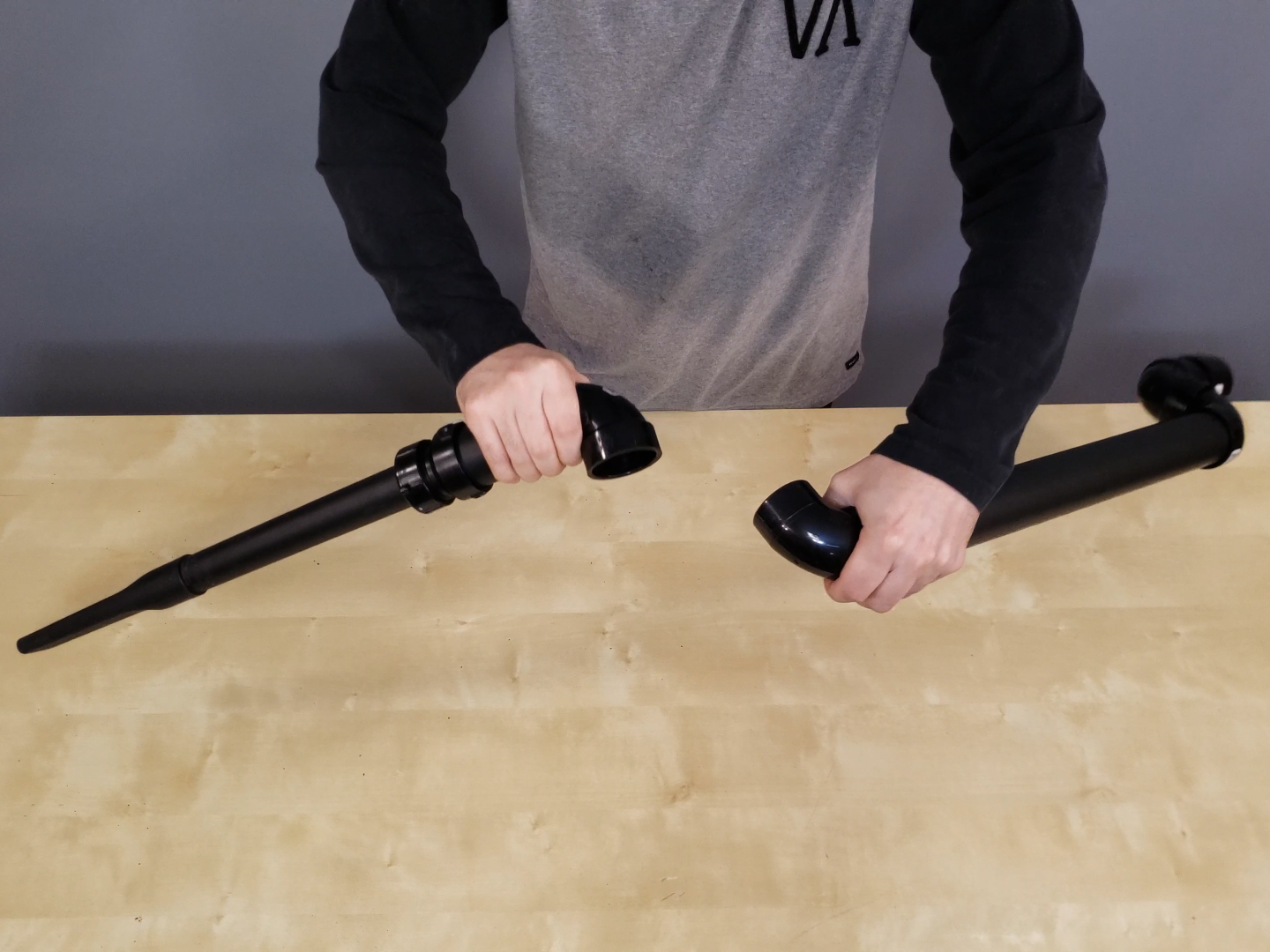

As you can see, if you try to rotate the elbow of the arm, it will just fall apart. So we have to find a way so that the elbow does not disassemble each time you rotate it. You can't add glue everywhere otherwise your arm will now move anymore.
Make a Groove
![instruc-04-material-shopvac-dust-collector-arm.jpg](/proxy/?url=https://content.instructables.com/F3Q/RN1X/JOIY4CCU/F3QRN1XJOIY4CCU.jpg&filename=instruc-04-material-shopvac-dust-collector-arm.jpg)
![instruc-05-material-shopvac-dust-collector-arm.jpg](/proxy/?url=https://content.instructables.com/FQF/MGPD/JOIY4CCV/FQFMGPDJOIY4CCV.jpg&filename=instruc-05-material-shopvac-dust-collector-arm.jpg)
![instruc-06-material-shopvac-dust-collector-arm.jpg](/proxy/?url=https://content.instructables.com/FYA/630M/JOIY4CH6/FYA630MJOIY4CH6.jpg&filename=instruc-06-material-shopvac-dust-collector-arm.jpg)
![instruc-07-material-shopvac-dust-collector-arm.jpg](/proxy/?url=https://content.instructables.com/F7C/D9LJ/JOIY4HVI/F7CD9LJJOIY4HVI.jpg&filename=instruc-07-material-shopvac-dust-collector-arm.jpg)
Best way i found was to make a groove with my band saw then with a file on the male end of one of the elbow, and add a screw through the female end of the other elbow.
Secure Everything Together
![instruc-08-material-shopvac-dust-collector-arm.jpg](/proxy/?url=https://content.instructables.com/FWM/4BDM/JOIY4JON/FWM4BDMJOIY4JON.jpg&filename=instruc-08-material-shopvac-dust-collector-arm.jpg)
![instruc-09-material-shopvac-dust-collector-arm.jpg](/proxy/?url=https://content.instructables.com/FEW/N8HS/JOIY4JOO/FEWN8HSJOIY4JOO.jpg&filename=instruc-09-material-shopvac-dust-collector-arm.jpg)
![instruc-10-material-shopvac-dust-collector-arm.jpg](/proxy/?url=https://content.instructables.com/F10/2VHV/JOIY4JPD/F102VHVJOIY4JPD.jpg&filename=instruc-10-material-shopvac-dust-collector-arm.jpg)
![instruc-11-material-shopvac-dust-collector-arm.jpg](/proxy/?url=https://content.instructables.com/F3U/3O2W/JOMTFEHD/F3U3O2WJOMTFEHD.jpg&filename=instruc-11-material-shopvac-dust-collector-arm.jpg)
![instruc-12-material-shopvac-dust-collector-arm.jpg](/proxy/?url=https://content.instructables.com/F7K/687T/JOMTFEHE/F7K687TJOMTFEHE.jpg&filename=instruc-12-material-shopvac-dust-collector-arm.jpg)
![instruc-13-material-shopvac-dust-collector-arm.jpg](/proxy/?url=https://content.instructables.com/FOR/LOW5/JOMTFFKQ/FORLOW5JOMTFFKQ.jpg&filename=instruc-13-material-shopvac-dust-collector-arm.jpg)
Now, assemble both elbows together, then drill through the female to female elbow, and insert the screw. Secure everything with a washer and a locknut. Repeat the process so you have 2 functional rotating elbows.
Add Some Glue
![instruc-14-material-shopvac-dust-collector-arm.jpg](/proxy/?url=https://content.instructables.com/FCB/RJA0/JOMTFFMM/FCBRJA0JOMTFFMM.jpg&filename=instruc-14-material-shopvac-dust-collector-arm.jpg)
![instruc-16-material-shopvac-dust-collector-arm.jpg](/proxy/?url=https://content.instructables.com/F70/2P66/JOMTFFSB/F702P66JOMTFFSB.jpg&filename=instruc-16-material-shopvac-dust-collector-arm.jpg)
![instruc-17-material-shopvac-dust-collector-arm.jpg](/proxy/?url=https://content.instructables.com/FMW/8ZXG/JOMTFFW2/FMW8ZXGJOMTFFW2.jpg&filename=instruc-17-material-shopvac-dust-collector-arm.jpg)
Now assemble all the parts and add some glue, but not everythere. Only where you see red circles.
Swivel Base
![instruc-18-material-shopvac-dust-collector-arm.jpg](/proxy/?url=https://content.instructables.com/FIK/2X8A/JOMTFFW3/FIK2X8AJOMTFFW3.jpg&filename=instruc-18-material-shopvac-dust-collector-arm.jpg)
![instruc-19-material-shopvac-dust-collector-arm.jpg](/proxy/?url=https://content.instructables.com/F71/FDWH/JOMTFFW4/F71FDWHJOMTFFW4.jpg&filename=instruc-19-material-shopvac-dust-collector-arm.jpg)
![instruc-20-material-shopvac-dust-collector-arm.jpg](/proxy/?url=https://content.instructables.com/FL8/QA33/JOMTFFW5/FL8QA33JOMTFFW5.jpg&filename=instruc-20-material-shopvac-dust-collector-arm.jpg)
![instruc-21-material-shopvac-dust-collector-arm.jpg](/proxy/?url=https://content.instructables.com/FCS/VSAC/JOMTFFW7/FCSVSACJOMTFFW7.jpg&filename=instruc-21-material-shopvac-dust-collector-arm.jpg)
![instruc-22-material-shopvac-dust-collector-arm.jpg](/proxy/?url=https://content.instructables.com/FQ1/1EL5/JOMTFFW8/FQ11EL5JOMTFFW8.jpg&filename=instruc-22-material-shopvac-dust-collector-arm.jpg)

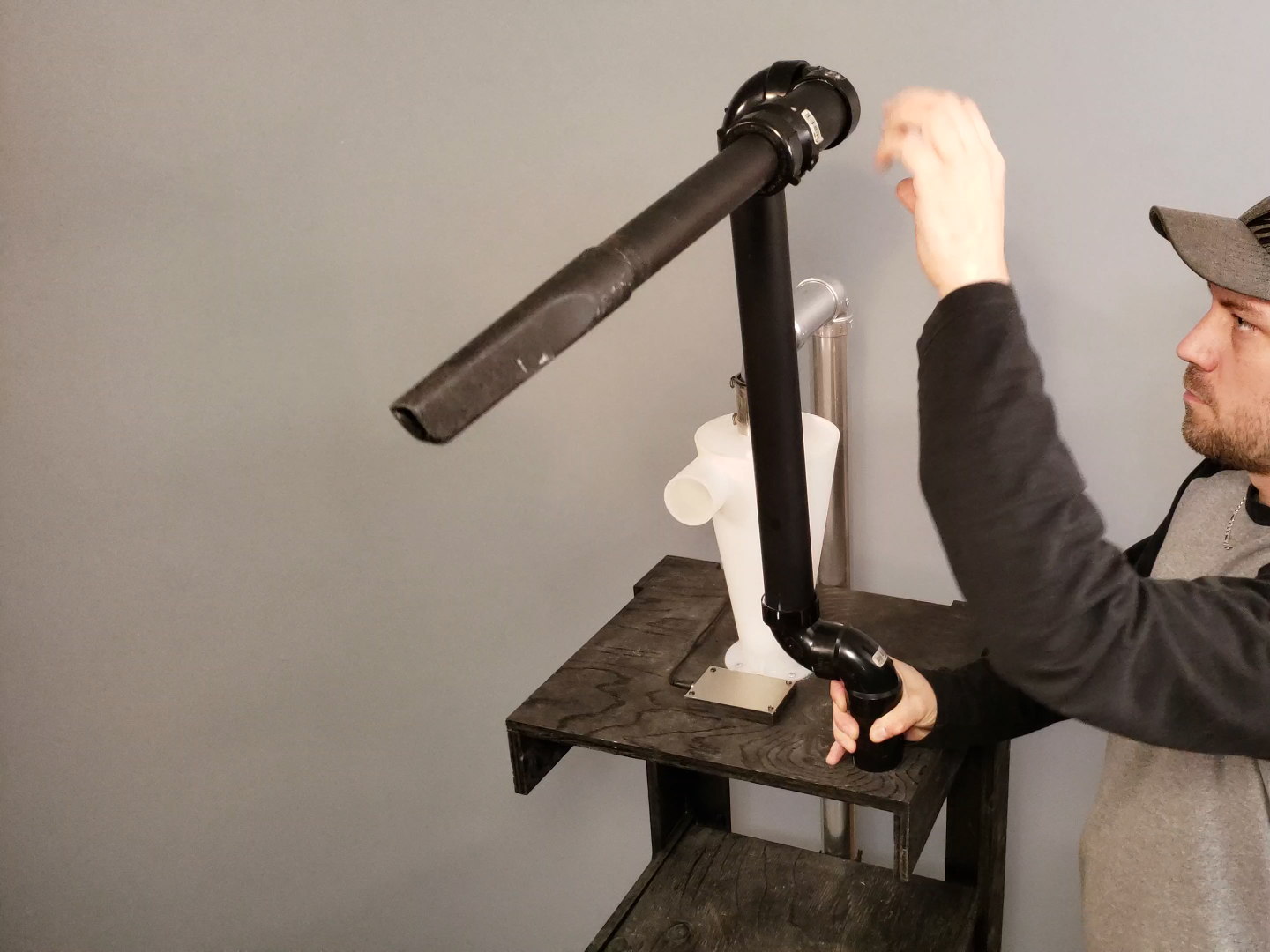

Now, you want to make a swivel base, it will be easier to place the arm to the machine you want. So let's make another groove on the pipe, then drill and add a screw like we did for the 2 elbows.
Attach the Arm to the Cart
![instruc-23-material-shopvac-dust-collector-arm.jpg](/proxy/?url=https://content.instructables.com/FC5/DP8I/JOMTFFY5/FC5DP8IJOMTFFY5.jpg&filename=instruc-23-material-shopvac-dust-collector-arm.jpg)
![instruc-24-material-shopvac-dust-collector-arm.jpg](/proxy/?url=https://content.instructables.com/FEZ/OBX6/JOMTFFY6/FEZOBX6JOMTFFY6.jpg&filename=instruc-24-material-shopvac-dust-collector-arm.jpg)
![instruc-25-material-shopvac-dust-collector-arm.jpg](/proxy/?url=https://content.instructables.com/FN6/TOR7/JOMTFFY9/FN6TOR7JOMTFFY9.jpg&filename=instruc-25-material-shopvac-dust-collector-arm.jpg)
![instruc-26-material-shopvac-dust-collector-arm.jpg](/proxy/?url=https://content.instructables.com/F3A/PJPM/JOMTFFYB/F3APJPMJOMTFFYB.jpg&filename=instruc-26-material-shopvac-dust-collector-arm.jpg)
Now, it's time to attach the arm to the dust collector cart , i made a small square piece from scrap plywood so the pipe will be flush underneath. I didn't know if abs glue would stick to wood, so i used some gorilla glue to bond the arm to the cart, and it's very effective ! I added a screw but it was not necessary. Now , let's enjoy. Watch my video on youtube for more details, and to see the result of the project. Thanks for watching, if you like this, please subscribe for more , and share your comments with me!!
Voila!
![20181031_223701.jpg](/proxy/?url=https://content.instructables.com/F6G/YT5J/JOMTFHOT/F6GYT5JJOMTFHOT.jpg&filename=20181031_223701.jpg)
