Dual-Faced Clock From Recycled Hard Drives

Have you ever had a hard drive fail on your laptop? What was I thinking, of course you have.

What did you do with the useless chunk of metal after you replaced it? Probably just chucked it in the trash.

Well, why not recycle it?

"But JokerDAS, recycle it into what?" you ask.

At that I say, "Well, you clever Instructable creator you, why not turn it into a geeky/techie dual-faced clock?"

"If only there was an awesome instructable that could show us how." You sigh in return.

But now there is. With my easy to follow instructable, I will show you how to turn not one, but TWO defunct hard drives into a stylish clock.

Supplies:

• Of course, you will need two hard drives. I used 2.5" drives, but 3.5" would work just as awesome!
• Two separate clockwork components.
• Two CD's. Preferably without scratches.
• Assorted small screws
• Two AA batteries
• Superglue
• Epoxy

Tools:

• Mini screwdriver set with star head bits
• Tweezers
• Drill with 1/16" bit - optional

Using the screwdriver, remove all the mini screws from the top and sides of the hard drive if there are any. Some of the screws are hidden beneath the label, so I suggest scrapping the screwdriver along the label to feel for hidden screws. It is easier than attempting to peel the whole label off.

Remove the metal cover from the top of the drive. After it is open, remove the screws from the swing arm cover, swing arm and the disk spindle. Set all the parts off to the side.

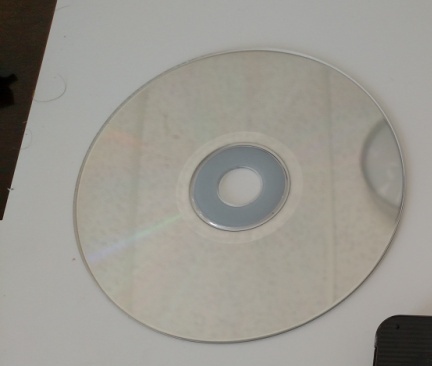

Apply some of the epoxy to the face of the clock and adhere the CD to the face of the clock. Center the clock spindle with the center of the CD hole.

Repeat for both units.

When the epoxy is dry, place the clock hands on the clock at 12:00.

1. With the tweezers, grip one of the small screws.
2. Apply a small dab of superglue to the screw head. Carefully place the glue-screw head down onto the CD at the 12:00 point.
3. Let the glue set.
4. Gently pick up the clock, and using the dial on the back, set the clock time to 1:00.
5. Repeat the previous process of gluing and adhering the screw, but this time at the 1:00 position.
6. Repeat this for all the rest of the hours, until the clock face is complete.
7. Repeat the entire step for the second CD.

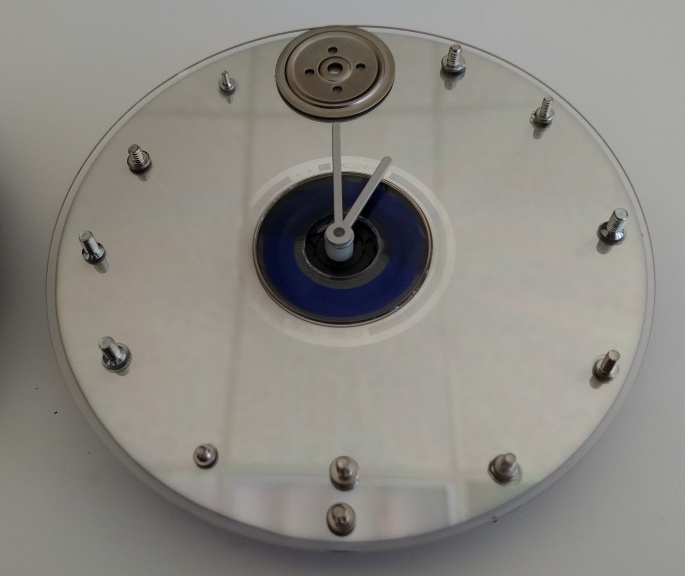

You now have two clock faces with various screws counting out the hours on one and the minutes (in 5 minute increments) on the other.

This step will be the most unpredictable. Not all hard drive swing arms are the same.

Examining the swing arms removed from both hard drives. Some have a hole at the end that may or may not fit over the clock spindle.

If the end was solid, drill out a hole just large enough to fit over the hour or minute spindle.

In my case, one arm fit just right for the hour. My second swing arm fit exactly on the minute spindle at the pivot point of the arm.

1. Insert batteries into both clocks.
2. Using the superglue CAREFULLY (so you do not accidentally glue the minute spindle to the hour spindle), glue the arms to each spindle at the 12:00 position.
3. Double-check that both hands are set to 12:00.

Monitor that both arms move as they should. One should display the hours the other should display the minutes.

Set off to dry completely.

The two hard drive shells will be used as the base.

Run an even bead of epoxy along the flat end of one of the drives. The end opposite the connectors.

Lay the other drive flat with the circuit board up.

Press the epoxy end perpendicular to the other drive creating an inverted “T”.

Set aside to dry completely.

Lay the base on its side.

Set the appropriate clock face (hour or minute depending on which side you have facing up). Line up the top edge of the structure with the top edge of the clockworks.

Make note of where the clockwork hits the structure.

Remove the clock face.

Apply superglue to the edge and front of the structure where the CD connects.

Press the clock back onto the base into the glue.

Let dry.

Lay the structure on its back with the base hanging over the edge of a table or counter.

Lay the second clock in place against the structure.

If the CD does not touch the structure, due to the clockwork being thicker than the hard drive, use something to shim up the structure until the clock can sit flat on the counter and the CD is touching the structure.

Remove the second clock.

Apply superglue along the edge of the clock that is against the structure.

Apply superglue to the structure front that touches the CD.

Leave laying down to dry completely.

Stand the completed clock up on the base.

Admire!

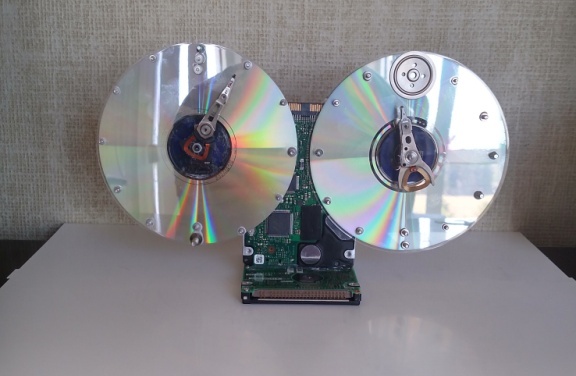

You now have an awesome dual-faced clock created from recycled hard drives.
