Dual Color 3D Printing
Some 3d printers are capable of printing in dual color. However it works a little differently.
Things to Avoid
- Overlapping colors confuses slicer and sometimes crazy stuff happens
- If color is not properly supported it will droop as shown in picture
Please let me know about anything else I should add
Check Your Slicer Capabilities
Make sure your slicer can read dual color obj and stls. In some software you need to split up the file into multiple parts.
If not there is a work around.
Alternative
This is probably better for projects with a large file size as well

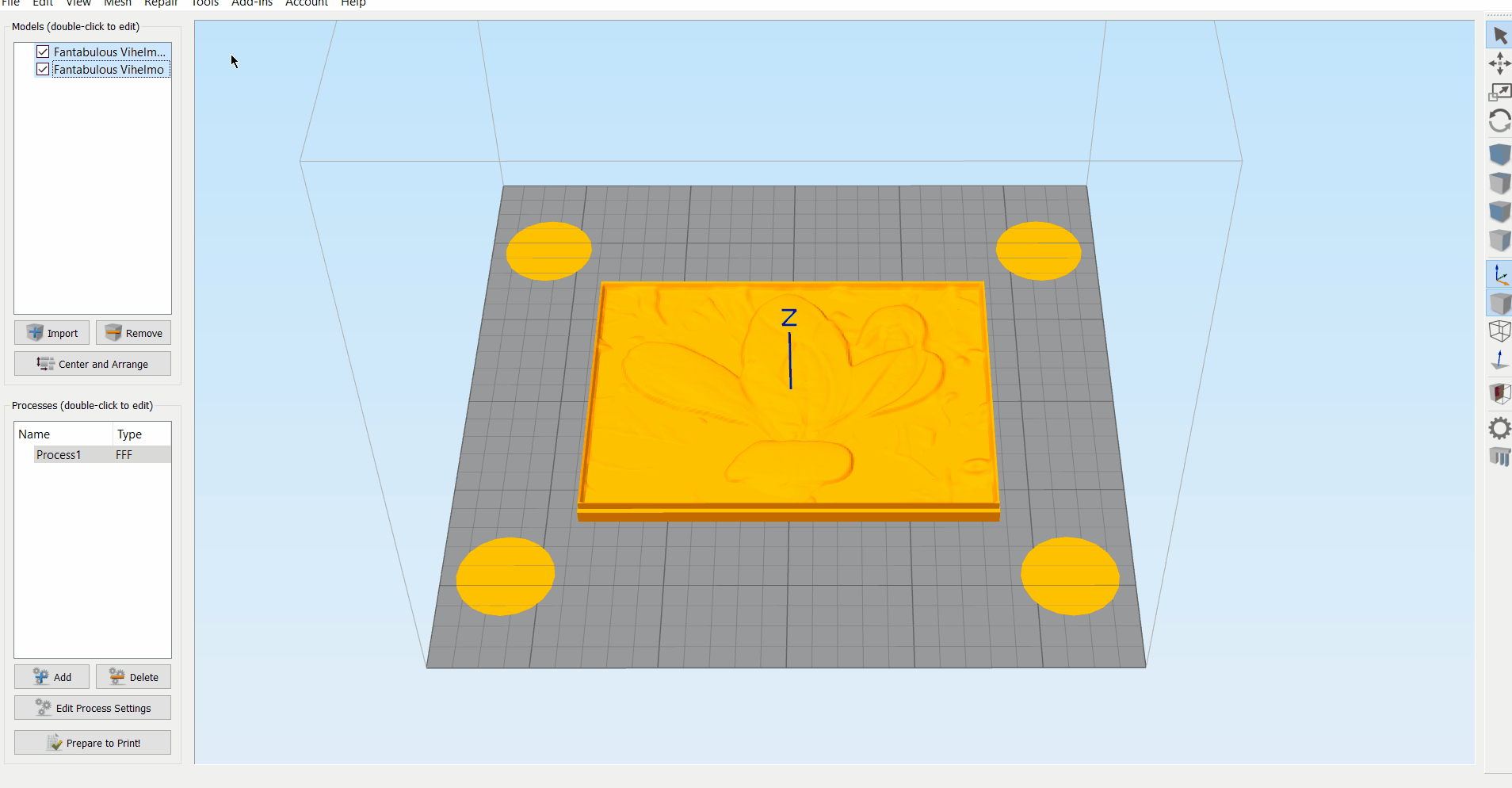

- create a square of 4 .01-.02 mm circles around the object and save colors separately both with all 4 circles
- Load into slicer and align
Slicing
In some slicers it is very simple like cube print in others it is a bit harder
Simplify3d
I would recommend using the alternative method to create your file. Instructions are for alternative
- Bring files in
- Center them on bed
- Go to "Tools"
- Then "Dual Extrusion Wizard"
- Pick where colors go
- Hit prepare to print
- Make sure to hit "Select All"
- Hit "ok"
- Save
Cube print
Only for cube 3 Just grab and drop colors
Possibly adding cura not sure how well it will work have not tried it yet
Printing
Justs send file to printer like normal.
Prints will take much much longer since the printer needs to swap colors several times and that takes around 30 seconds each time.

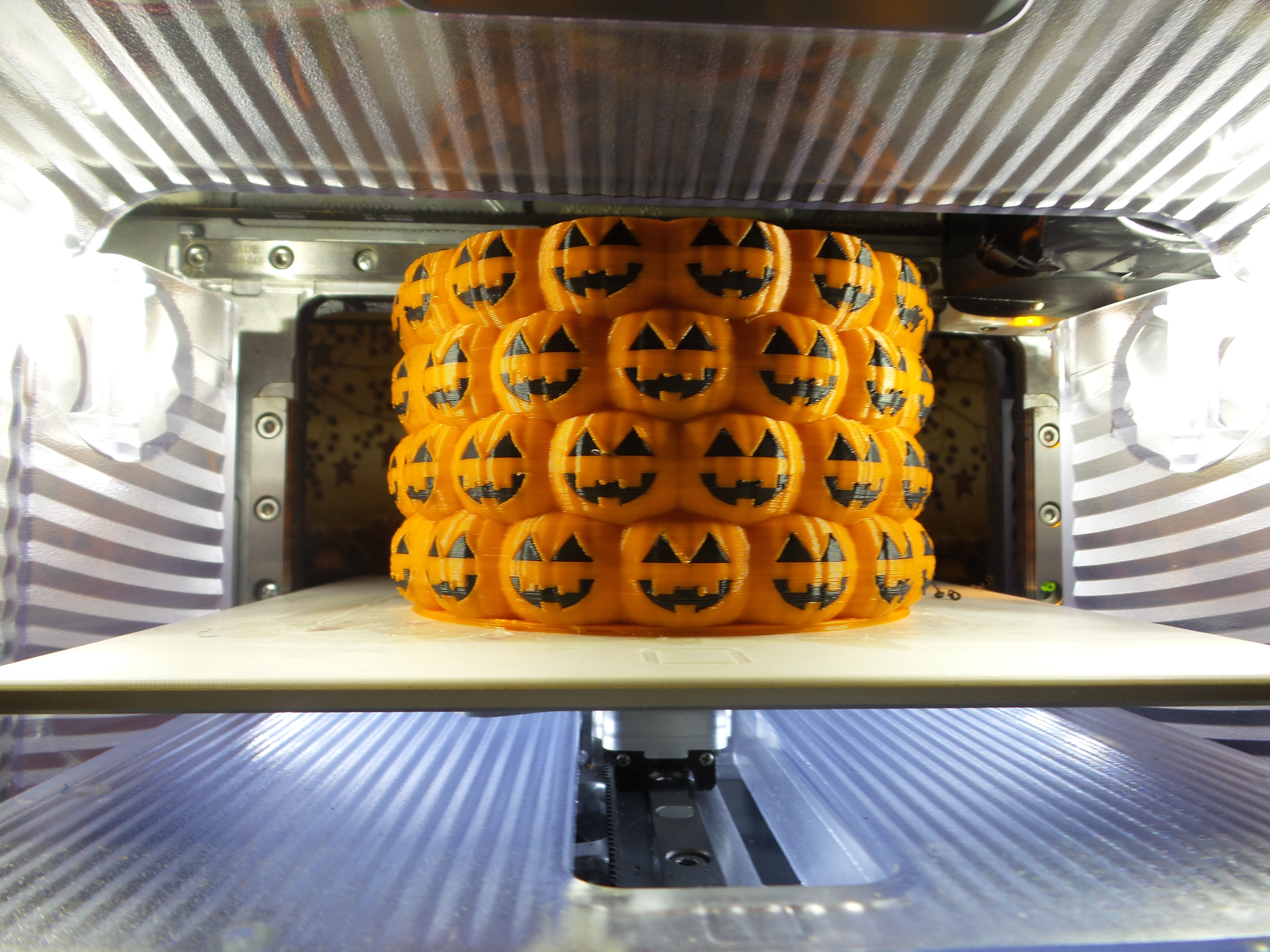

Please check out my dual color creations
