Dual Axis Solar Tracker With Online Energy Monitor

This project was one of my final projects I did on my exchange studies in Finland.

For this project I worked together with Fatbardh.

This is a much larger and more advanced version of one of my first projects ever.
Also a solar tracker: https://www.instructables.com/id/Arduino-Solar-Tracker/ .

The features of this solar tracker are:

• Solar tracking: making sure the solar panels are aligned to the sun as long as possible.
• Energy monitor: This measures the voltage and the current generated by the panels and calculates the generated Power and Energy.
• Data logging: this sends the data from the energy monitor into the cloud of ThingSpeak.
• Also there is an LCD to display the values of the energy monitor

In this instructable are technical drawings of the project included. And at step 10 there is a link to the complete project report and presentation.

Why:

To read more about the energy profit from this kind of system please read this chapter on wikipedia.

This is also my entry for the 3D printing contest:
I would love to have a 3D printer. It will help me a lot to do other projects. To make gears and enclosures. So if you found this Instructable interesting please vote for my Instructable in the 3D printing contest.

My excuses for my spelling mistakes, you may always let me know if you see some.

In this step I’ll go over all the used components in this project.

Solar panels:

We used 2 solar panels of each 12V 150W which will bring the total to 300W.

Ebay link

Energy Monitor:

The energy monitor uses 2 current sensors, to measure the current.

And one voltage divider to get the voltage down to a voltage that the Arduino its analog-digital-converter or ADC can handle.
If you don't want to make it your self you can buy one as well: ebay link

Light direction sensor:

Light direction is detected by four Light dependent resistors or LDRs. Each of the LDRs is placed in a voltage divider and the signal is fed to the Arduino its ADC.
ebay link

The end stop Switch

The end stop makes sure the mechanical construction doesn’t collide in its self.

Ebay Link

The motors

The motors are 12V linear actuators from internet.

Actuators on ebay

And are controlled with a very simple H-bridge.

motor drivers on ebay

ESP8266

The ESP8266 is a cheap WIFI module which we use to send the data to a ThingSpeak datastream

Ebay link

The LCD

The display is used to display the energy monitor values

ebay link

The microcontroller

The microcontroller we used was an Arduino ATMEGA 2560

Arduino MEGA 2560 R3 ~10$ - Ebay

The charger

For the charger you should search for a MPPT (max power point tracking) chager. And for sure not buy the one in the picture because this one overcharged our batteries and is not MPPT.

We both didn't had a lot of experience with metal working. Because of this we got help from a local vocational school.

The construction exists of a strong steel beam, in which a second part is placed, by sliding in a rod in a hole. To this set-up are levers added to which we connect the linear actuators.

Have a look at the technical drawings (PDF) and the pictures to get a better idea of what it looks like.

The technical drawings and the renderings are made with Fusion 360

Linear actuator ebay link

This is the same principle as the previous version. 4 LDRs separated by a crossbeam. This time the crossbeam was 3d printed.

It works by comparing the average of LDR values of each side to determine which side to rotate to.

LDR holder 3d model: http://www.thingiverse.com/thing:1500571

Photoresistors ebay link

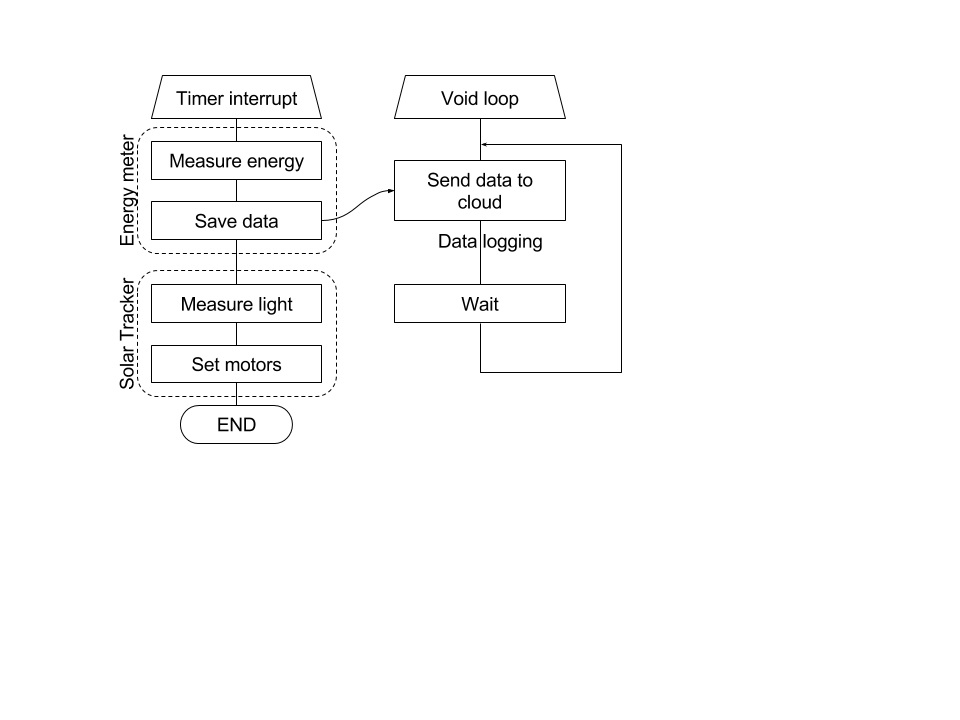

The motor control algorithm is responsible for turning the motors on and off. This all depending on the data of the ligh sensor.

This also improved compared to my previous version. Now there is a hysteresis implemented. Comparable to a Schmitt trigger. So the motor turns only in if the light difference is larger than a certain threshold value, and it will only stop if the light difference is below a certain value.

The energy monitor works by measuring the voltage and current output of the panels.
By multiplying these two values you get the generated power.

P = U * I
P= Power in Watt; U = Voltage in Volt; I = Current in Ampere.

By integrating the Power over time you'll get the total generated Power.

Voltage measurement

The voltage measurement is done by a voltage divider over the panels output. To get the output range of the panels 0-22V down to a range of 0-5V to protect the analog-digital-converter.

Current measurement

The current measurement is done by two ACS712 hall effect current sensors.

Current sensor ebay link

The data logging is done by sending all the data to a ThingSpeak channel.

This is done by an ESP8266 WIFI module.

The ESP8266 ebay link

You can get an Arduino MEGA 2560 clone on ebay for somewhere in-between 5$-15$

If you want to use this code you should have a look at:

• EnergyMonConnections.h
  • connections for the energy measurement
• solartrackerdefines.h
  • settings and conenctions for the LDRs and solar tracker
• solarPanel.h
  • to set the formulas right for the calculations of the ADC

• internet.h
  • set wifi name and password aswell as api key

For much more information about this project.

I would like to recommend you my project report and presentation.

Report

Presentation

If you have any questions, feel free to ask. If you can't find your answer in the comment section.
And I'll try to add more information to the Instructable depending where the most questions are about.

I hope you had fun reading my Instructable.
