DropoScope

DroposCcope is a simple microscope wich use drop of water as a lens. Image of organisms inside a water drop is projected on a screen using the laser.
The in-depth explanation you can find in this paper written by Gorazd Planinsic
Material List

- Laser pointer
- 3mm plywood, MDF or plastic for laser cutting.
- Syringe
- M3 10mm x 3mm bolts - 13 pcs.
- M4 10mm x 4mm bolts - 3 psc.
- Rubber band
Cutting the Case

Cut the case provided in .dxf drawing using the laser cutter.
Downloads
Assemble the Base

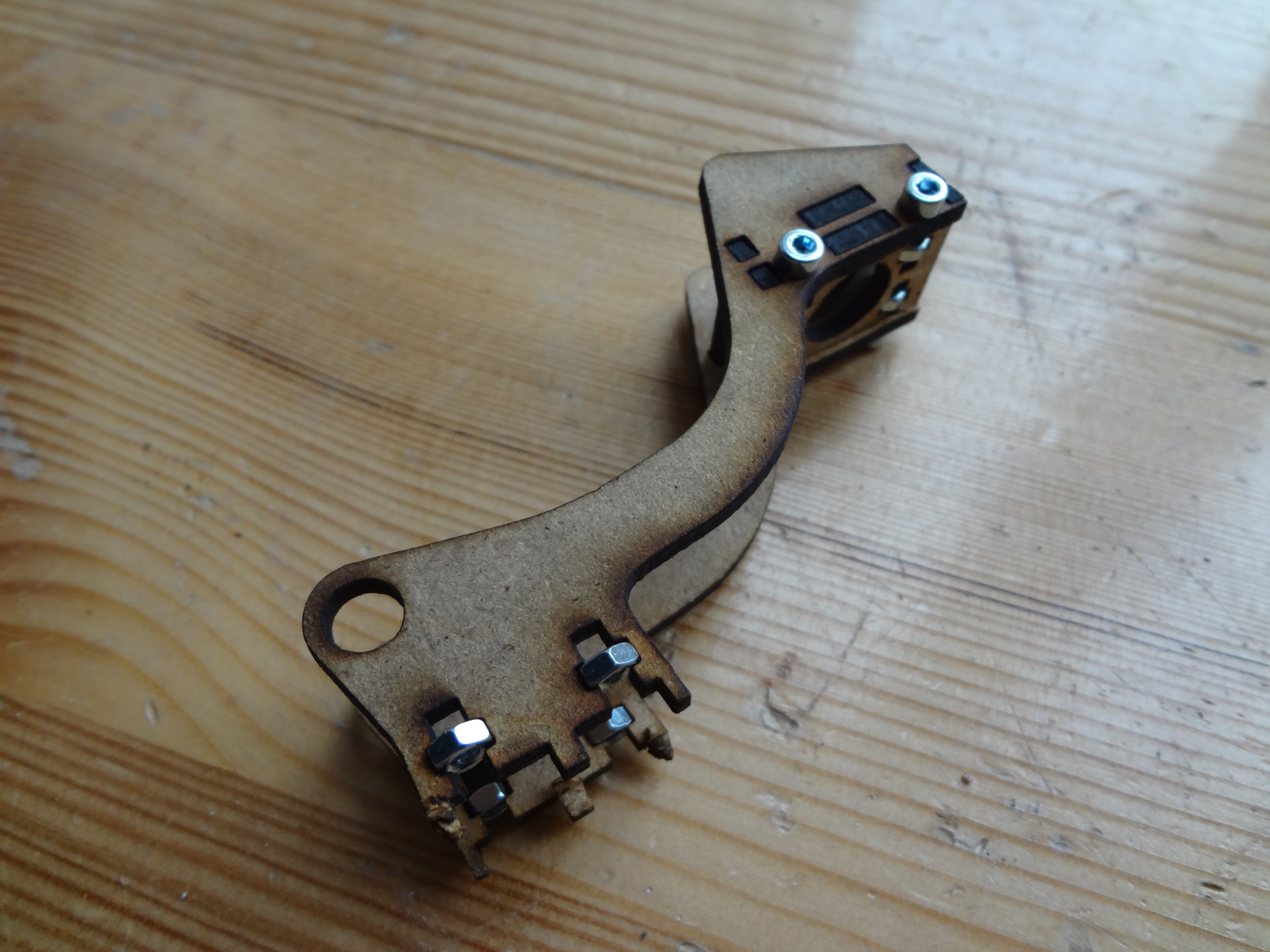

Assemble Syringe Holder


Assemble Laser Pointer Holder


Conect Laser Holder to Syringe Holder


Add Rubber Band

Rubber band will provide tension to laser pointer and make it move together with adjustment ring.
Experiment


Add some dirty water into the syringe. Push it out to form water drop. Adjust laser pointer into the drop by using adjustment ring. Turn off the light :) On the screen or white wall you will see magnified image of things inside the water drop.
