Driving Simulator Seat
Although There have been some PC and Games console racing games about, none that I could see were as real as they should be.
As a dedicated Microsoft FSX flight simulator flyer I was certain that at some time a good driving simulator would come along.
F1 2010, F1 2011, F1 2012 and F`1 2013 now IMHO fill that gap.
HOWEVER sitting in my office chair with a steering wheel bolted to the desk lacked that nod towards realism that such good graphics and game play demanded.
Inspired by several sources, mainly the Playseat RBR 1 http://www.playseat.com/en/playseat-f1-race-simulator-launch HOWEVER the Playseat RB1 costs £920+ !! rather out of my budget range. I decided to build my own.
As I have entered this instructable for a contest I have had to replace all of the images from the internet with my own images. Not as nice but the original inspiration can be seen at the address above.
What You Need
A suitable steering wheel and pedal set for your PC or console.
A 4 foot x 4 foot piece of 18 mm MDF or 18 mm Plywood (12 mm would do at a push.)
a skill saw or jig saw
Sand paper and paint.
Total cost excluding the wheel set about £12
picture from Amazon
The Chassis
Looking closely at the pictures I decided the chassis was essentially 2 side plates, a seat and the mounting for the pedals and the steering wheel.
I drew my version of these in my CAD system - printed them out and traced them onto 18 mm MDF. The shape is very easy to draw free hand once you have an idea of size.
This I cut out with a jig saw (skill saw) and smoothed the edges.
i have added an overall view with the measurements in inches these ar taken from that scaled drawing and may not be exactly the same as the mm drawings here but close enough.
Making and Fitting the Seat
The seat is screwed to an MDF box which is in turn screwed between the side rails. I considered making the seat adjustable bu cutting a slot in the side rail and bolting through the seat but decided this wasn't necessary.
As an experiment I tried a fiber glass seat I have for my recumbent bike, (see pictures), but found that the seating position wasn't comfortable after a while so returned to my simpler ply wood seat.
The Pedal Fitting.
A further rectangular piece of MDF was screwed between the side rails at the front to support the pedals. This was screwed to the MDF on the pedal set.
The Steering Column
After some trial I ended up with a sweeping MDF column with a platform mounded on top to take the wheel. In order to make the column strong I sandwiched two pieces of MDF together.
To fix in the side frame the column was screwed to a box that just fitted between the side frames. This box was bolted to the side frame with an 8 mm coach bolt on each side which fitted through a slot in the frame to make the column position adjustable.
I made the column adjustable forwards and back and by tilting up and down by cutting an 8 mm slot in the side rail to take an 8 mm coach bolt. This way the angle and the distance of the wheel could be adjusted.
Trying It Out.
Neighbors give you a funny look when they come round though.
The unit is not too heavy to carry in and out of the house (my wife won't allow me to keep it in the house), and given a decent paint job should look quite professional.
Next stage is to give it an authentic paint job in my favorite team colors.

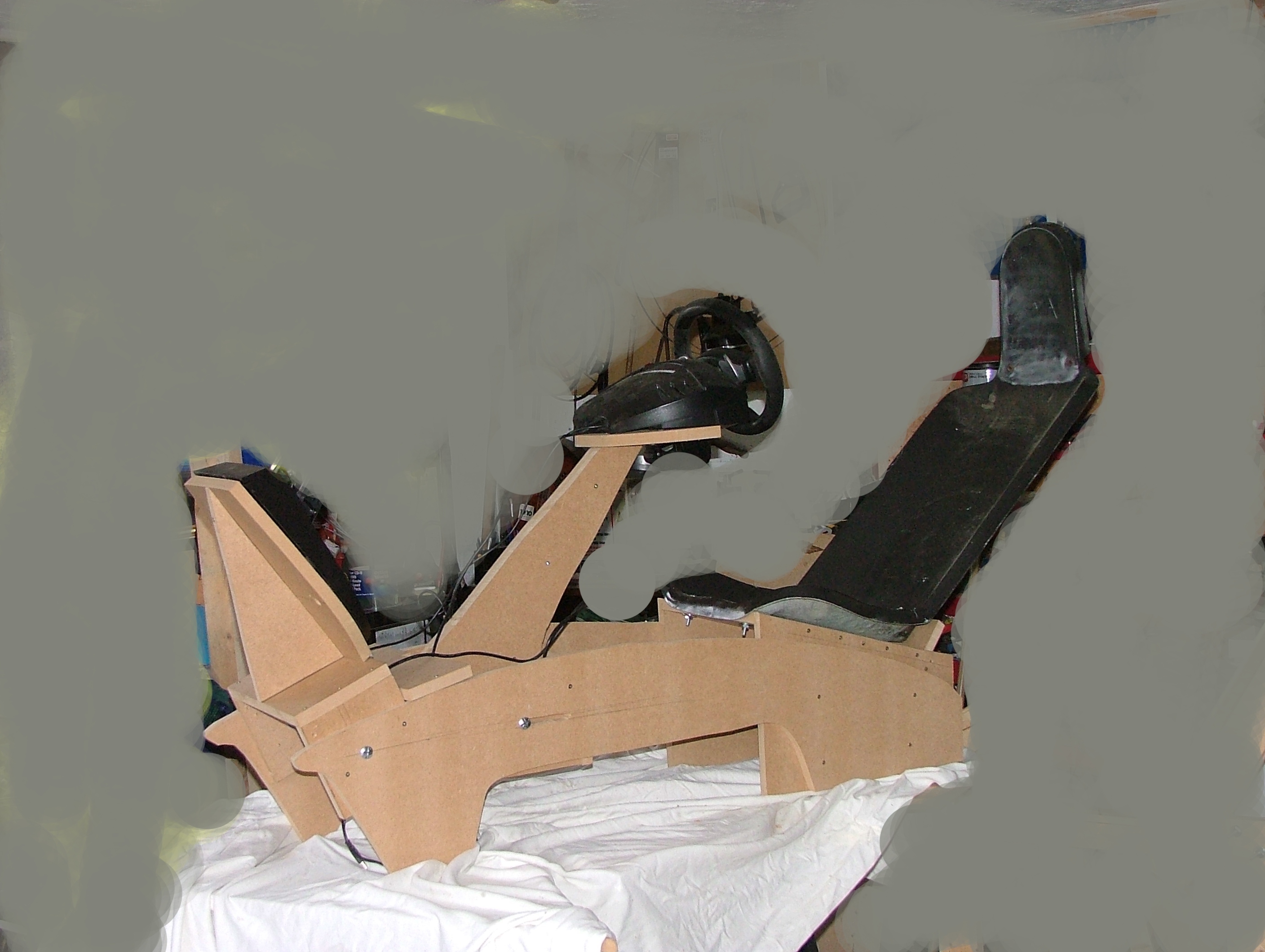

The pictures below show the initial build prior to modifying it as described in this instructable. Pardon my cleaning out the untidy background as the pictures were taken in my garage.
Total cost about £12 - a bit better than £920+
DXR File
The file should be a DXF file showing all the measurements I used.
Enjoy.
Downloads
This is a PDF and Jpeg version of the drawings. That's about the best I can do folks. I open the dxf fine, however.
You can easily draw the shape of the sides with a ruler and pencil using the measurements I give, or some you can make up once you understand the principle - No need to make it look like this.
The rest is just rectangular sections to space the side.
Good luck.
