Drill Press LED Light UPGRADE!

by rbclima in Workshop > Lighting

2304 Views, 18 Favorites, 0 Comments

Drill Press LED Light UPGRADE!


For those, like me, who had their dichroic lamps fried, I present you the best adaptation to convert your broken drill press light to LED technology! :D

It's a simple tutorial showing how to convert a led lamp to fit the original dichroic slot of your drill press.

Easy to make, very CHEAP and functional!

What You Need:


Parts

  • A led lamp;
  • Copper wire;
  • Paper tube.

Tools

  • Hacksaw;
  • Glue Gun;
  • Soldering iron;
  • Pliers;

Take Apart the Busted Dichroic Lamp


Remove the busted dichroic lamp. Those lamps are cheap but they burn out in any sign of vibration... NOT suitable for a drill press (Smash that useless thing! hehehe)

Modify Your LED Lamp


Take out the bulb to expose the circuit board.

Soldering the New Connector


Solder two pieces of copper wire on the "positive" and "negative" pads of the circuit

Seal It With Glue Gun


Put some hot glue to secure in place the copper wires

Light Deflector


I used a paper tube for dust protection and light deflection. Cut it out and stick into the lamp hole

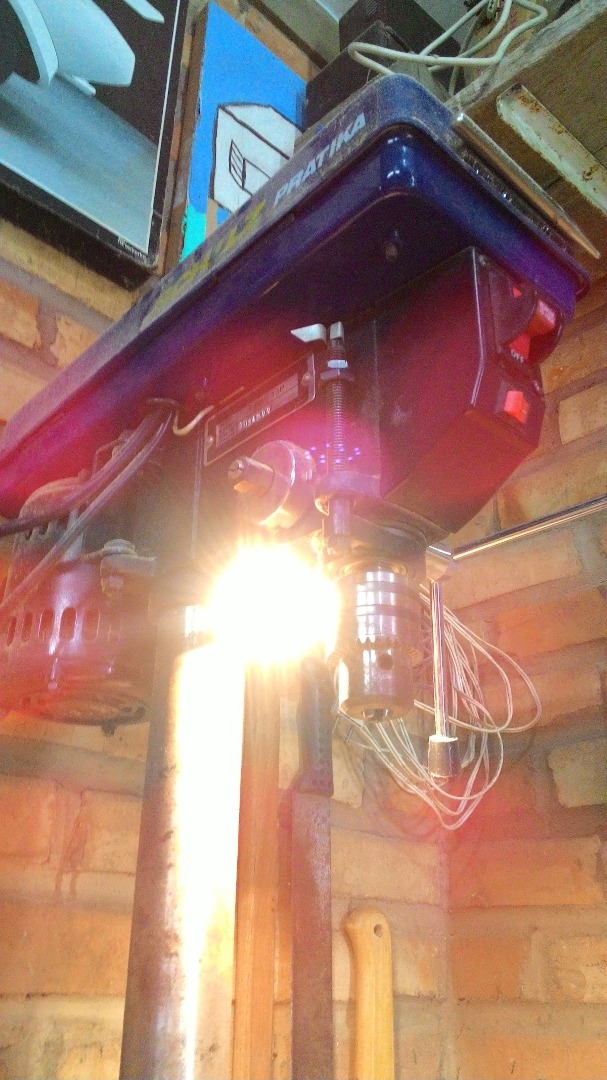

Test It!


I'm really glad with the final result. It's durable, bright and took me 10 min to make!
