Drill Powered Go Kart

Drill powered Go Kart for kids.

Video of build and Go Kart in action:

Part list:

• 21mm plywood
• cordless screwdriver
• wheelbarrow wheels
• skateboard wheel bearings
• screws
• tubes
• old bike parts - wheel hub, chain, chainrings

Tools used:

• Jigsaw
• Drill/ screwdriver
• Router

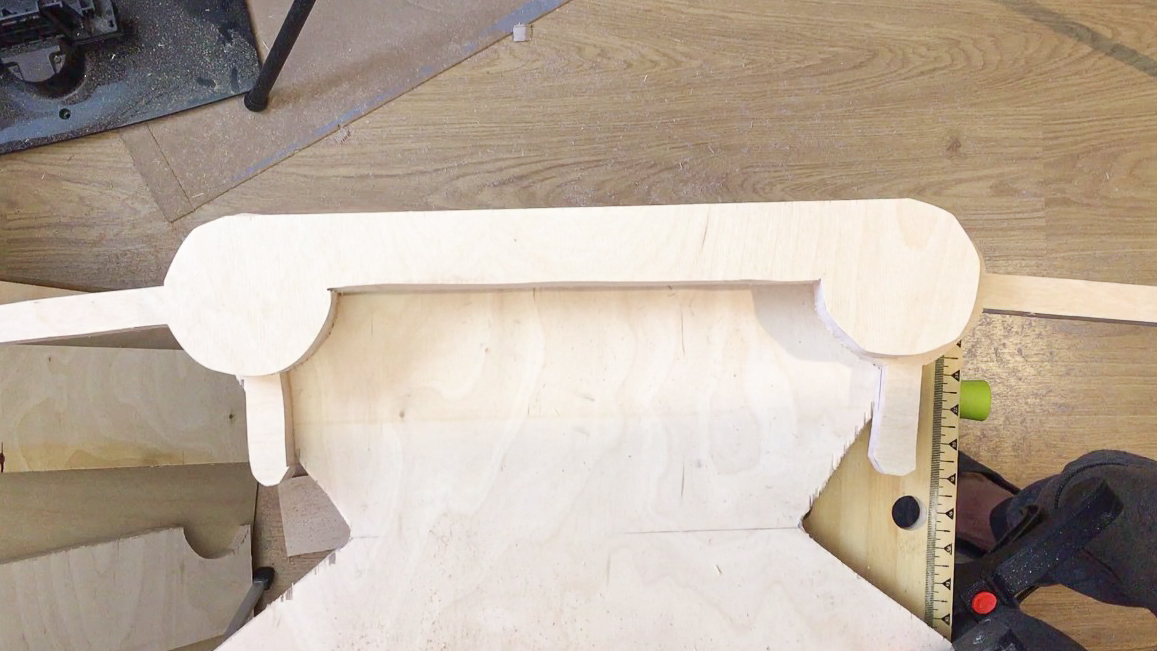

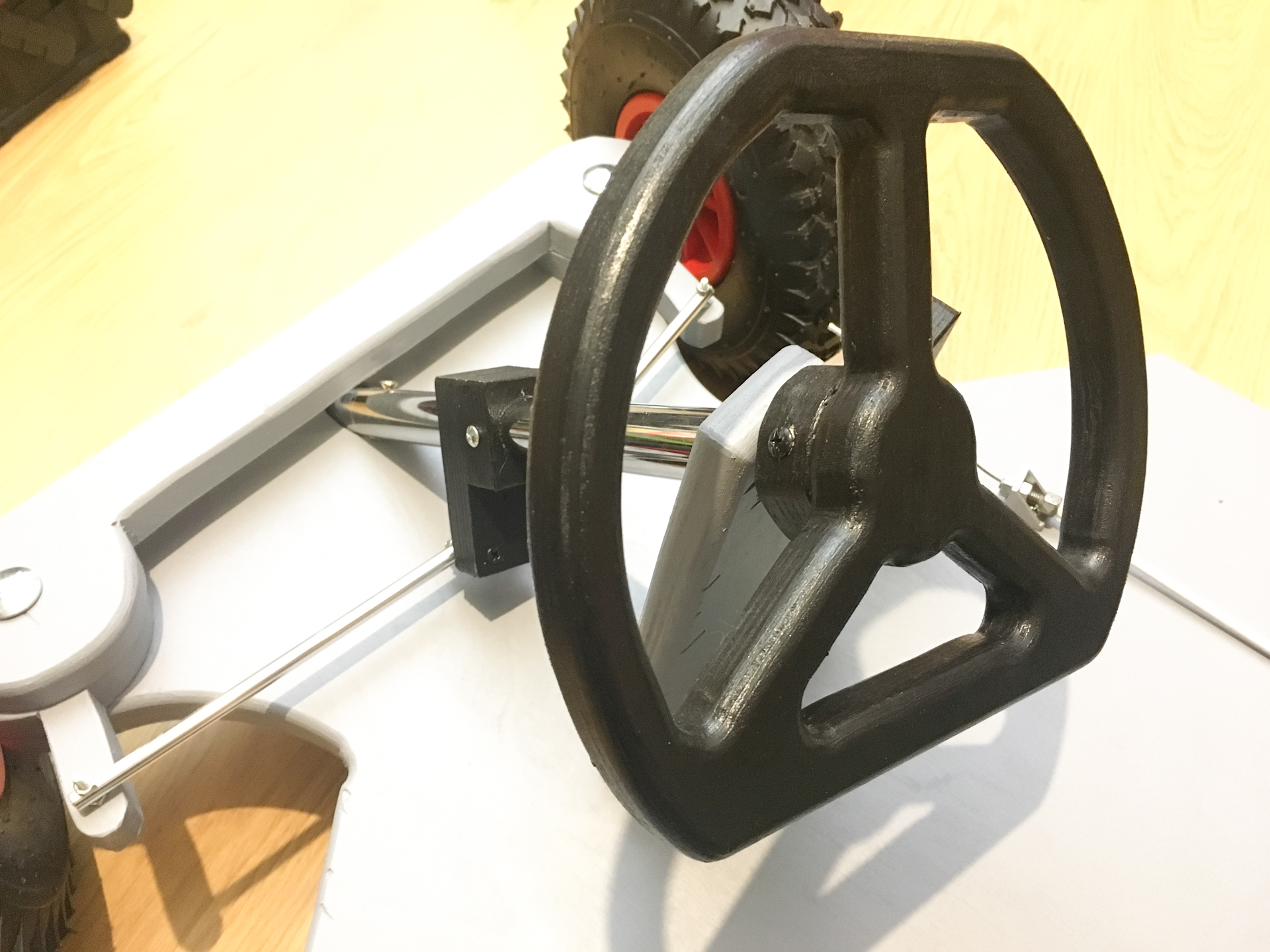

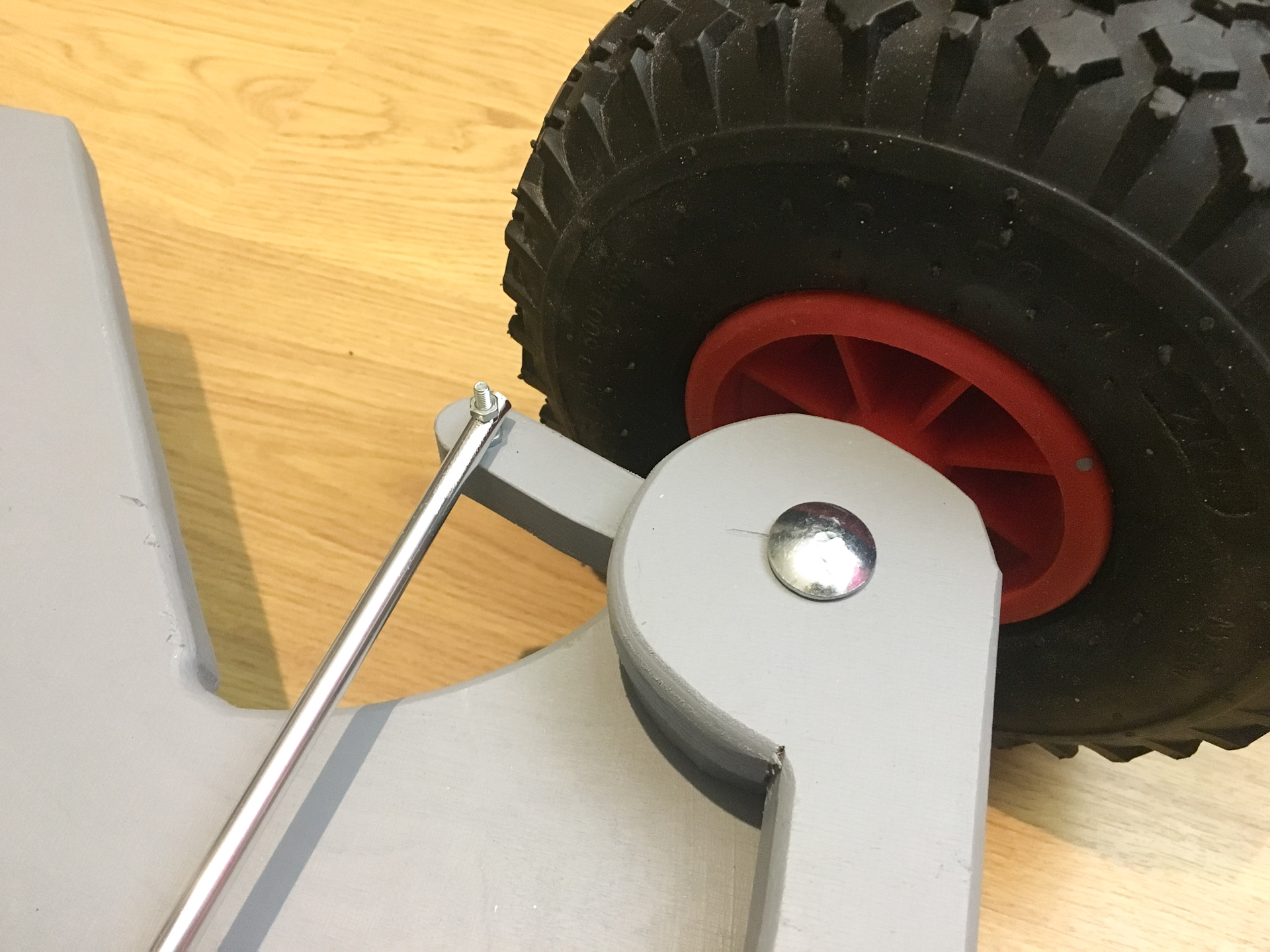

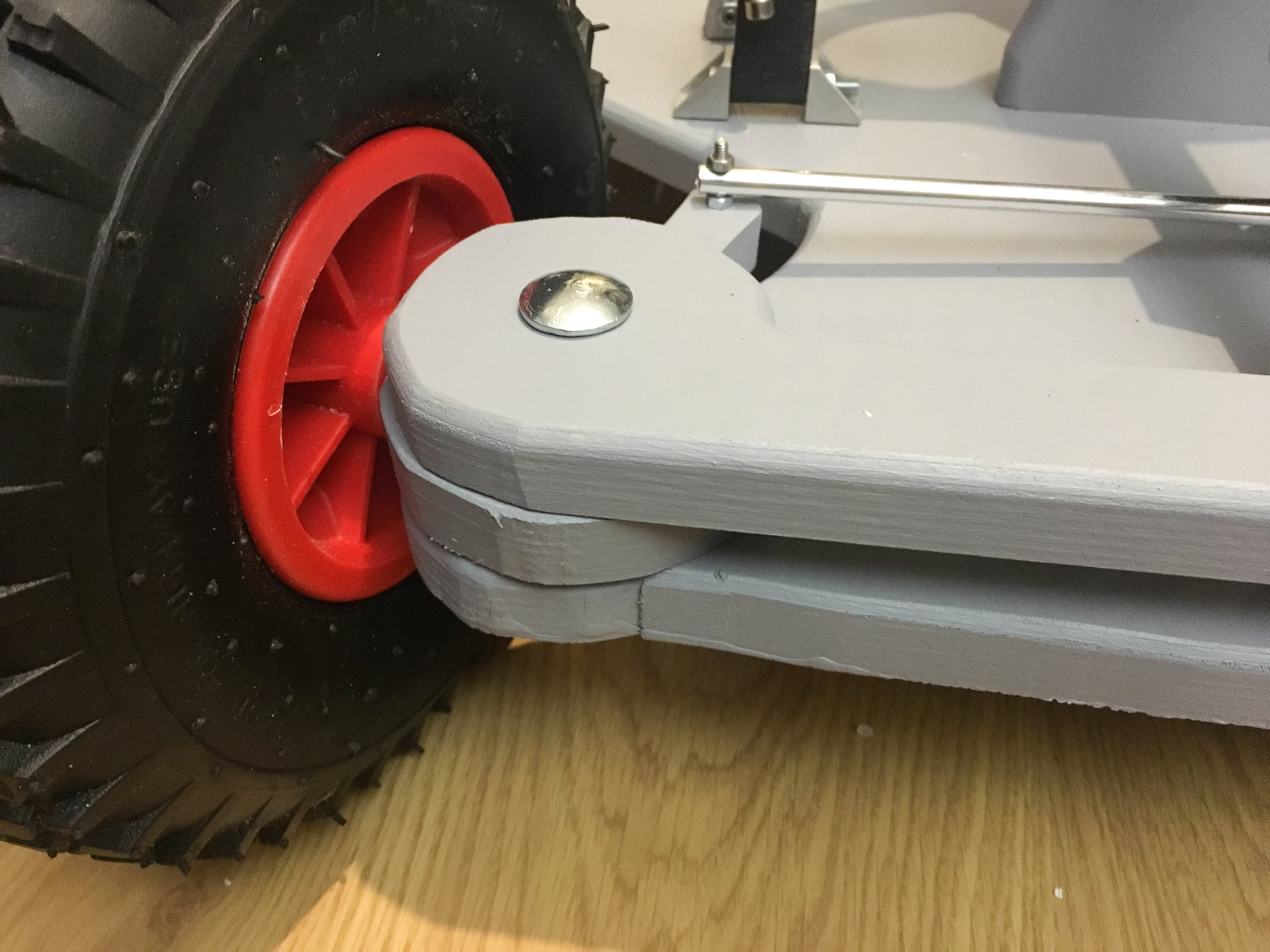

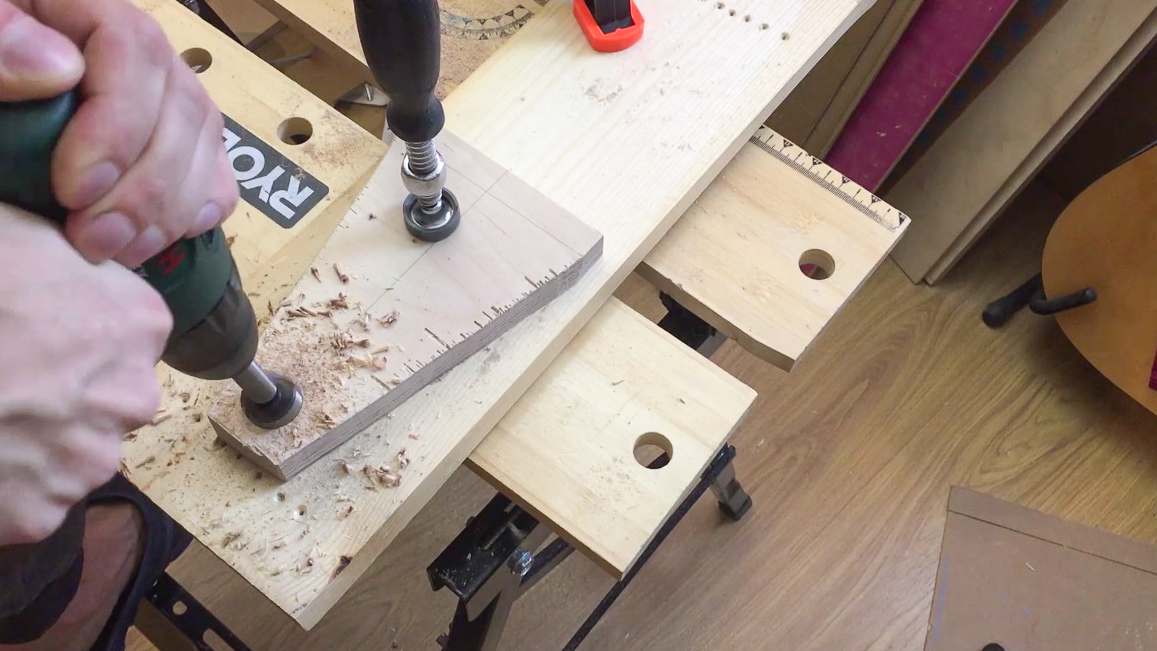

At first I made frame/ steering part template on cardboard and checked if front wheels moves as expected. Then cut our frame parts and steering wheel out of plywood.

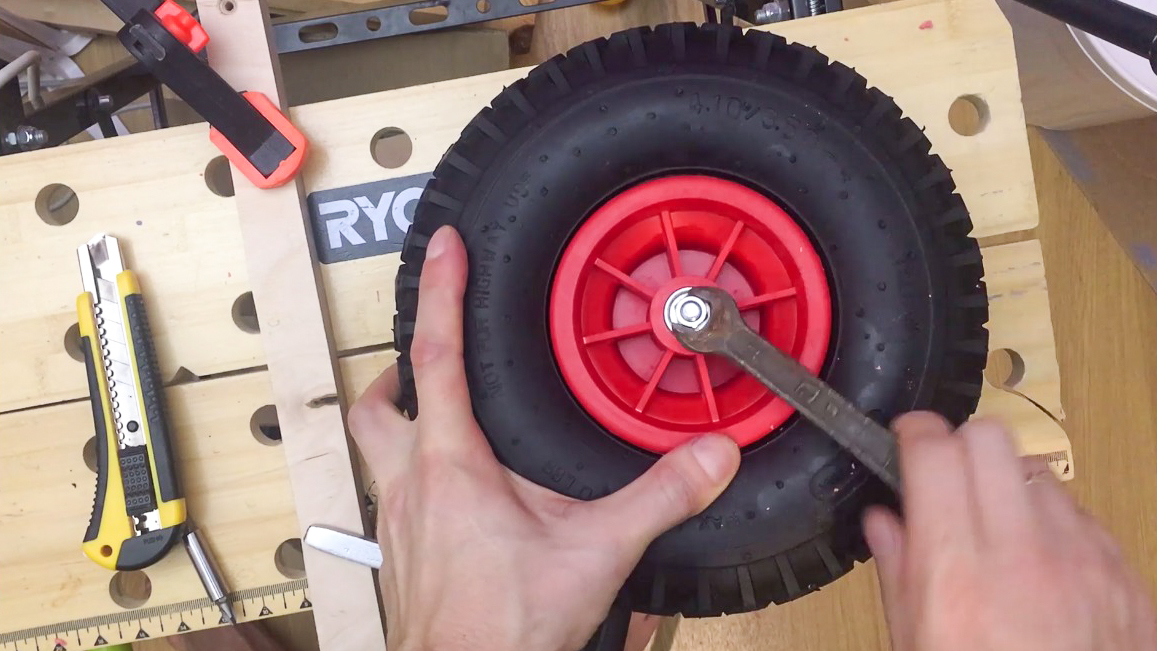

• In wheels made groove for bearings and pressed them in.
• Drilled 4 holes in wheel disc and screwed bike chainring.

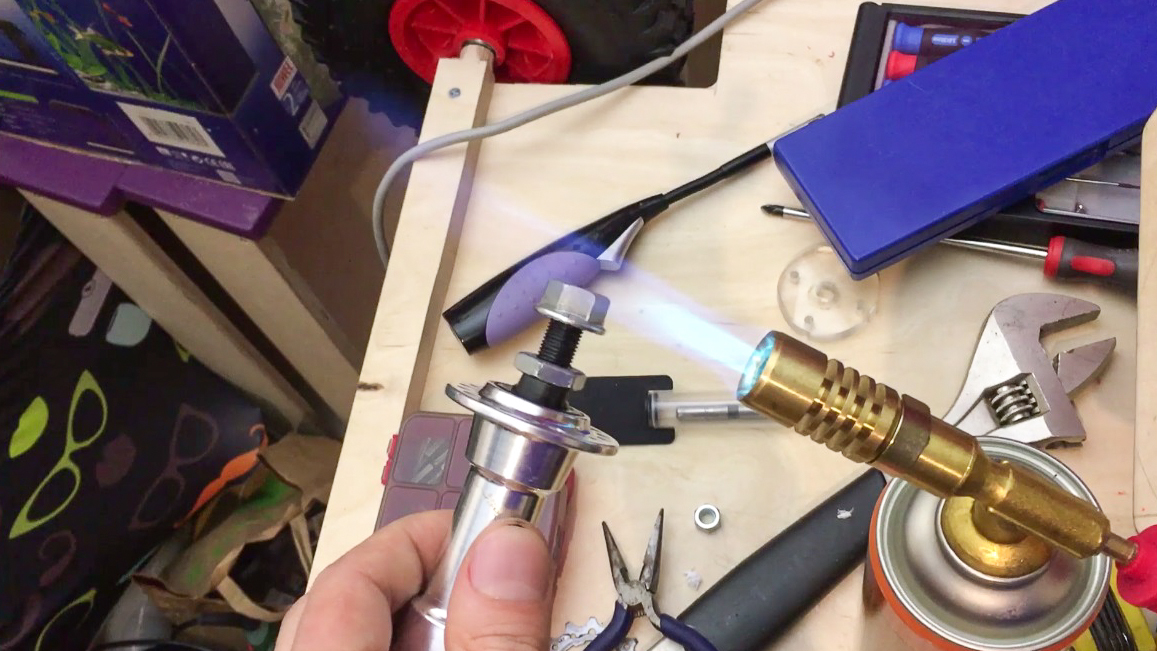

• Heated up axle bolt and melted it in acrylic. Then cut acrylic round and screwed chainring. Drilled hole between axle and bold and put screw there, so it don't unscrew.

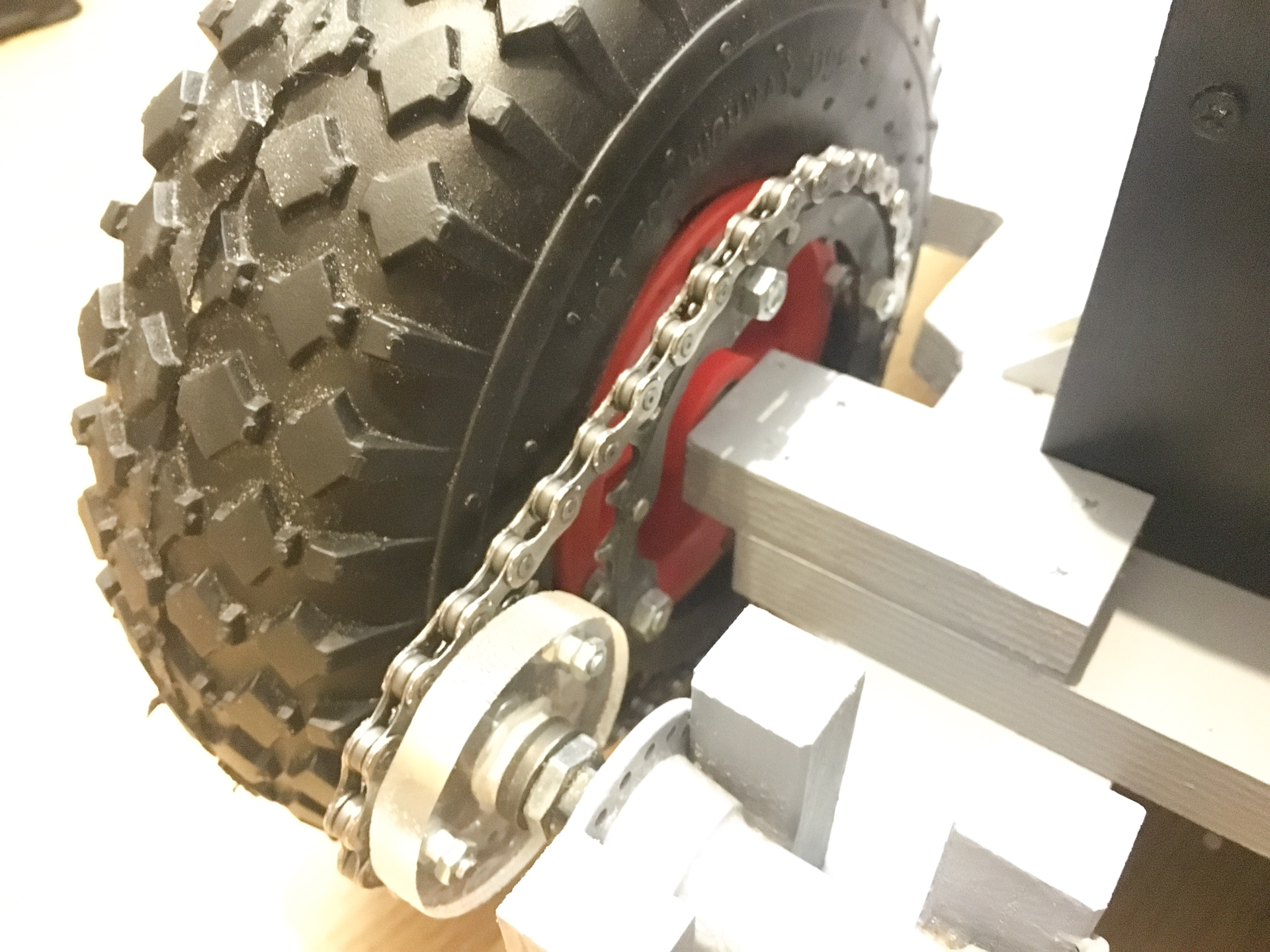

• Put chain on.

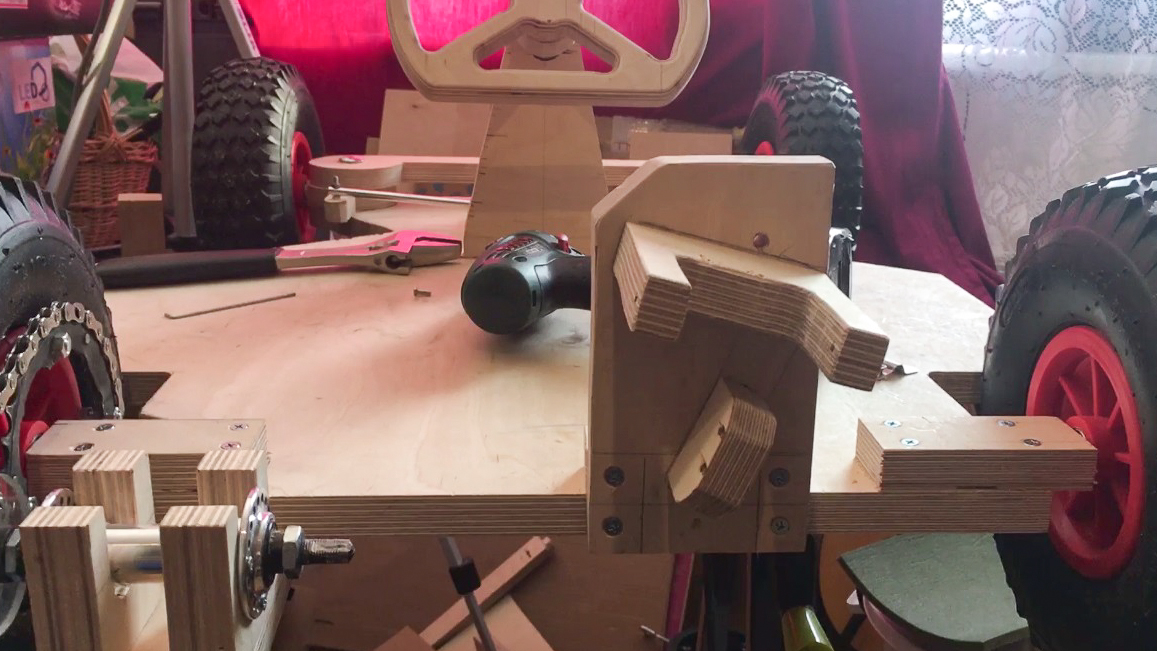

Measured screwdriver dimensions and cut holder out of plywood.

Seat also is made plywood

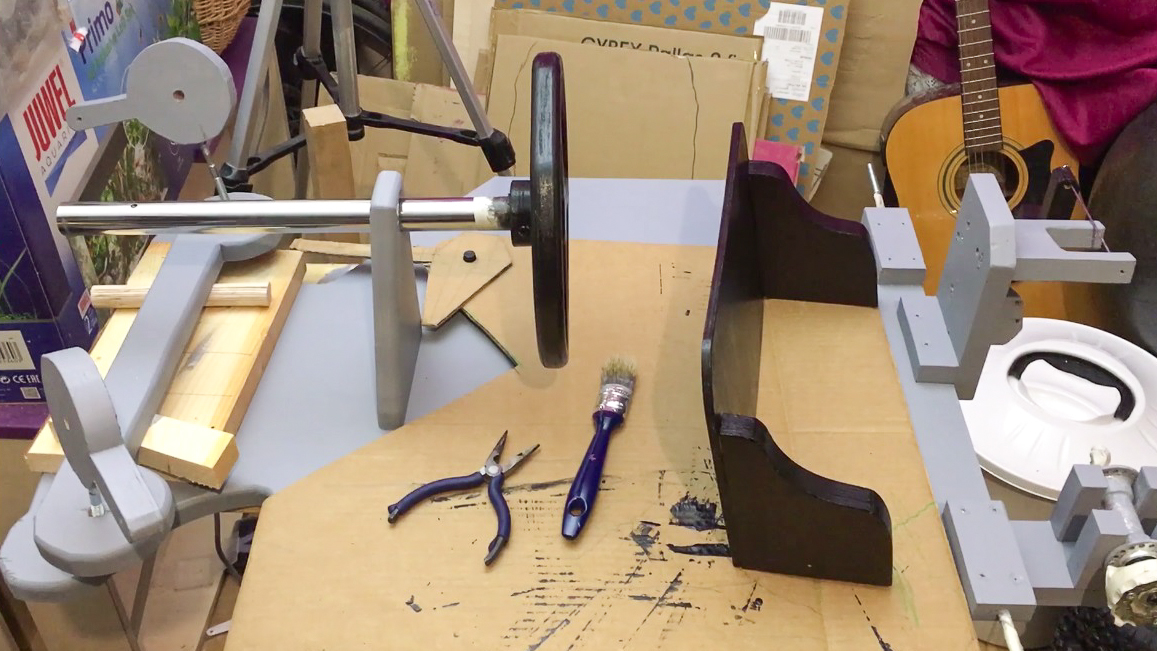

When everything was tested, took everything apart and painted in grey / black.
