Drill Battery Rebuild - NiCd to Lithium
by simplerandom in Workshop > Tools
19831 Views, 105 Favorites, 0 Comments
Drill Battery Rebuild - NiCd to Lithium

Drill/ screwdriver battery rebuild to Lithium using battery holder for 18650 cells (so no spot welding needed) and BMS. After rebuild original charger can be used for charge.
Part list:
- Battery holder for 18650 size batteries
- 3x Sony VTC4 18650 2100mAh 30A batteries
- BMS to control charge/ discharge
Soldering







At first I soldered wires to battery holder, after that soldered BMS board and battery pack plug
BMS was glued to battery holder using double sided tape
Fitting




Little bit of cutting and now batteries fit battery pack case
Then secured using electrical tape
Check fit, done

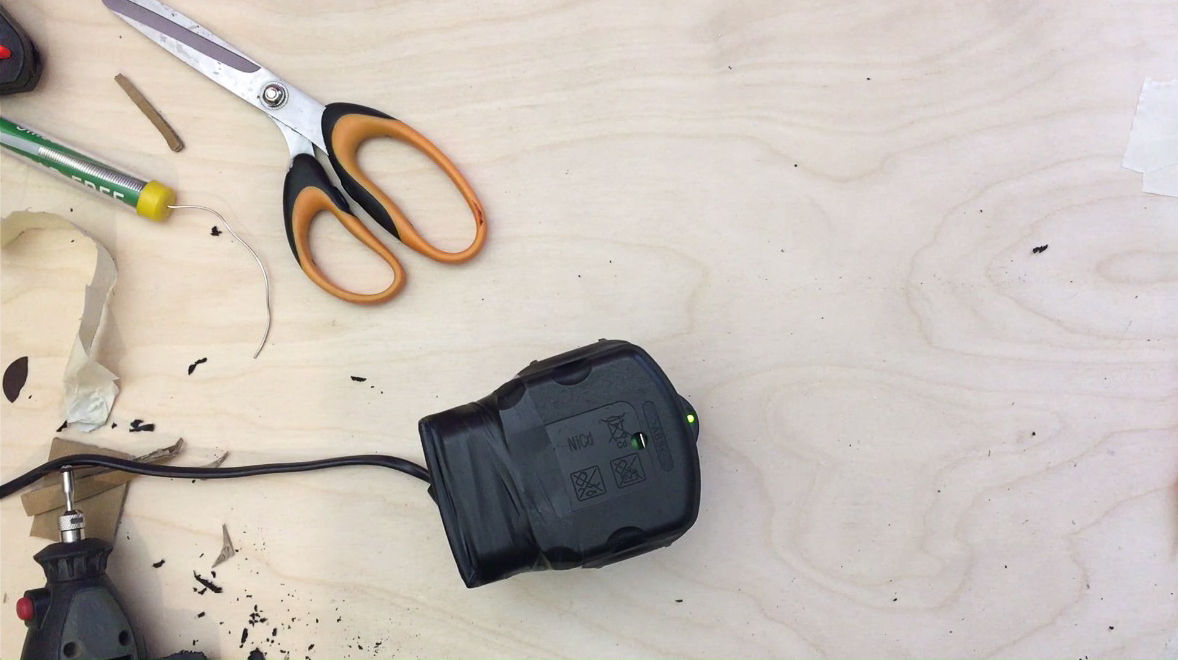

Charging


As BMS was used, original charger can be used for charging
Finished

It was quick and simple battery pack rebuild
Screwdriver works as expected
