Drawerbox Pedalboard.
![IMG_1868b.jpg](/proxy/?url=https://content.instructables.com/FZE/Y08N/HYR3DUIZ/FZEY08NHYR3DUIZ.jpg&filename=IMG_1868b.jpg)
![IMG_18632.jpg](/proxy/?url=https://content.instructables.com/FBM/QG05/HYR3DVB1/FBMQG05HYR3DVB1.jpg&filename=IMG_18632.jpg)

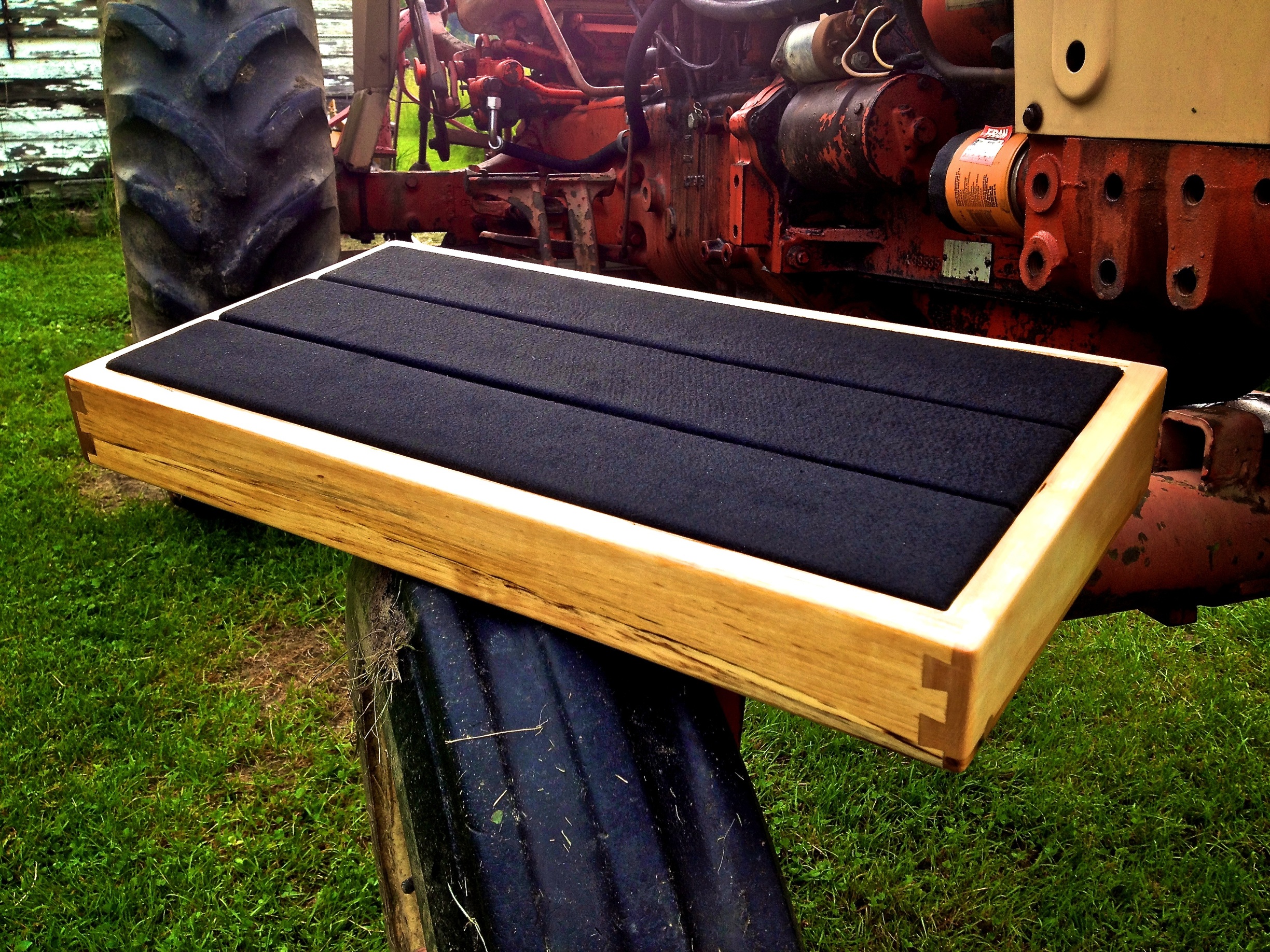

I like to repurpose/reuse/recycle whenever I can. When I glanced at a stack of dovetailed drawerboxes I had lying in the shop, I saw potential Pedalboards. Admittedly I hadn't planned on an Instructable during the venture but I felt I had accumulated enough photos throughout the process to pass along. I used the smallest drawer I had as my 'proof of concept'. This was my journey.
The Victim.
![IMG_1816.jpg](/proxy/?url=https://content.instructables.com/FSP/7N00/HYR3DTR8/FSP7N00HYR3DTR8.jpg&filename=IMG_1816.jpg)
![IMG_1531.jpg](/proxy/?url=https://content.instructables.com/FNQ/1UKB/HYR3DRTK/FNQ1UKBHYR3DRTK.jpg&filename=IMG_1531.jpg)
![IMG_1536.jpg](/proxy/?url=https://content.instructables.com/FT9/8PLN/HYR3DSGJ/FT98PLNHYR3DSGJ.jpg&filename=IMG_1536.jpg)
![IMG_1532.jpg](/proxy/?url=https://content.instructables.com/FM8/BALJ/HYR3DRYF/FM8BALJHYR3DRYF.jpg&filename=IMG_1532.jpg)
I chose the smallest drawerbox I had in case things didn't work out as I had hoped. And in true fashion, I had no plans or direction, just a final goal.
The Cutting.
![IMG_1534.jpg](/proxy/?url=https://content.instructables.com/F0E/1JP1/HYR3DS69/F0E1JP1HYR3DS69.jpg&filename=IMG_1534.jpg)
![IMG_1533.jpg](/proxy/?url=https://content.instructables.com/F50/I7MU/HYR3DS19/F50I7MUHYR3DS19.jpg&filename=IMG_1533.jpg)
![IMG_1550.jpg](/proxy/?url=https://content.instructables.com/FJP/FK0Z/HYR3DSPS/FJPFK0ZHYR3DSPS.jpg&filename=IMG_1550.jpg)
These particular drawerboxes were designed for specific drawer glides so I had to rip the bottom off just enough to even it out and remove the bottom panel. I then ripped the top so that the front was about 3/4" of an inch lower than the back. I would recommend an angle jig for your table saw and use appropriate safety equipment, I on the other hand freehanded it in a most unsafe way. I kept the pieces that were removed to use at a later time. At this point the basic shape was there.
The Finishing (of the Box).
![IMG_1551.jpg](/proxy/?url=https://content.instructables.com/F6X/G42I/HYR3DSW0/F6XG42IHYR3DSW0.jpg&filename=IMG_1551.jpg)
![IMG_1744.jpg](/proxy/?url=https://content.instructables.com/FQ5/L0H4/HYR3DT1C/FQ5L0H4HYR3DT1C.jpg&filename=IMG_1744.jpg)
As there were gaps in the dovetails, I filled them. Then sanded the whole thing inside & out and used a 1/4" round over on all of the exposed edges. I was happy with the outcome so the first of many coats of Danish Oil was applied. Time to work on the top...
The Board.
![IMG_1799.jpg](/proxy/?url=https://content.instructables.com/FGB/5707/HYR3DT75/FGB5707HYR3DT75.jpg&filename=IMG_1799.jpg)
![IMG_1815.jpg](/proxy/?url=https://content.instructables.com/FPG/W1JB/HYR3DTHZ/FPGW1JBHYR3DTHZ.jpg&filename=IMG_1815.jpg)
![IMG_1800.jpg](/proxy/?url=https://content.instructables.com/FG6/XJW5/HYR3DTBZ/FG6XJW5HYR3DTBZ.jpg&filename=IMG_1800.jpg)
![IMG_1823.jpg](/proxy/?url=https://content.instructables.com/FWP/E8LN/HYR3DTZ7/FWPE8LNHYR3DTZ7.jpg&filename=IMG_1823.jpg)
![IMG_1839.jpg](/proxy/?url=https://content.instructables.com/F76/IHKN/HYR3DU9H/F76IHKNHYR3DU9H.jpg&filename=IMG_1839.jpg)

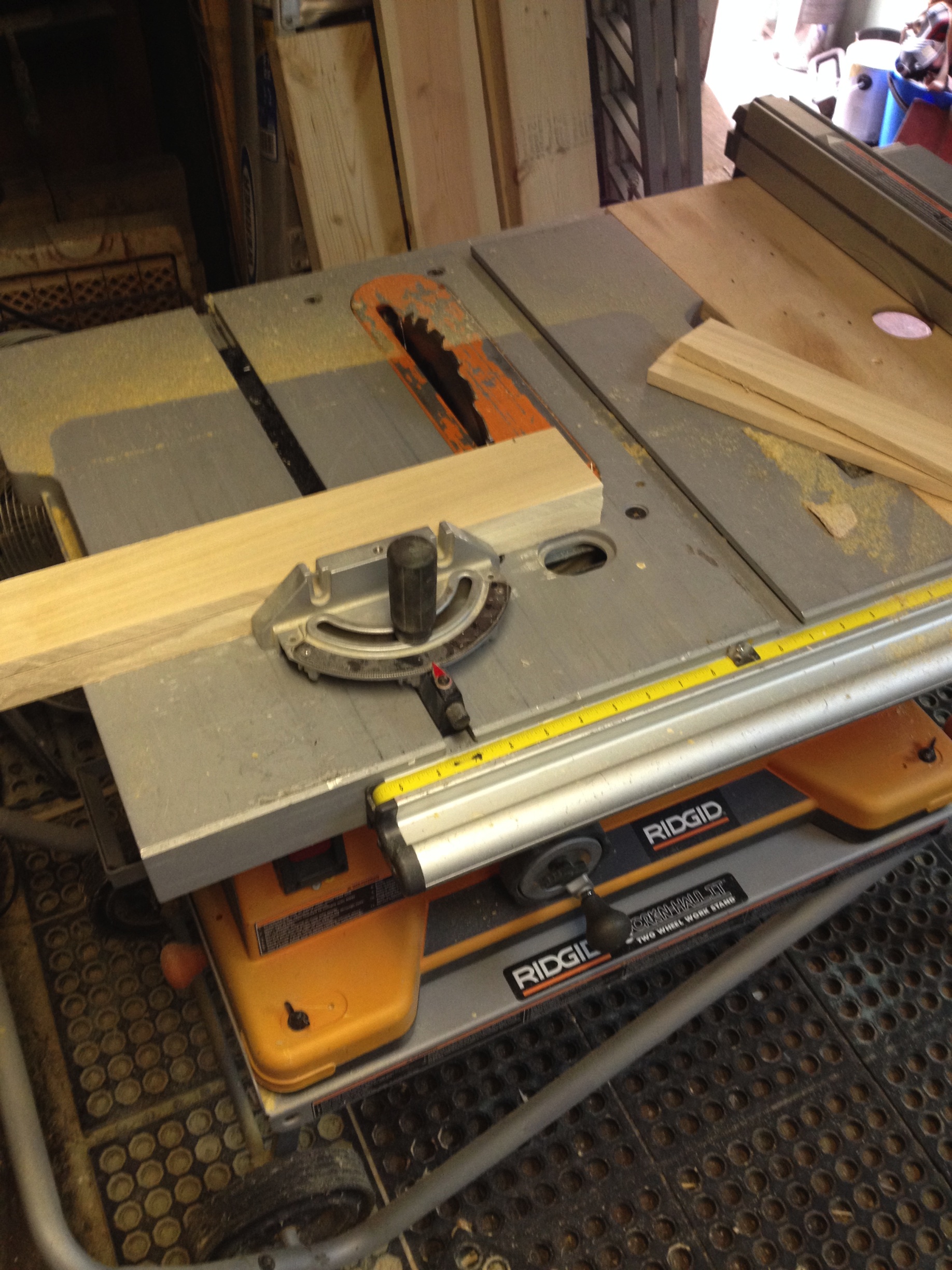

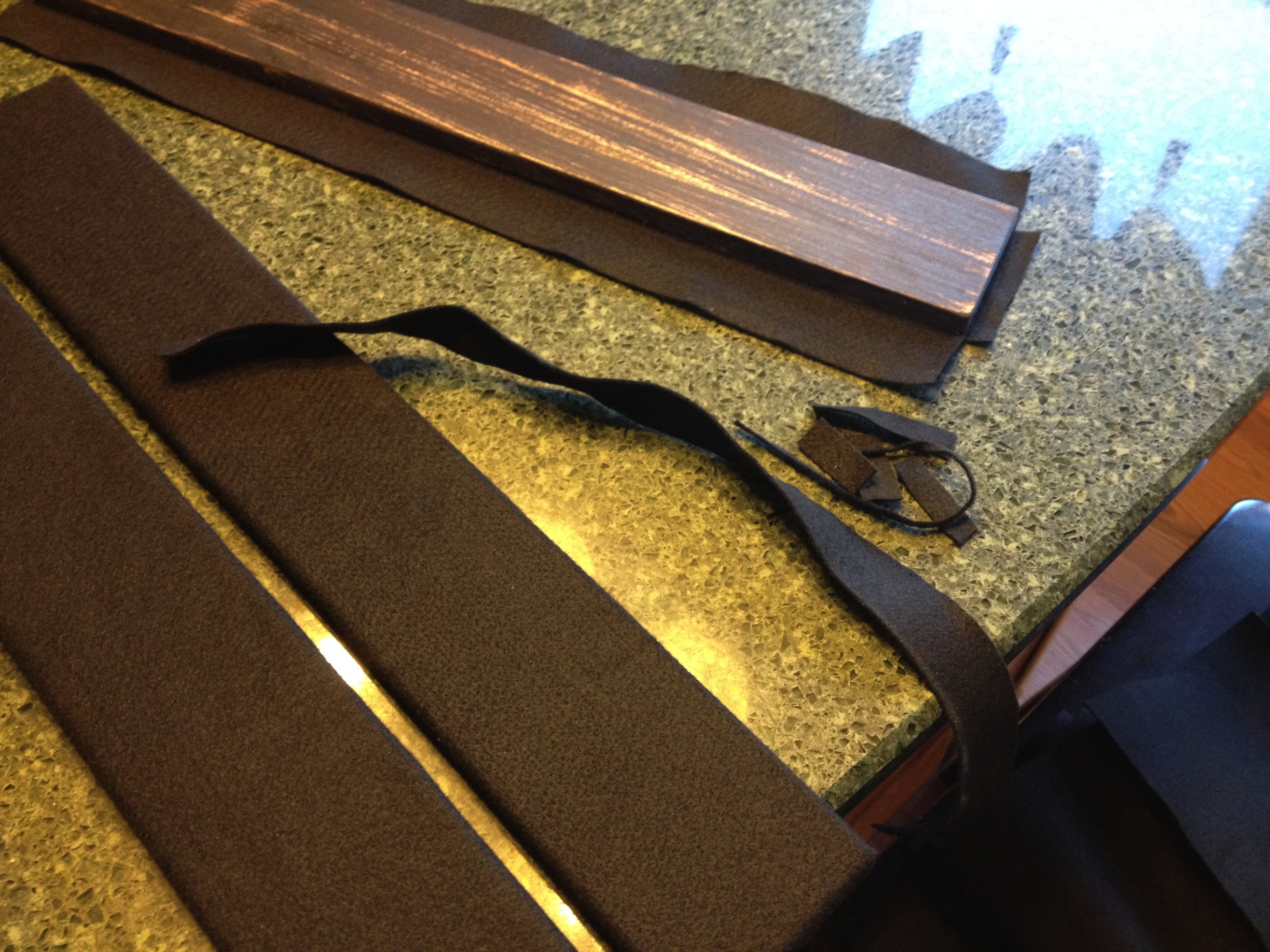

The top was made from a small pallet. After disassembling the pallet and removing all the nails and other bits the boards were run through the planer. Then on to the table saw. Once I was happy with the dimensions, the edges were rounded over and sanded. I made three boards for the top with two smaller pieces to connect them together and provide a little more support. Unsure of what I wanted the top to look like, I stained them black but ultimately I covered them in an industrial felt I scavenged.
Final Assembly.
![IMG_1870.jpg](/proxy/?url=https://content.instructables.com/FP8/EXIW/HYR3DUR5/FP8EXIWHYR3DUR5.jpg&filename=IMG_1870.jpg)
![IMG_2497.jpg](/proxy/?url=https://content.instructables.com/FUN/TNAA/HYR3DUZ8/FUNTNAAHYR3DUZ8.jpg&filename=IMG_2497.jpg)
![IMG_1868b.jpg](/proxy/?url=https://content.instructables.com/F5V/RPRP/HYR3E01U/F5VRPRPHYR3E01U.jpg&filename=IMG_1868b.jpg)
Remember the strips I kept from cutting the box down? I used them around the inside perimeter to create a ledge to hold the top. (I realized I was missing a few screws in one of the above pics, but you get the idea.)
I think my simple idea worked out quite well and the best thing... It cost me nothing.
