Drafting Table

I've been needing to organize my office and upgrade my desk for some time. I am in the construction industry and use blue prints daily. Having a dedicated space for bid job and jobs one will make my are and self more efficient (right side and the left side of the new desk). Hope you find this useful.

• Drill
• tape measure
• miter-saw
• table saw
• kreg jig
• w-71 furniture spray gun from gearbest
• sander
• bandsaw
• router table for making trim

This will save you tons of headaches

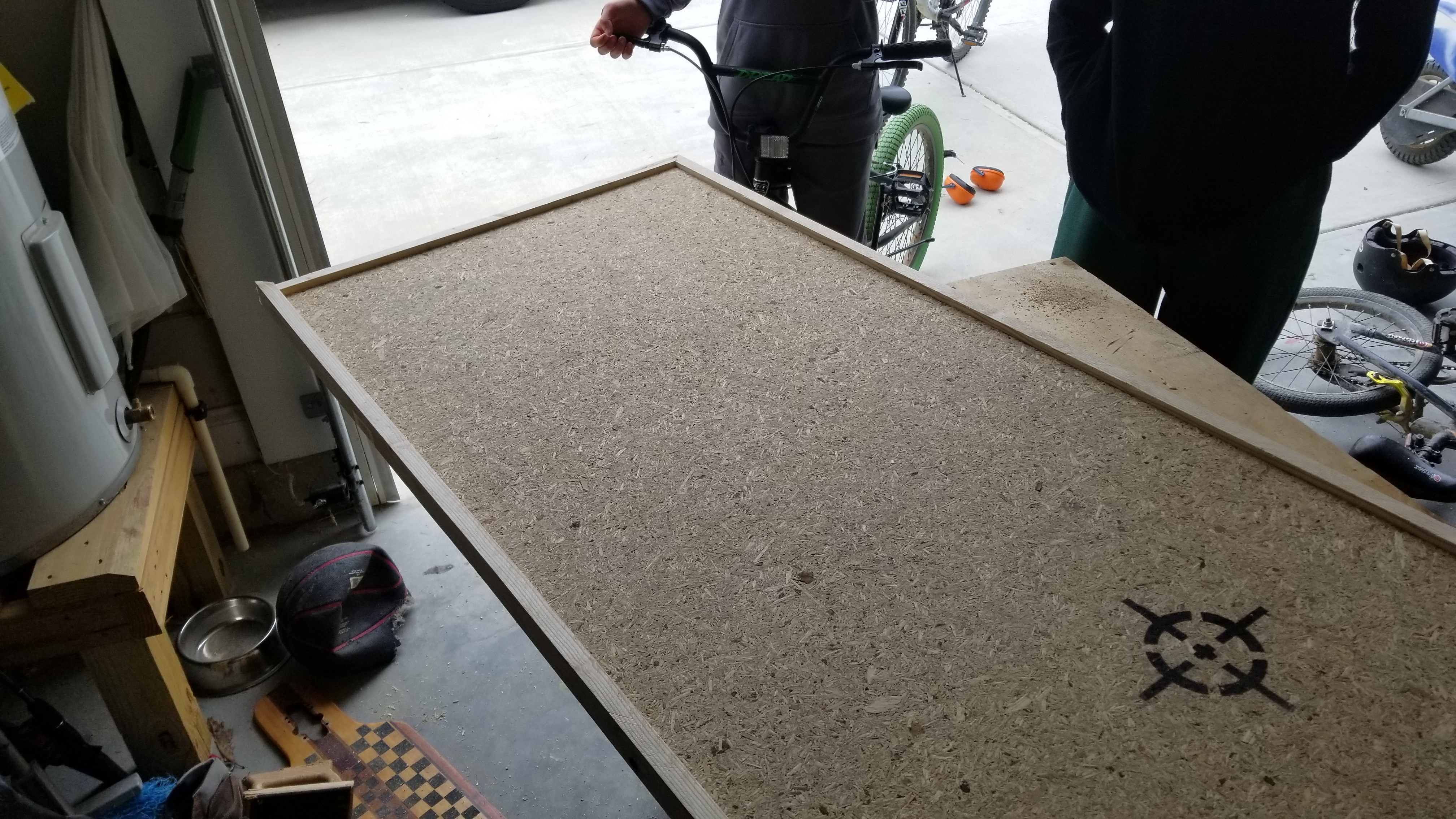

cut 2x4s to length and glue and screw the top together

Putting the 3 pieces together glue and screw them together

Kreg Jig made this easy and secure the trim pieces

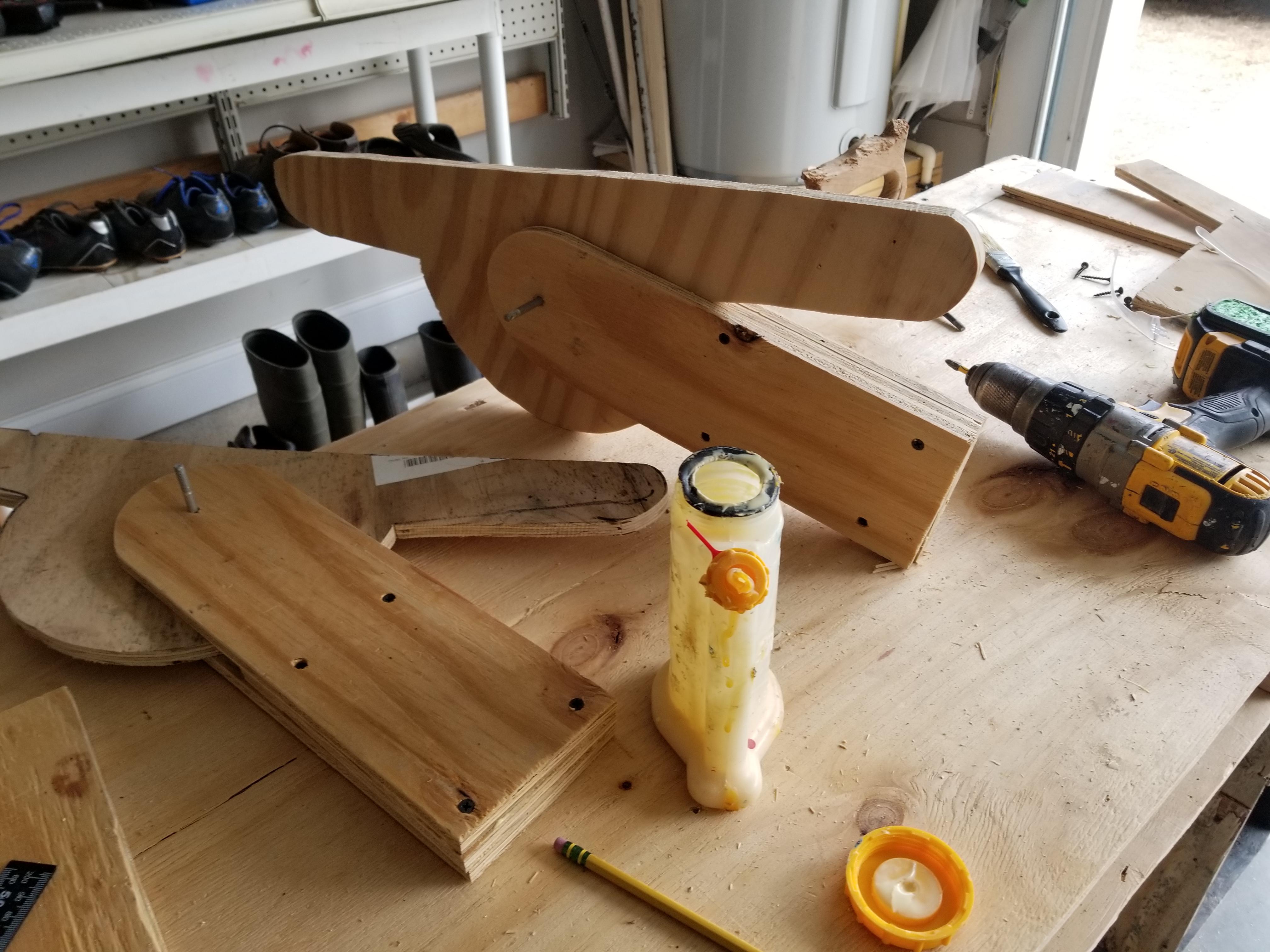

Using 1/4 inch bolts I bolted the 2 pieces together, then mounted the bracket to the plywood using screws and glue.

I wanted to see if everything would function as I wanted to so I did a dry fit and was pleased with the out come

Well I wasted most of the day planing and cutting pallet wood to mount to the top. I didn't like the look so I scrapped that idea and went for a much easier solution since I wont be using this portion of the table for writing or drawing so I wasn't worried about the seems in the wood flooring.

I used my Kreg Jig to make pocket holes and then made molding big enough to hide the holes later.

I used 1x4 and cut it into 1/2 strips to cover the fronts of all the ply wood. I went a little thicker on the top to account for the added top.

I used the scrap wood i had left over and built 3 drawers.

I cut some 1x4 at 1/4 inch and wrap the plywood and left 1/4 inch over hang.on the front.

i used a sprayer to spray the paint in the hard to reach spaces.

Love the way this turned out.
