Downdraft Table Workbench
by djpolymath in Workshop > Woodworking
10529 Views, 164 Favorites, 0 Comments
Downdraft Table Workbench

Downdraft table for dust collection.
MDF


Cut MDF to sit on top of table saw stand.
Box

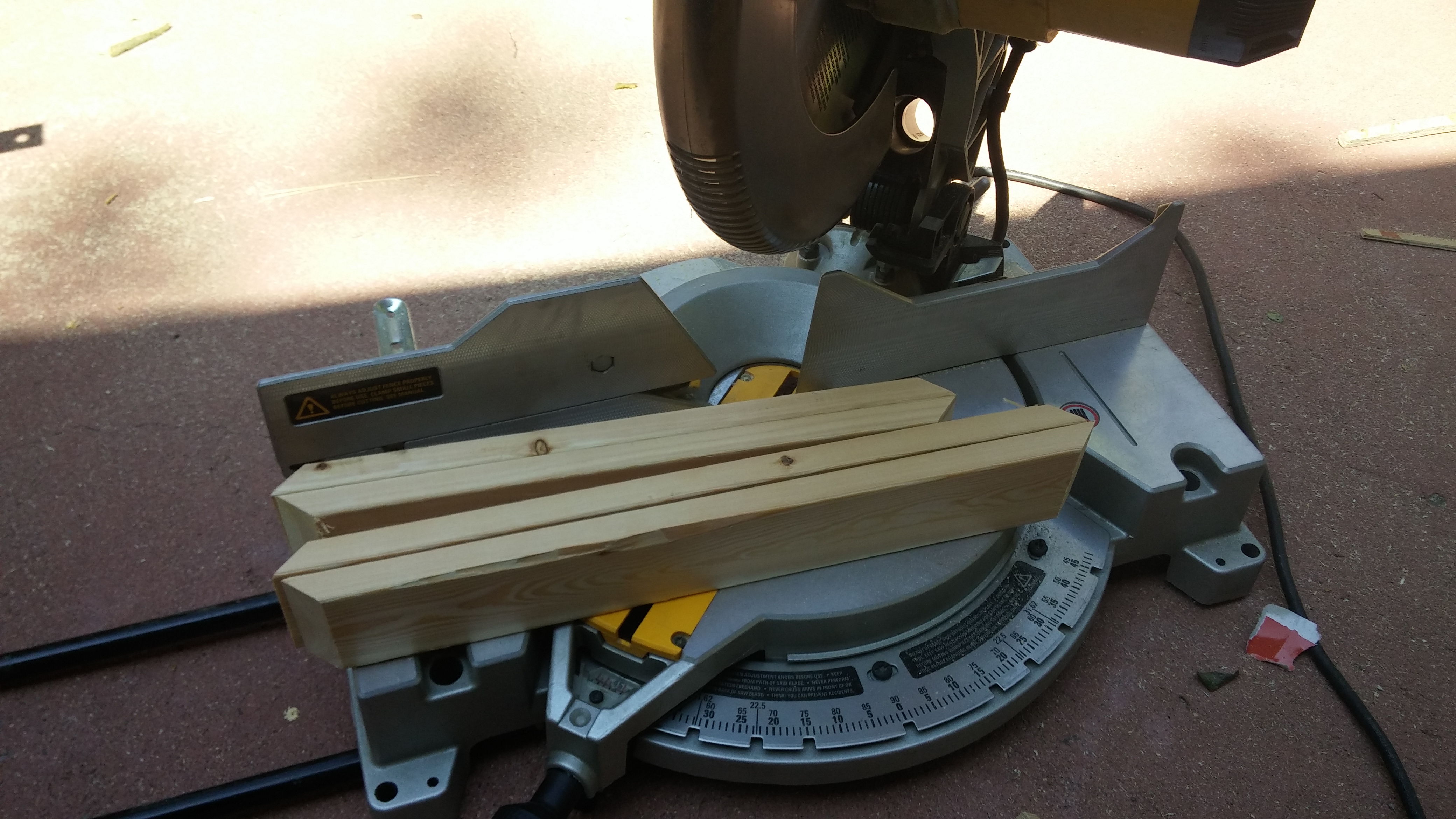

Cut wood boards and a small piece of MDF to fashion a box.
Fasten


Screw together.
Drill Holes



Drill holes in the top piece of MDF. Use peg board as a template.
Smooth

Smooth out the underside of the drill holes with a countersink bit.
Plumbing

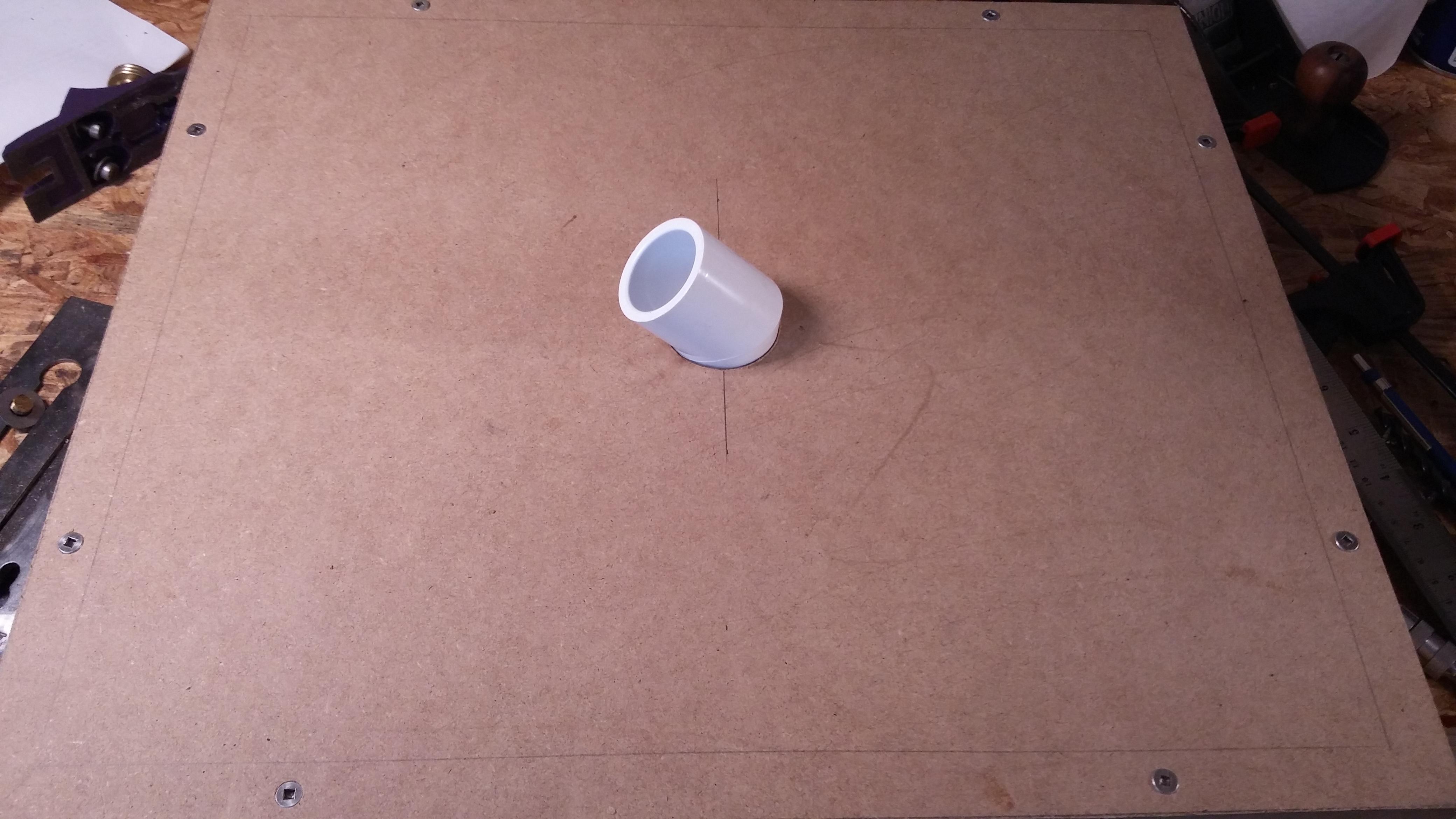

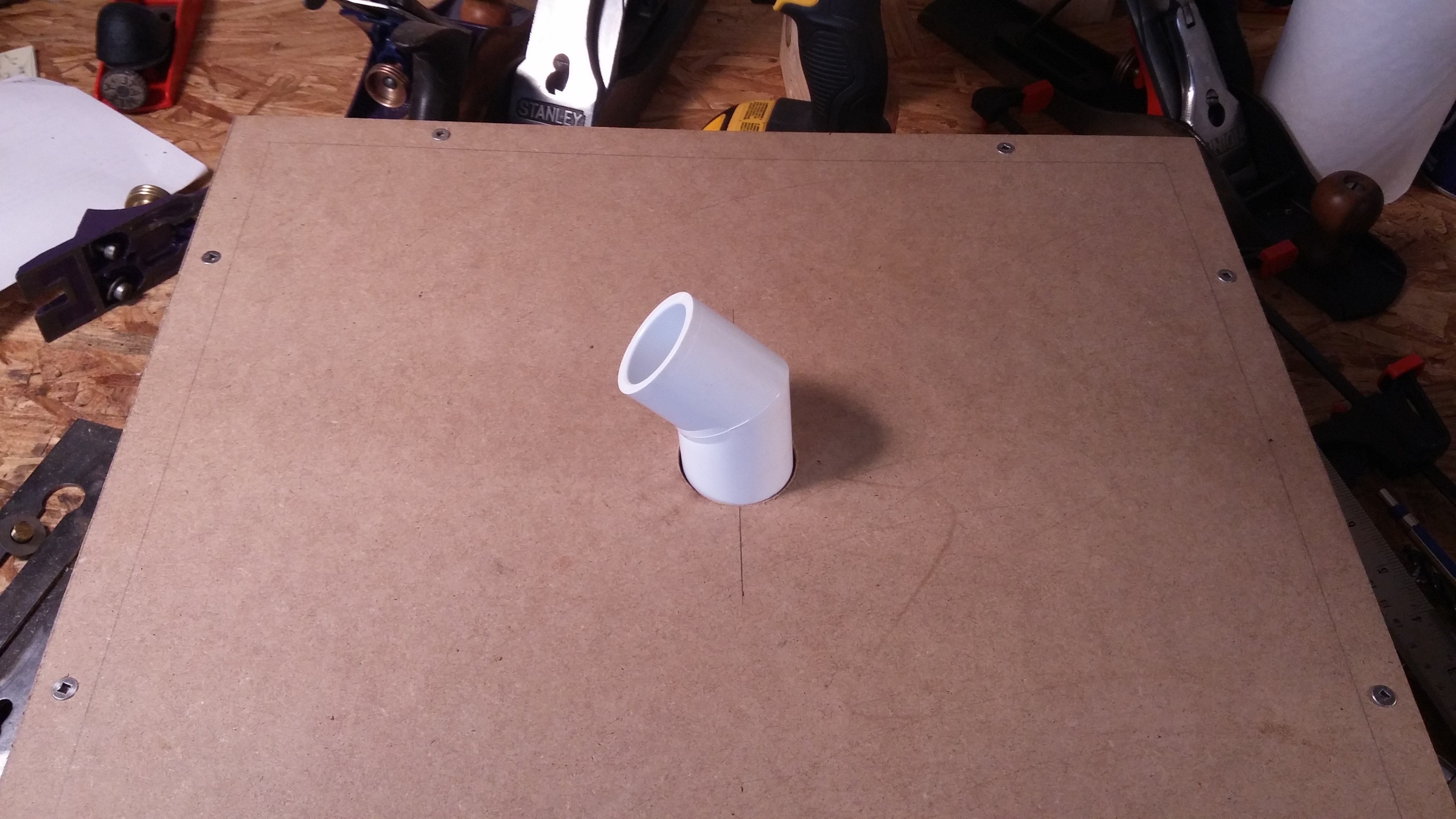

Attach a tube to connect to a shop vacuum.

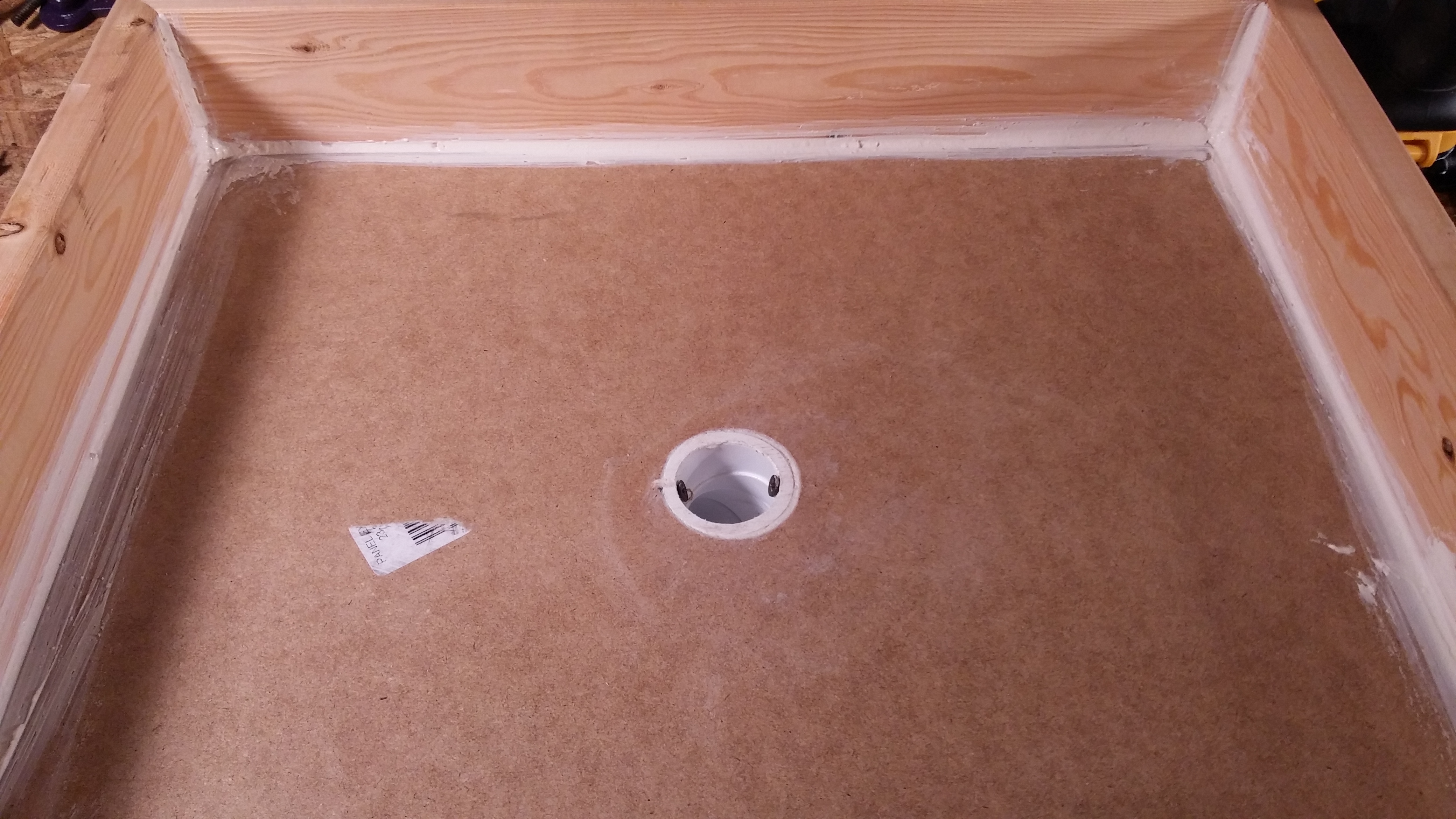

Caulk


Seal all the seams.

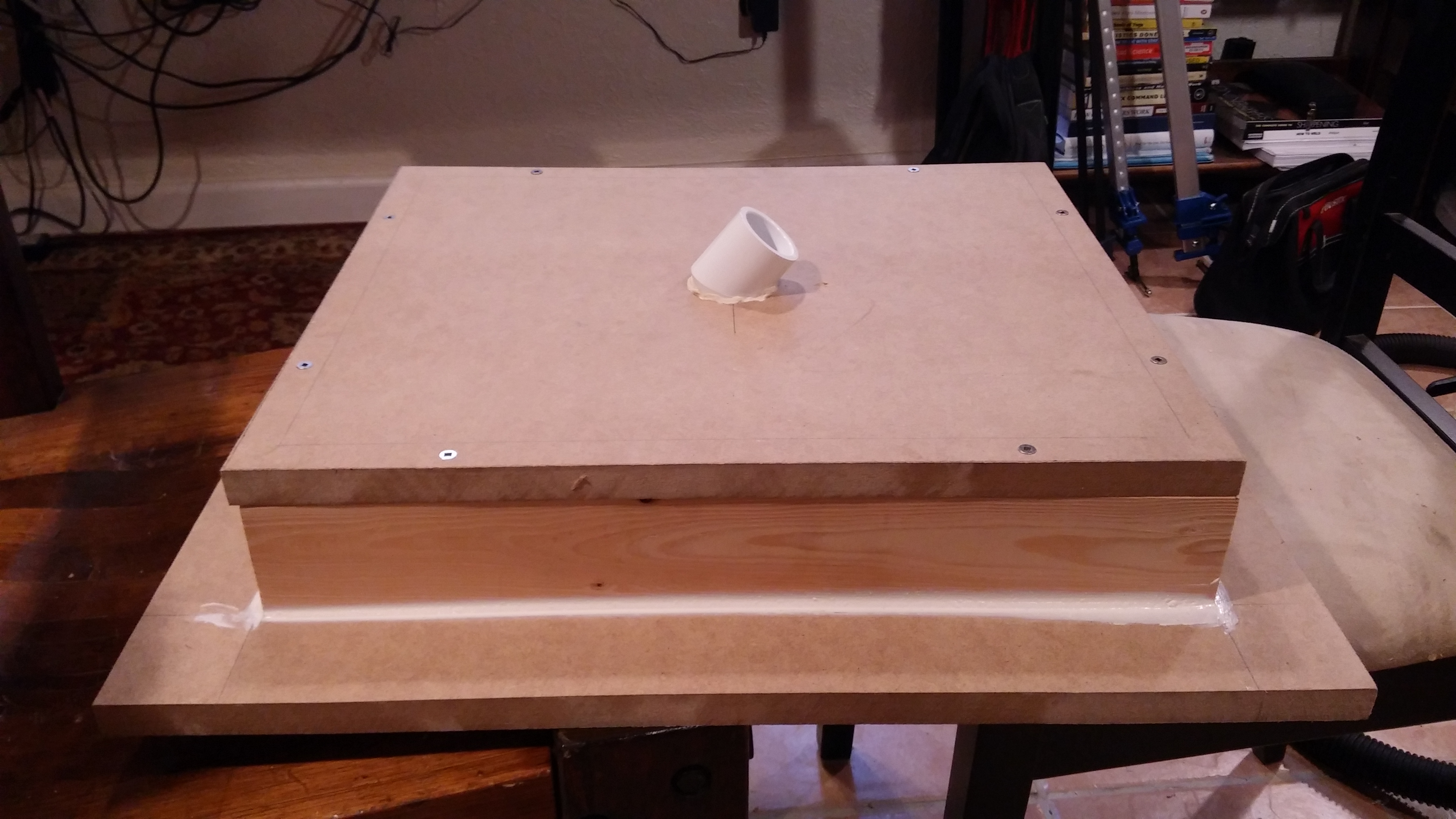

Attach Top

Fasten top piece of MDF to the box and seal.
Fit

Fit under the table saw.
Modification





The vacuum did not pull enough volume of air, so I modified the box to hook up to my dust collector.

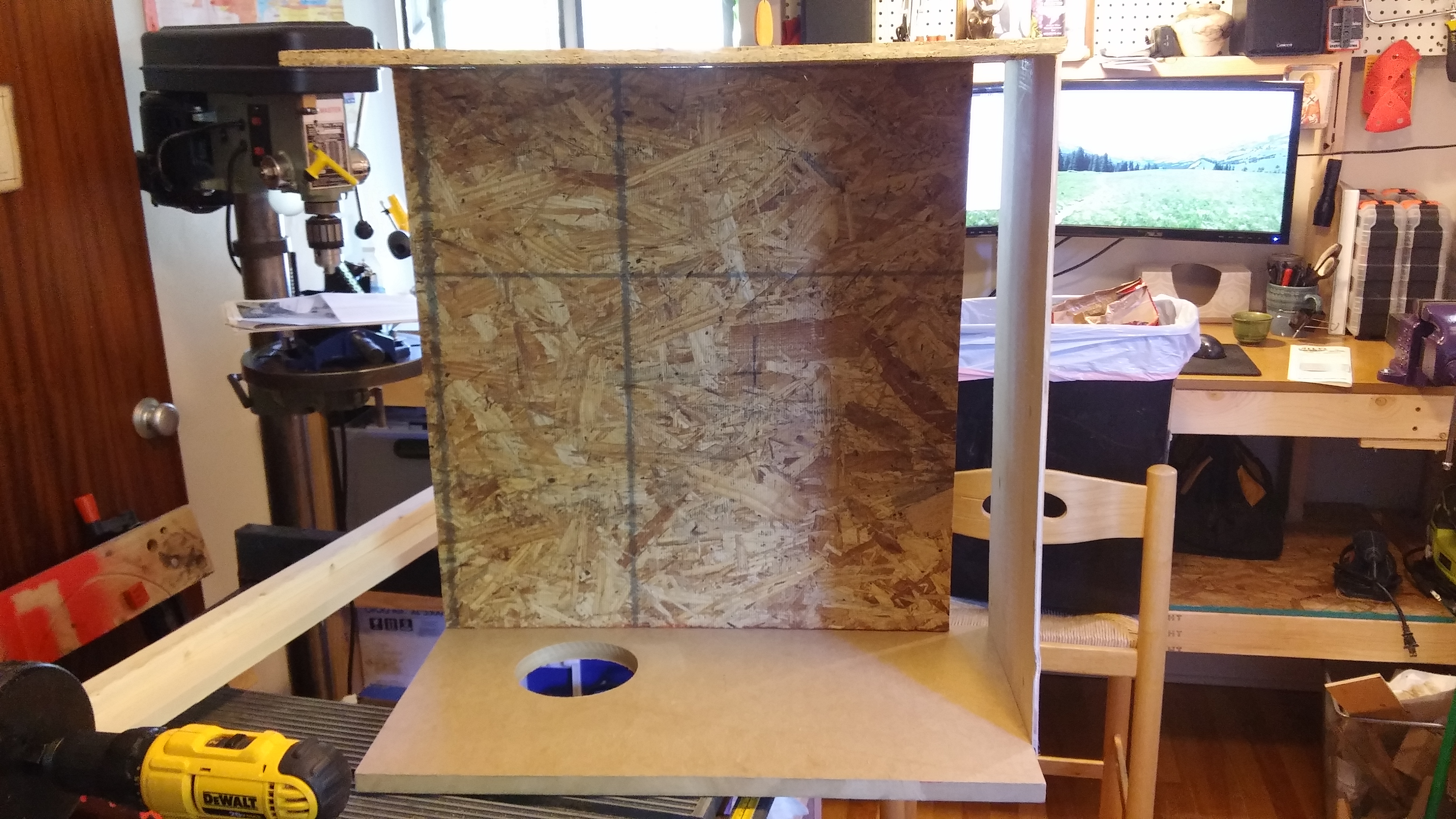

I also ended up getting a different table saw, so I decided to use the downdraft table as part of my workbench. I added a small box to contain dust with a second dust collector vent on the side.

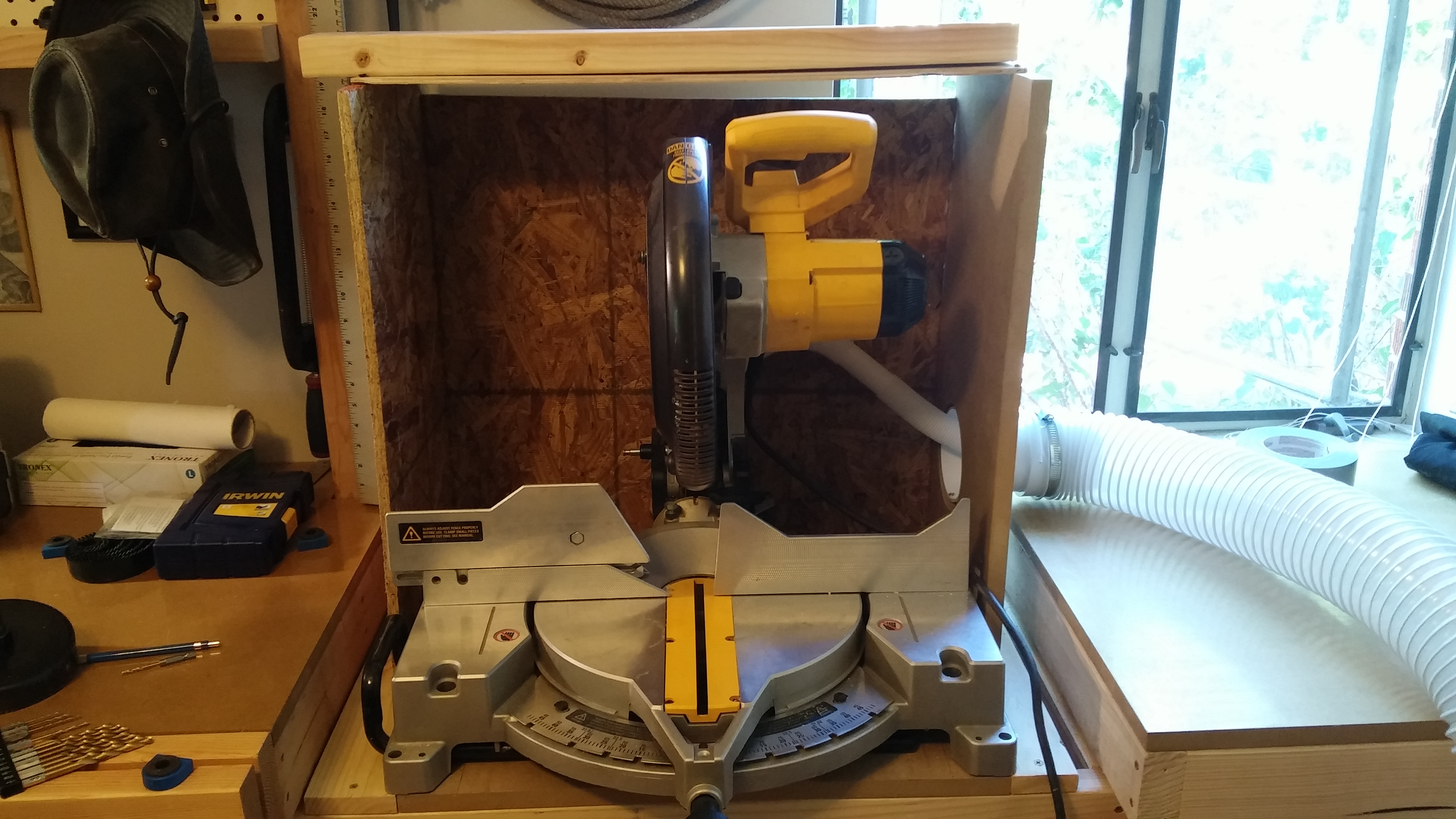

Downdraft Station



The space is now multipurpose and tools can be swapped out.
