ESP8266 - Door and Window Sensors - ESP8266. Elderly Assistance (forgetfulness)

ESP8266 - Door / window sensors using GPIO 0 and GPIO 2 (IOT). It can be viewed on the web or on the local network with browsers. Also visible through the "HelpIdoso Vxapp" application. Uses a 110/220 VAC supply for 5Vdc, 1 relay / voltage reduction kit / ESP8266 socket and mechanical pressure switches.

If you need the sketch (.io), contact me. The name of the door or window must be placed on the drawing to be engraved. Reading of switchies is almost immediate.

ATTENTION: To connect or reset the circuit (source or reset), we need to keep the contacts open (doors closed), otherwise, when resetting, it will the ESP8266 circuit enter the recording mode.

01 plastic box

01 ESP8266-01 circuit

01 Voltage regulator 3.3 VDC LM 1117 or similar

02 electrolytic capacitor 10 microFarad x 25 vcc or similar

01 Power supply 110/220 VAC - 5 VDC 250 mA

Mechanical sensors for doors and windows

02 resistors of 3k3 ohms / 1/4 watt (polarize GPIO 0 and 1)

miscellaneous yarns

Various bolts and nuts

To install the circuit I used a old and used window alarm container (imported), emptying it and adapting the ESP8266 with the inputs and outputs

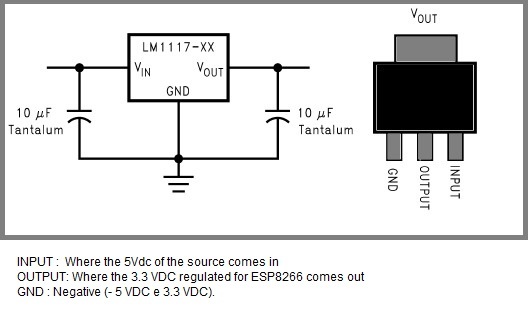

I prepared the output of the 110/220 VAC, 5 Vdc power supply (can be used to charge smartphones) with the 3.3 volt regulator to power the circuit.

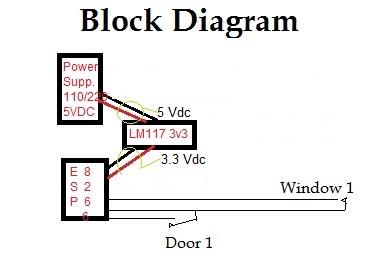

Connect all switches to the GPIO pins (0 and 2) and you can use 1 Kohms resistors in series and 3k3 ohms connected at +3.3 VDC.

The sensors are interrupted normally closed, when pressed by the doors, have open contacts, are NOT sent ground (-) to the GPIO.

2-pole mechanical switches that have normally closed contacts (NC) are ideal (washing machines, garage gates, etc.).

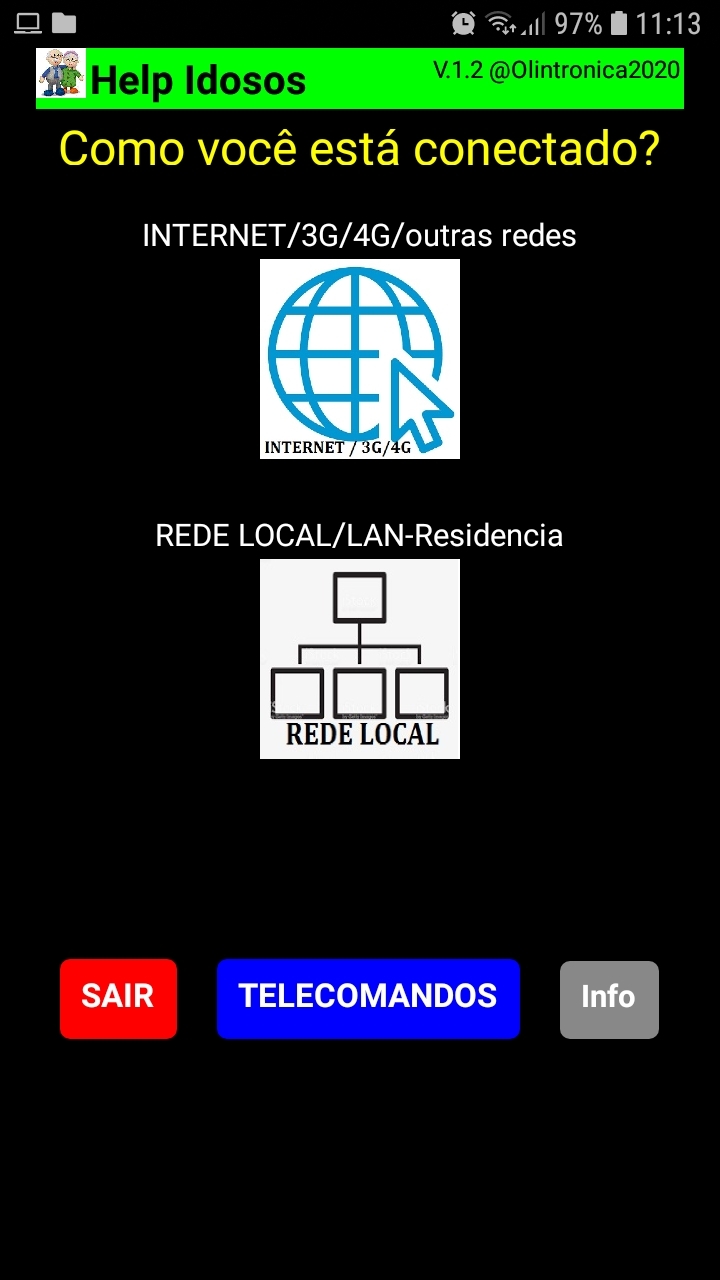

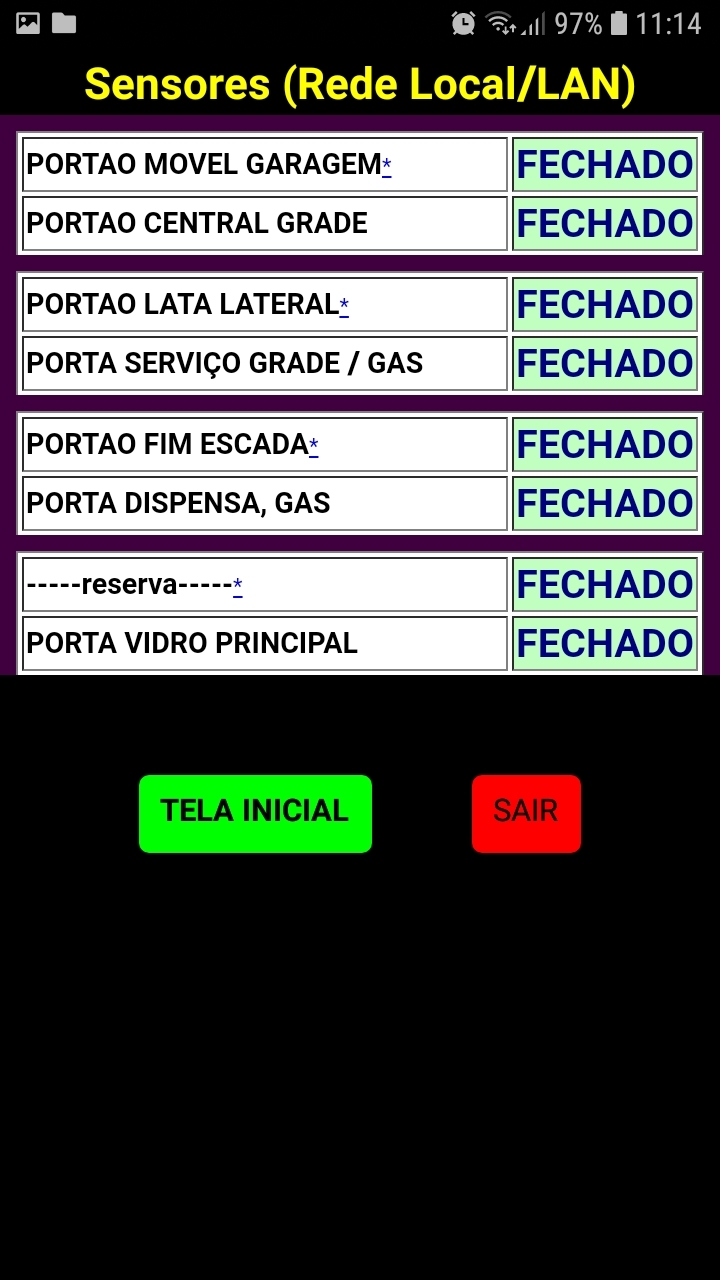

I made an Android application (HelpIdoso V.X) to view the status of doors and windows. The visualization can also be done through browsers in internet or local area network (LAN), directing to the IPs and ports of each sensor.

If you want the sketch of this ESP8266 used, contact me and I will send it to you.
